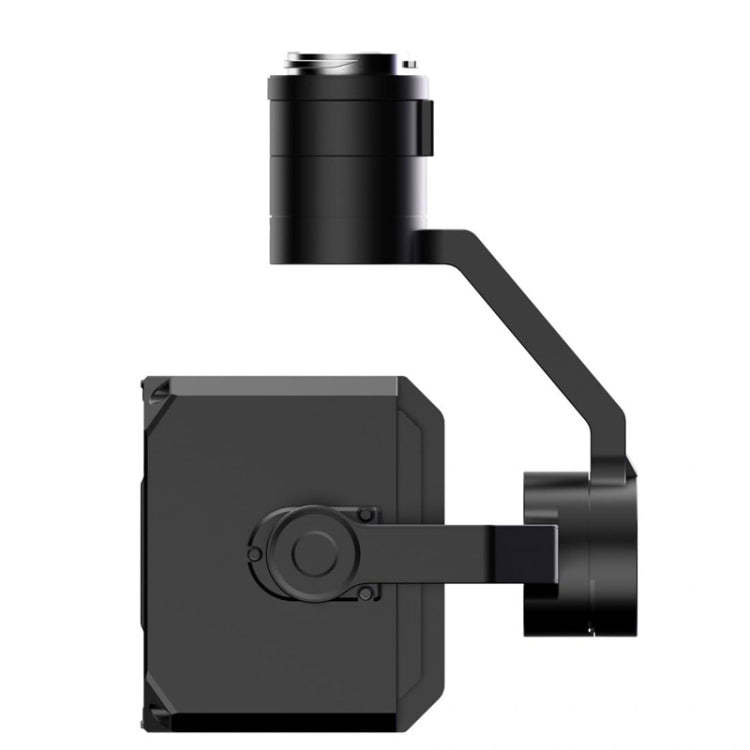

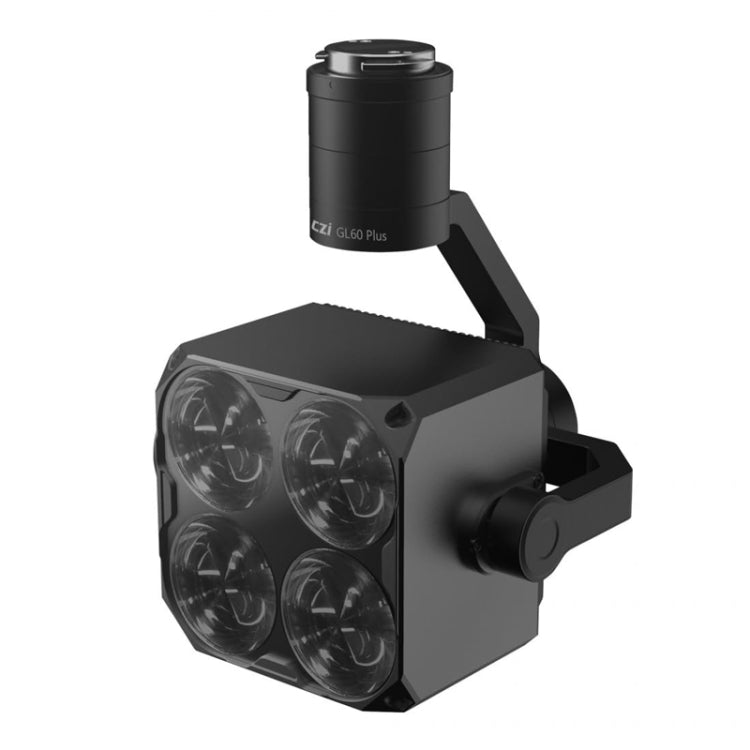

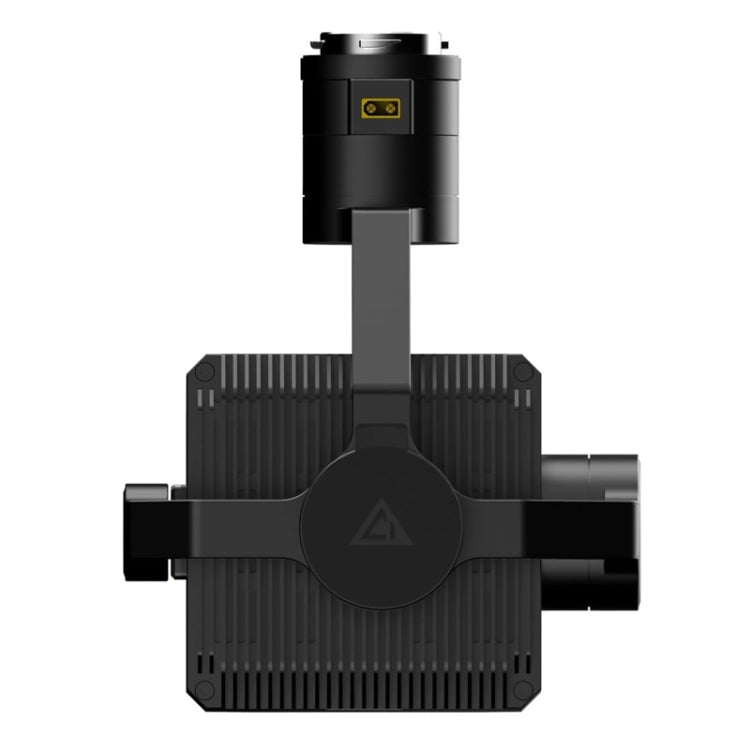

CZI GL60 Plus Gimbal Searchlight For DJI M200V2, M300RTK And Other Series Of Drones
CZI GL60 Plus Gimbal Searchlight For DJI M200V2, M300RTK And Other Series Of Drones
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. The GL60 Plus gimbal lamp uses 4 sets of optical imaging components, each of which is composed of 4 lenses, emitting a sharp beam of light with an angle of only 15 degrees, with consistent color and uniform brightness. At 120w, the central illumination value of the light spot at 100m is as high as 24lux; at an illumination height of 150m, the effective illumination area is as high as 1225 square meters, which brings the aerial illumination effect of drone night operations to a new height.

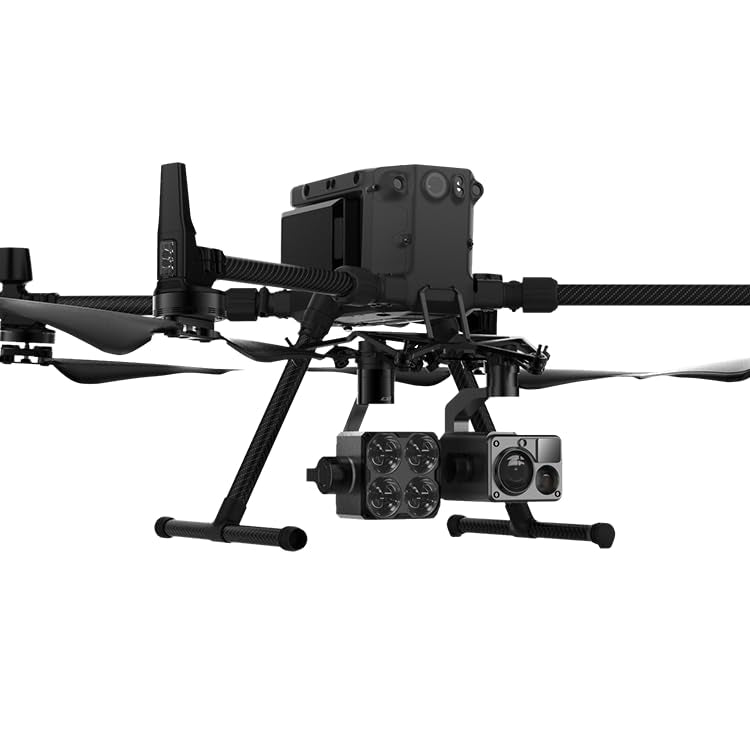

2. The overall ultra-lightweight design weighs only 750 grams, with a rated power of up to 120W. Through the DJI SkyPort V2.0 interface, it is compatible with DJI M200 V2, M300 RTK, and other series of drones, and can meet the needs of night inspections, warnings and expulsions, direction indications, power line inspections, search and rescue, and other night operations.
Parameters:
1. Electrical interface: DJI SkyPort V2.0
2. Weight: 750g
3. Size: 126x131x167mm
4. FOV: 15 degrees
5. Power supply voltage: PSDK 17V+OSDK 24V
PSDK 17V
6. Total power: 128W, 68W
7. LED power: 120W, 60W
8. Color temperature: 5000~6000K
9. Luminous flux:
--13400lm+/-3% (power: 120W)
--8000lm+/-3% (power: 60W)
10. Light efficiency:
--111.67lm/W (power: 120W)
--133.33lm/W (power: 60W)
11. Spot diameter:
--13.2m (distance: 50m, 120W)
--26.4m (distance: 100m, 120W)
--39.5m (distance: 50m, 120W)
--13.2m (distance: 50m, 60W)
--26.4m (distance: 100m, 60W)
--39.5m (distance: 150m, 60W)
12. Searchlight area:
--136 square meters (distance: 50m, 120W)
--544 square meters (distance: 100m, 120W)
--1225 square meters (distance: 150m, 120W)
--136 square meters (distance: 50m, 60W)
--544 square meters (distance: 100m, 60W)
--1225 square meters (distance: 150m, 60W)
13. Center illumination:
--85Lux (power: 120W; distance: 50m)
--23Lux (power: 120W; distance: 100m)
--11Lux (power: 120W; distance: 150m)
--45Lux (power: 60W; distance: 50m)
--12Lux (power: 60W; distance: 100m)
--6Lux (power: 60W; distance: 150m)
14. Function mode:
--Constant light: 120W, 60W
--Flash: 120W, 60W
--Gimbal angle adjustment
--Auto follow
--Brightness adjustment
15. Gimbal rotation range:
--Pitch: -99~+23 degrees
--Horizontal: +/-99 degrees
16. Gimbal design range:
--Pitch: -100~+24 degrees
--Horizontal: +/-100 degrees
--Roll: -90~+60 degrees
17. Working temperature: -20~+50 degrees Celsius
