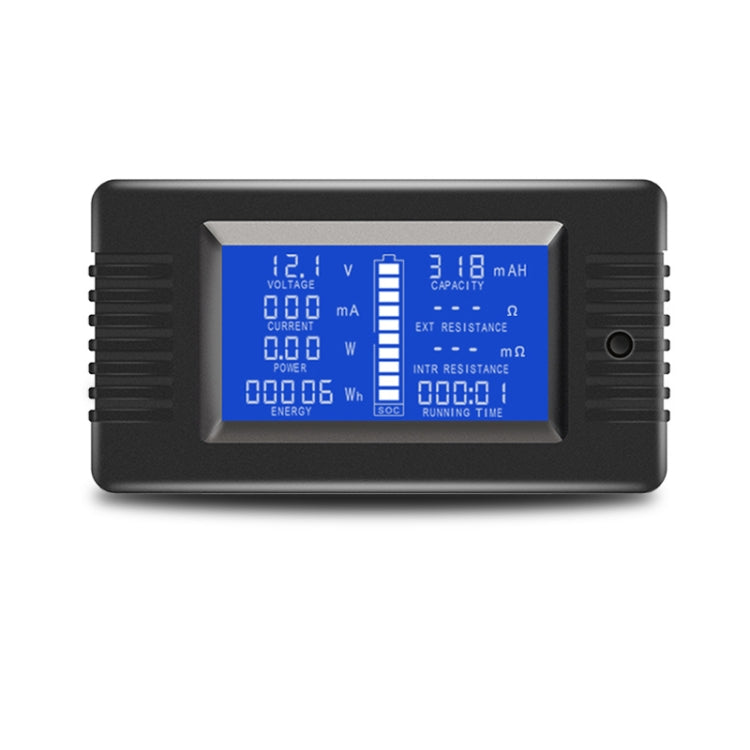

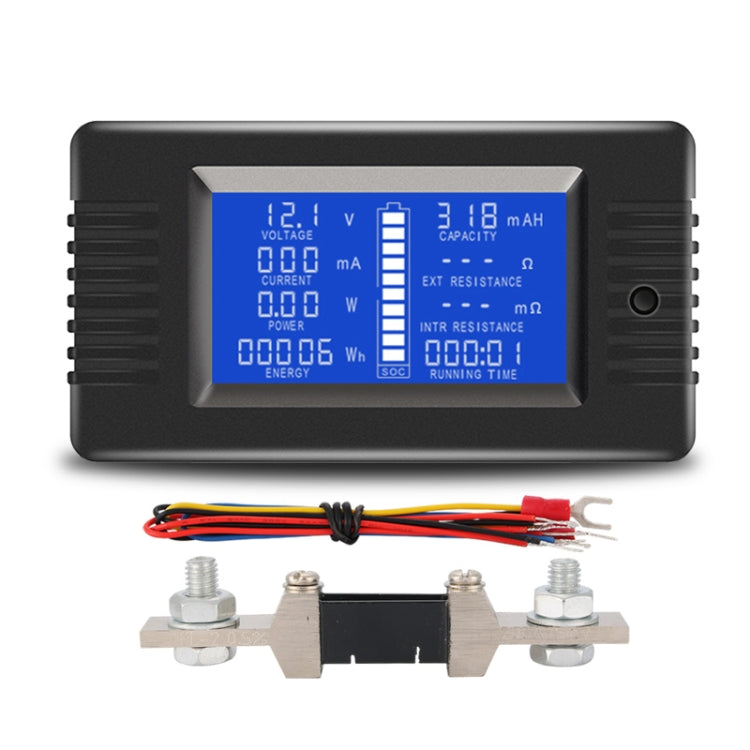

DC 0-200V Voltage Current Battery Tester, Specification: PZEM-015 With 200A Shunt
DC 0-200V Voltage Current Battery Tester, Specification: PZEM-015 With 200A Shunt
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

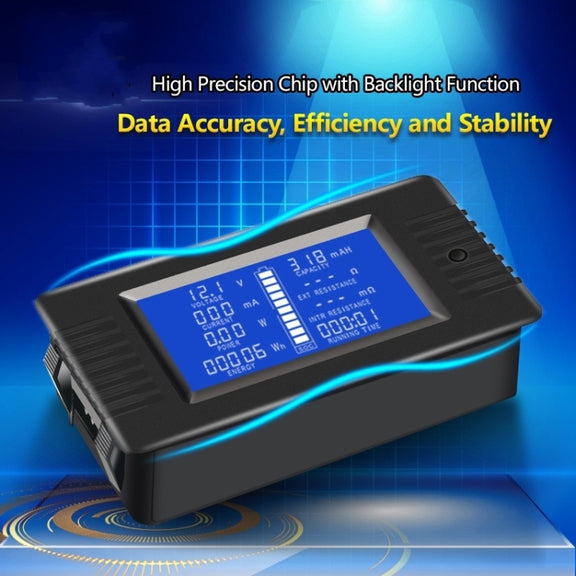

DC 0-200V Voltage Current Battery Tester is designed to measure battery voltage, discharge current, power, impedance, internal resistance, capacity, and energy. It is suitable for applications such as monitoring battery performance in renewable energy systems or electric vehicles.
- Measuring range for voltage: 0-200V
- Display format for voltage: less than 10V as 9.99V, less than 100V as 99.9V, more than 100V as 199V
- Minimum resolution for voltage: 0.01V
- Measurement accuracy for voltage: 1%
- Measuring range for current: 0-300A (Model: PZEM-015)
- Display format for current: less than 1A as 999mA, less than 10A as 9.99A, less than 100A as 99.9A, greater than or equal to 100A as 199A
- Minimum resolution for current: 1mA
- Measurement accuracy for current: 1%
- Measuring range for power: 0-60000W (Model: PZEM-015)
- Display format for power: less than 10W as 9.99W, less than 100W as 99.9W, less than 1000W as 999W, less than 10000W as 9.99kW, greater than or equal to 10000W as 19.9kW
- Minimum resolution for power: 0.01W
- Measurement accuracy for power: 1%
- Measuring range for impedance: 0-1000Ω
- Minimum resolution for impedance: 0.1Ω
- Measurement accuracy for impedance: 1%
- Measuring range for internal resistance: 0-999mΩ
- Minimum resolution for internal resistance: 1mΩ
- Measurement accuracy for internal resistance: 1%
- Measuring range for capacity: 0-1000Ah
- Minimum resolution for capacity: 1mAh
- Measurement accuracy for capacity: 1%
- Measuring range for energy: 0-9999kWh
- Minimum resolution for energy: 1Wh
- Measurement accuracy for energy: 1%
- Discharge energy indicator: represented by a battery symbol with 10 grids, each grid representing 10% of power
