Description

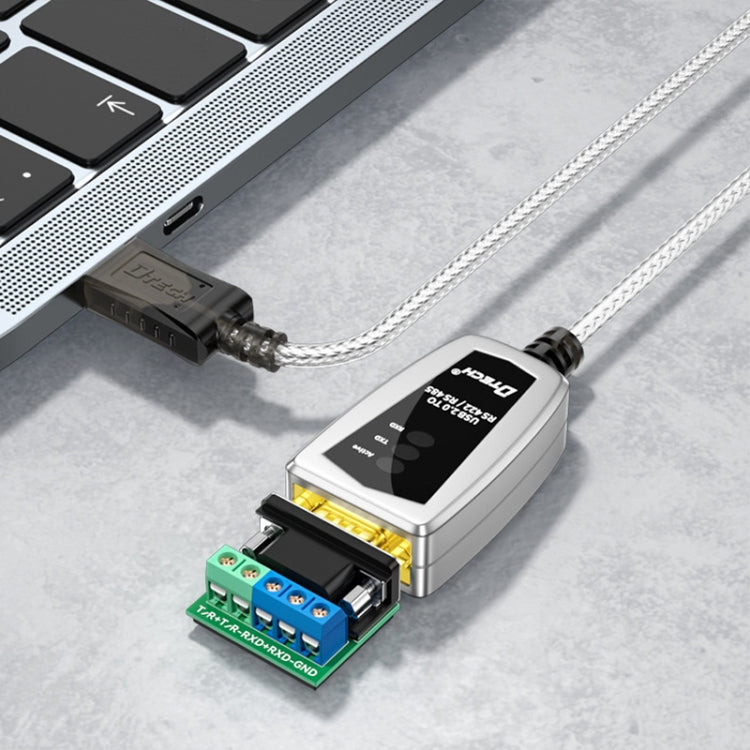

The DTECH DT-5119 is a USB to RS485/422 industrial converter designed for serial line communication. It is suitable for applications in industrial automation control systems, access control systems, and various other control systems.
- Product Type: USB to RS485/422 Industrial Converter
- Compatibility: USB to RS485/422
- Material: ABS
- Color/Variant: Not specified
- Compatible Standards: EIA/TIA RS-485 and RS-422
- Wire Structure: 24WG wire, 80 braided tinned copper braid, aluminum foil double shielding, four tensile ropes, 7 cores, 8mm thick wire body

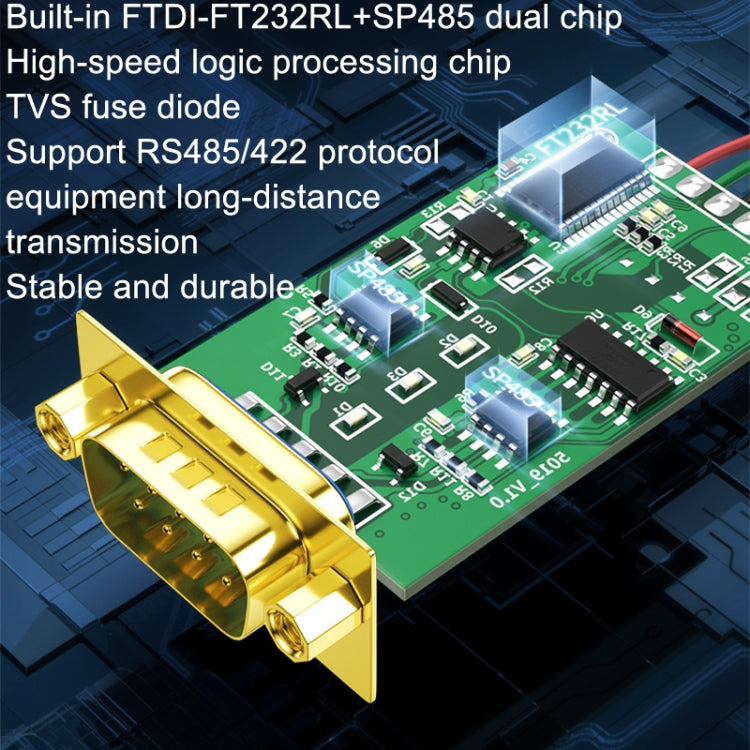

- Chip: FTDI-FT232RL+sp485 dual chip

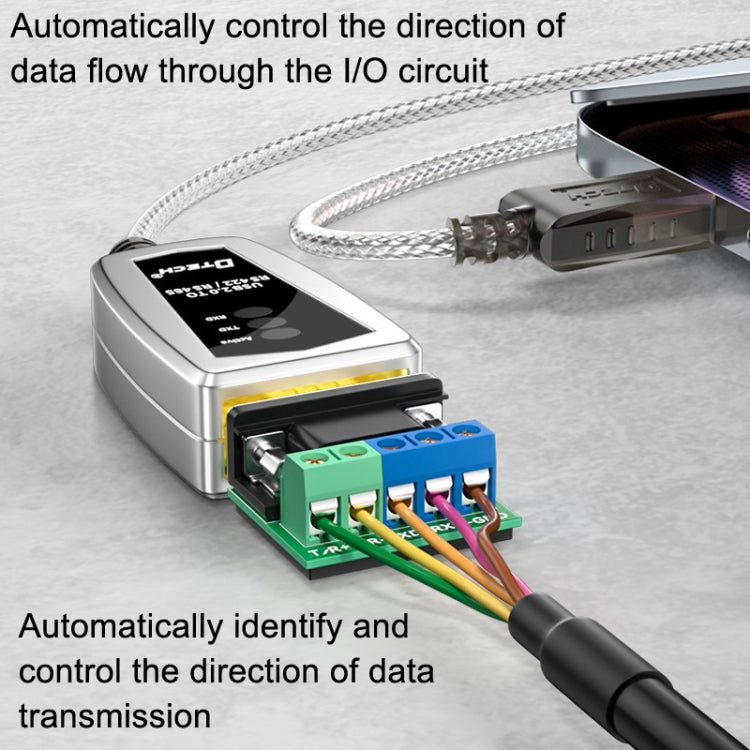

- Working Mode: Asynchronous half-duplex and full-duplex communication
- USB Signal: VCC, DATA+, DATA-, GND
- RS-485/RS-422/DB9 Pin Signal: T/R+, T/R-, GND

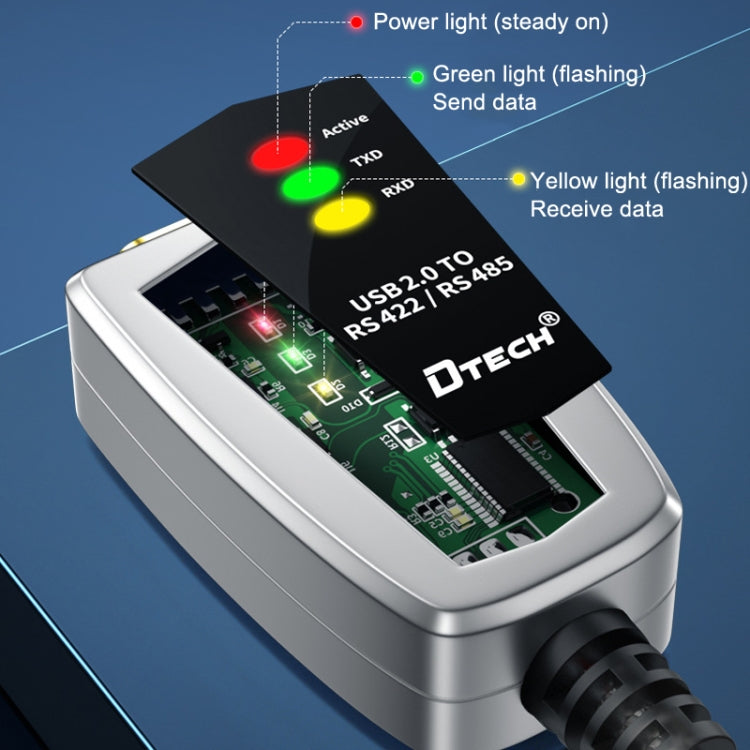

- Signal Indication: Red light for power supply, green light for sending signal, yellow light for receiving signal

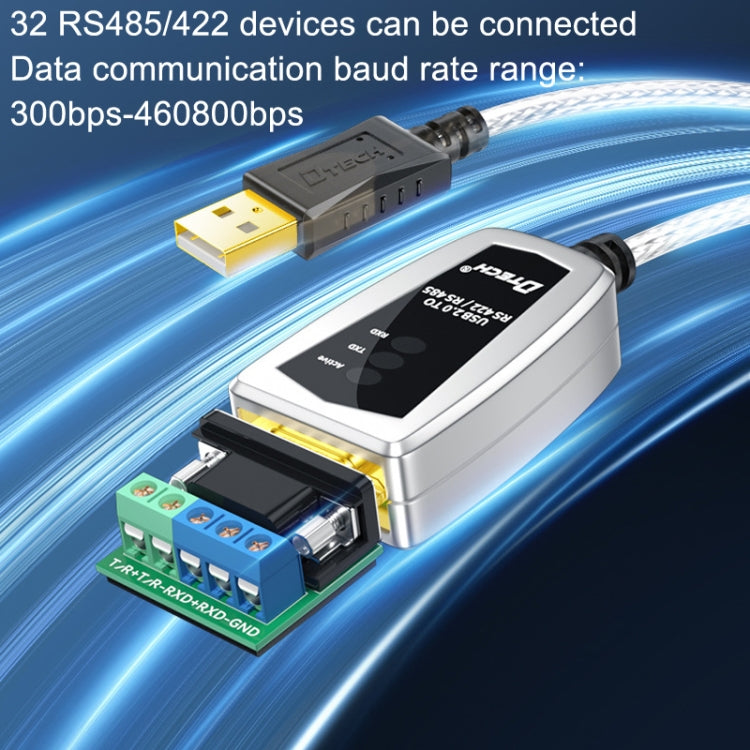

- Communication Rate: 300bps-460800bps, automatic detection of serial port signal rate
- Communication Distance: 0-5 meters at USB end; 0-1200 meters at RS-485/RS-422 end
- Number of Connectable Nodes: Supports 32 RS-485/RS-422 terminals
- Communication Mode: RS-485 point-to-point half-duplex, RS-485 point-to-multipoint half-duplex, RS-422 point-to-point full-duplex, RS-422 point-to-multipoint full-duplex
- Protection Level: 15kV IEC1000-4-2 Air Discharge
- Lightning Protection and Surge Protection: 600W lightning surge protection
- Wiring Method: Twisted pair or shielded wire
- Transmission Medium: Twisted pair or shielded wire

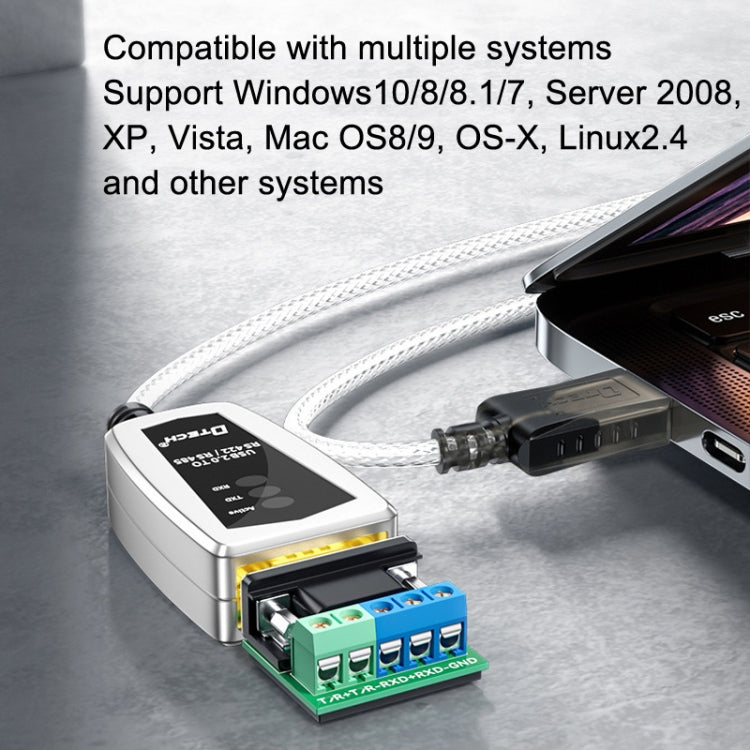

- Supported Systems: Windows 10/8/8.1/7, Server 2008, XP, Vista, Mac OS 8/9, OS-X, Linux 2.4 and others
- Power Supply Mode: USB power supply
- Voltage Range: 5V
- Working Current: Less than 300mA
- Application Scenarios: Industrial automation control, access control, power control, parking lot systems, attendance machines, industrial computers, PLC controllers
- Weight: Approximately 70g

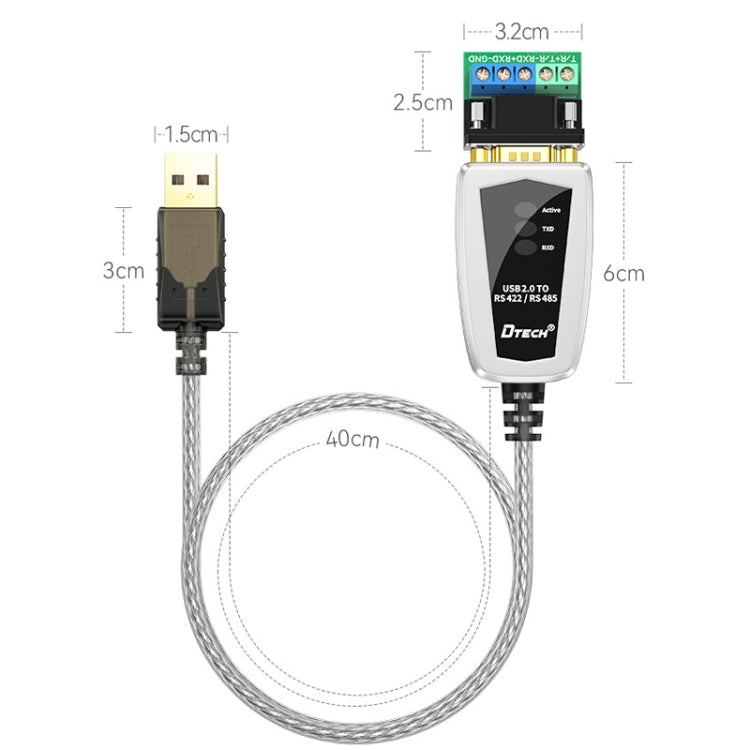

- Length: Approximately 0.5m
