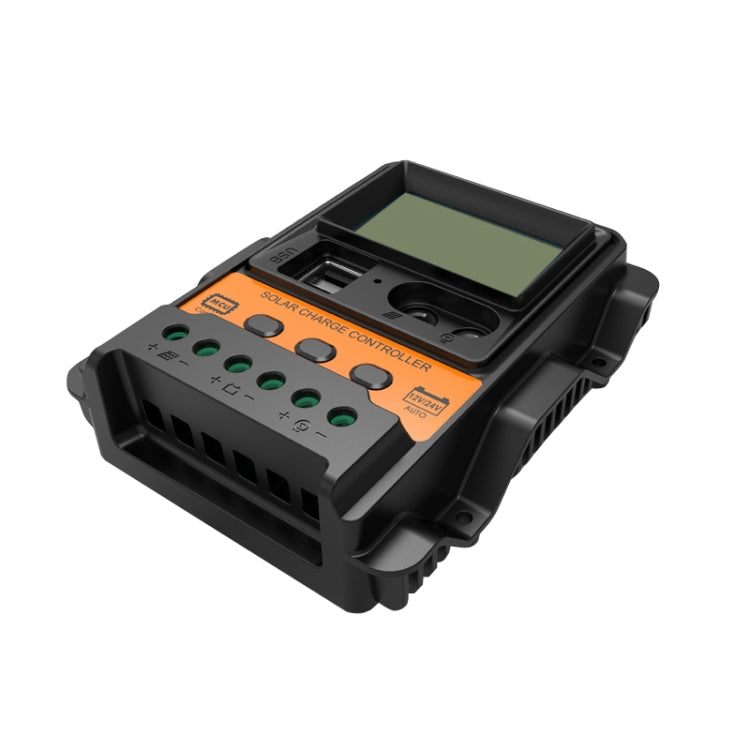

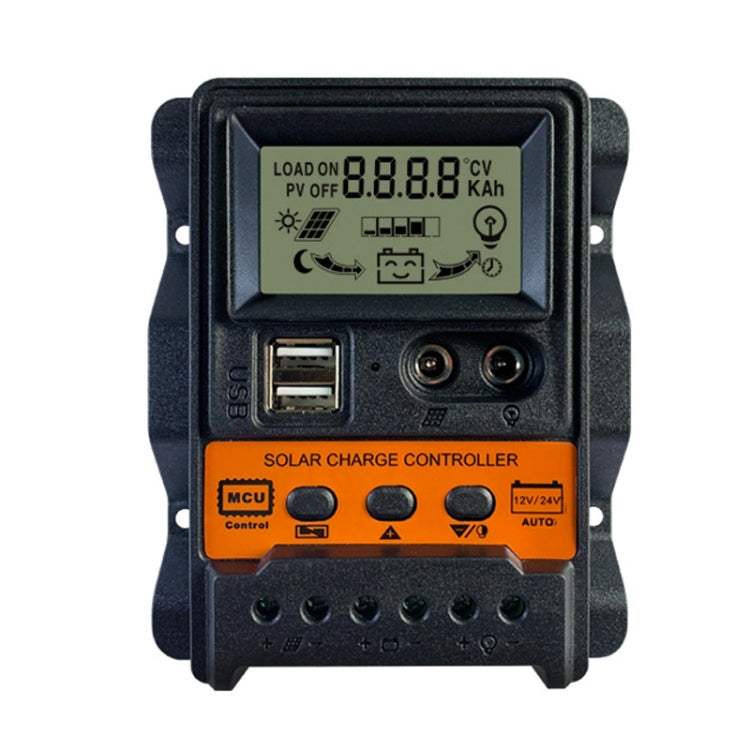

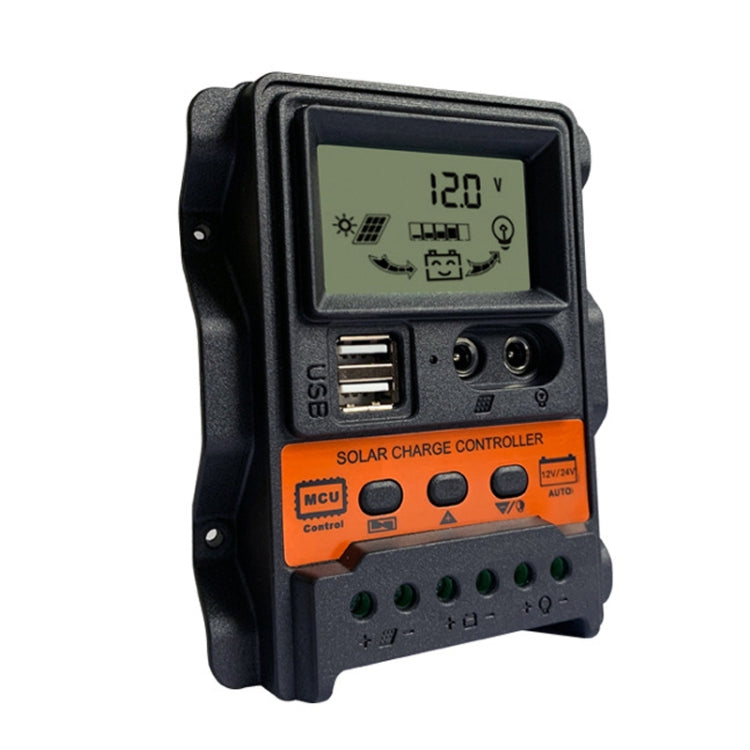

Dual DC Current 12V/24V Solar Controller LCD PWM Photovoltaic Power Generation Controller(10A)

Dual DC Current 12V/24V Solar Controller is designed for photovoltaic power generation systems. It automatically adapts to 12V or 24V systems, making it suitable for various solar applications.

• Product Type: Solar Controller
• Compatibility: 12V/24V systems
• Material: Industrial-grade
• System Voltage: 12V/24V automatic adaptation
• Rated Charging Current: 10A
• Rated Discharge Current: 10A
• Photovoltaic Voltage: 23V for 12V battery; 46V for 24V battery
• Boost Charging Voltage: 14.4V
• Float Voltage: 13.7V (default, adjustable)
• Discharge Cut-off Voltage: 10.7V (default value, adjustable)
• Discharge Recovery Voltage: 12.6V (default value, adjustable)
• Charging Recovery Voltage: 13V
• Light-Controlled Light-On Threshold: 8V (with delay)
• Light-Controlled Turn-Off Threshold: 8V (with delay)
• USB Output: 2 USB outputs, 5V/2.5A
• Standby Current: less than 10mA
• Working Temperature: -35 to 60 degrees Celsius
• Size: 125x112x34mm
• Weight: 179g
• Features: Industrial-grade main control chip

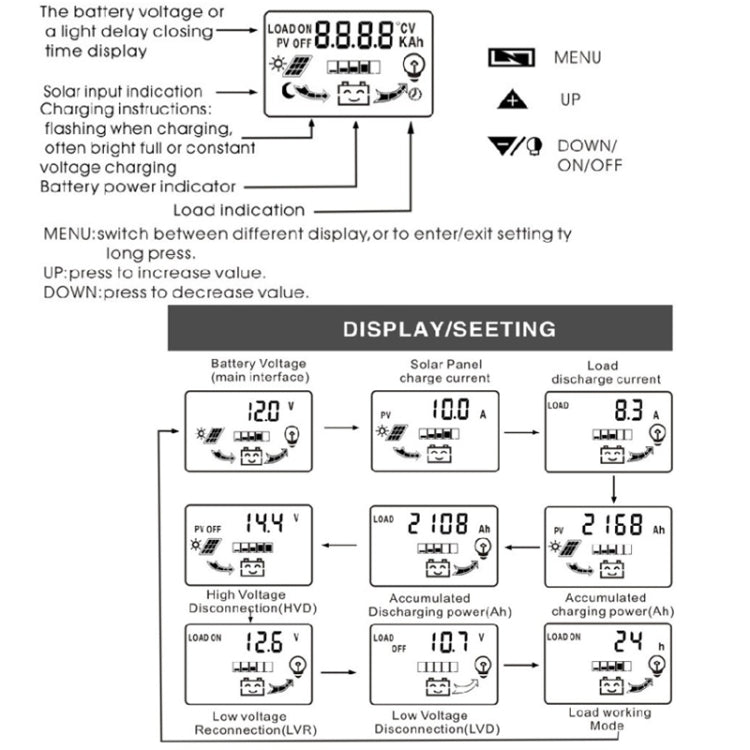

• Large-screen LCD display with charging and discharging current display
• Cumulative power generation and discharge power query
• Temperature display
• Light control + delay control
• Adjustable charging and discharging parameters
• Power-off memory function
• Dual USB output, current up to 2.5A, supports Apple mobile phone charging
• Complete 3-stage charging management
• Built-in over-current, short-circuit protection, open-circuit protection, and reverse connection protection
• Anti-backflow circuit with ultra-low heat generation

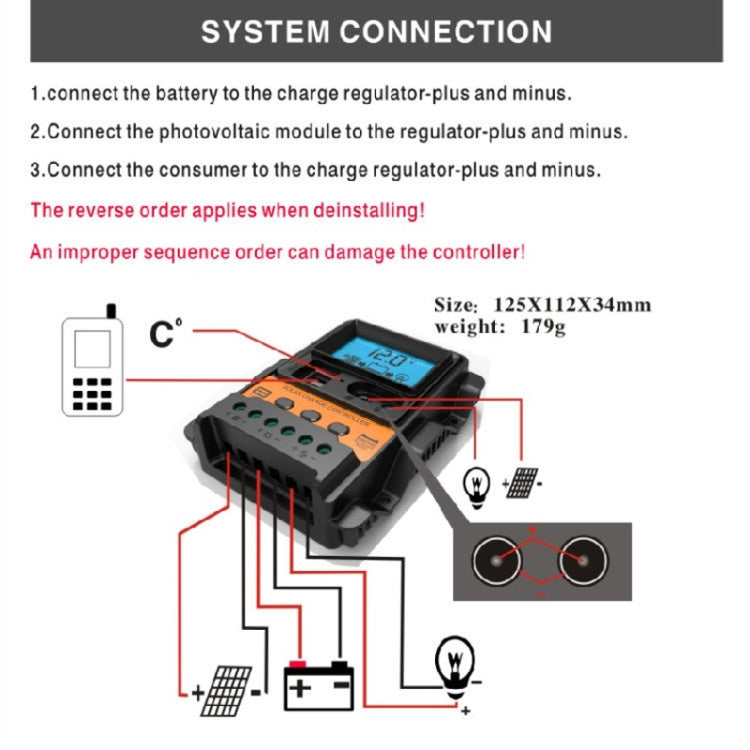

• Installation advice: Connect positive and negative poles of the battery and load as per diagram
• Safe use advice: Suitable for various lead-acid batteries (open, sealed, gel, etc.)
• Charging source: Photovoltaic panels only
• Installation: Ensure proper ventilation and flat surface
