Product details
Description

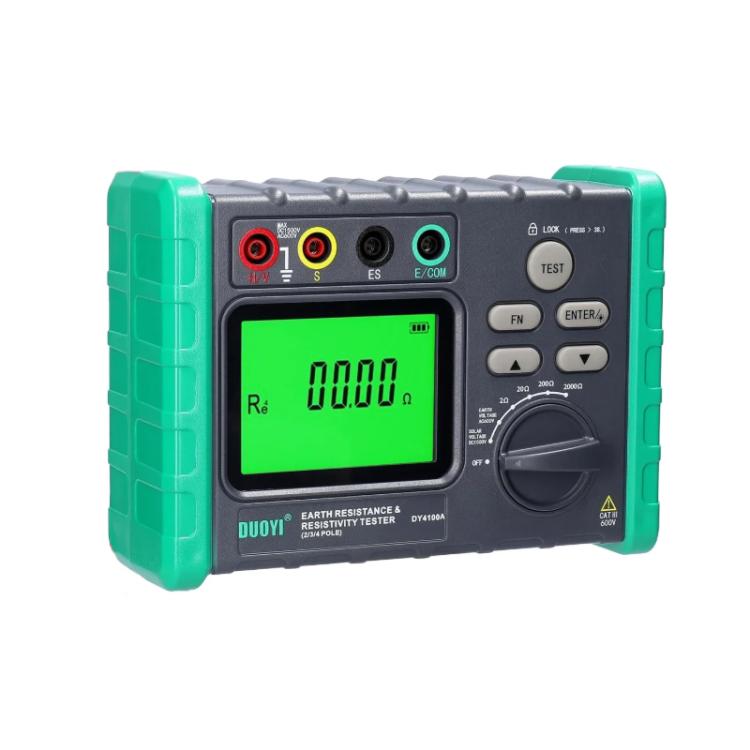

DUOYI Digital Ground Resistance Meter Tester, Model DY4100B is designed to measure ground resistance and soil resistivity. It is suitable for use in various industries such as power, telecommunications, and mining.
- Model: DY4100B
- Measurement Types: Ground resistance, soil resistivity

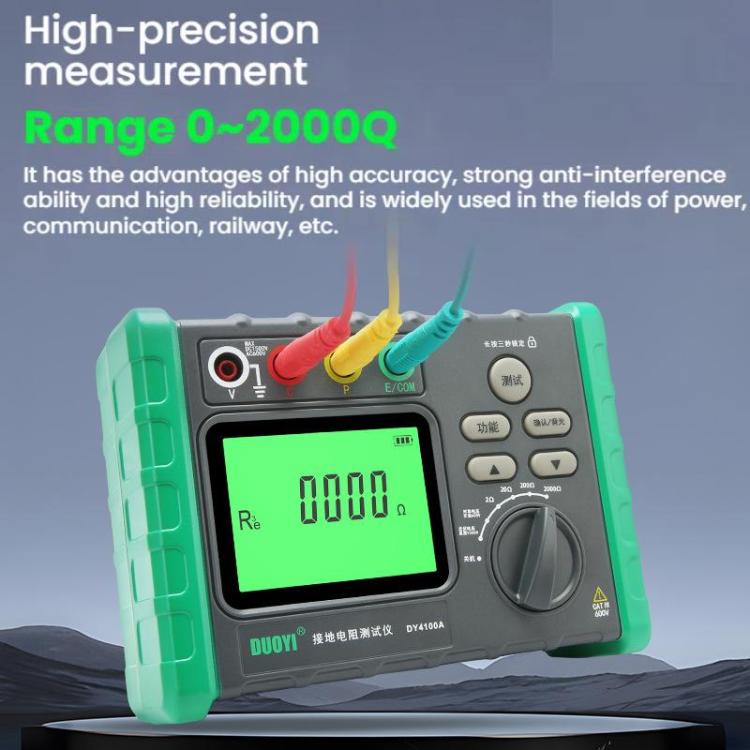

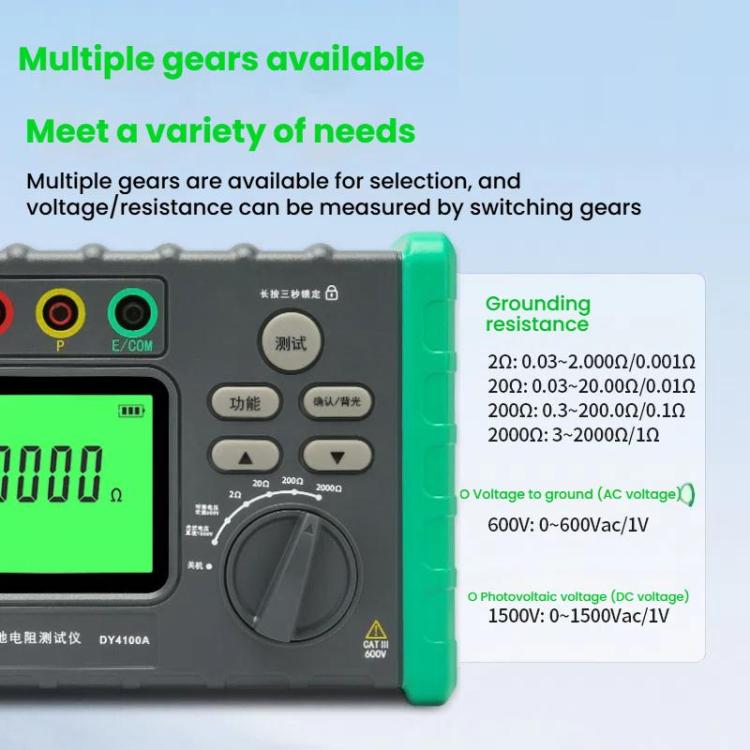

- Test Range: 2 ohms, 20 ohms, 200 ohms, 2000 ohms

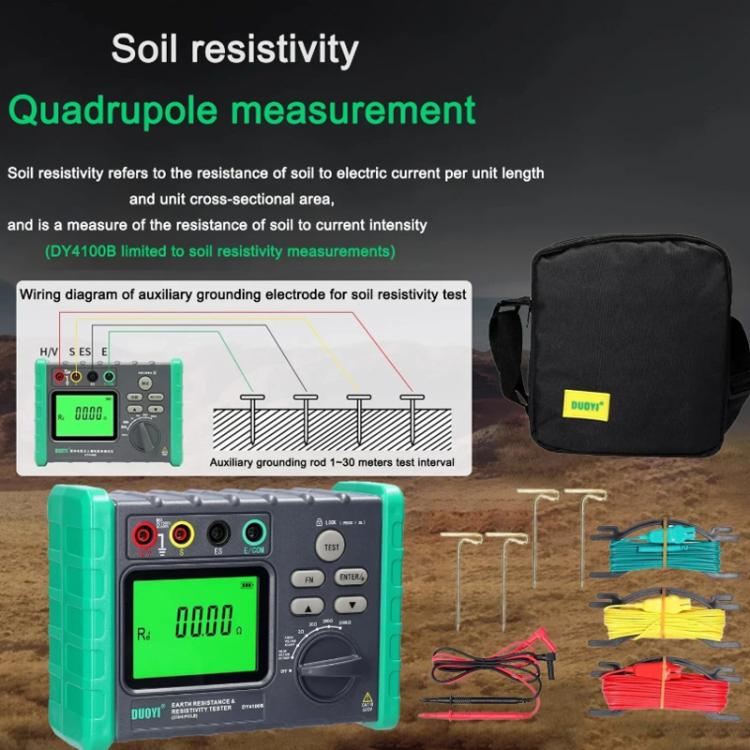

- Soil Resistivity Test Range: 0.03~2.000 ohms, 0.03~20.00 ohms, 0.03~200.0 ohms, 0.03~2000 ohms
- Soil Resistivity Measurement Range: 0.2~376.8 ohms.m, 0.2~3768 ohms.m, 0.2~37.68k ohms.m, 0.2~376.8k ohms.m
- Test Method: 4-pole method (specific to DY4100B)
- AC Voltage Test Range: 0~600Vac
- DC Voltage Test Range: 0~1500Vdc

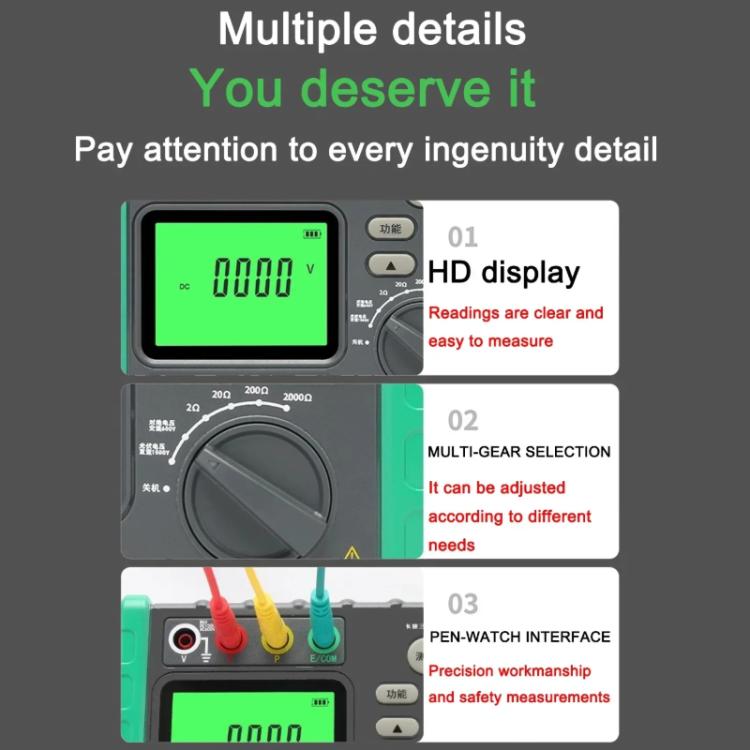

- Display: Segment LCD with backlight
- Battery Warning: Battery logo display
- Continuous Test Times: Up to 400 tests in 2 ohm range
- Automatic Shutdown: Activates after 5 minutes of inactivity
- Overload Protection: AC280V for 10 seconds between E-S ports
- Withstand Voltage: AC3540V (50/60Hz) for 5 seconds
- Insulation Resistance: 50 milliohms or more at DC 1000V
- Power Supply: 6 AA batteries (not included)
- Dimensions: 173mm x 125mm x 68mm
- Packing List: DY4100A instrument, cloth bag, manual, certificate, test line (red 15m/yellow 10m/green 5m/black 5m), multimeter probe, ground rod x 4
- Application: Suitable for power, telecommunications, railways, petroleum, chemical industry, communications, mining
