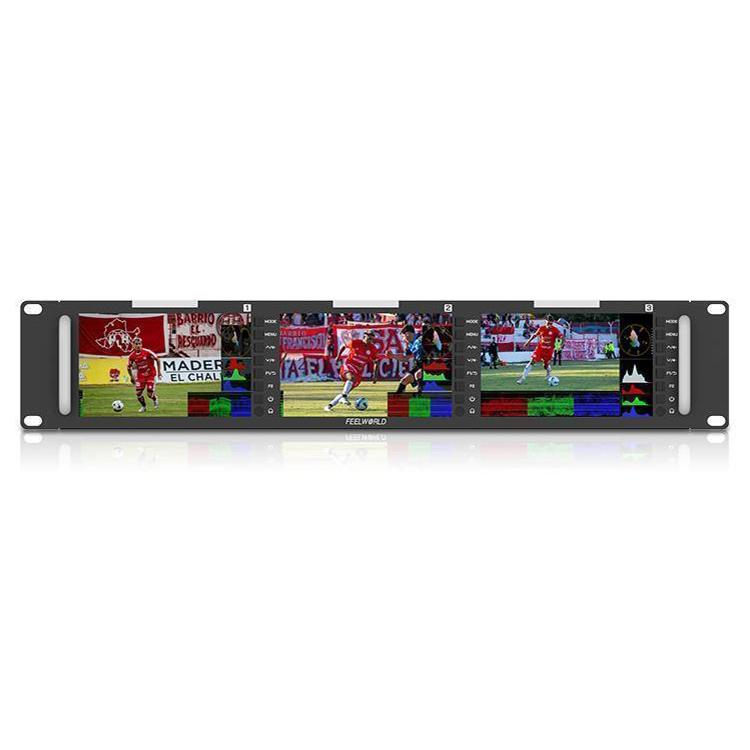

FEELWORLD T51 PLUS-H Triple 5.5 inch 2RU Rackmount Monitor Full HD 4K HDMI SDI AV Monitor (US Plug)

SKU: DCA3133US
Sale Sold out Pre-order
Regular price R 12,779.00
Regular price Sale price R 12,779.00
Pay in 3, 6, or 12 monthly instalments with

Import Taxes & Duties Excluded

6-13 business days

In Stock CHN

Processing time: 1-3 days

Description

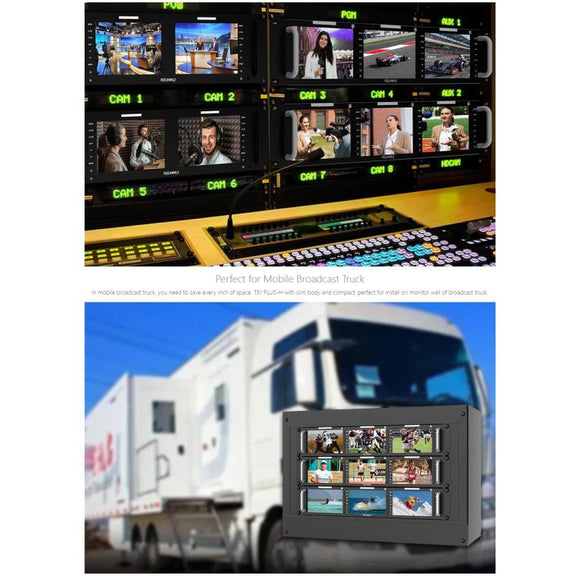

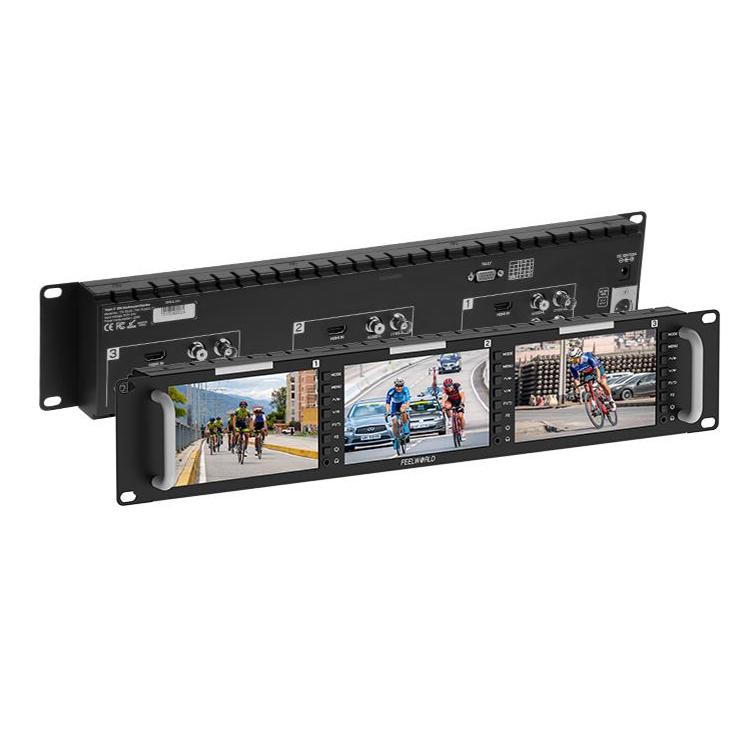

The FEELWORLD T51 PLUS-H is a triple 5.5 inch rackmount monitor designed for professional AV applications. It is suitable for use in limited spaces and can be installed in standard 19-inch racks.

  • Model: T51 PLUS-H

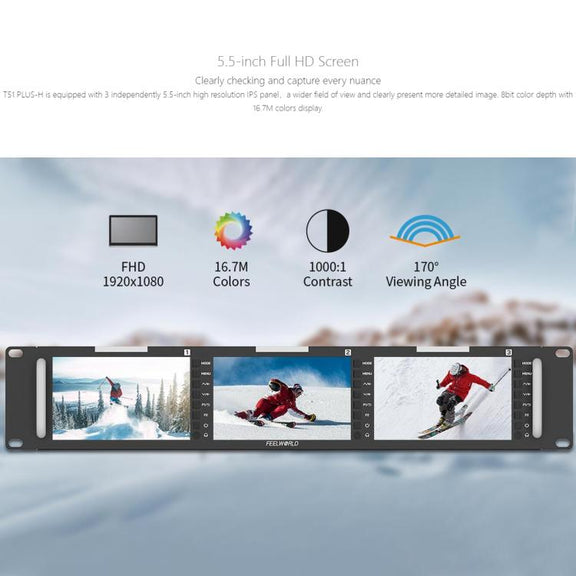

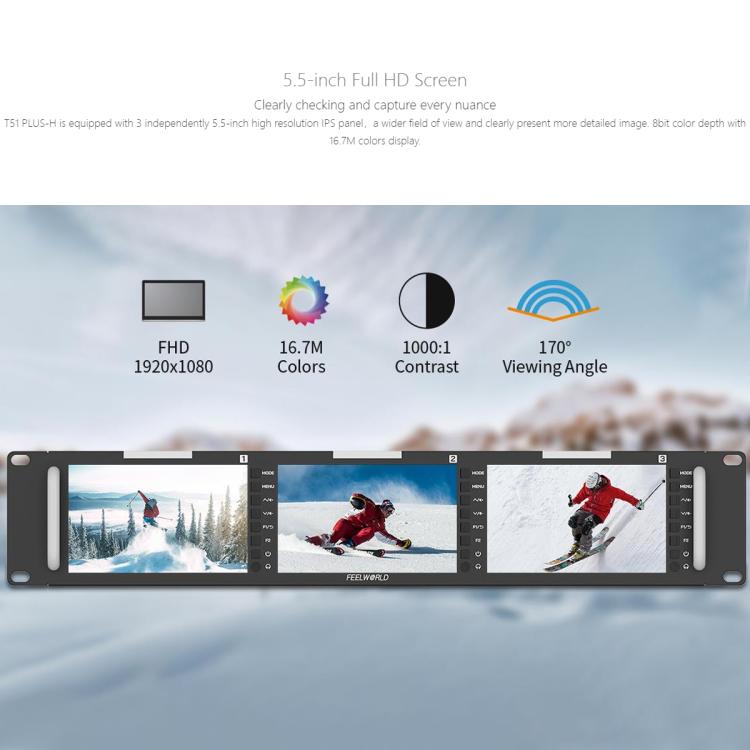

  • Screen Size: 5.5 inches (3 IPS)
  • Resolution: 1920 x 1200 pixels
  • Pixel Pitch: 0.0639(H) x 0.0213(W) mm
  • Aspect Ratio: 16:10
  • Brightness: 400 cd/m²
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle: 80° (L/R), 80° (U/D)
  • Input Voltage: DC 9-24V
  • Power Consumption: ≤ 21W
  • Working Temperature: -20°C to 55°C
  • Storage Temperature: -30°C to 65°C

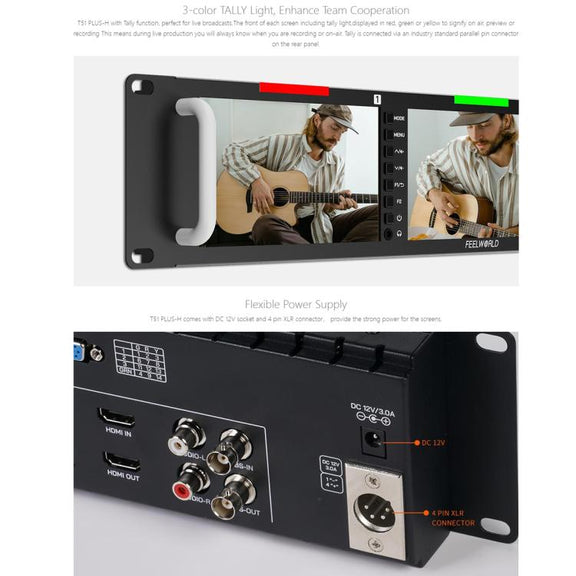

  • Power Connector: DC/4-pin XLR
  • Installation: 1/4 inch -20 Thread Socket (right, top, bottom)

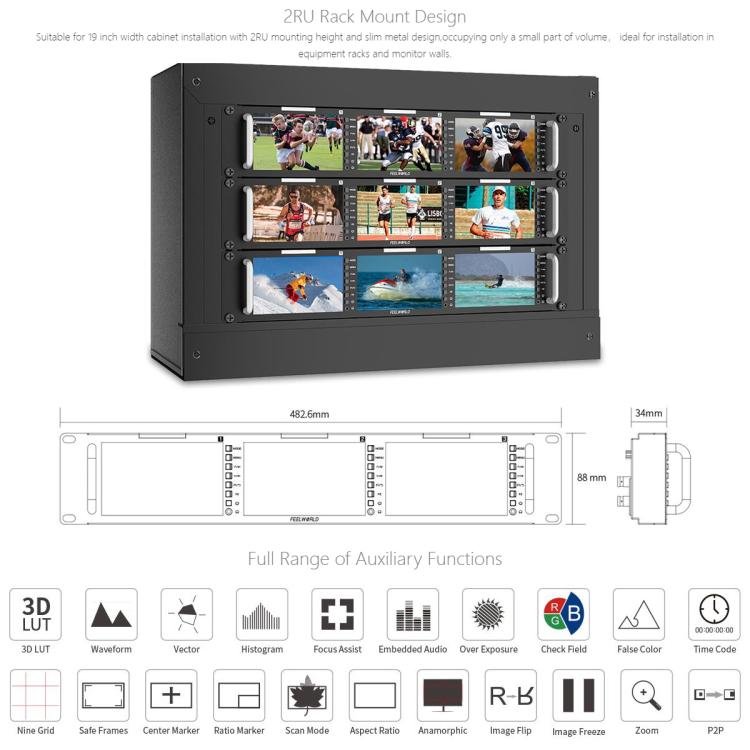

  • Unit Size: 482.6 mm (L) x 88 mm (H) x 34 mm (D)
  • Unit Weight: 1418 g

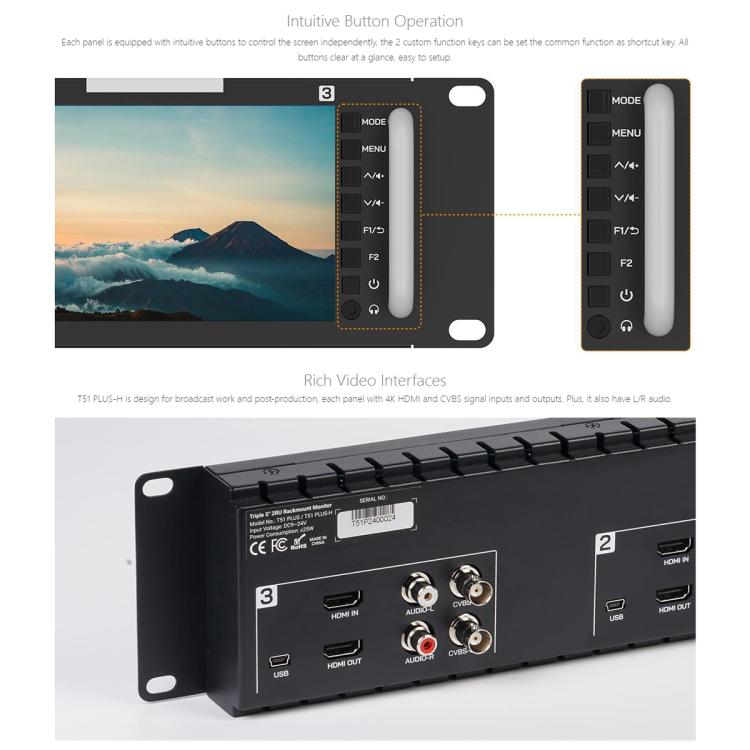

  • Input: 1 x HDMI, 1 x BNC (Video), 2 x RCA (Audio L/R)
  • Output: 1 x HDMI, 1 x BNC (Video)
  • Audio Out: Stereo Headphone x 1
  • HDMI Input/Output Support Formats: 480i, 576i, 480p, 576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 3840 x 2160p (30/29.97/25/24/23.98 Hz), 4096 x 2160p (24 Hz)

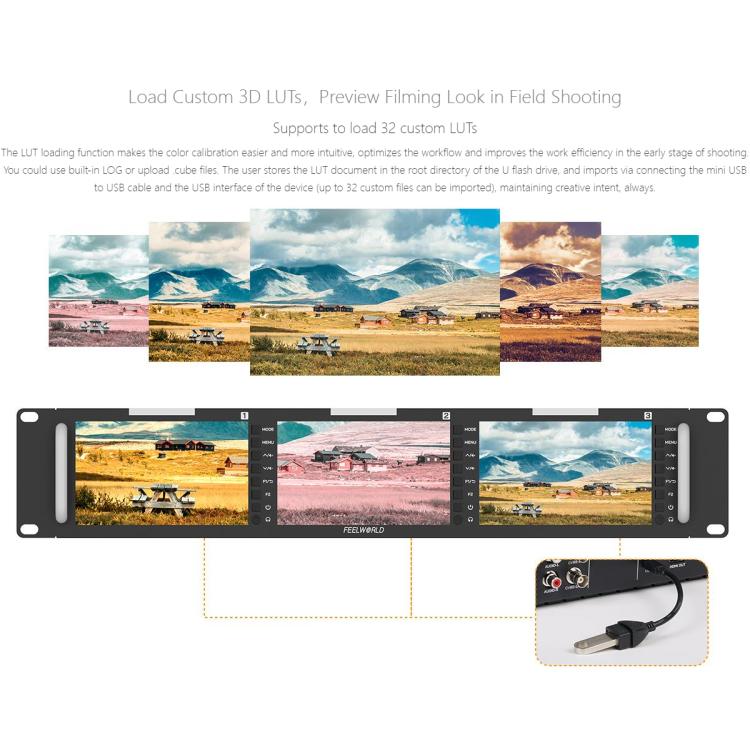

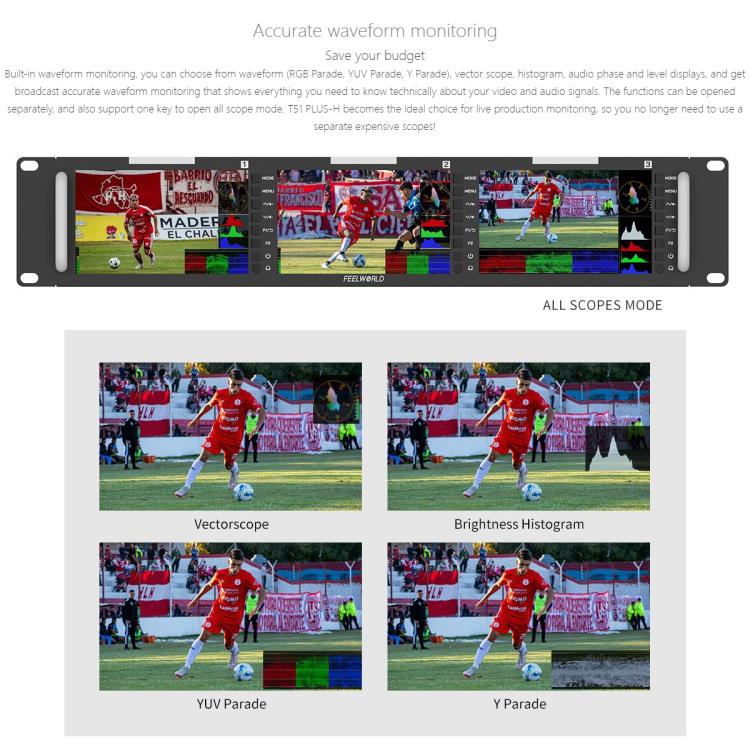

  • Special Features: Tally indicator, waveform (RGB, YUV, Y), vector scope, histogram (RGB1, RGB2, Y), focus assist (Red, Green, Blue), embedded audio, overexposure adjustment, check field (Red, Green, Blue, Mono), false colors, time code (SDI signal with LTC, VITC modes), nine grid, safe frames (80%, 85%, 90%, 93%, 96%, 2.35:1), center marker, safe marker (80%, 85%, 90%, 93%, 96%, 2.35:1), ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1), scan mode (Under Scan, Over Scan), aspect ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen), anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User 1.20x~2.00x), image flip (Horizontal, Vertical, Hor&Ver), image freeze, zoom mode (2X, 4X, 9X, 16X, User 100%~200%), pixel to pixel, 3D-LUT (built-in SLOG2, SLOG3, LOGC, VLOG; can upload 32 custom LUT)
