Description

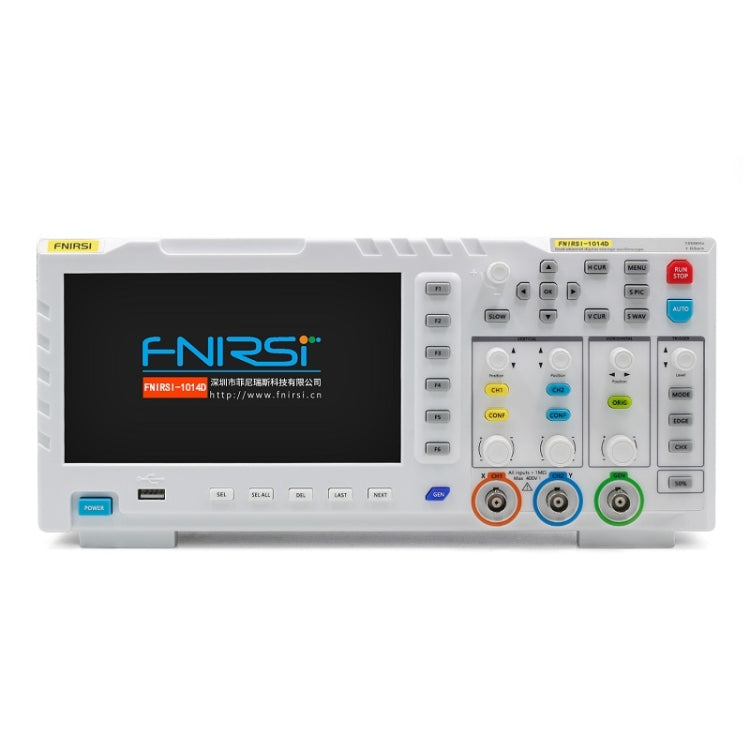

The FNIRSI 2 In 1 Dual-Channel Digital Oscilloscope is designed for signal analysis and generation. It is suitable for testing both periodic analog signals and non-periodic digital signals in various electronic applications.
- Model: FNIRSI 1014D
- Type: Dual-Channel Digital Oscilloscope with Signal Generator
- Analog Bandwidth: 100MHz x 2
- Real-Time Sampling Rate: 1GSa/s

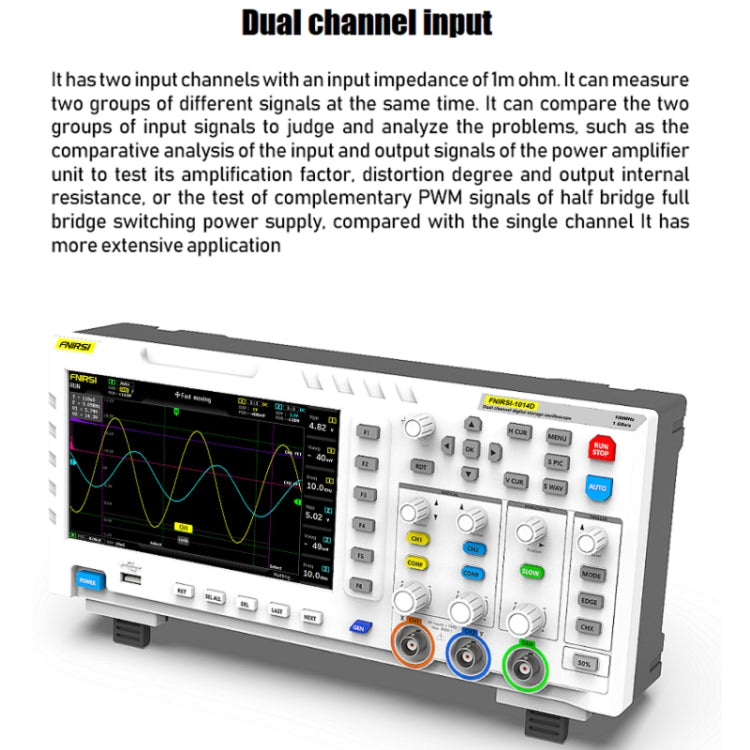

- Number of Channels: 2
- Vertical Sensitivity: 50 mV/div to 500 V/div
- Horizontal Time Base Range: 50S/div to 10nS/div

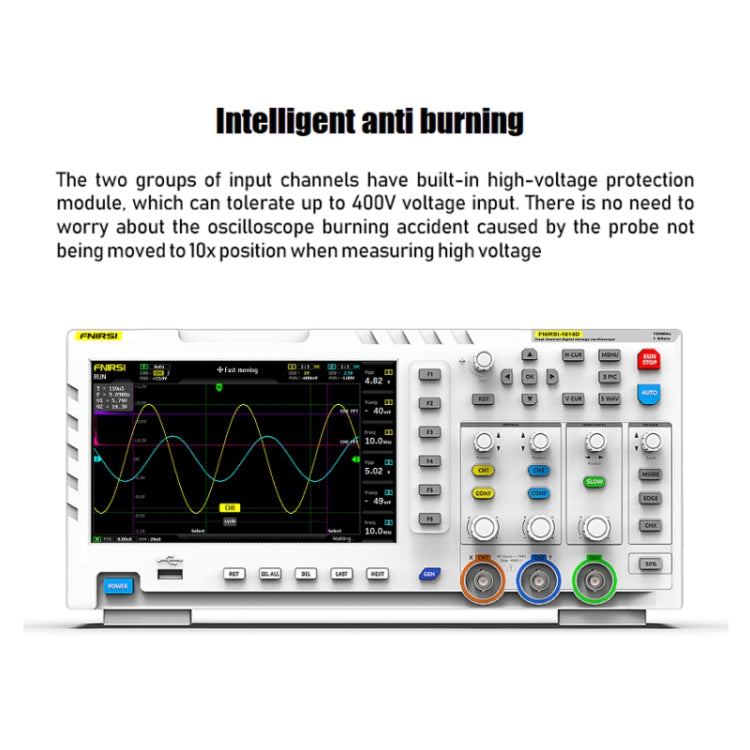

- Test Voltage: 40 V (1X probe), 400 V (10X probe)
- Storage Depth: 240Kbit
- Input Resistance: 1 MΩ
- ADC Precision: 8 bits
- Coupling Method: AC/DC

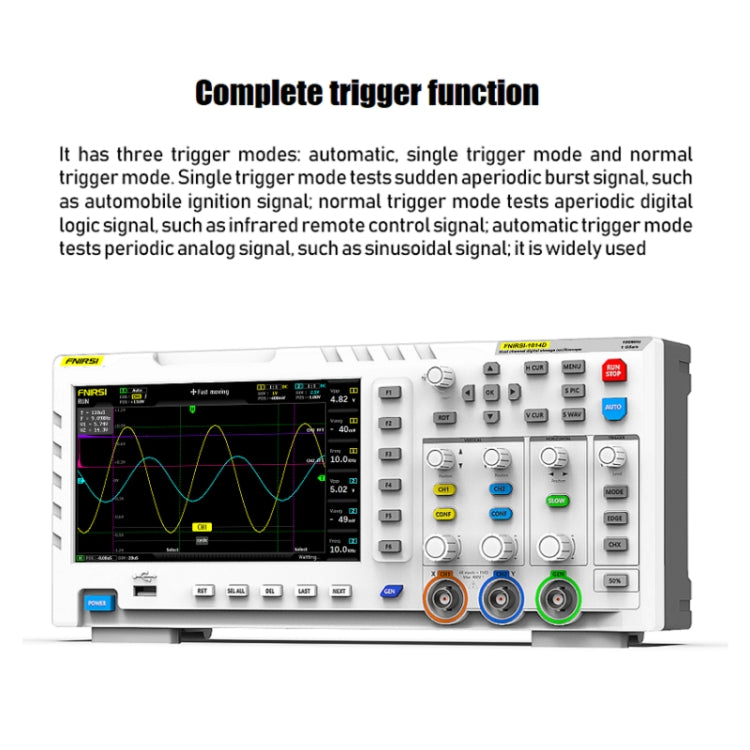

- Trigger Modes: Single, Normal, Automatic
- Trigger Edge: Rising Edge/Falling Edge
- External Trigger Voltage: 0 to 40 V

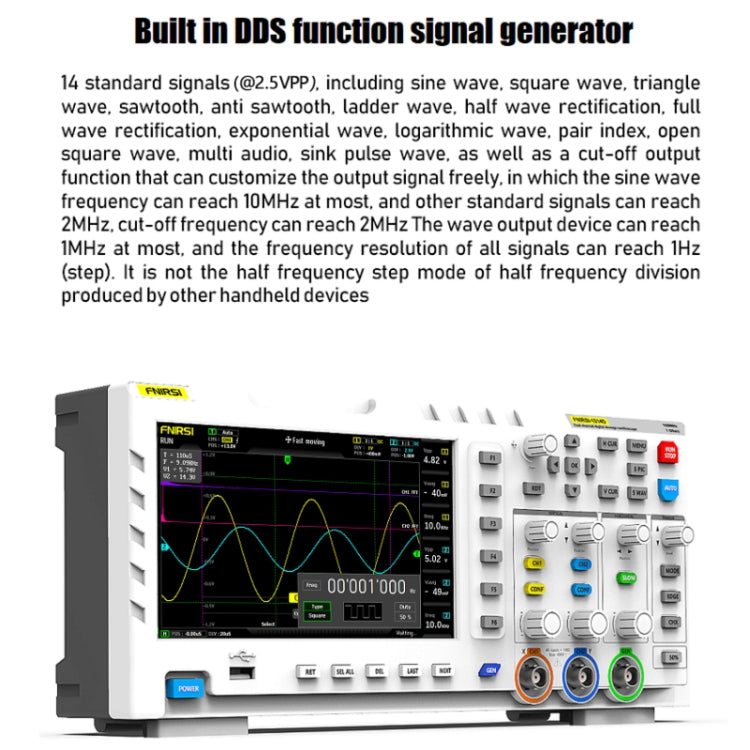

- Built-in Signal Generator: Supports 12 function signals

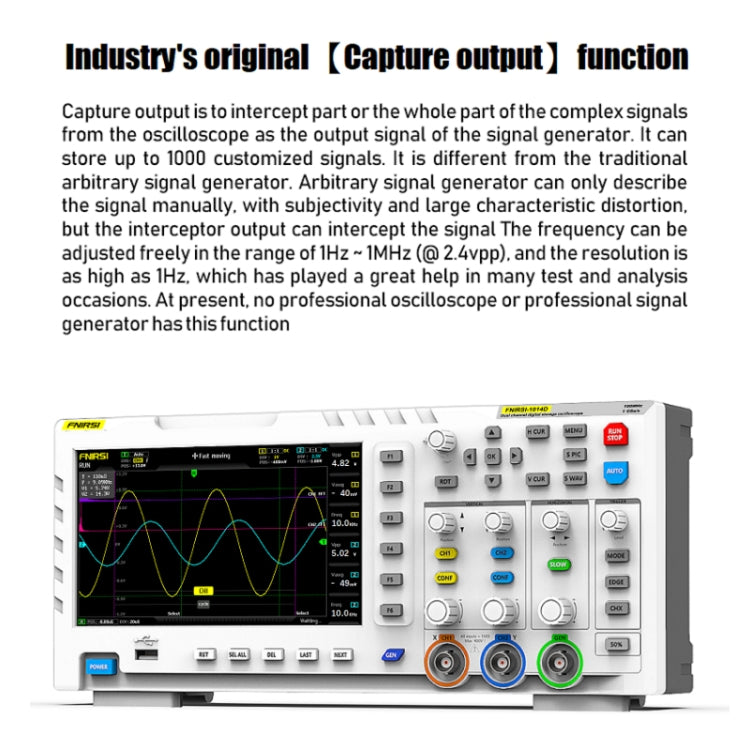

- Chopping Output: @2.5Vpp

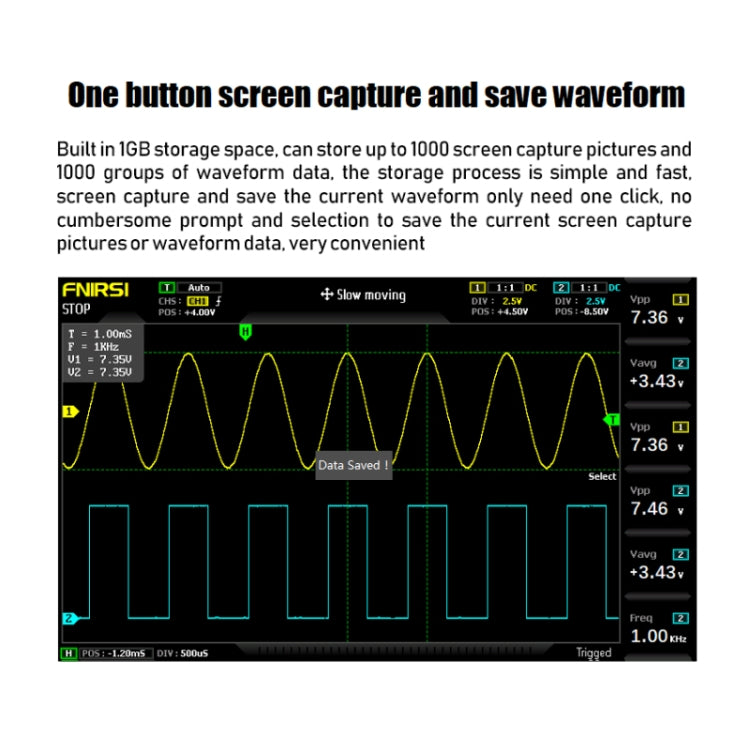

- Storage Capacity: 1GB (1000 screenshots + 1000 waveform data sets)

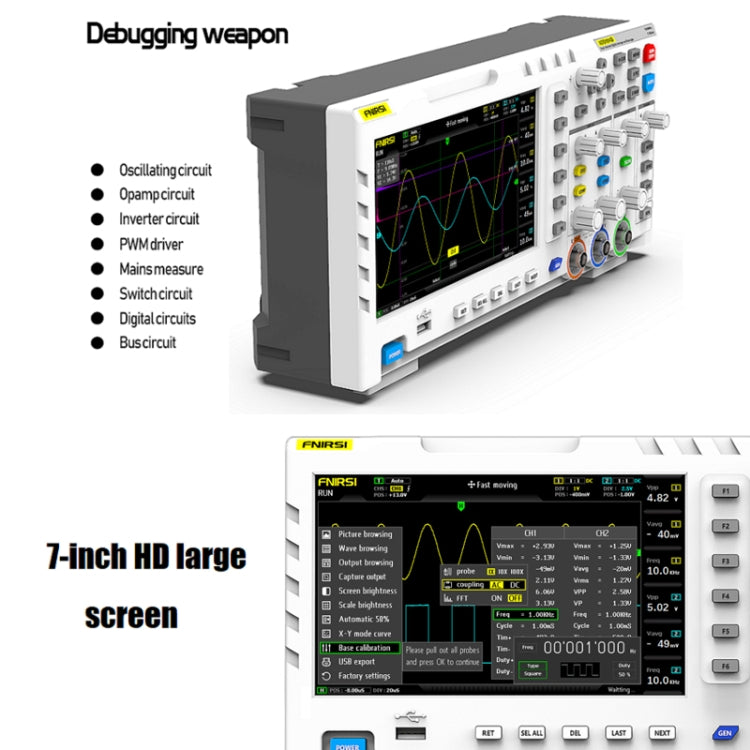

- Display: 7-inch, 800x480 resolution LCD

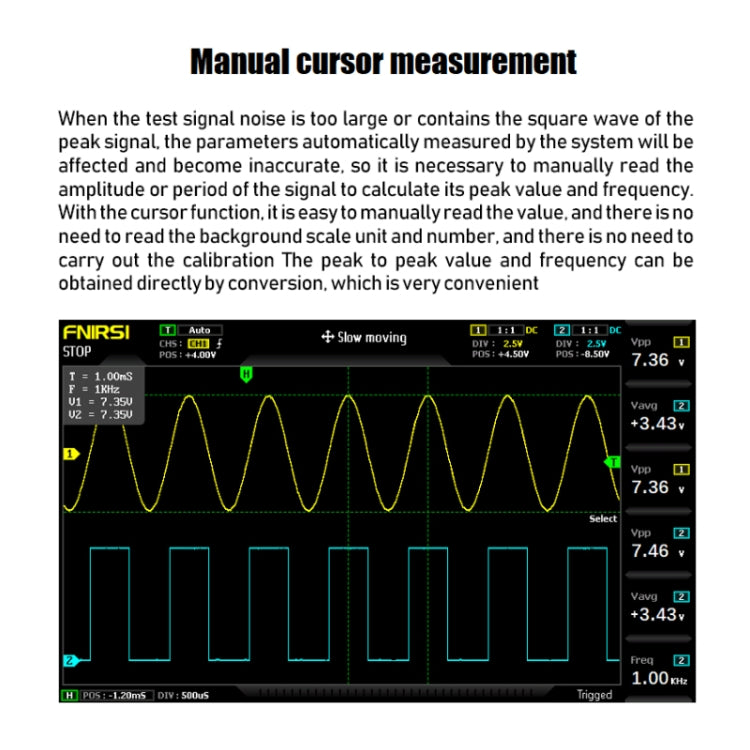

- Cursor Measurement Function: Measures amplitude and frequency parameters

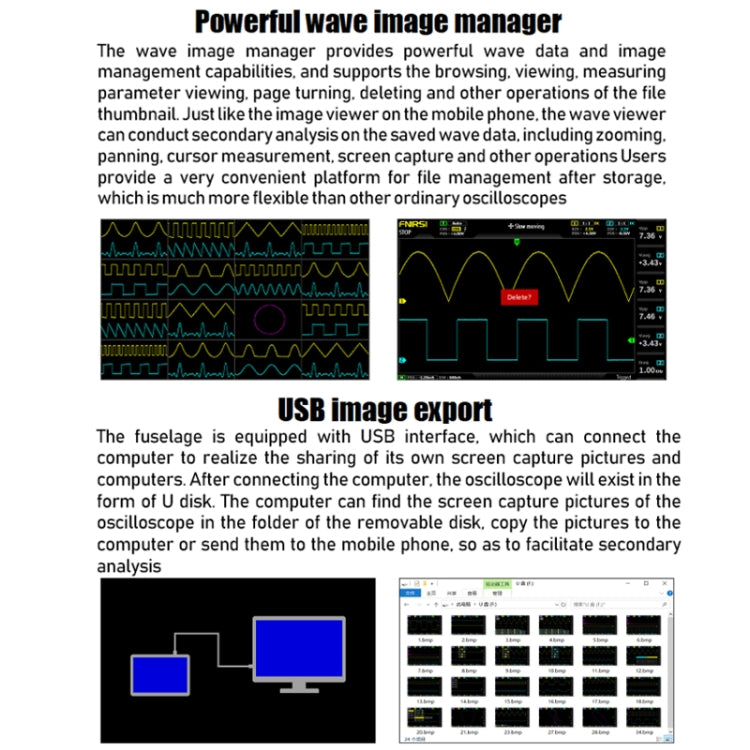

- Waveform Image Manager: Supports thumbnail browsing, viewing, and editing
- USB Interface: For screenshot and image sharing
- Material: ABS
- Power Supply: EU Plug

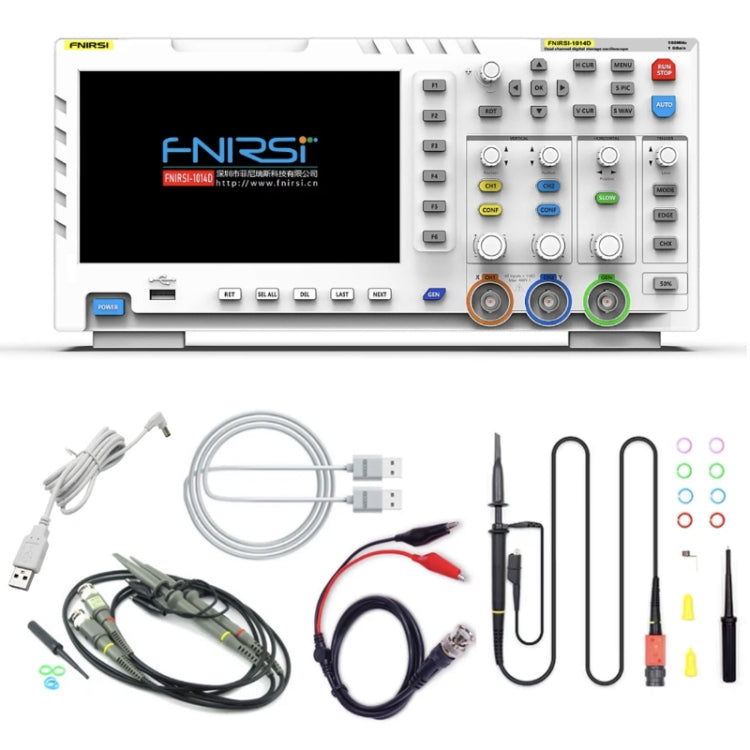

- Packing List: Oscilloscope host, 2 matched 100MHz probes (1X and 10X), clip, EU power adapter, USB cable, English user manual, optional P4100 probe
