Product details
Description

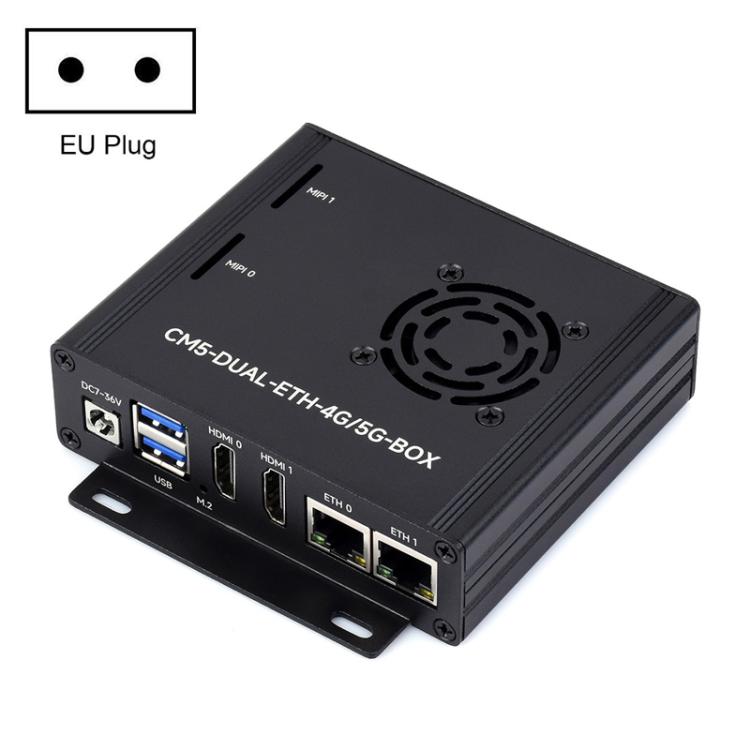

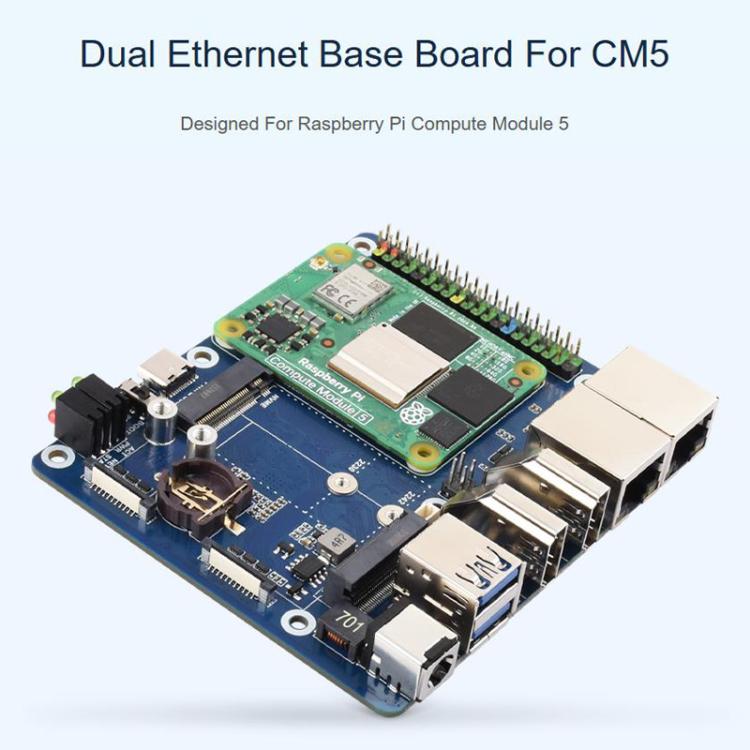

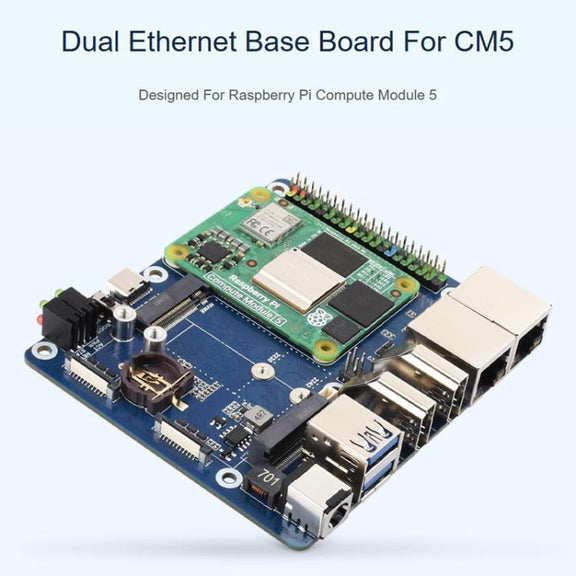

The WAVESHARE Dual Network Port Expansion Board is designed for the Raspberry Pi CM5. It enables enhanced networking capabilities, allowing for dual network connections and support for 4G/5G communication modules.
- Product Type: Raspberry Pi Accessories
- Compatibility: Raspberry Pi CM5
- Material: Metal
- Color/Variant: Not specified
- Intended Use: Everyday use

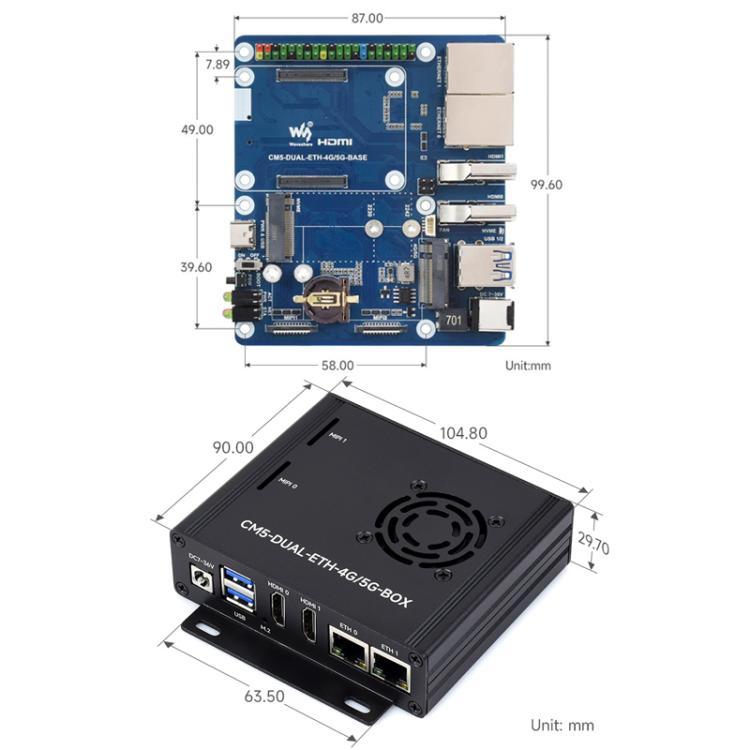

- Size:
- Base Plate: Approximately 9.96 x 8.7 cm
- Housing: Approximately 10.48 x 9 x 2.97 cm
- Networking:
- 1000M Ethernet RJ45 interface
- 2500M Ethernet RJ45 interface

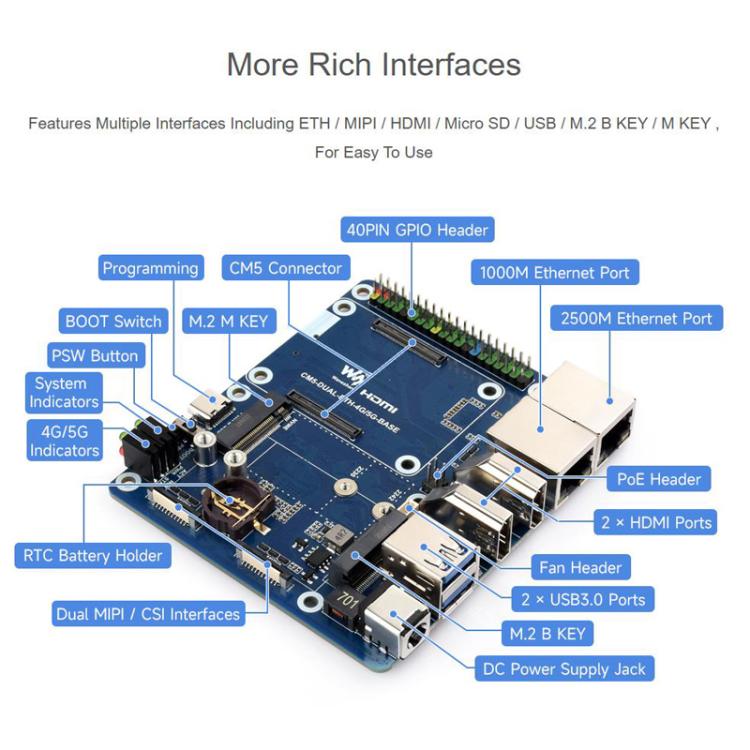

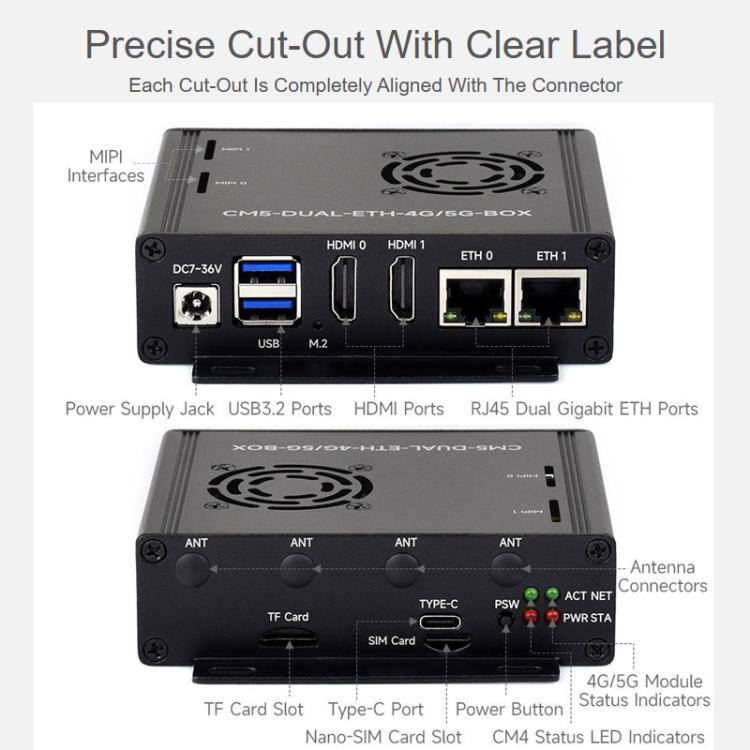

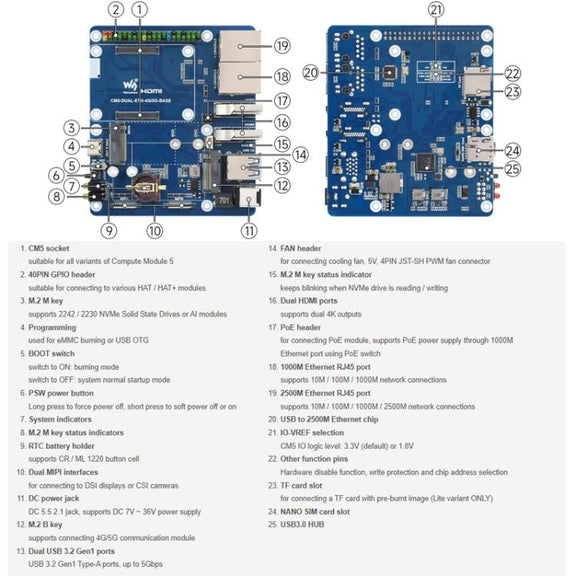

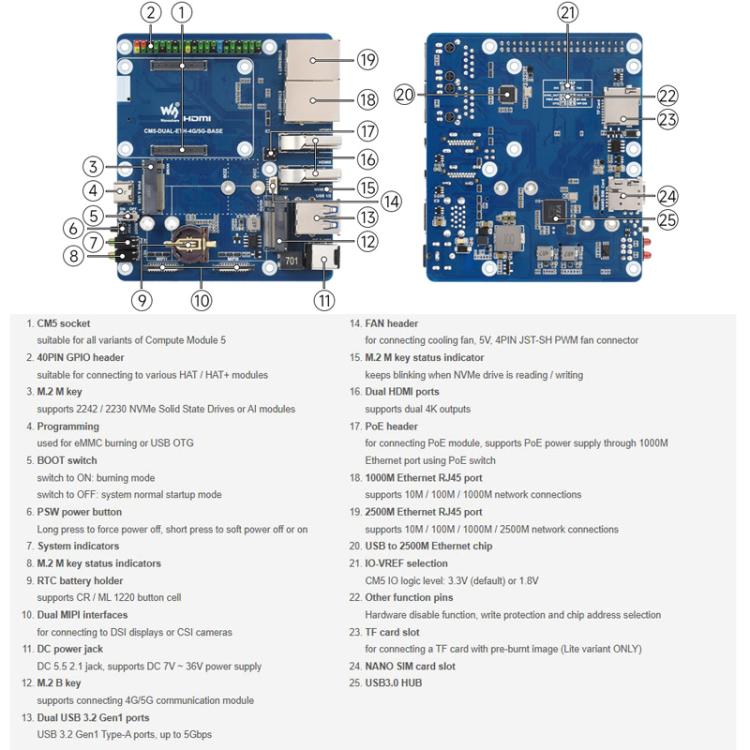

- Connectors:
- Raspberry Pi 40PIN GPIO interface
- USB 3.2 Gen1 x 2
- 4-lane MIPI interface x 2 (22PIN 0.5mm FFC connector)
- HDMI connector x 2, supports dual 4K outputs
- M.2 M KEY (PCle Gen2/3 x 1)

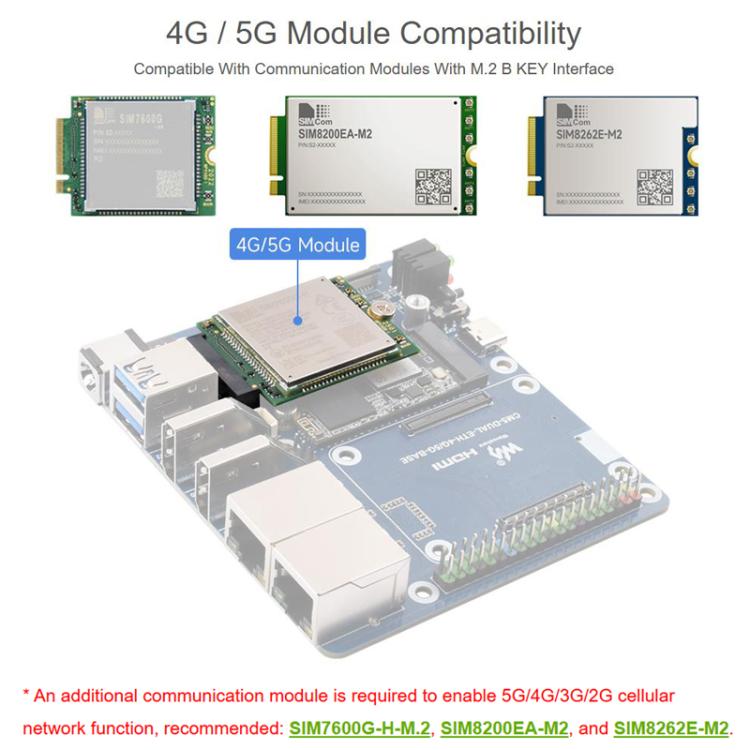

- M.2 B KEY, supports access to 4G/5G communication module
- Onboard Micro SD card slot (for CM5 version without eMMC)
- 5V, 4PIN JST-SH PWM fan connector
- Power Input: 7V - 36V wide voltage (round hole terminal), 5V 5A (Type-C)
- Features:

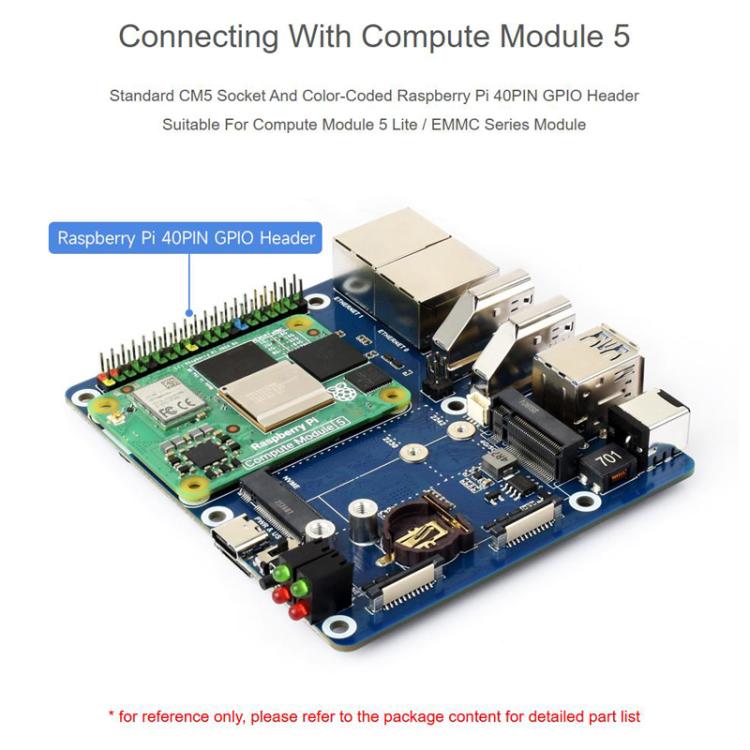

- Supports access to Compute Module 5 Lite / eMMC series core boards

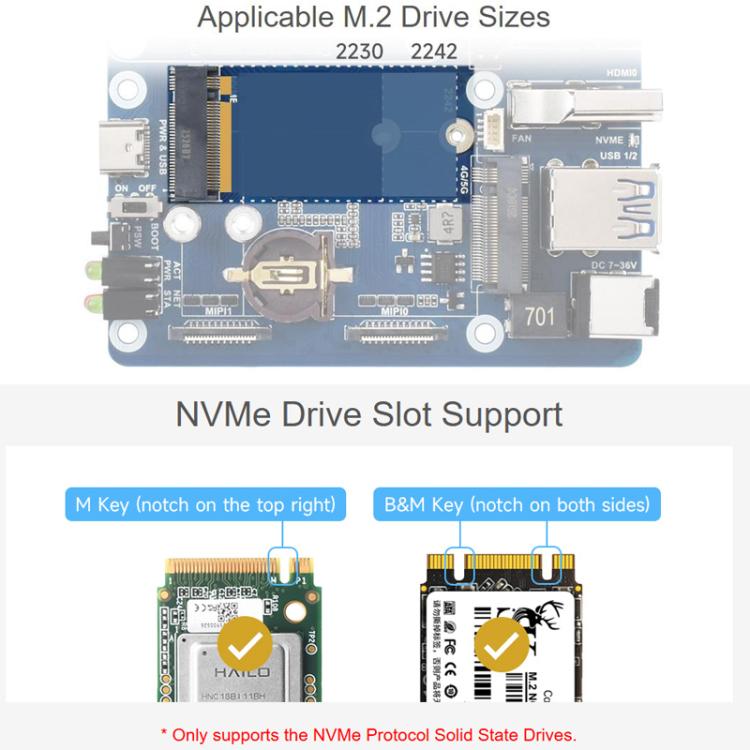

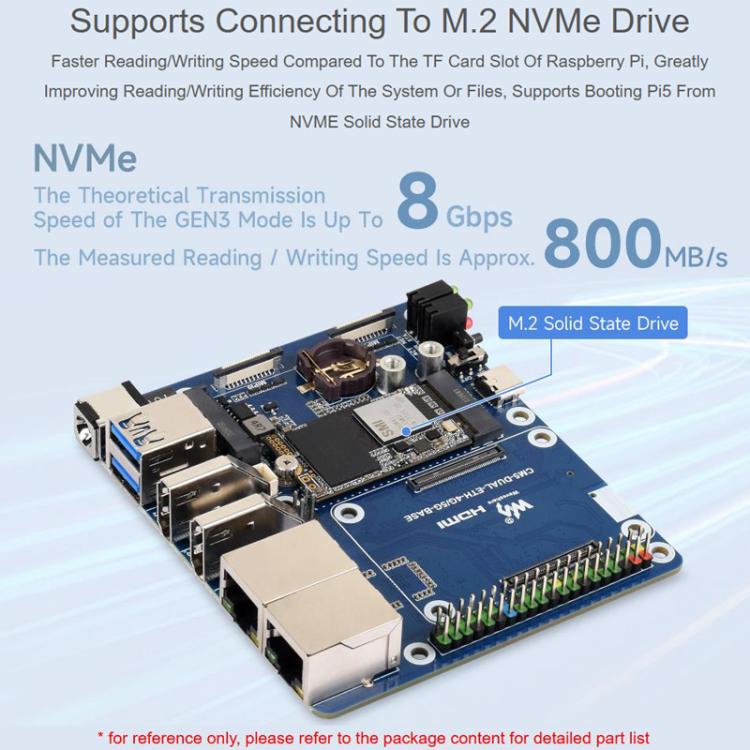

- Supports M.2 NVMe hard disk, enhancing read and write speeds, and NVMe SSD boot
- Equipped with multiple interfaces for convenience
- Careful hole design for port fitting with clear silkscreen markings

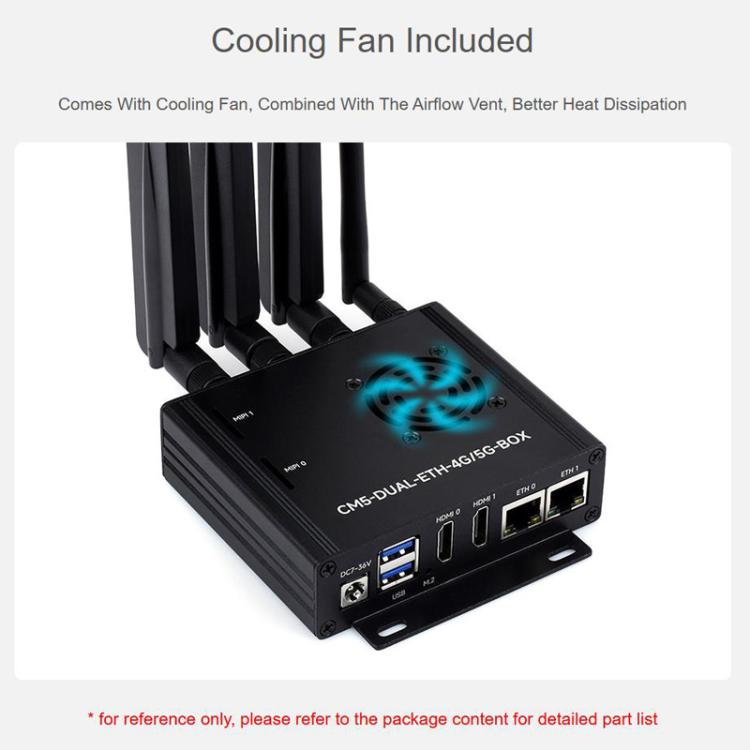

- Shell with reserved vents for improved heat dissipation

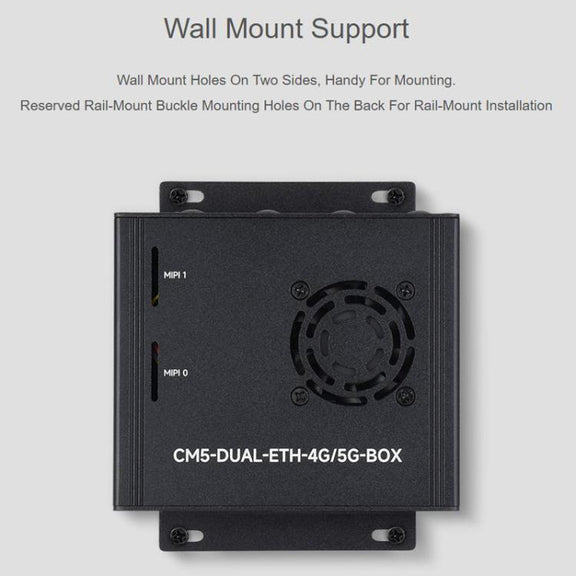

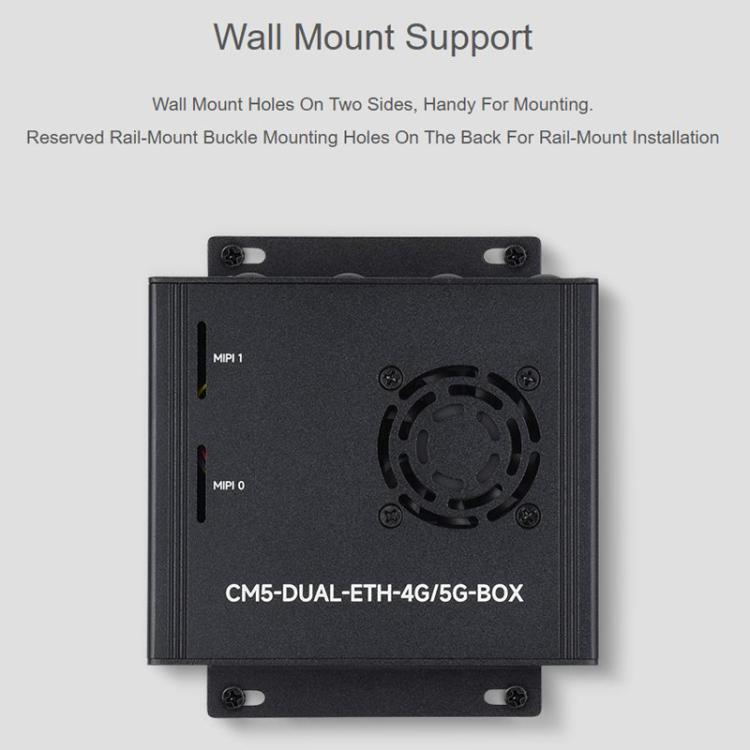

- Wall-mounted holes for easy installation and fixing
- Reserved rail mounting screw holes (rail not included)

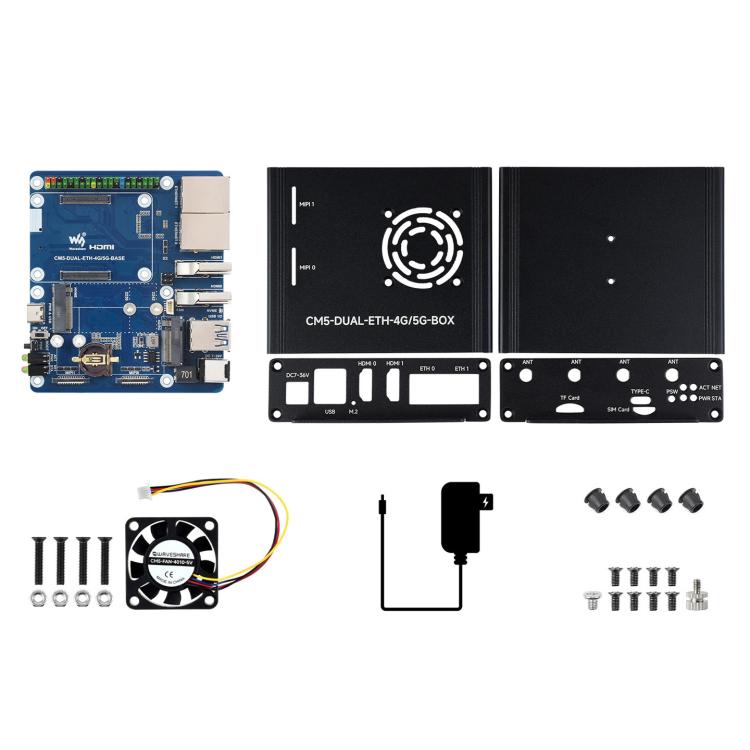

- Packing List:
- Expansion board x 1
- Metal case x 1
- Fan x 1
- Power cord x 1
- Plug x 4
- Screws x 10
