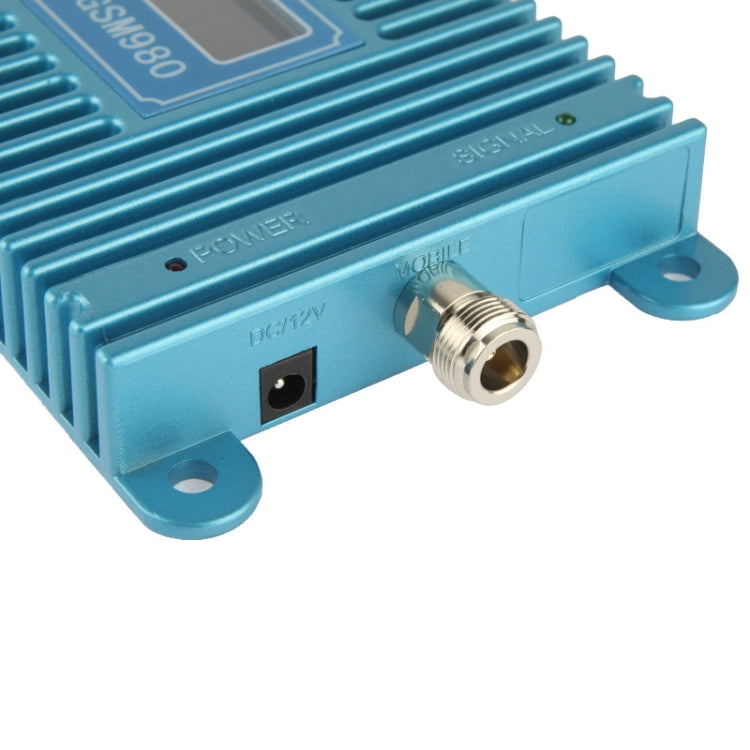

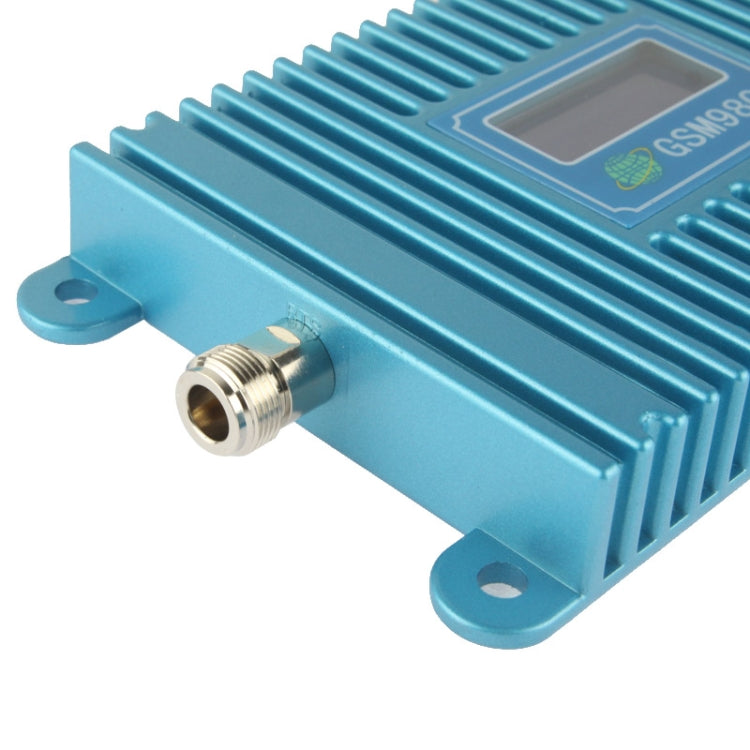

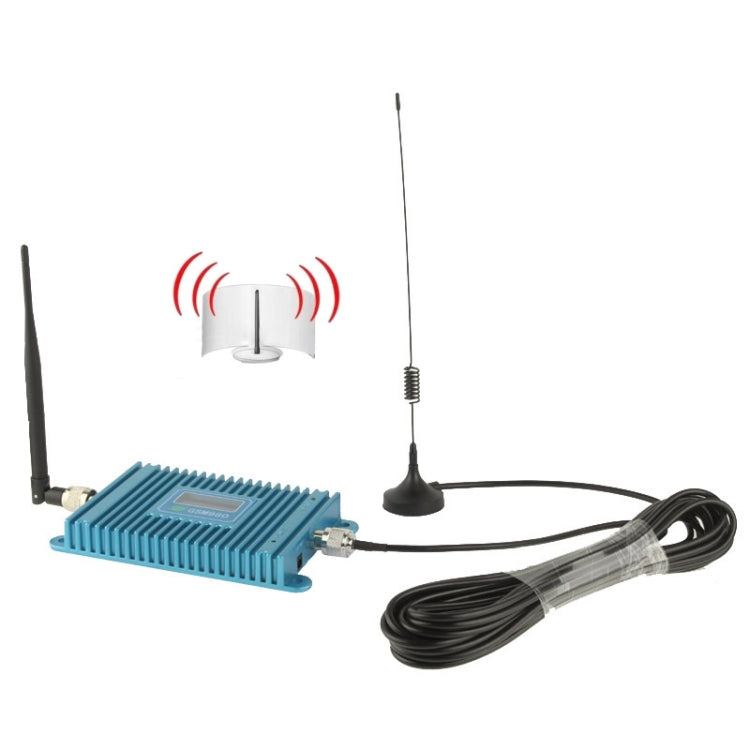

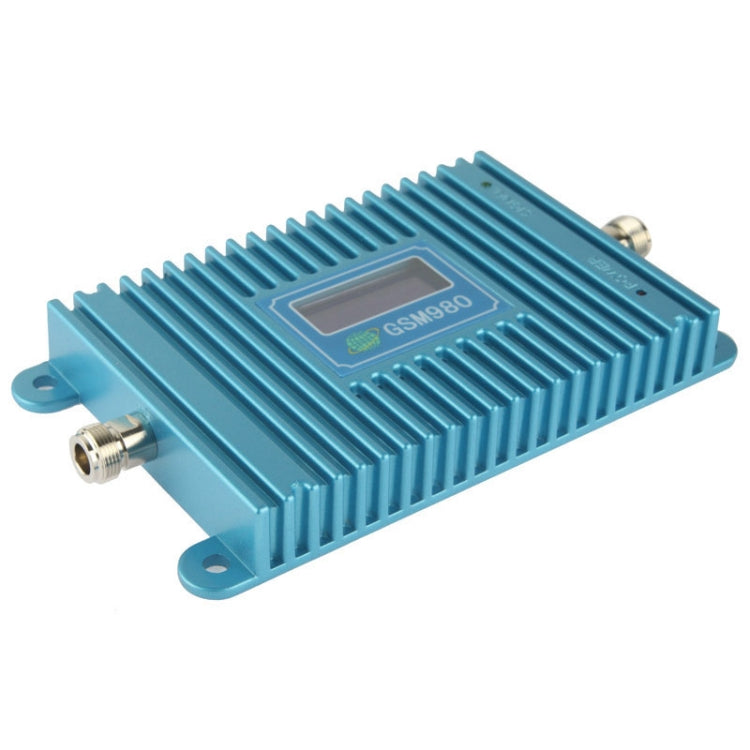

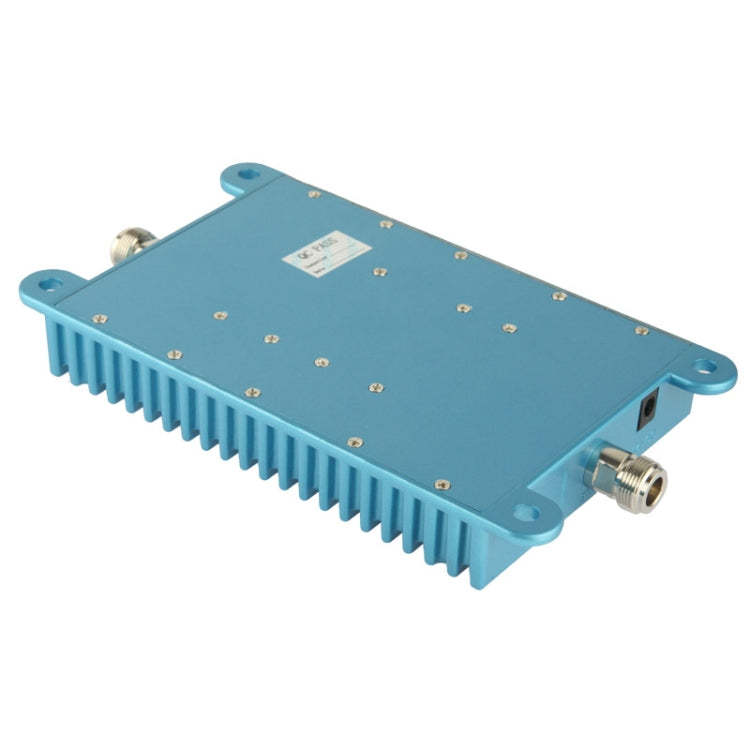

GSM 980 Cellular Phone Signal Repeater Booster + Antenna (JAX-GSM980)

• Product type: Boosters
• Compatibility: GSM devices
• Material: Not specified
• Key feature: Signal amplification
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Signal Boosters

**Specification** 1) Frequency range: -Up link GSM 890-915 -Downlink GSM 825-960 2) Gain(dB) GSM Up link: 55 3) GSM downlink: 60 4) Gain adjustable range: GSM950/ 50Db~55Db 5) Output power(dBm): ≥27 / 30 6) Pass band ripple GSM: 4dB 7) Guard band rejection: GSM(BW-60dB)≤42 MHz (BW-70dB)≤45 MHz 8) I/O impedance: 50Ω 9) I/O return loss: ≤-10dB 10) Noise coefficient: ≤5dB 11) Intermodulation attenuation (Po=13dBm): ≥40dBc 12) Transmission delay: ≤0.5us 13) Ambient temperature: -10℃～60℃ 14) Power supply: AC220V / DC 12V 45～55Hz

**Characteristic** 1) Fully integrated 980 MHz antenna system 2) Powerful amplifier enables up to + 85 dB of signal gain including cable loss 3) Intelligent signal processing and real time adaptive operation 4) Automatically adjusts power levels as needed to ensure a consistent coverage footprint 5) Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed 6) Auto-track LED diagnostics displays aid install and operation 7) Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices

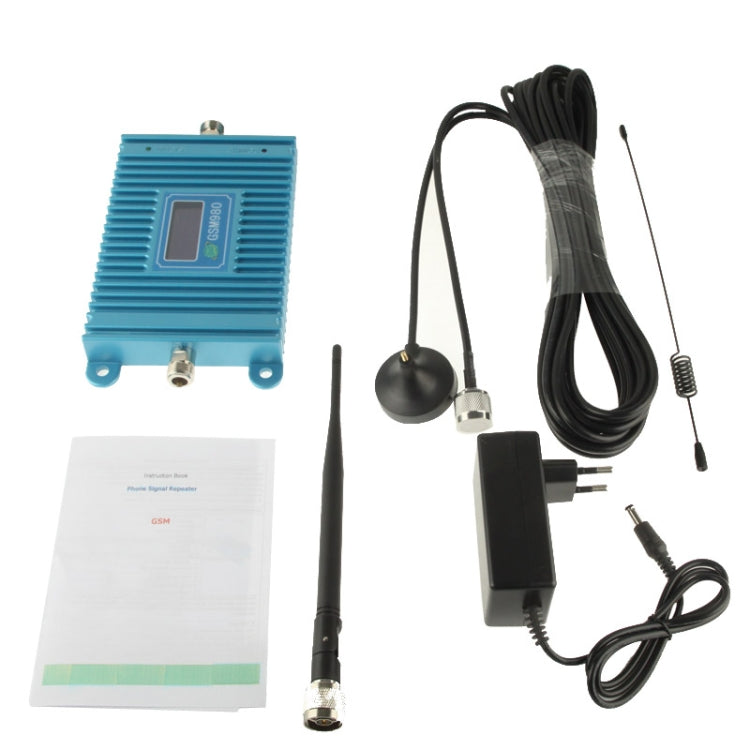

**The package contains:** 1) 55dB GSM cellular phone signal amplifier 2) 9dB outdoor antenna 3) 3dB indoor antenna 4) 10m cable 5) Mounting accessories 6) AC power supply
