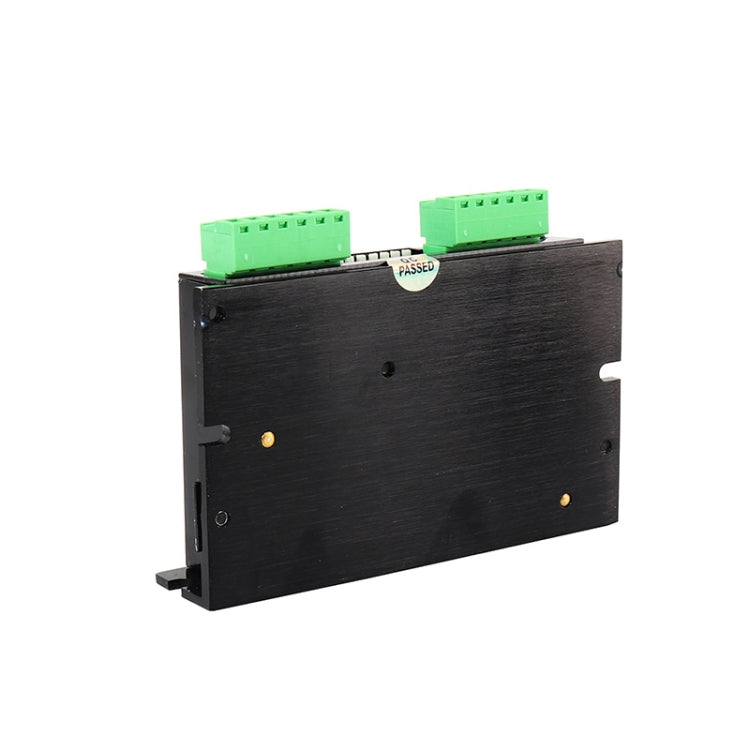

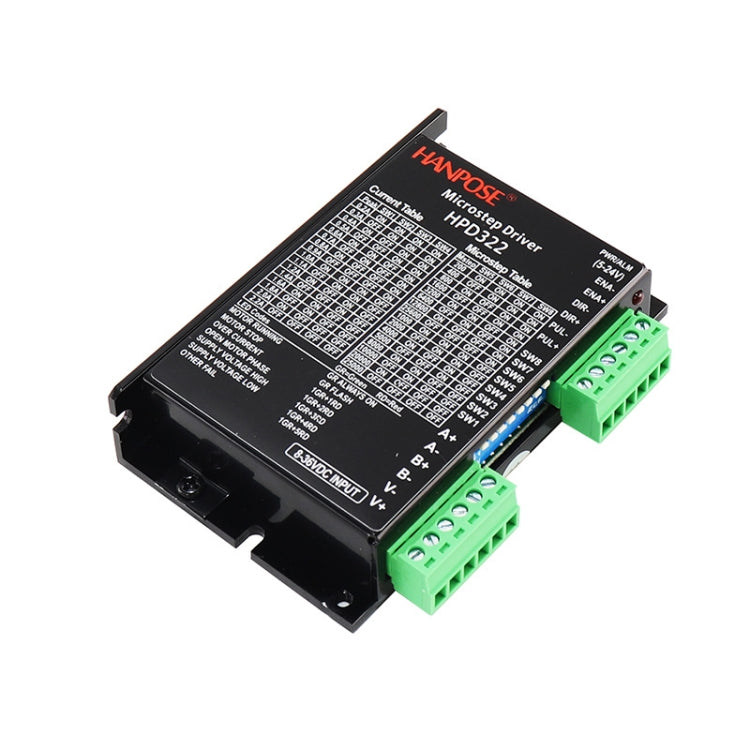

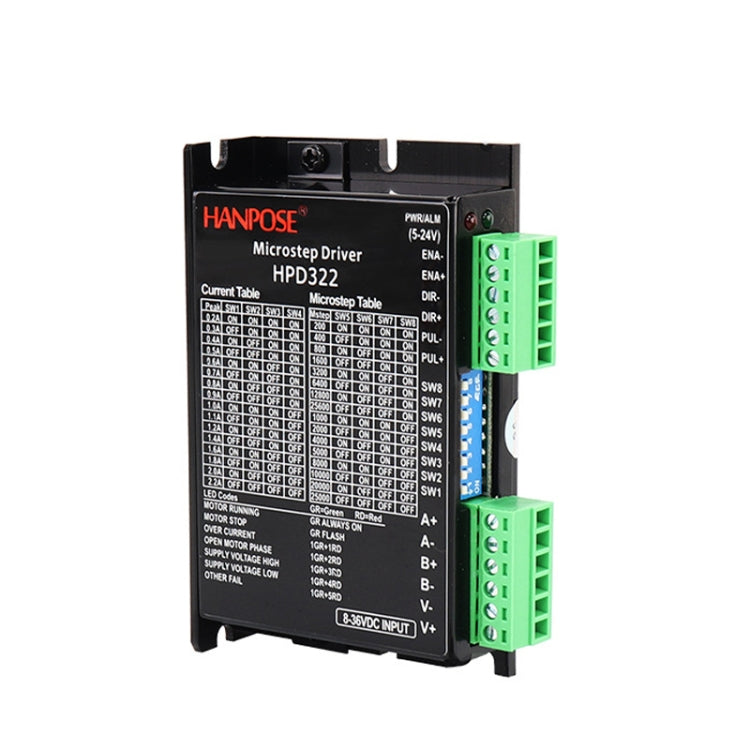

HANPOSE HPD332 2.2A 8-36V Stepper Motor Driver For 20 28 35 42 Motor
HANPOSE HPD332 2.2A 8-36V Stepper Motor Driver For 20 28 35 42 Motor
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. HPD322 two-phase stepper motor driver is a cost-effective subdivision driver designed based on PI flow control algorithm. It has excellent performance, high speed and large torque output, low noise, low vibration and low heat.
2. The operating current and subdivision can be selected through the dial switch. There are 16 subdivisions and 16 currents to choose from. It has overvoltage, undervoltage, phase current and total current overcurrent protection. Its input and output control signals are all photoelectric. isolation.
3. Signal input: single-ended, pulse + direction and double pulse;
4. Built-in micro-subdivision; the maximum power supply can reach DC36V; the current is easy to set, 16 levels are optional, the output current peak can reach 2.2A; the current is halved after 1S of inactivity
5. Optically isolated differential signal input, the maximum input pulse frequency is 300KHz;
6. The pulse, direction and enable terminals all have constant current input functions and can be directly connected to the input signal without adding an external series resistor for voltage reduction and current limiting protection.
7. High reliability: using multi-layer boards and surface mount sealing, leaving sufficient margin for power devices
Suitable for 20, 28, 35, 39, 42 4, 6, 8-wire two-phase stepper motors
Usage environment
1. Do not place it next to other heating equipment. Avoid places with dust, oil, corrosive gases, excessive humidity and strong vibration. Combustible gases and conductive dust are prohibited.
2. Temperature: 0-50 degrees Celsius
3. Humidity: 40-90%RH
4. Vibration: 10-55 Hz/0.15mm
5. Storage temperature: -20-65 degrees Celsius
6. Weight: 180g
?
