HDMI 2.0 Audio Extractor Support R/L Output And Volume Control 4K/60Hz Audio Splitter US Plug

HDMI 2.0 Audio Extractor is a splitter designed to separate audio signals from HDMI sources. It is suitable for connecting audio source devices to display devices while providing volume control and multiple audio output options.

• Product Type: Splitter
• Compatibility: HDMI devices
• Material: Not specified
• Color/Variant: Not specified
• Intended Use: Everyday use
• HDCP Version: HDCP 2.2
• Input/Output Resolution: 1080p/60fps, 4K/30fps, 4K/60fps
• Deep Color Mode: 4K/60fps-YUV444-8 bit, 4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
• HDMI Maximum Bandwidth: 600MHz
• HDMI Maximum Baud Rate: 18Gbps
• Input and Output TMDS Signal: 0.5-1.5Vp-p (TTL)
• Input and Output DDC Signal: 5Vp-p (TTL)
• DAC Sampling Frequency: 32-192 KHz
• DAC Bit Rate: 16-24 bits
• RCA Analog Output (1kHz 0dB): 1V RMS
• 3.5mm Audio Port Maximum Output Level: 6.5Vp-p
• 3.5mm Audio Port Maximum Output Power: 32 ohms 30mW
• Signal-to-Noise Ratio 0dB (CC1R/ARM): ≥ 90dB
• Distortion: ≤ 0.1%
• Frequency Response: 20Hz-20kHz
• HDMI Input/Output Cable Distance: ≤ 3m AWG26 HDMI standard cable
• Maximum Operating Current: 400mA
• Power Adapter Specifications: AC 100V-240V 50/60Hz, DC 5V/1A
• Operating Temperature Range: -10 to 55 degrees Celsius
• Storage Temperature Range: -20 to 60 degrees Celsius
• Operating Humidity Range: 10-90% RH (no condensation)
• Storage Humidity Range: 5-95% RH (no condensation)
• Size: Approximately 10 x 9.5 x 2 cm
• Net Weight: Approximately 117 g
• Functions:

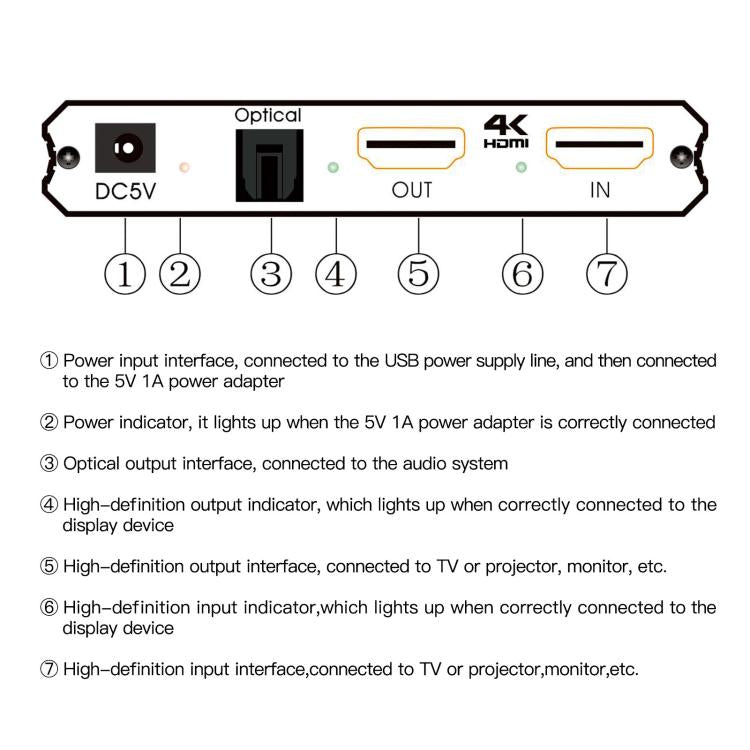

• 1 HDMI input port
• 1 HDMI output port
• 1 optical digital audio output port

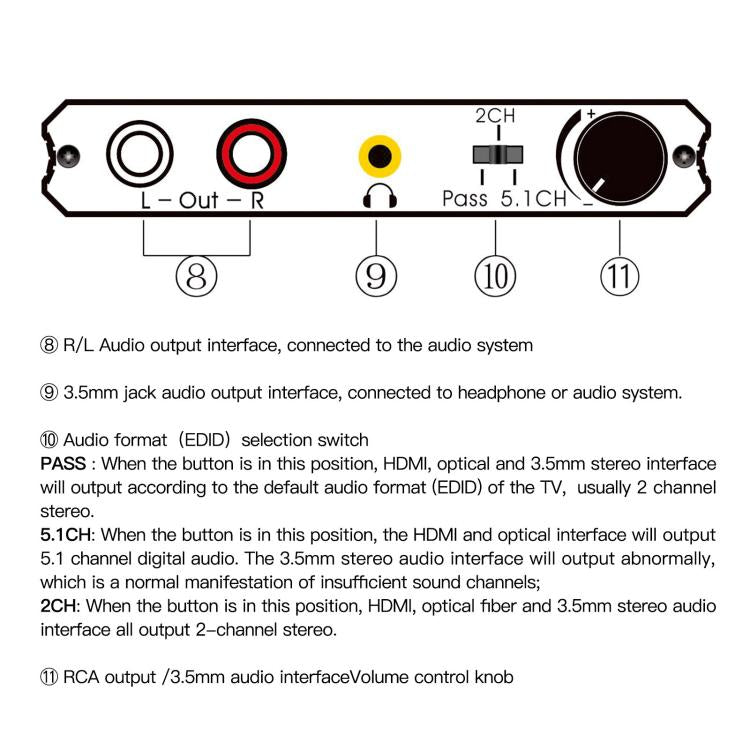

• 1 stereo audio output port, connects to 600 ohm high impedance headphones
• 1 R/L audio output port
• Supports up to 4K/60fps input resolution
• Volume adjustment capability
• Supports 3D, HDR, and YUV4:4:4
• Supports HDCP 2.2
• Supports AC3, DTS, LPCM, and other digital audio formats

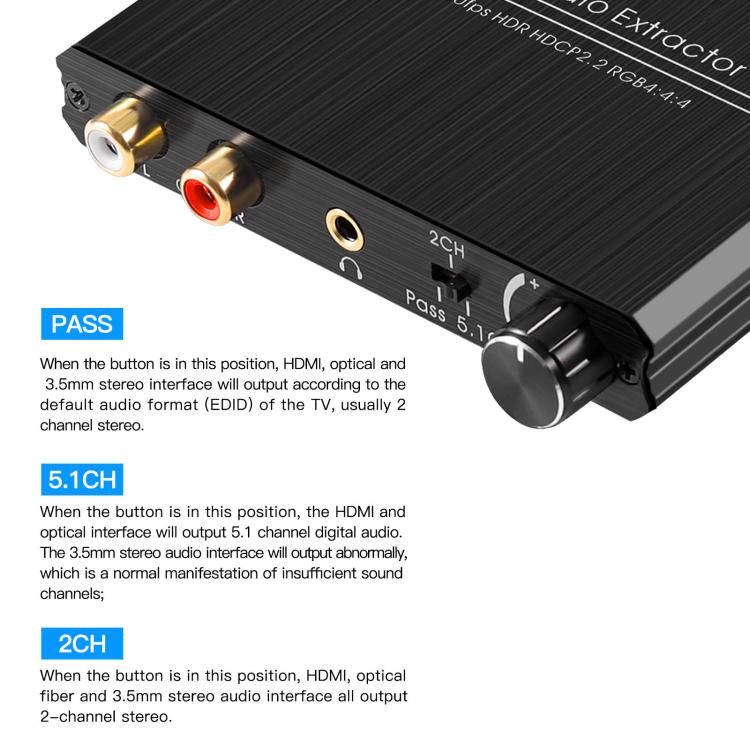

• Audio output supports 3 kinds of EDID selection mode (2CH/5.1CH/PASS)
• Features:

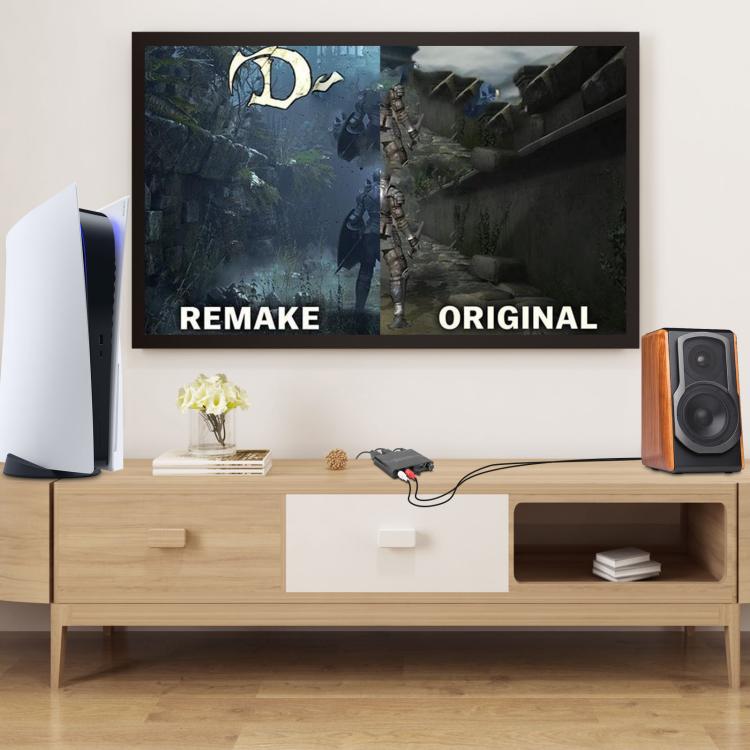

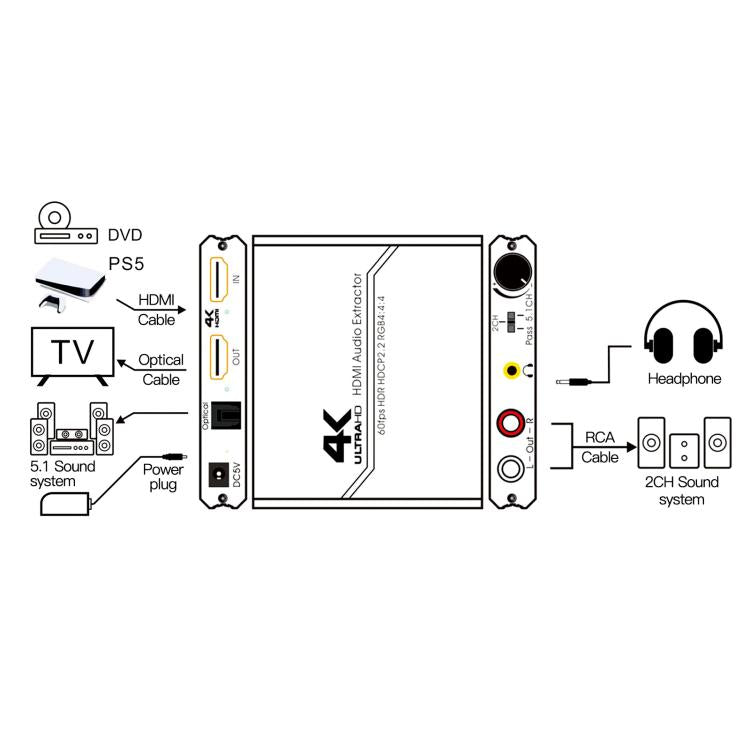

• Connects audio source devices (DVD players, Blu-ray players, network players, set-top boxes, game consoles, computers) to display devices (TVs, HD monitors, projectors)
• Synchronizes to separate an optical fiber signal and an R/L signal
• Connects stereo channels to the sound system for high-quality audio signals
• Volume knob for flexible adjustment of analog audio output intensity
• Lossless signal transmission with simple installation

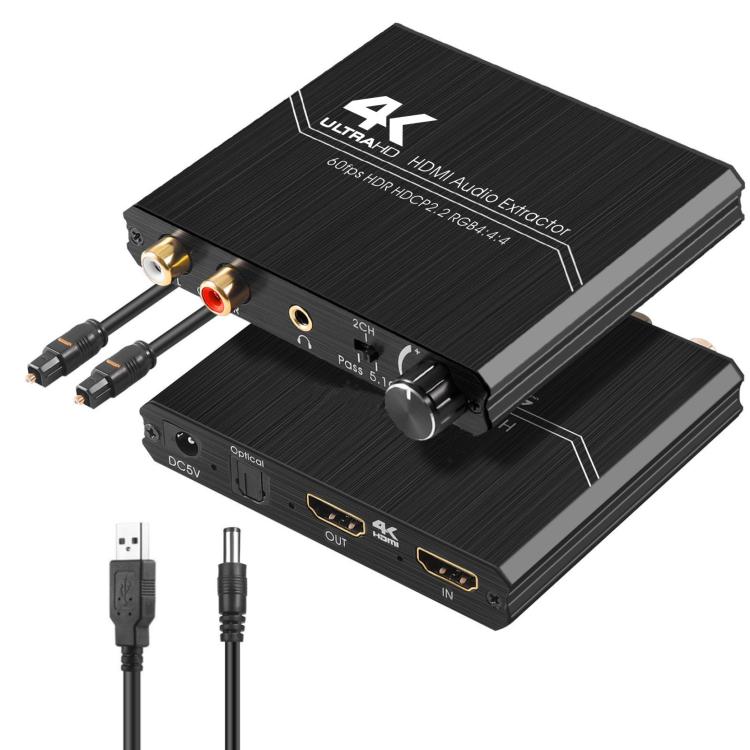

• Packing List:
• HDMI audio extractor x 1
• DC5V/1A power adapter x 1
• USB power cable x 1
• User manual x 1
