Description

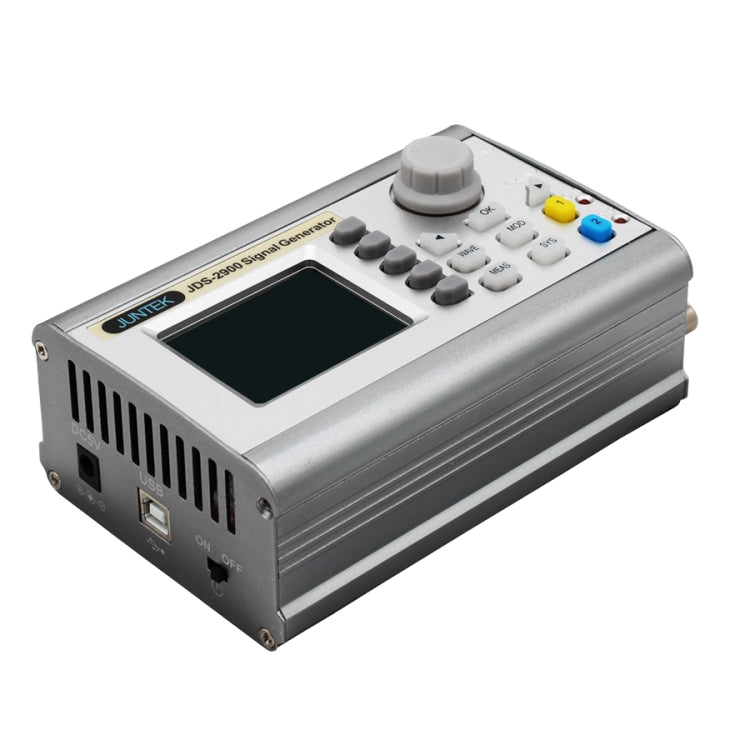

The JUNTEK Programmable Dual-Channel DDS Function Arbitrary Waveform Signal Generator is designed to generate various waveform signals with dual-channel output capabilities. It is suitable for applications such as testing and developing electronic circuits, where precise waveform generation is required.
- Waveform length: 20482
- Point waveform sampling rate: 266MSa/s
- Waveform vertical resolution: 14 bits
- Amplitude resolution: 1mV
- Waveform output impedance: 50 ohms (typical)
- Protection: All signal output terminals can operate under load short circuit conditions up to 60V
- Sweep channel: CH1 or CH2
- Sweep type: linear sweep, logarithmic sweep
- Sweep time: 0.1s to 999.9s
- Input signal voltage range: 2Vpp to 20Vpp
- Pulse width measurement: 0.01µs resolution, measurable up to 20s (maximum)
- Period measurement: 0.01µs resolution, measurable up to 20s (maximum)
- Burst function pulse number: 1 to 1048575
- Count range: 0 to 4294967295
- Coupling mode: DC and AC
- Counting mode: Manual
- TTL/CMOS output: Low level 0.3V; High level 1V to 10V
- Burst mode: Manual trigger, CH2 trigger, external trigger (AC), external trigger (DC)
- Number of storage: 100 groups
- Storage position: 00 to 99 (00 storage position parameter is transferred by default when powered on)
- Number of arbitrary waves: 60 groups from 1 to 60 (15 groups are default when powered on)
- Interface mode: USB to serial interface
- Extension interface: Serial port with TTL level mode
- Communication rate: Standard 115200bps
- Communication protocol: Command line mode, open protocol
- Voltage range: DC5V
- Prompt sound: User adjustable through program settings

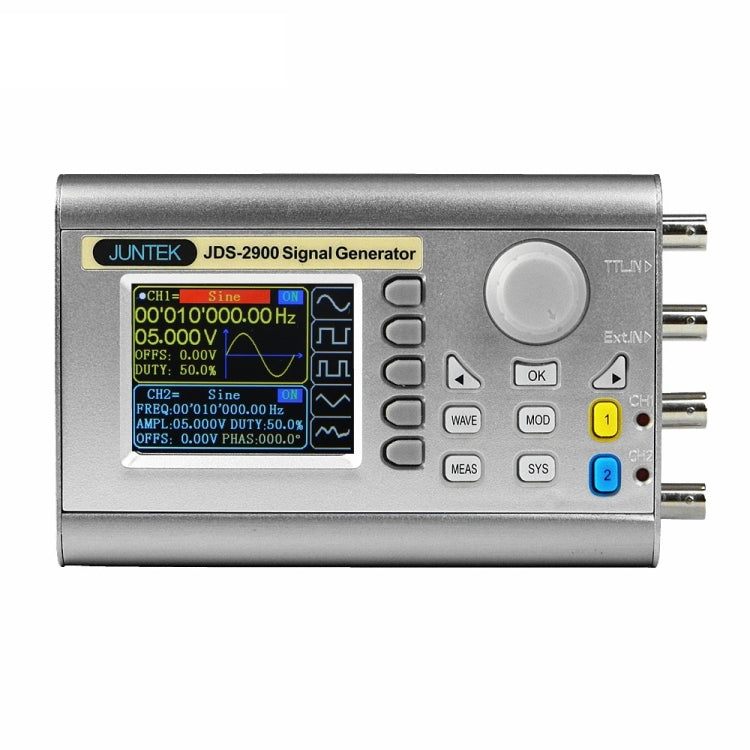

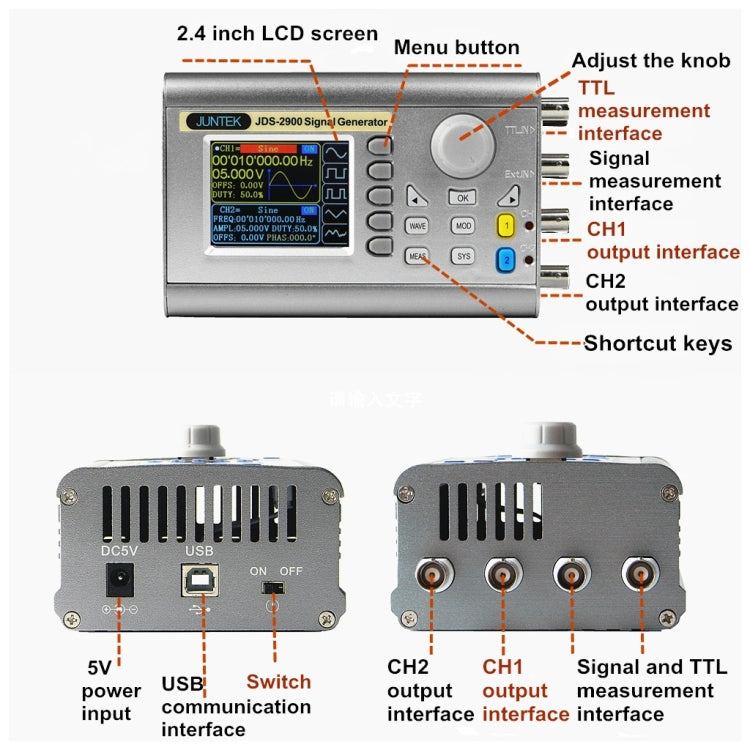

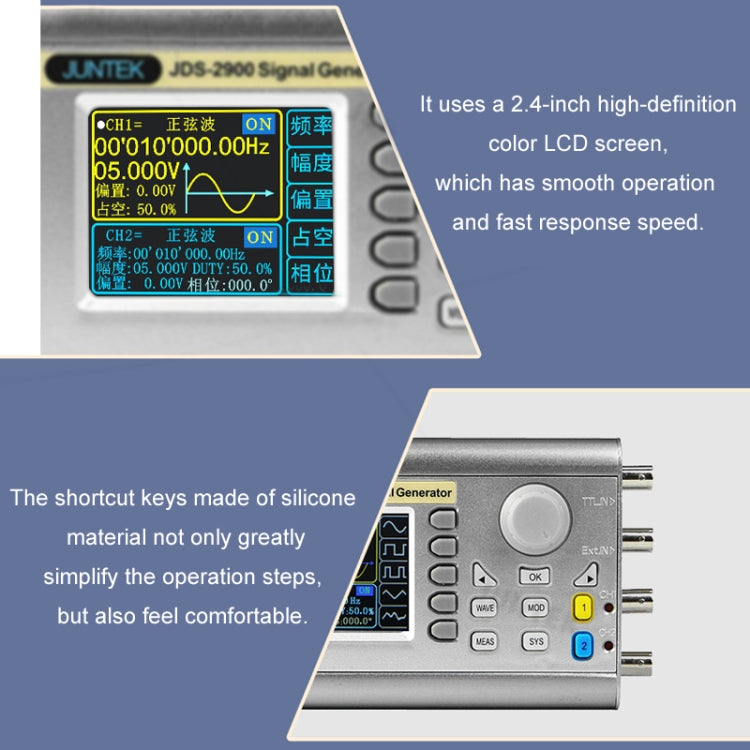

- Display: 2.4-inch high-definition color LCD
- Shortcut keys: Silicone material for comfortable operation

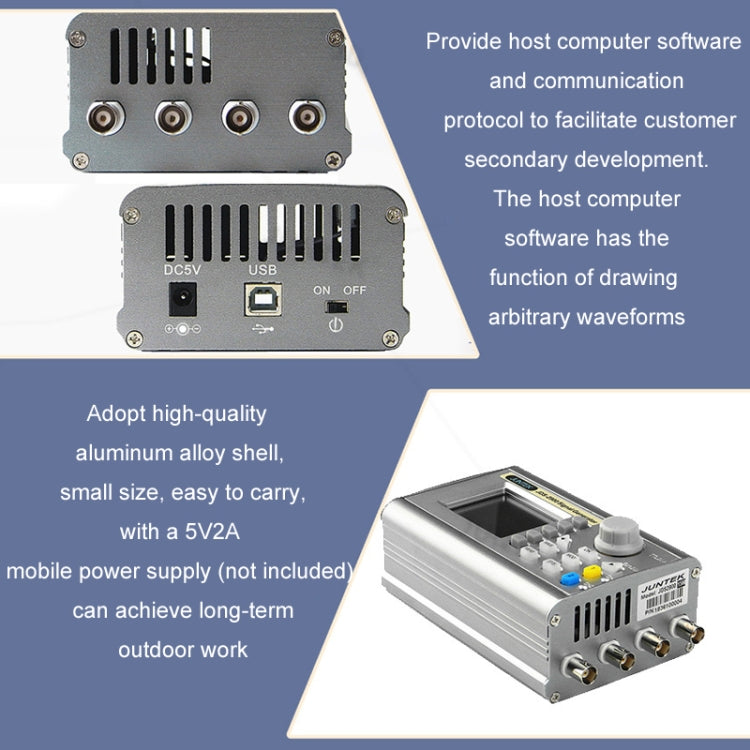

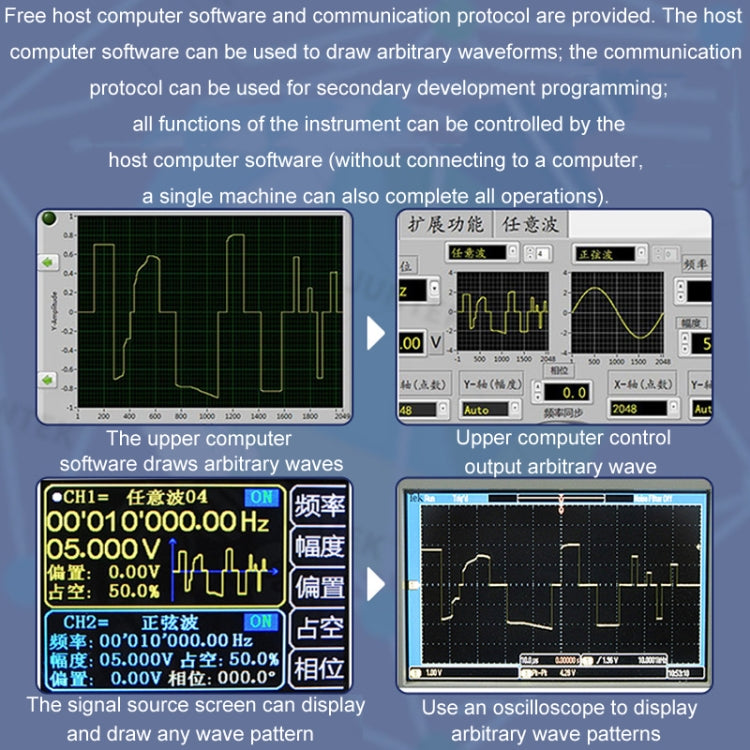

- Host computer software: Provided for arbitrary waveform drawing and secondary development
- Shell material: High-quality aluminum alloy

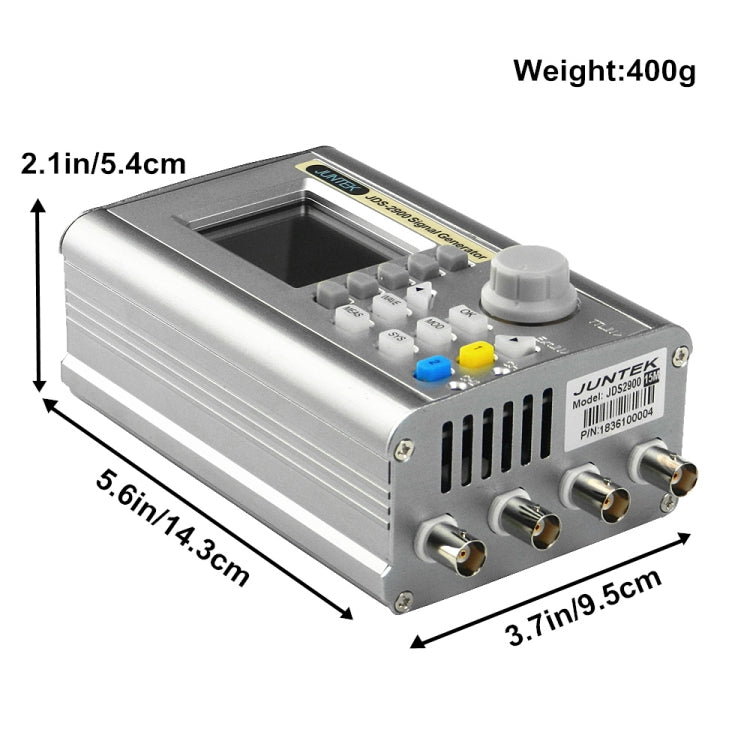

- Dimensions: 143mm x 95mm x 54mm
- Weight: 400g
- Power supply: 5V2A mobile power supply (not included)
- Dual channel output: Same or different function signals or arbitrary waveform signals

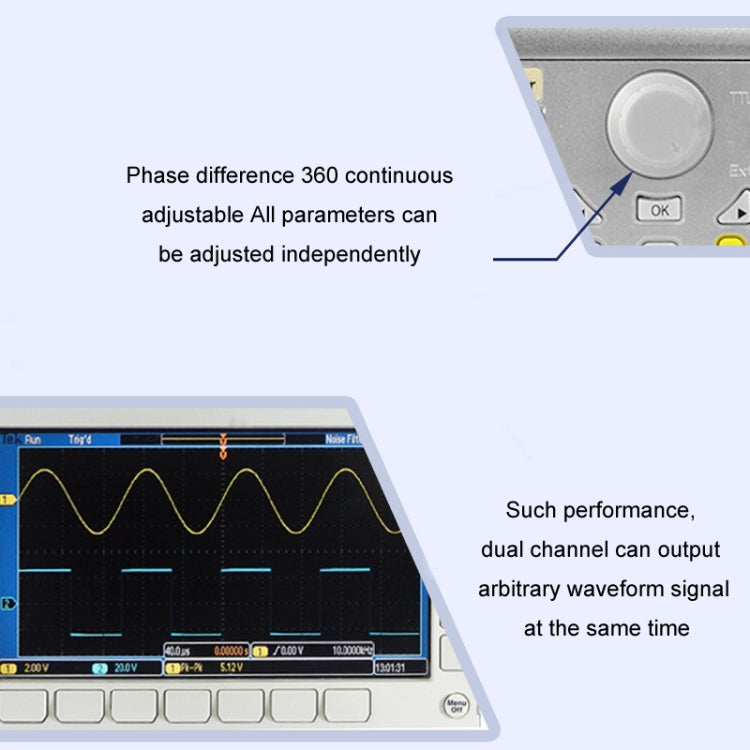

- Phase difference: Continuously adjustable from 0 to 359.9 degrees
- Waveform types: Sine wave, square wave, sawtooth wave, arbitrary wave

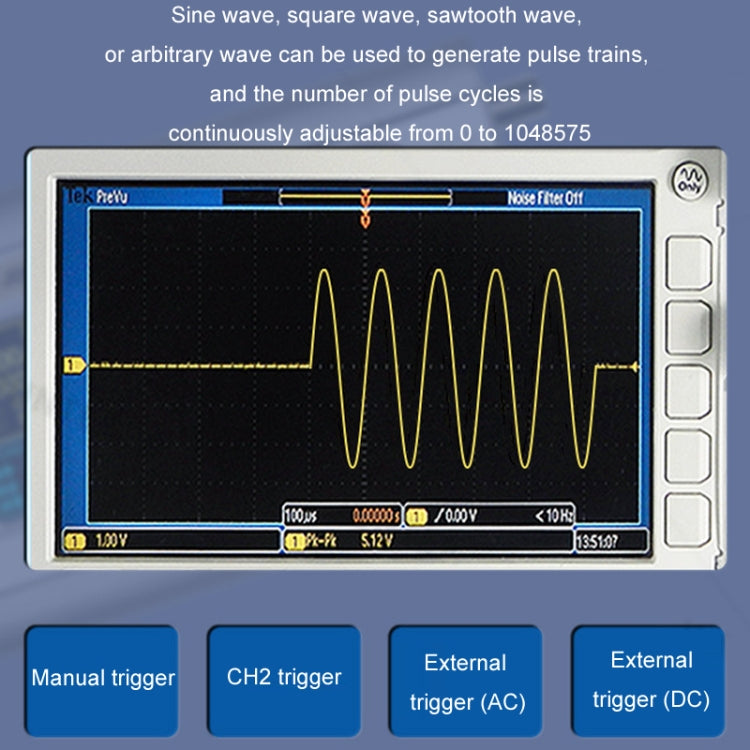

- Pulse cycles: Continuously adjustable from 0 to 1048575

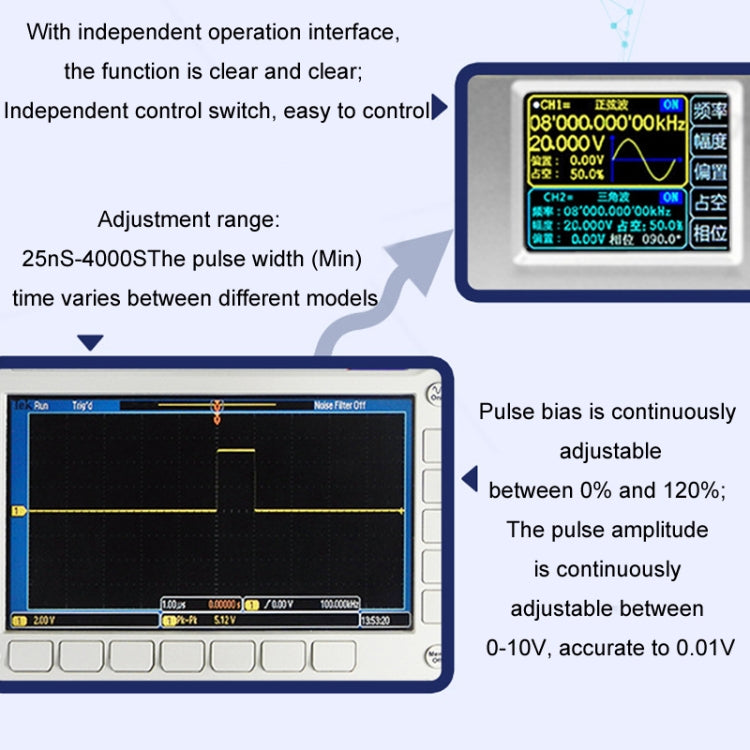

- Pulse width and cycle time: Digitally adjustable
