Description
The JUNTEK Programmable Dual-Channel DDS Function Arbitrary Waveform Signal Generator is designed to generate various waveform signals with high precision. It is suitable for applications in electronics testing, signal processing, and waveform generation tasks.
- Waveform length: 20482
- Point waveform sampling rate: 266MSa/s
- Waveform vertical resolution: 14 bits
- Amplitude resolution: 1mV
- Waveform output impedance: 50 ohms (typical)
- Protection: All signal output terminals can work within 60 under load short circuit conditions
- Sweep channel: CH1 or CH2
- Sweep type: linear sweep, logarithmic sweep
- Sweep time: 0.1s to 999.9s
- Input signal voltage range: 2Vpp to 20Vpp
- Pulse width measurement: 0.01us resolution, measurable up to 20s (MAX)
- Period measurement: 0.01us resolution, measurable up to 20s (MAX)
- Burst function pulse number: 1 to 1048575
- Count range: 0 to 4294967295
- Coupling mode: DC and AC
- Counting mode: Manual
- TTL/CMOS output: Low level 0.3V; High level 1V to 10V
- Burst mode: Manual trigger, CH2 trigger, external trigger (AC), external trigger (DC)
- Number of storage: 100 groups
- Position: 00 to 99 (00 storage position parameter is transferred by default when the power is turned on)
- Number of arbitrary waves: 60 groups from 1 to 60 (15 groups are default when the power is turned on)
- Interface mode: USB to serial interface
- Extension interface: Serial port with TTL level mode
- Communication rate: Standard 115200bps
- Communication protocol: Command line mode, open protocol
- Voltage range: DC5V
- Prompt sound: User adjustable through program settings

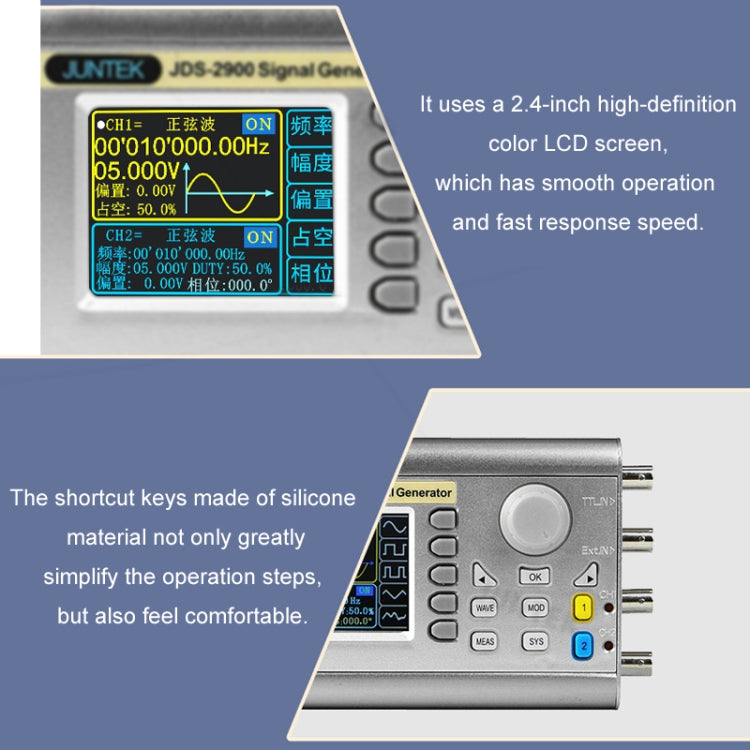

- Display: 2.4-inch high-definition color LCD
- Shortcut keys: Silicone material for comfortable operation

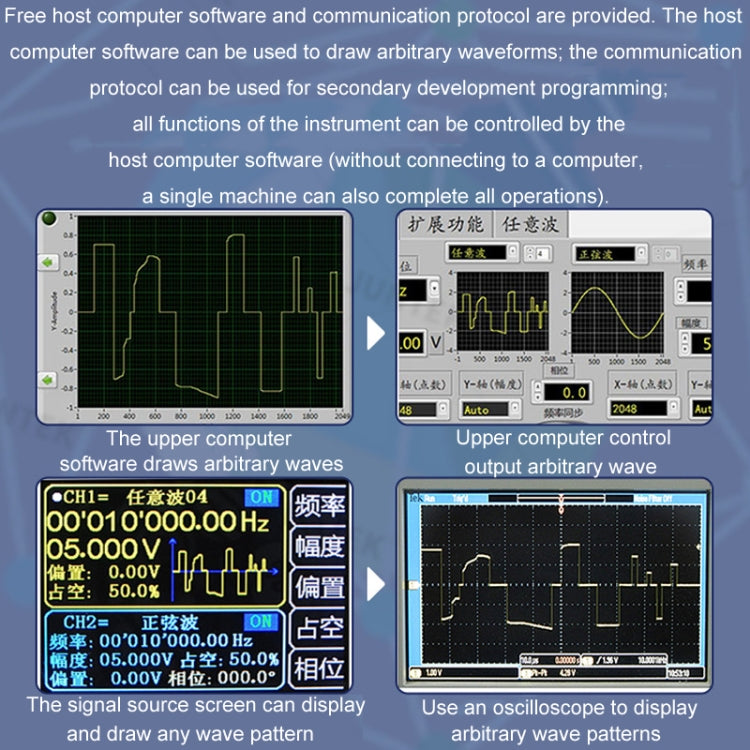

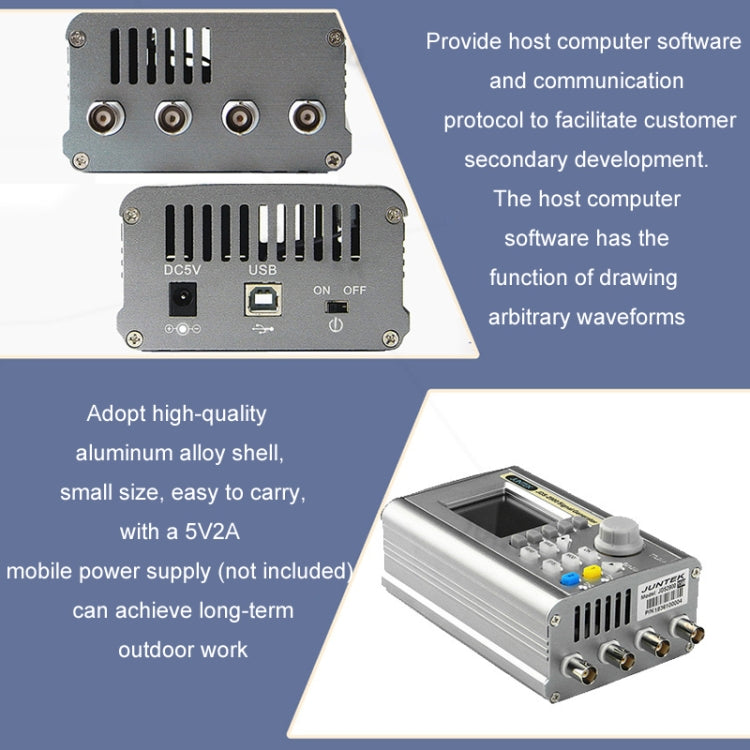

- Host computer software: Provided for waveform drawing and secondary development
- Shell material: High-quality aluminum alloy

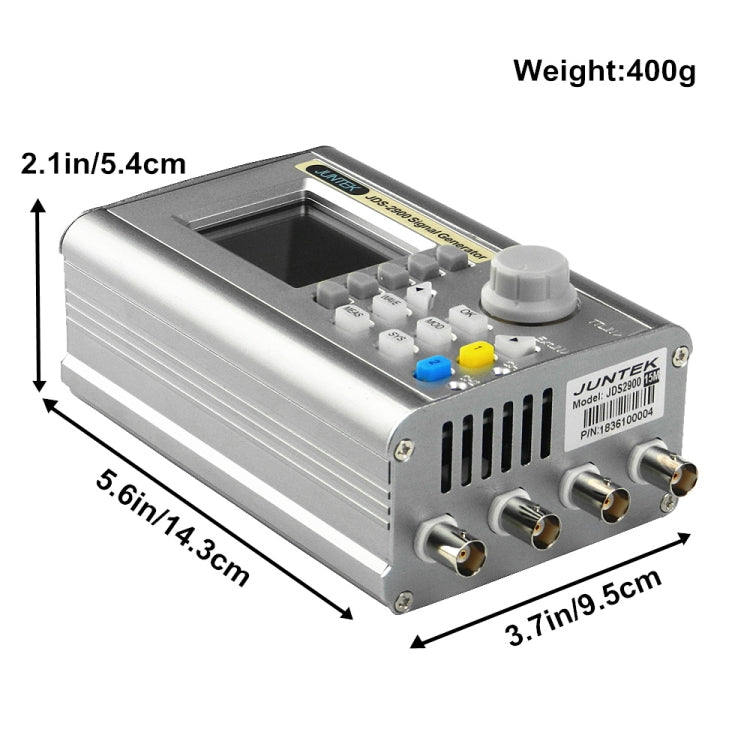

- Dimensions: 143mm x 95mm x 54mm
- Weight: 400g
- Power supply: 5V2A mobile power supply (not included)

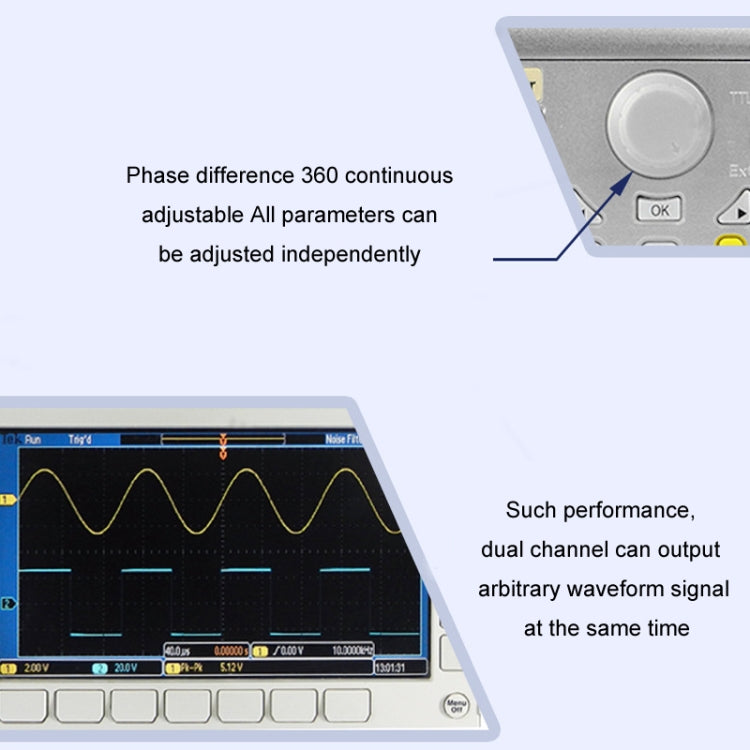

- Dual channels: Equal performance, independent parameter adjustment, phase difference adjustable from 0 to 359.9 degrees

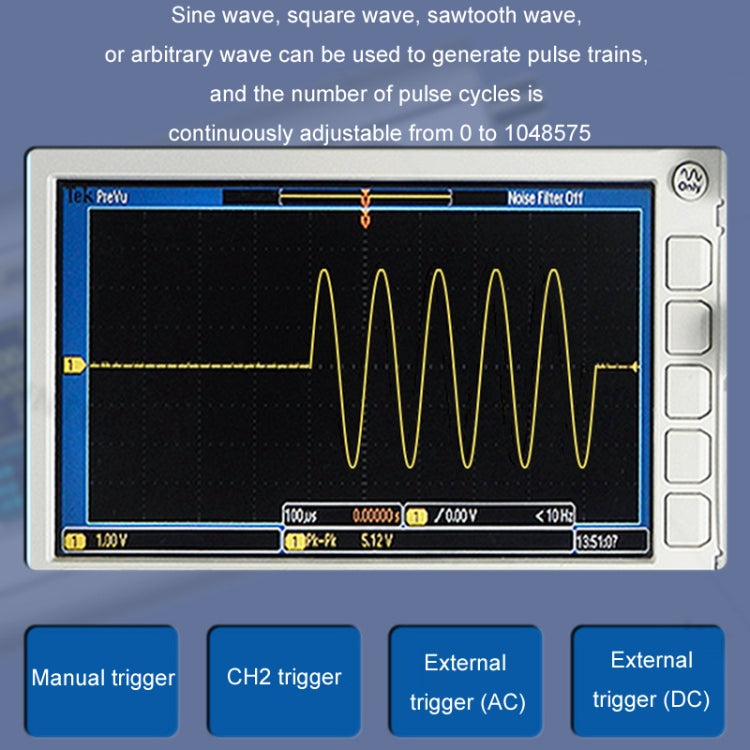

- Waveform types: Sine wave, square wave, sawtooth wave, arbitrary wave
- Pulse cycles: Adjustable from 0 to 1048575
- Pulse width and cycle time: Digitally adjustable
