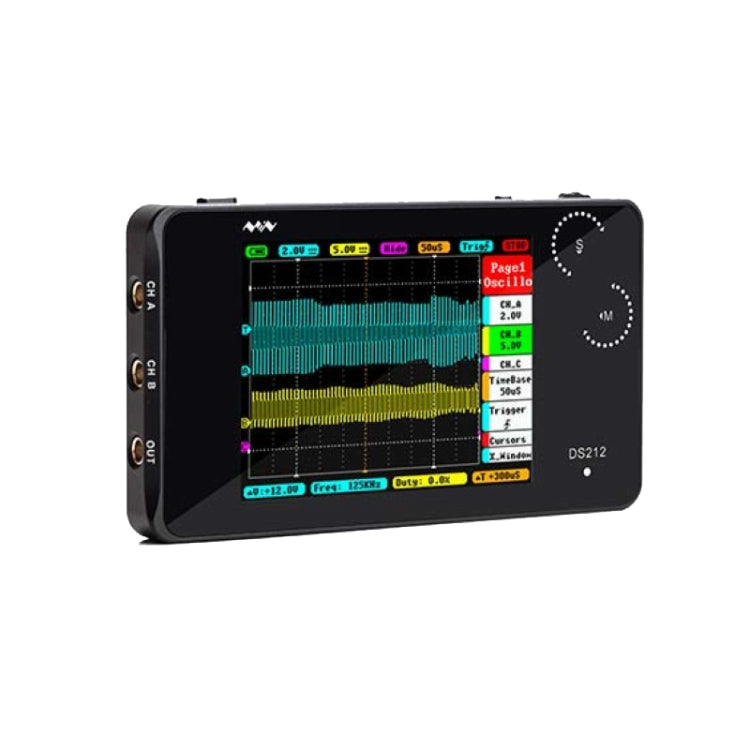

MINIWARE Dual Channel Mini Portable Handheld Digital Storage Oscilloscope, Model: DS212
MINIWARE Dual Channel Mini Portable Handheld Digital Storage Oscilloscope, Model: DS212
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

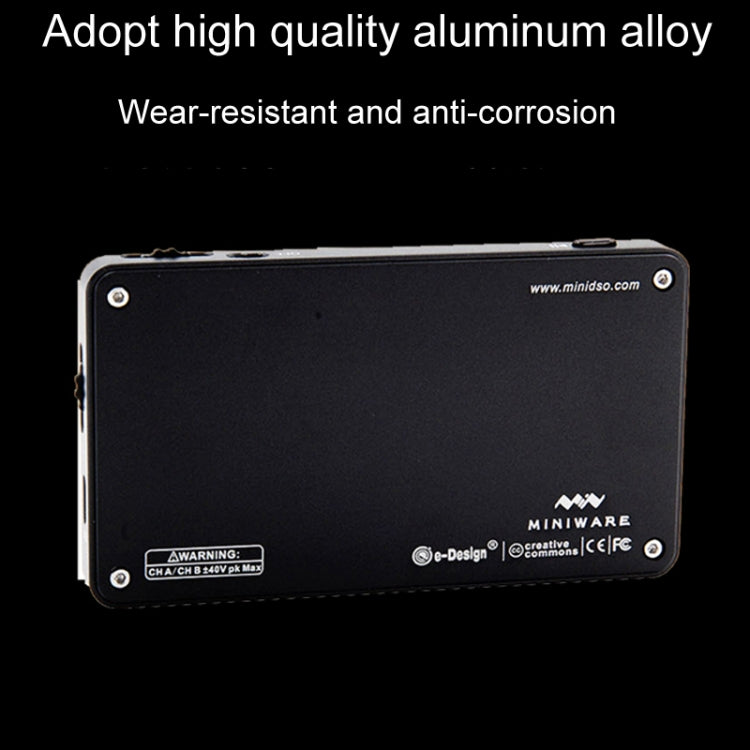

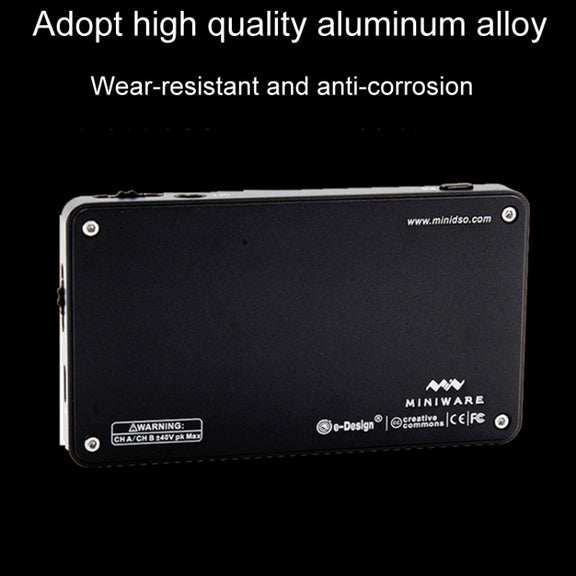

1. Adopting high quality aluminum alloy, wear-resistant and corrosion-resistant, better hand feeling
2. Large-capacity lithium battery, ultra-long standby, worry-free use
3. STM32 chip, super performance, fast data processing

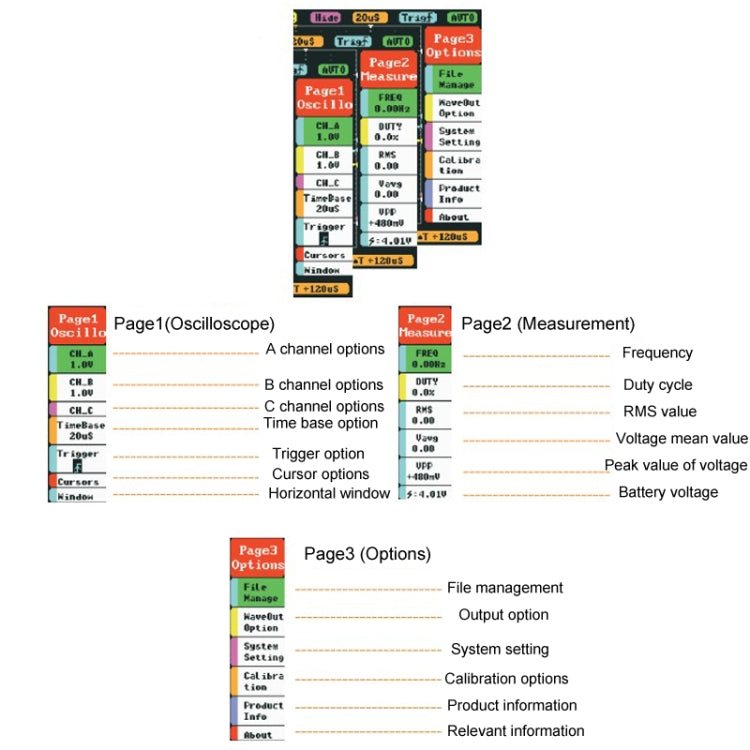

4. A variety of waveform measurement, to meet your different needs, measurement of ease of use
Parameters:
1. MCU: STM32F303VE
2. ADC: MCU internal ADC
3. Number of channels: 2 analog channels
4. Analog bandwidth: 1MHz
5. Sampling rate: up to 10MSa/s
6. Memory depth: up to 8K
7. Horizontal scanning speed: 1uS-2S
8. Vertical sensitivity: 20mv-10V
9. Input impedance: greater than 500 kOhm
10. Coupling method: DC/AC
11. Trigger type: rising edge, falling edge
12. Automatic adjustment mode: AUTO-FIT
13. Signal output: square wave, sine wave, triangle wave, sawtooth wave
14. Trigger mode: auto/normal/single/slow
15. Number of apps: 2
16. Storage: 8MB built-in U disk

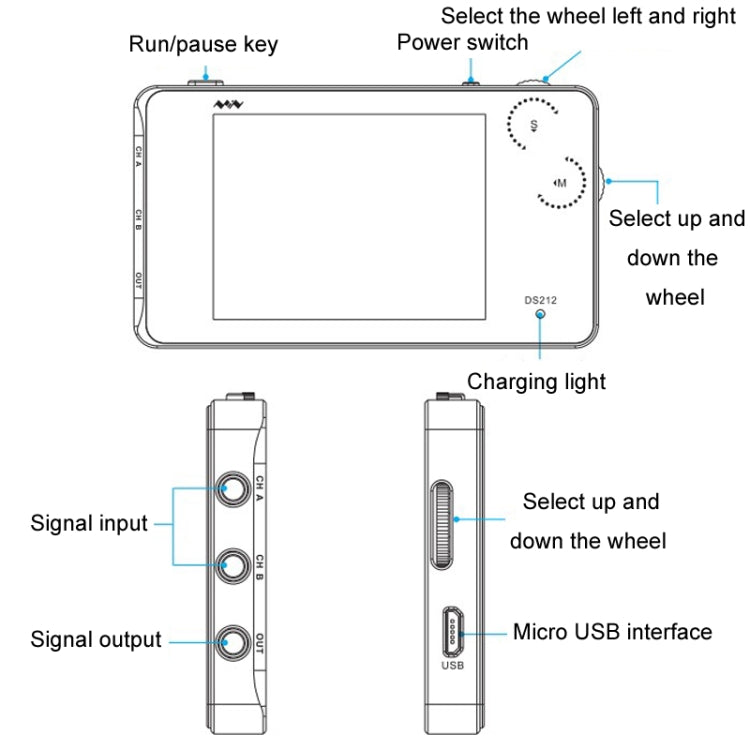

17. Operation: key, encoder
18. USB interface: Micro-USB
19. Battery capacity: 500mAh
20. Standby time: 2-3 hours
21. Screen size: 2.8 inch
22. Screen resolution: 320 x 240

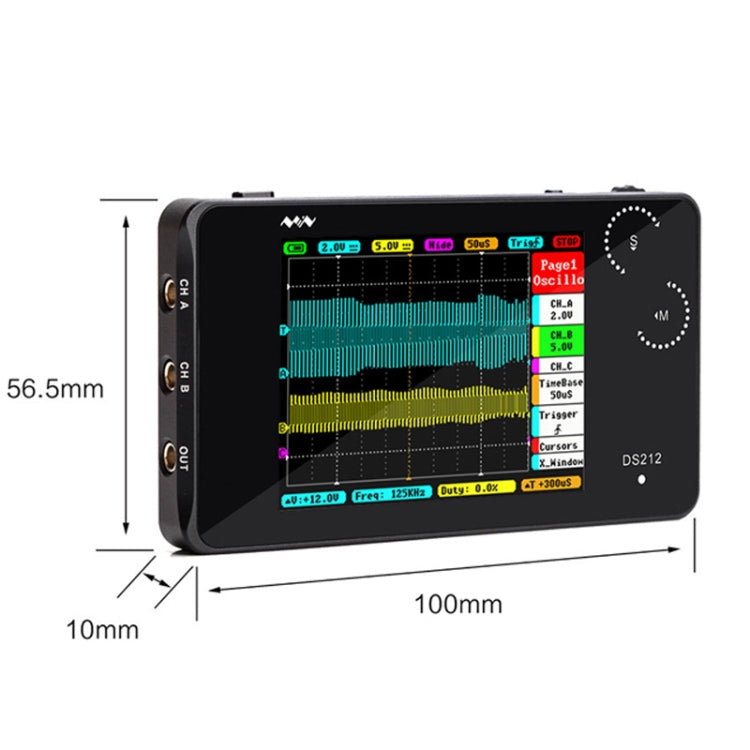

23. Main unit size: 100 x 56.5 x 10.7mm
24. Weight: 88g

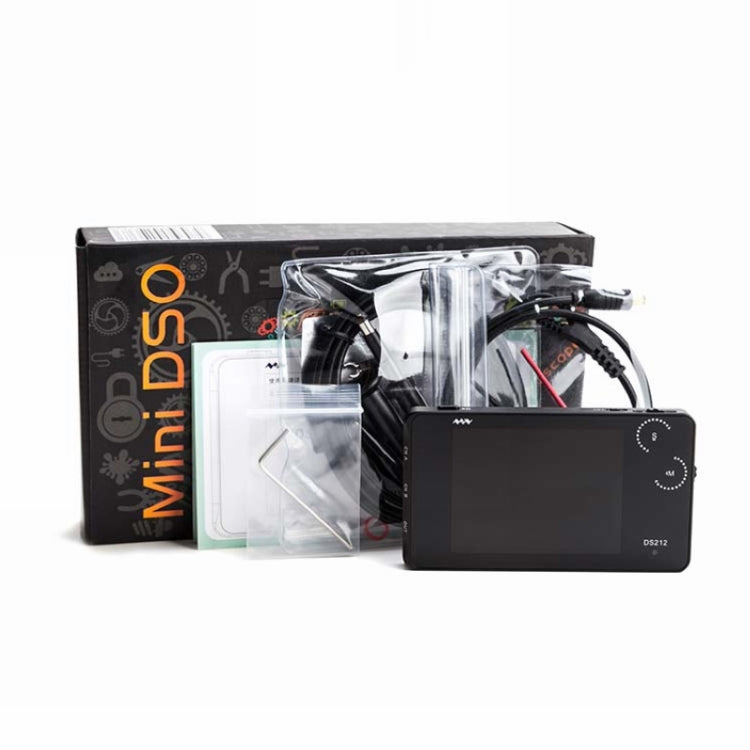

Packing list:
- Main unit x 1
- Split probe x 1
- Hook x 1
- L-shaped hexagonal screwdriver x 1
- Instructions for use x 1
