Description

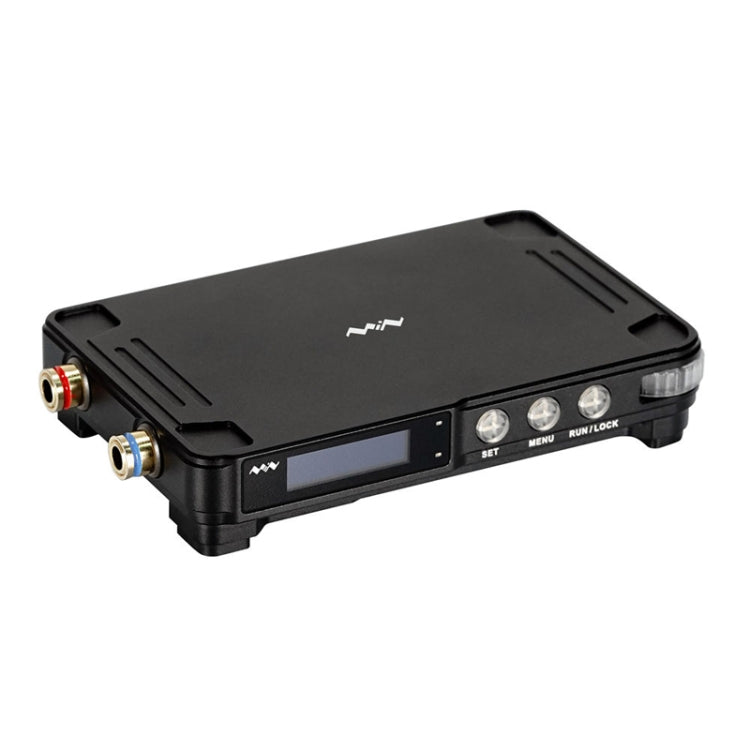

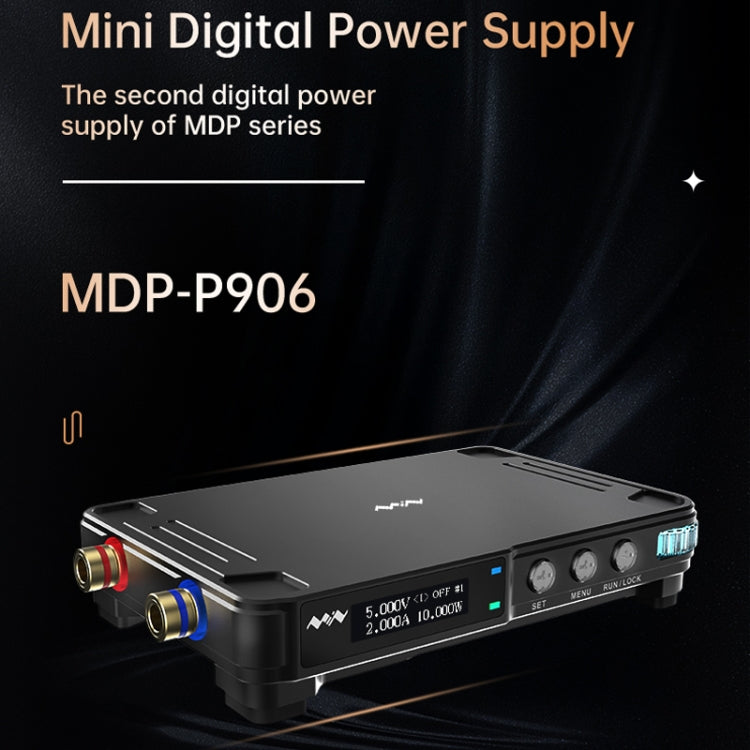

MINIWARE Rise And Fall Linear Switching DC Mini Digital Power Module is a power module designed for various electronic applications. It is suitable for maintenance and debugging tasks, providing stable and efficient output in a compact form factor.
- Product Type: Power Module
- Model: MDP-P906
- Material: Aluminum alloy

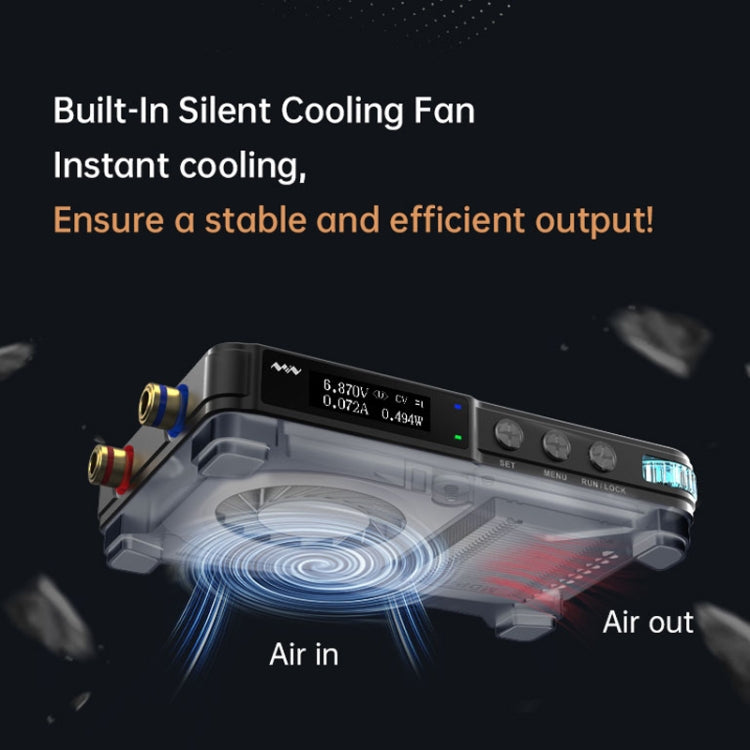

- Built-in silent cooling fan for fast heat dissipation

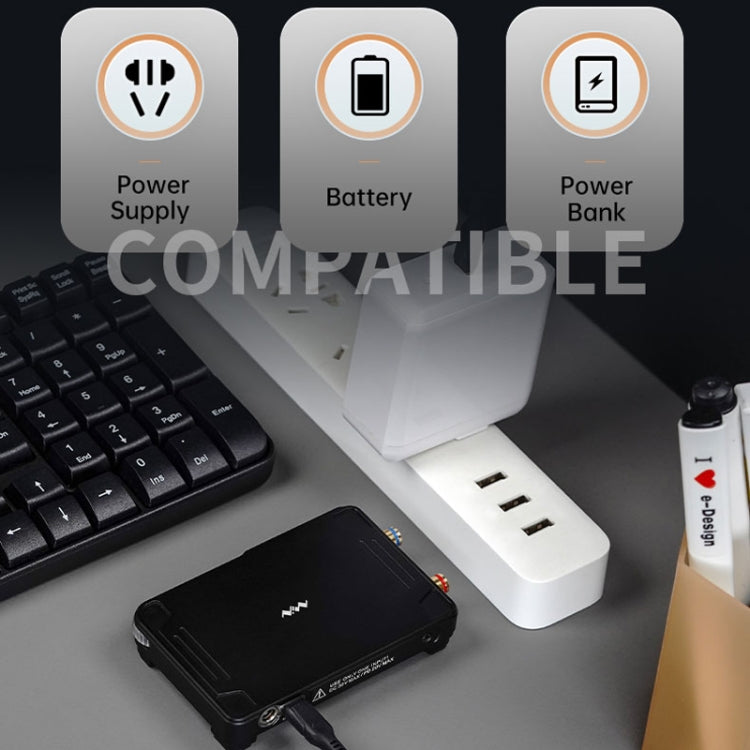

- Compatible with a variety of mobile power supplies

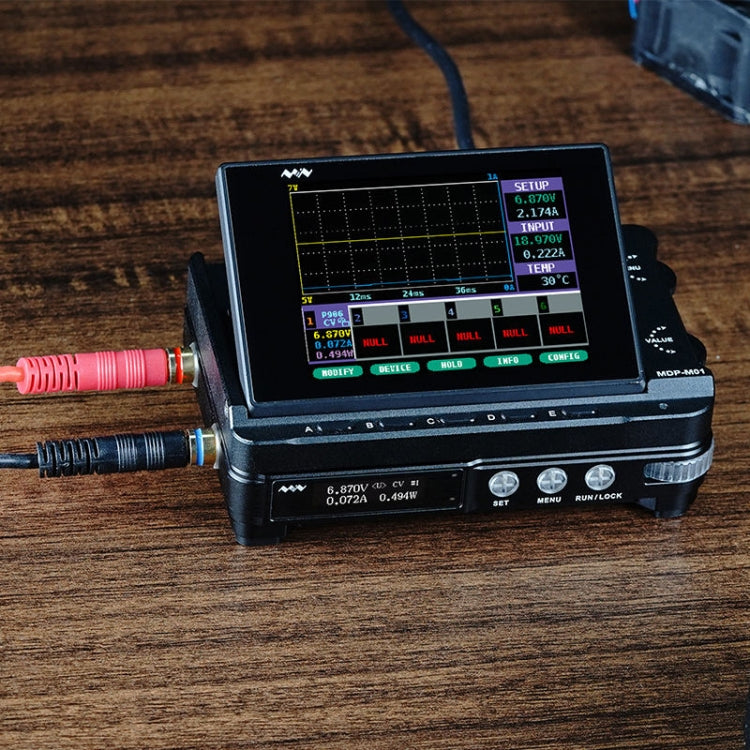

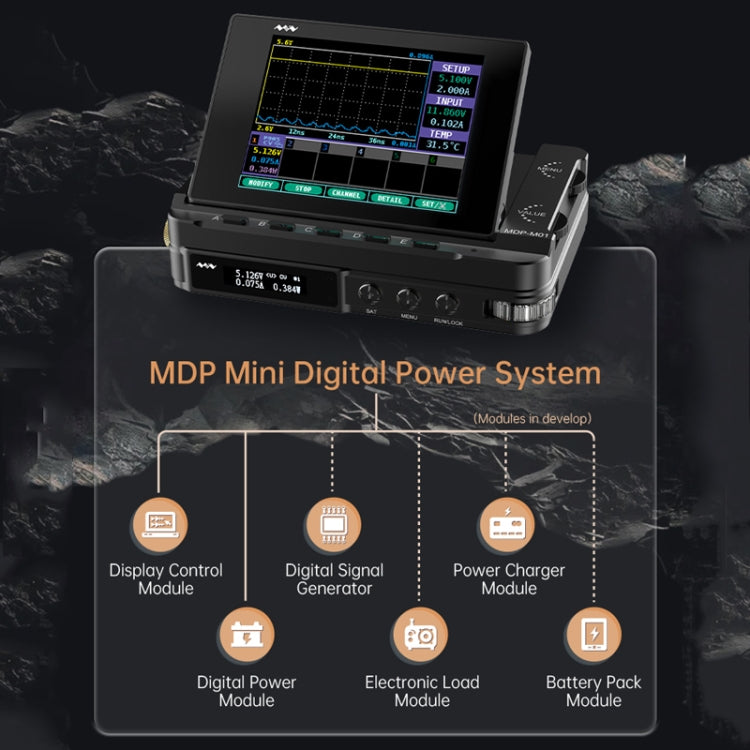

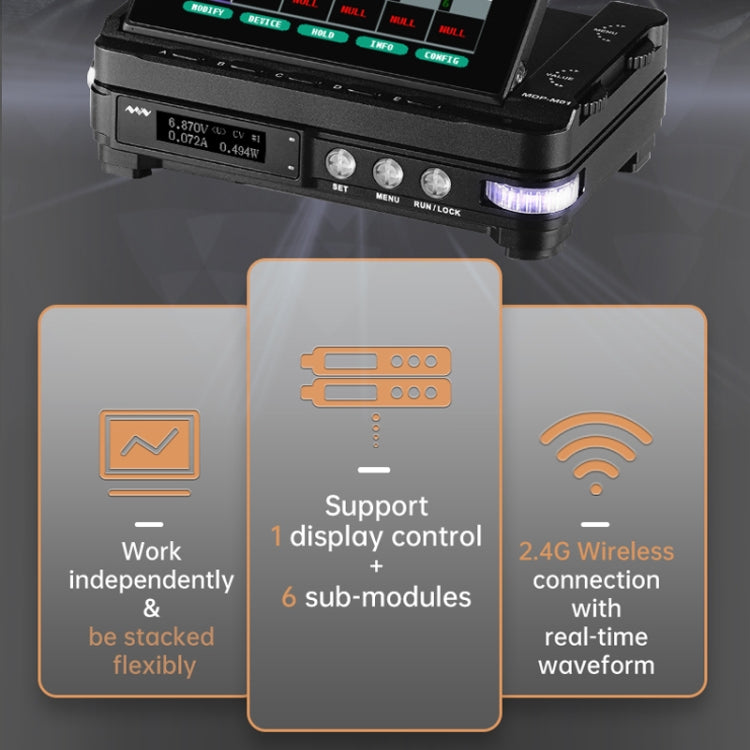

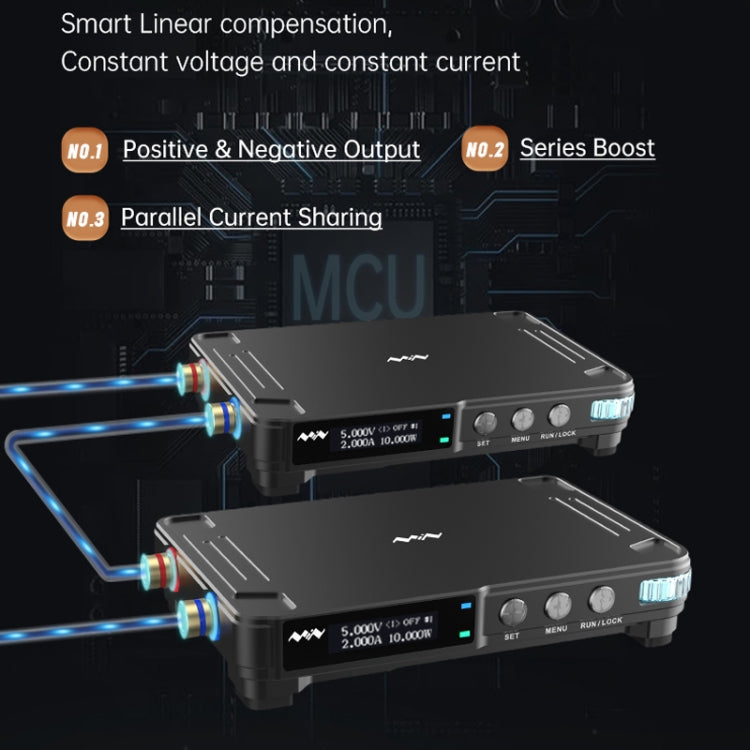

- Can operate independently or be stacked flexibly
- Mini size with higher sensitivity

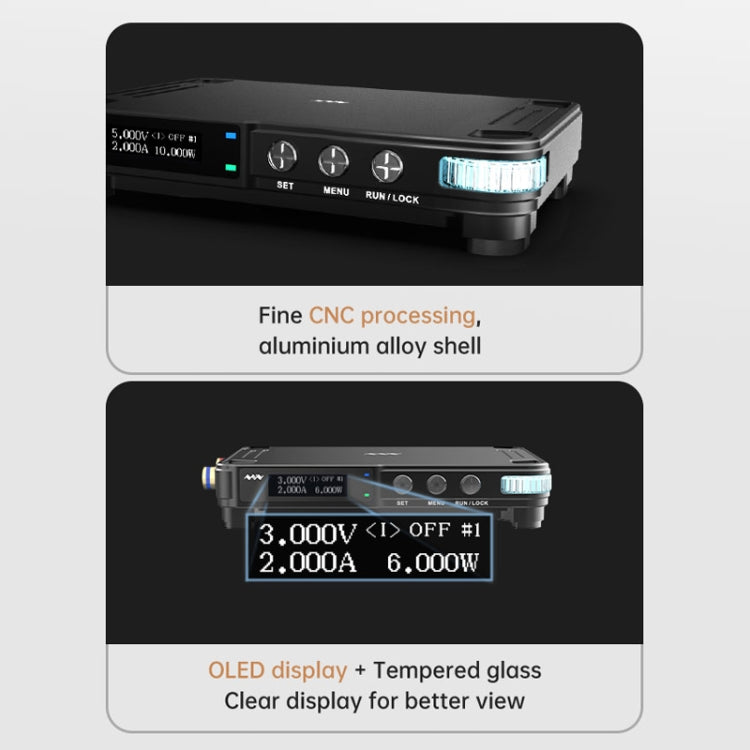

- Precision CNC machining with a durable and rust-resistant aluminum alloy plating shell
- OLED display with tempered glass surface for clearer visibility

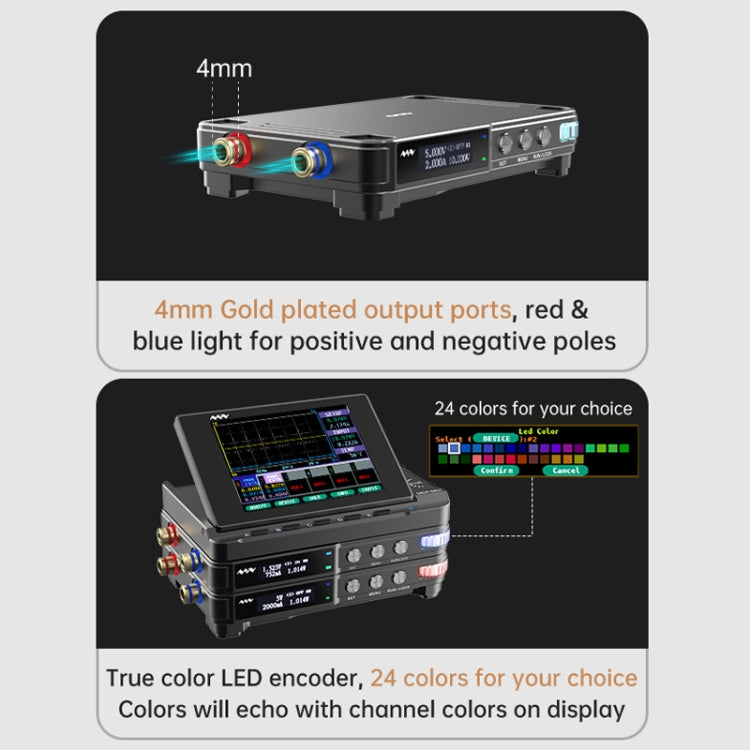

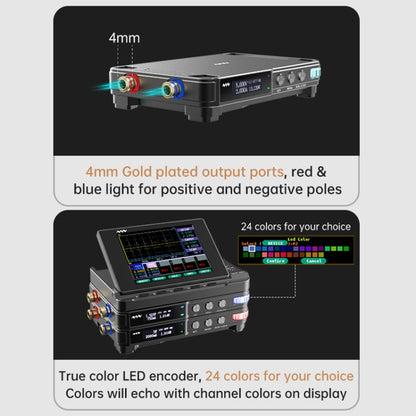

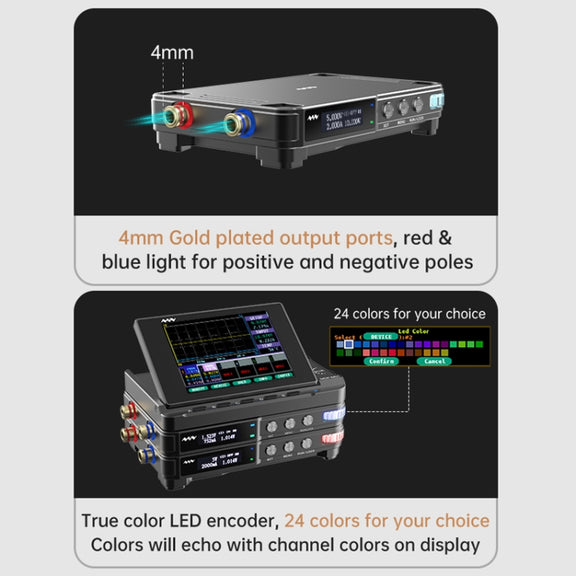

- 4mm gold-plated output connector
- Positive and negative red and blue status indicators
- 24-color customizable light dial wheel
- Built-in high-performance MCU chip
- Programmable output with custom program output law
- Preset parameters and firmware upgrades available
- Input Voltage: DC4.2V-30V, 14A; QC3.0/PD2.0 20V 5A
- Output Voltage: 0-30V, 0-10A, 300W
- Conversion Efficiency: 95%
- Output Resolution: 10mV, 2mA; adjustable to 1mV, 1mA
- Output Accuracy: 0.03% +5mV, 0.05% +2mA
- Load Adjustment Rate: less than +/-0.01%
- Power Supply Adjustment Rate: less than +/-0.01%

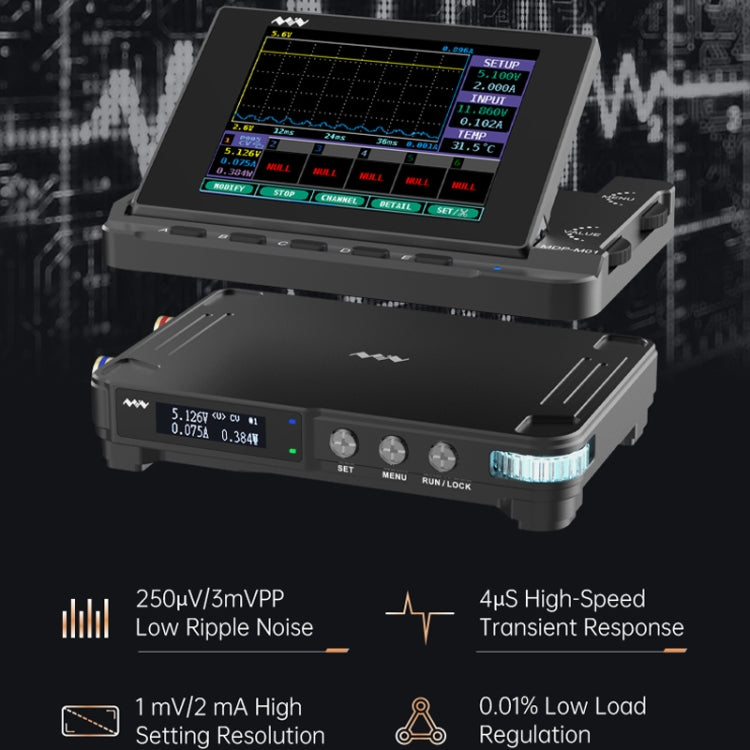

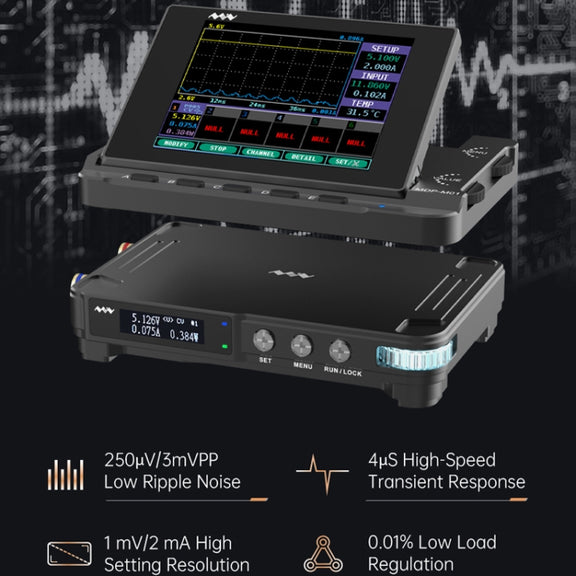

- Ripple and Noise: less than 250uVrms, 3mVpp; less than 2mArms
- Transient Response Time: less than 4uS
- Safety Protection: input overvoltage, undervoltage, reverse connection protection, output overcurrent, backflow, over-temperature protection
- Other Features: automatic shutdown, micro-power mode, USB firmware upgrade support

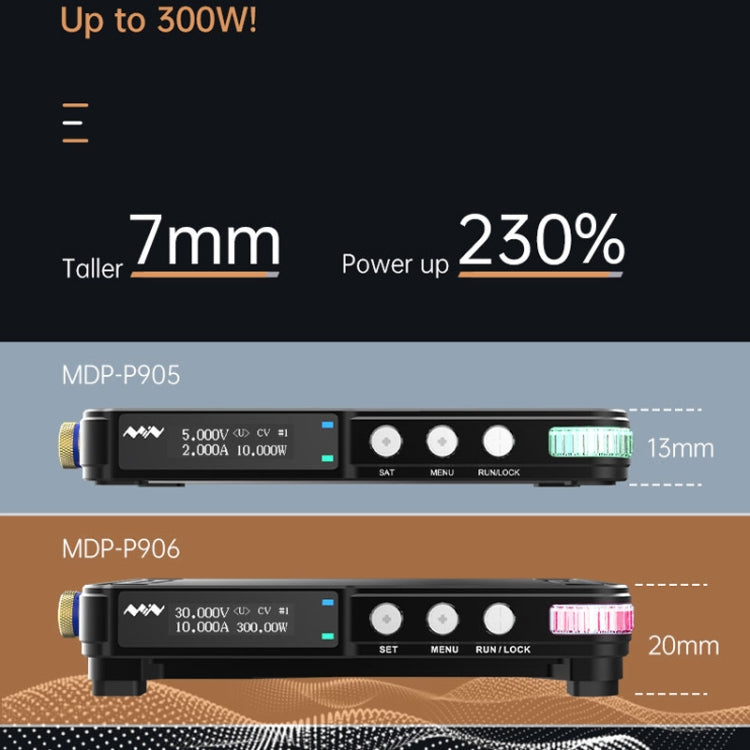

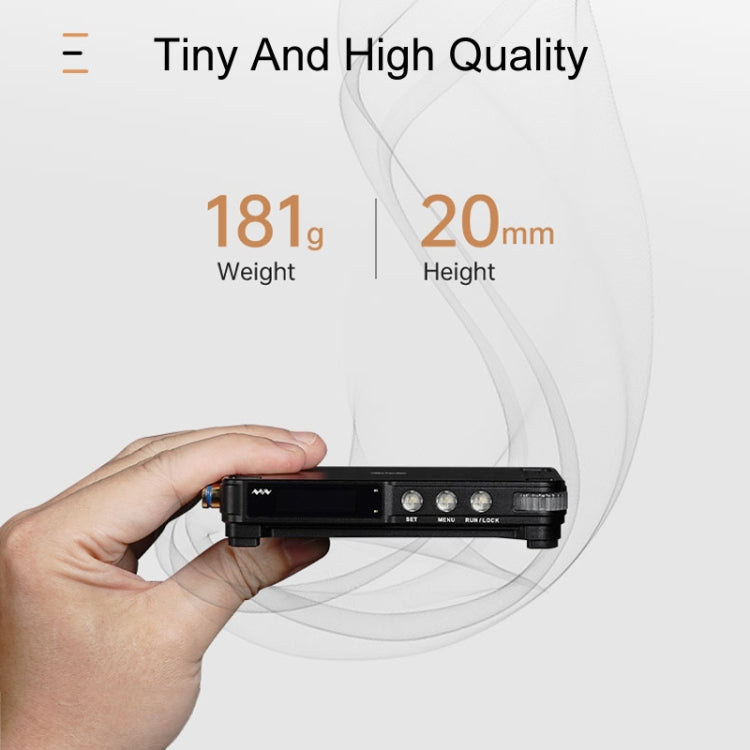

- Dimensions: 112 x 66 x 20mm
- Weight: 181g

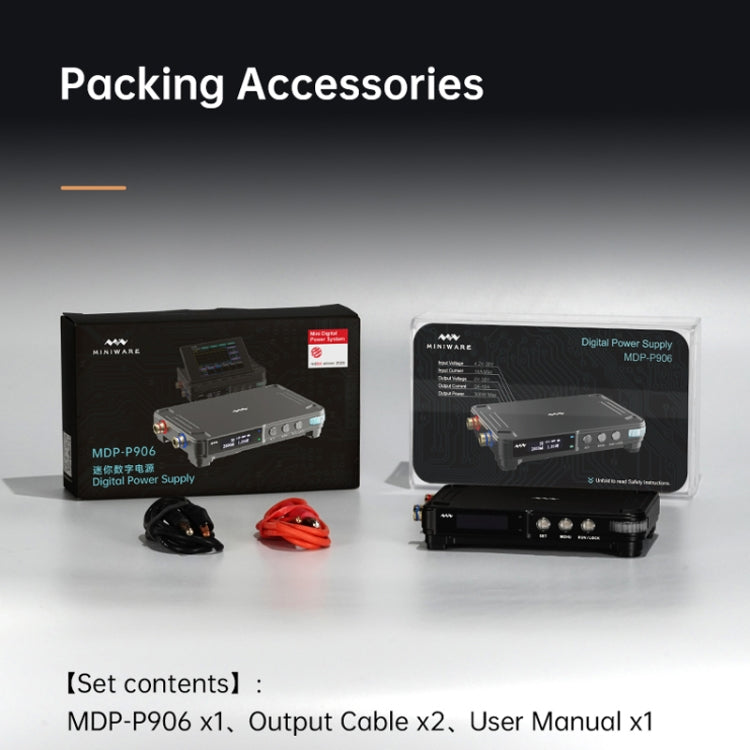

- Packing List: MDP-P906 x 1, Output data cable x 2, Instructions for use x 1
