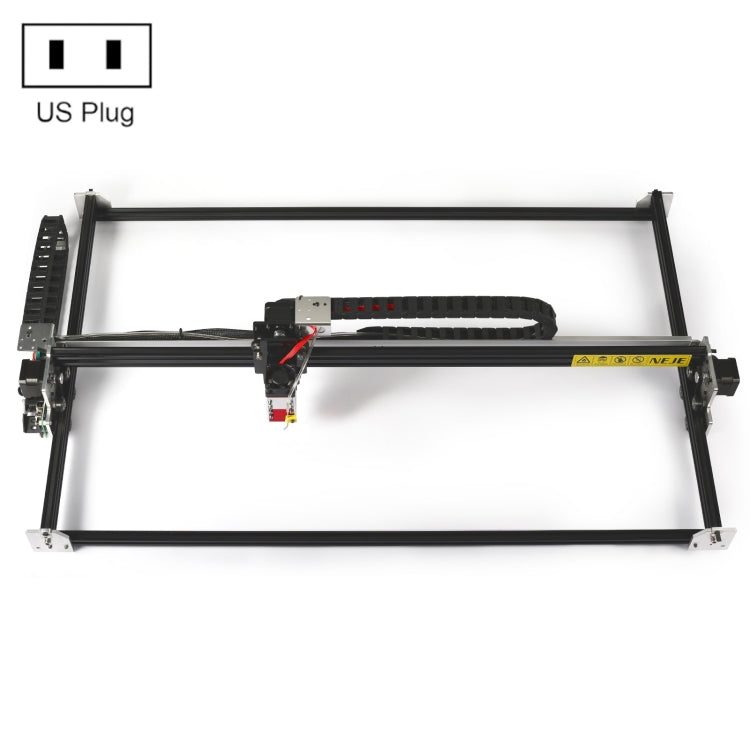

NEJE MASTER 3 MAX Laser Engraver with A40640 Dual Laser Beam Module(US Plug)

1. Frame Size (L - W -H): 590x980x160mm

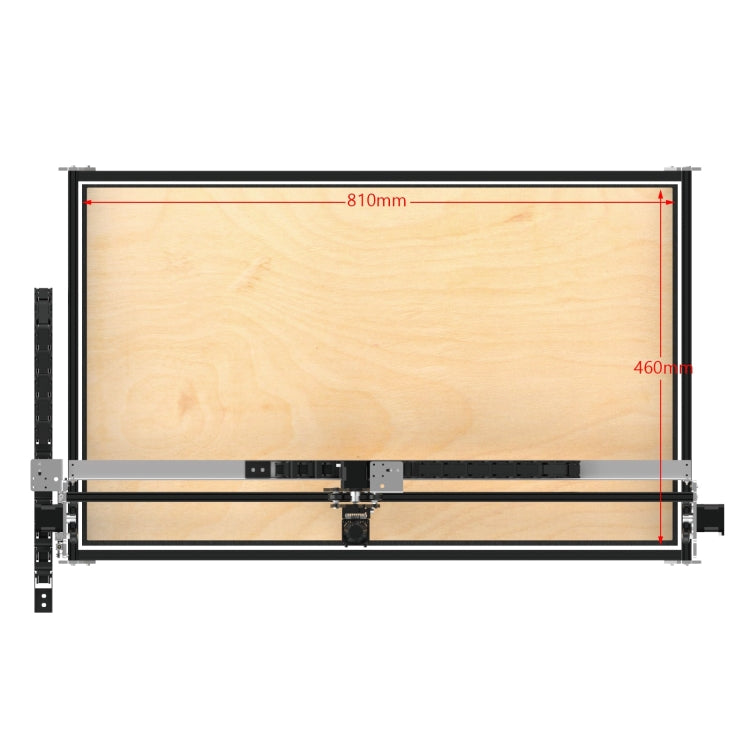

2. Working Size ( X - Y): 460 x 810mm, area extended design
3. Dot Pitch: 0. 075mm
4. Pixel: 6133 x 10800 px
5. Frame Material: All-aluminum alloy and PC material hybrid frame
6. Structure: Y-axis fit adjustable design, X-axis stress fit assembly
7. Structure Feature: Fit, High precision, stablize, smooth, no oil, easy maintenance, long life
8. Motor Drive Current: 0.9A
9. Max Move Speed: X:1000mm/s(with A40640 module 204g)
Y:750mm/s
10. MCU: 32-bit MCU
11. Input: 12V 5A
12. Compatible Modules: All NEJE 12V 4pin Laser Moudle
13. You can safely and stably upgrade to the latest GRBL firmware through NEJE software, When using the device for the first time, please open the NEJE software to update to the latest firmware.
14. NEJE optimizes the low-light experience in GRBL mode for diode lasers, and the low-light settings can be adjusted through the laserGRBL software.
15. NEJE is compatible with M8, M7, Door functions, and automatically adapts to lightburn, laserGRBL and NEJE software for better automation of processes.
16. The motor is automatically locked when power is turned on, and secondary processing can be performed when repeating the engraving work, so that the position information will not be lost.
17. NEJE win software adds area customization settings, NEJE provides the function of expanding the orbits, both the Y-axis area and the X-axis area can be freely expanded, and the laser module also automatically engraves silently.

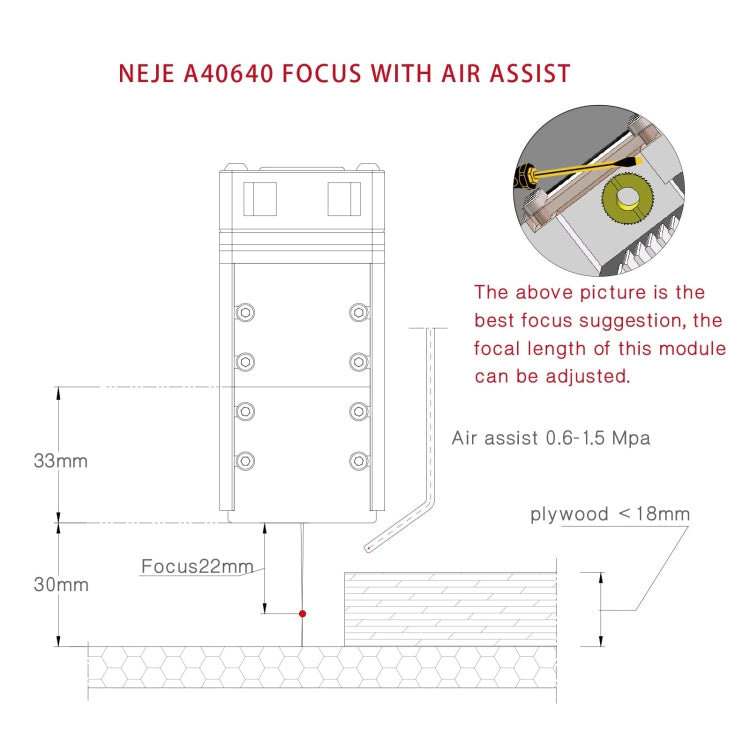

18. NEJE 3 comes standard with a high-pressure air assist kit.

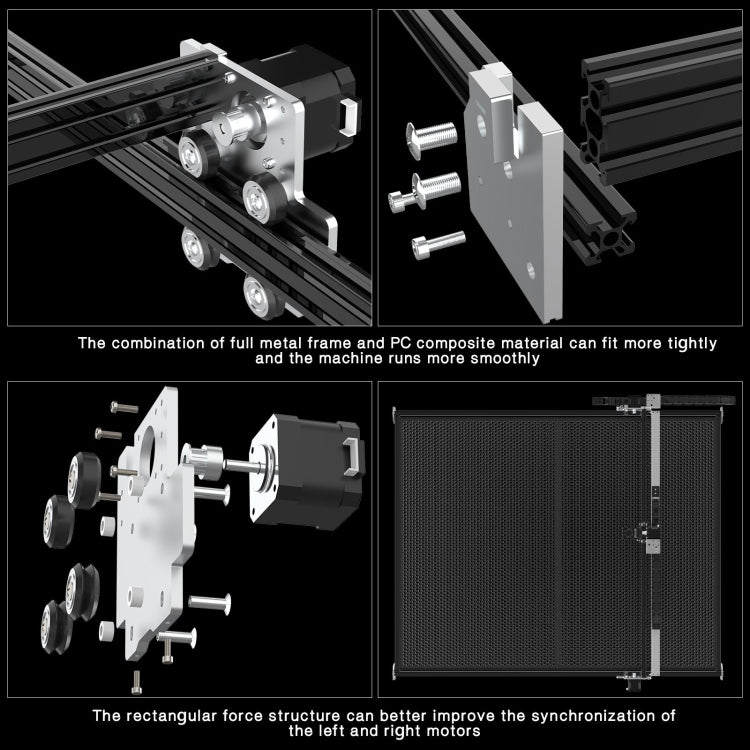

19. NEJE 3 adopts all-metal frame + PC CNC structural parts, which improves the stability of the structure and enhances the smoothness of movement. It also adopts easy maintenance driving structure.

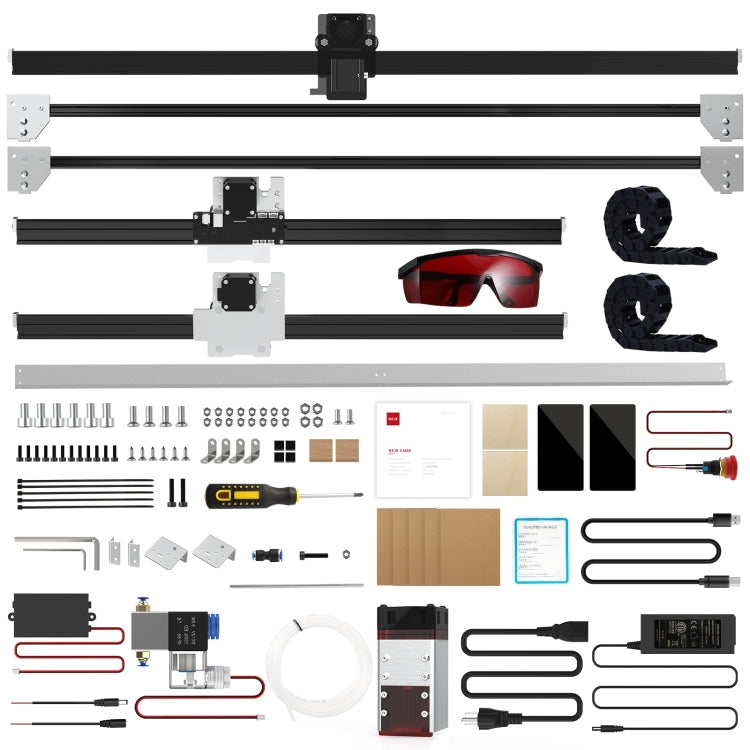

20. NEJE 3 Max comes standard with M8 air valve kit for controlling air assist, M7 relay switch kit for controlling smoke exhaust system, and Door switch for emergency stop.
21. NEJE 3 Max is equipped with a towline as standard to organize air pipes and wires for easy installation into a closed box.
22. NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.

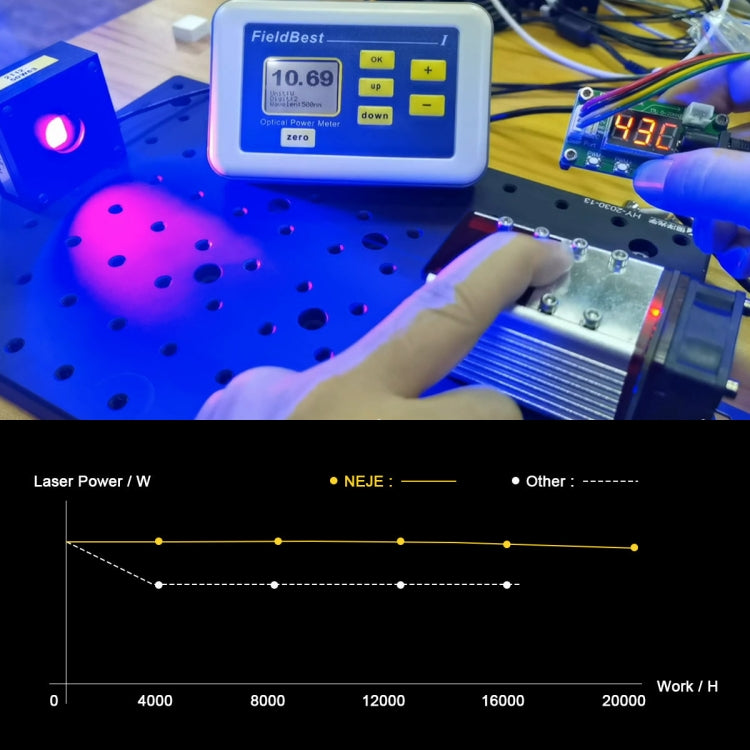

23. The new laser uses a high temperature resistant window to protect the lens, which effectively improves the service life of the lens.

Features：

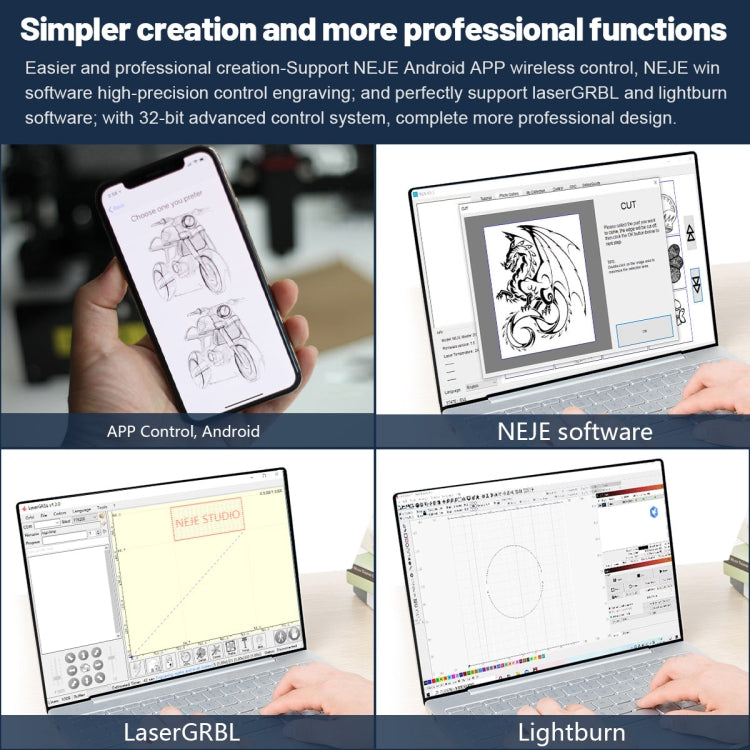

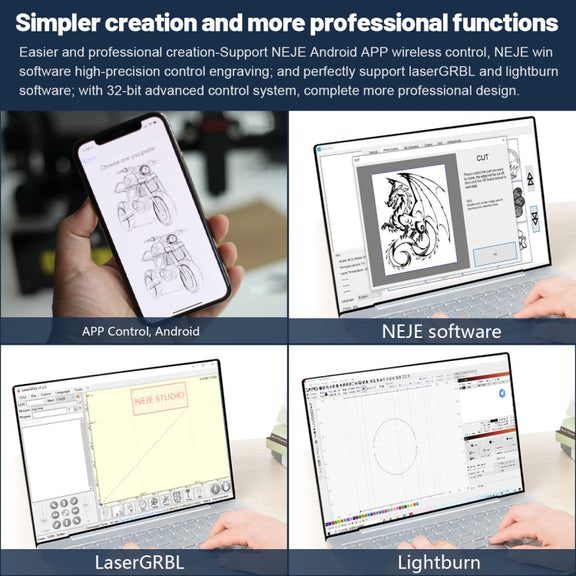

1. At the same time, it supports NEJE software, NEJE APP, LaserGRBL, Lightburn.
2. Compared with NEJE 2s MAX, the operating experience is greatly optimized, the low-light display of laserGRBL and lightburn in GRBL mode is increased, and the low-light intensity can be adjusted through laserGRBL.
3. The machine is powered on Afterwards, the motor will be automatically locked, so that the work can be operated twice after operation without repositioning; the interactive experience has been optimized, and the interactive communication with laserGRBL and lightburn software has been optimized.
4. BLE-based wireless control, supports NEJE APP wireless control;
5. Support NEJE 2S Max replacement of the mainboard. The device only adjusts the position of the YL and YR motor sockets.
6. More abundant functions are: added M8, M7, Door functions, and all are compatible with NEJE software, laserGRBL, Lightburn, M8 generally achieve air-assisted Automatic control, so as to realize the dynamic control of each process of the work; M7 function is generally used to realize smoke control; Door function can only be stopped due to the problem of the message mechanism of the lightburn software, but can be suspended in NEJE mode or LaserGRBL mode , after canceling the door, you can continue to work without losing the work; NEJE provides M8, M7, Door function expansion accessories, including air valve switch and relay switch, you can use these accessories to realize the air compressor air circuit, smoke exhaust fan circuit , automatic control of the oxygen machine circuit.

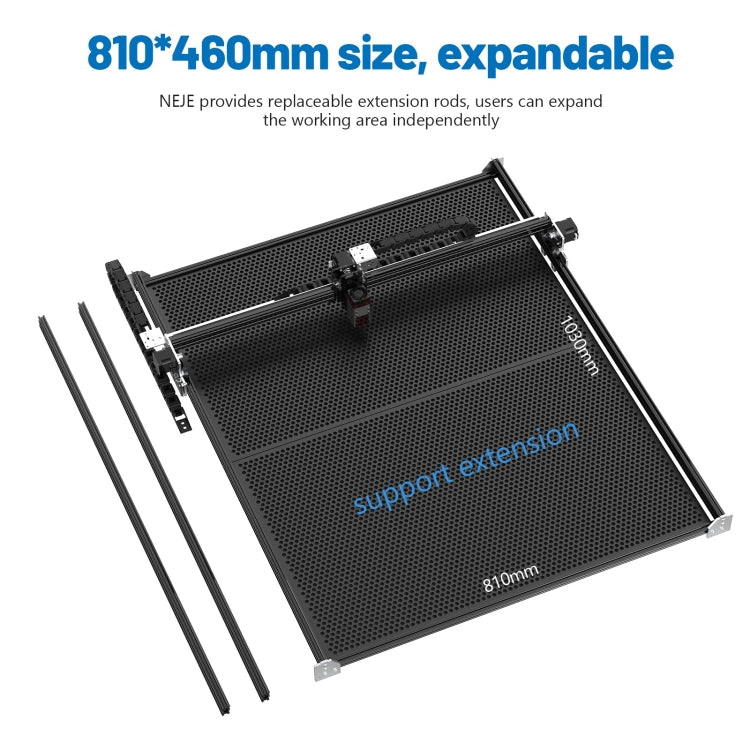

7. The new NEJE V6.1.2 software supports area expansion, you can simply modify the length of the track to achieve area expansion, NEJE also provides the option of extended track.
8. Built-in sensor protection, currently in NEJE mode, when the machine angle changes, the device will automatically stop working.
9. The top 32-bit processor has replaced the previous two The chip processing solution is more reliable, support OTA upgrade in NEJE mode, NEJE continuously upgrades software and firmware Provide more surprising and useful interesting features.
