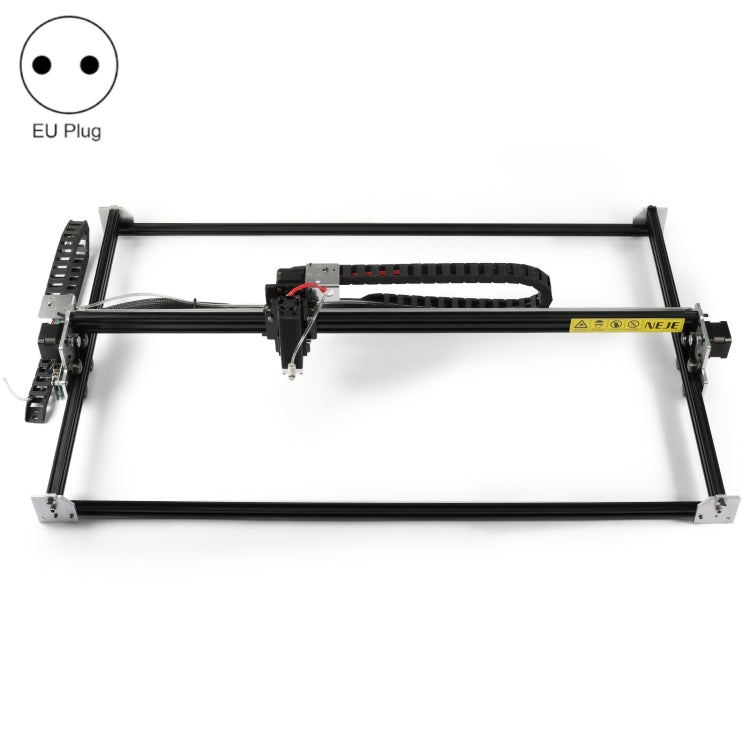

NEJE MASTER 3 MAX Laser Engraver with E30130 Laser Module(EU Plug)
NEJE MASTER 3 MAX Laser Engraver with E30130 Laser Module(EU Plug)
In stock
-
This item is dispatched in 1 - 3 days
-
6 months fault protection. We back all products with a 6 months guarantee.
Order in the next 0 hours 0 minutes to get it by /10/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout

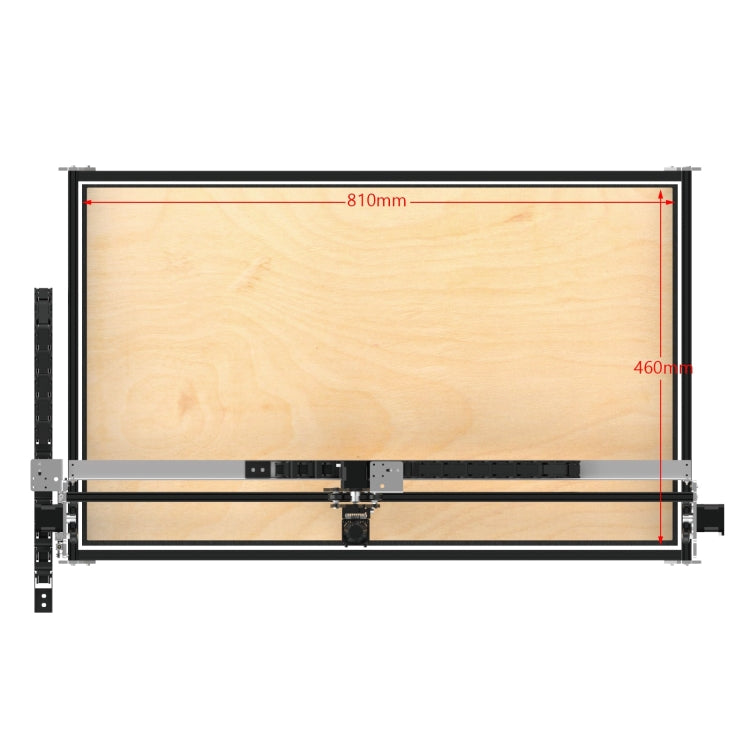

2. Working Size ( X - Y): 460 x 810mm, area extended design
3. Dot Pitch: 0.075mm
4. Pixel: 6133 x 10800 px
5. Frame Material: All-aluminum alloy and PC material hybrid frame
6. Structure Technology:Y-axis fit adjustable design, X-axis stress fit assembly
7. Structure Feature: Fit, High precision, stablize, smooth, no oil, easy
8. Motor Size: 42 x 42 x 40mm
9. Motor Drive Current: 0.9A
10. Module Height Adjuster：Yes
11. Max Move Speed: X:1000mm/s(with A40640 module 204g)
Y:750mm/s

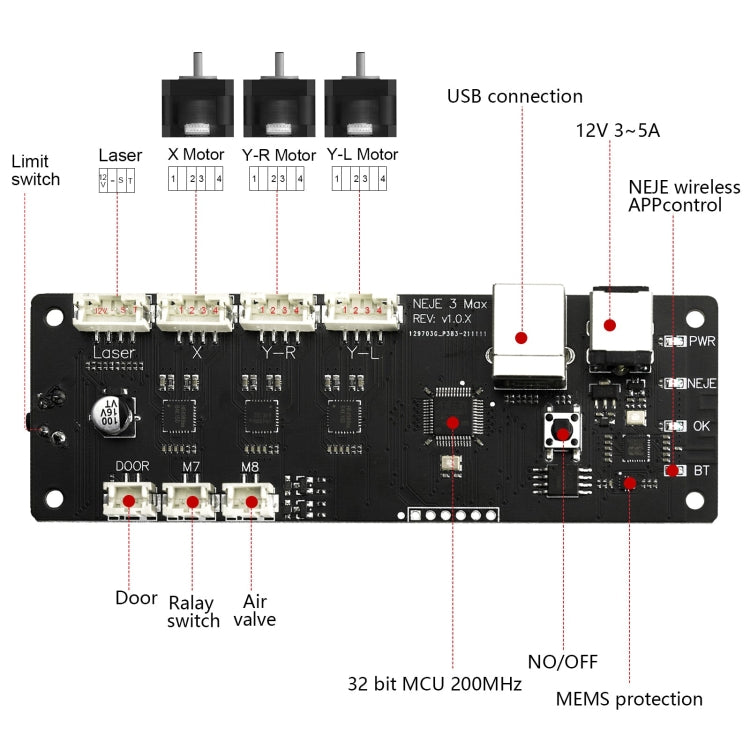

12. MCU:32-bit MCU
13. Input:12V 5A
14. Compatible Modules: All NEJE 12V 4pin Laser Moudle
15. Radiator Size: 30 x 30 x 100 mm
16. Speed of the Fan: 15000RPM(Double ball bearing)
17. Interface: PH2.0 4Pin
18. Drive Design: Built-in
19. Input: 12V 2A +
20. Optical Power:5W +
21. Wavelength: 450nm
22. Laser Class: Class 4
23. Number of Diodes: 1
24. Light Source: 1 X LD + Cylindrical Lens Compression Tech + C-Lens
25. Focus Spot focus on 20mm: 0.13 x 0.13 mm
26. PWM Input:VPP(3.3-12V), Recomend 1KHz
Features：

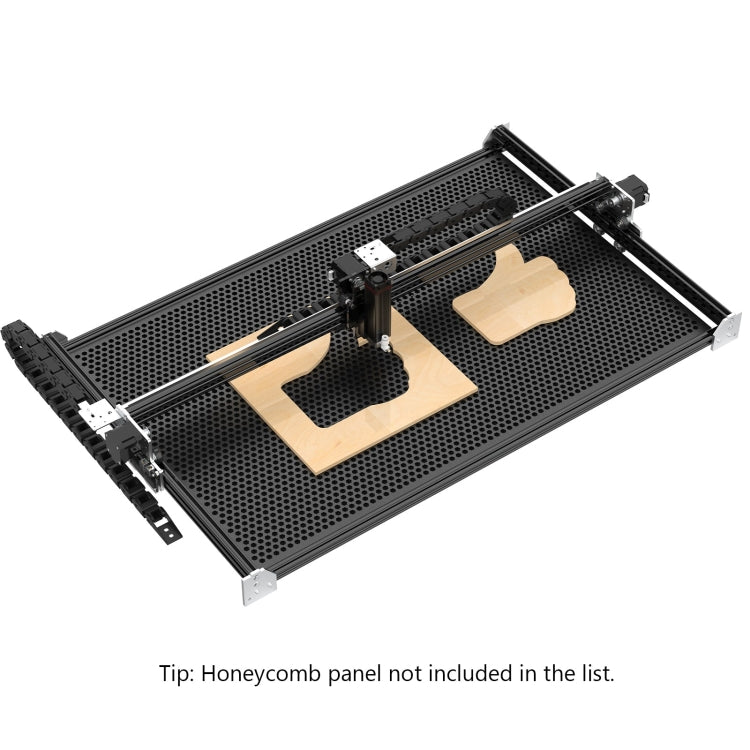

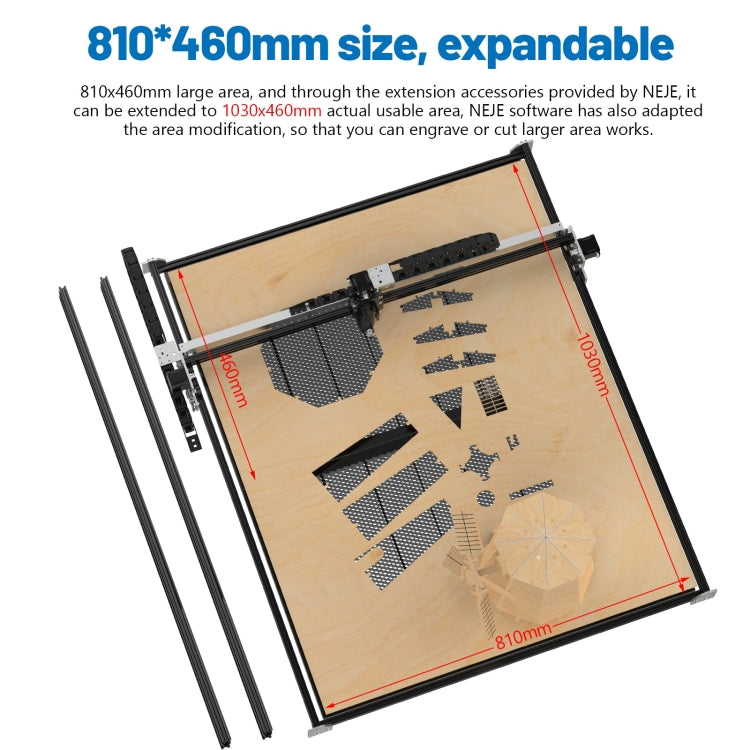

1. The standard area is 810*460, and the extended Y-axis track kit provided by NEJE can be extended to a larger area to meet the needs of large-area engraving and cutting.
2. Only 6 screws can complete the basic installation, and the whole machine has passed the strict quality control procedures of NEJE to ensure the integrity of the quality.
3. The high-precision CNC metal + CNC PC composite frame structure ensures the structural strength and the track fitting accuracy and smoothness.
4. Adjustable mechanical calibration to ensure precise metal fit.

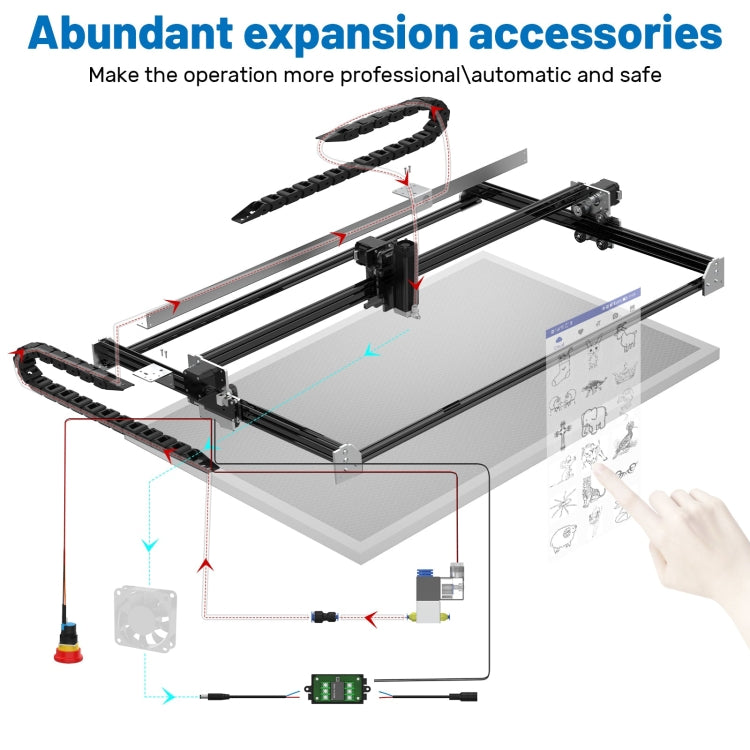

5. Rich expansion accessories make the operation more professional, automatic and safe.

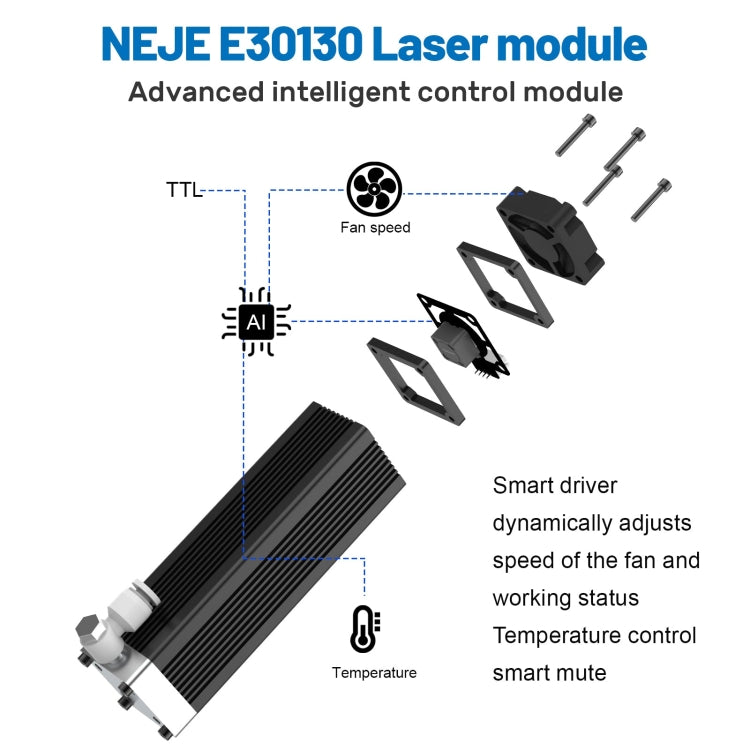

6. Brand new NEJE E30130 intelligent high power module

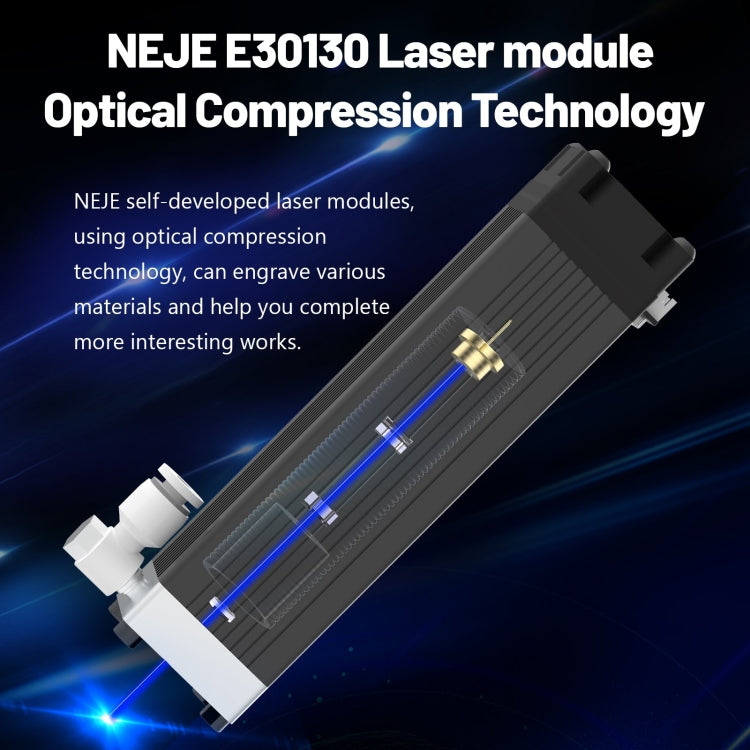

7. The E30130 module adopts the optical compression technology of the outer cylindrical lens to obtain a smaller and square fixed focal length spot, and is equipped with an inner cavity air assist to make the engraving and cutting easier.
8. Internal thread high-efficiency heat dissipation design, effectively stabilizes power, and supports long-term use.

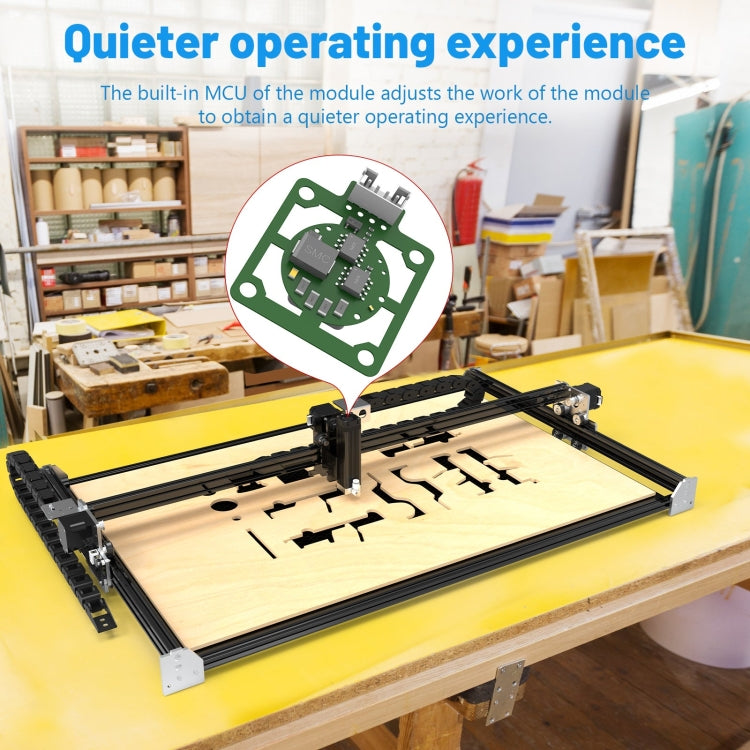

9. The built-in MCU of the module adjusts the work of the module to obtain a quieter operating experience.
10. Enhanced anti-static and anti-surge performance, more comprehensive protection of laser from environmental damage.
11. The module provides 2 years free warranty.
12. New 32-bit 200MHz processor+BLE+MEMS mobile control system, support NEJE Win software, NEJE Android APP, LseerGRBL, Lightburn. Support NEJE OTA software and firmware upgrades, providing users with more surprises and value.

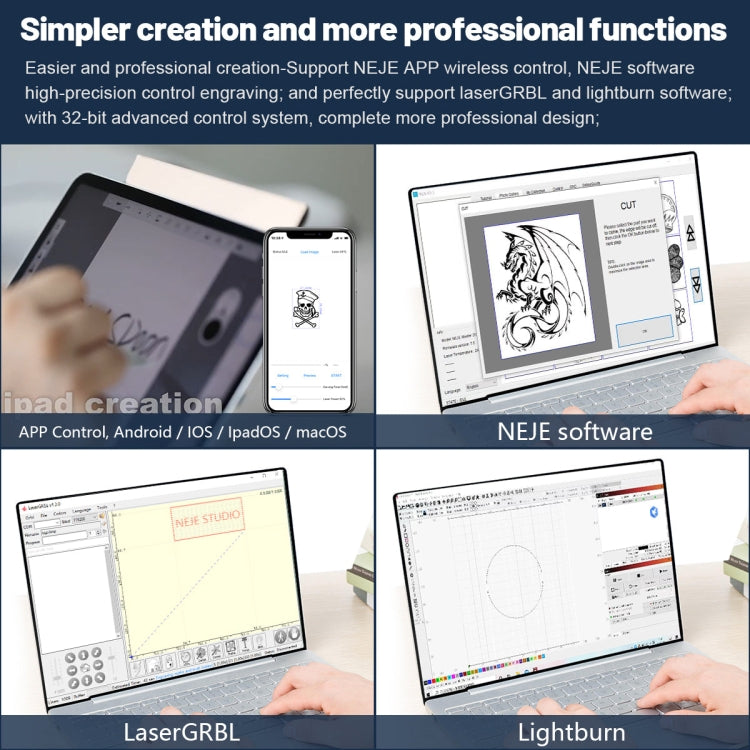

13. In NEJE mode, after transferring files to the device, you can unplug the USB cable and use it offline without occupying the computer or mobile phone.
14. Optimized the GRBL firmware to better adapt the experience of diode lasers, and optimized the automatic control and interaction experience in laserGRBL and lightburn. For example, low light adjustment, air assist and smoke exhaust system automatic control.
