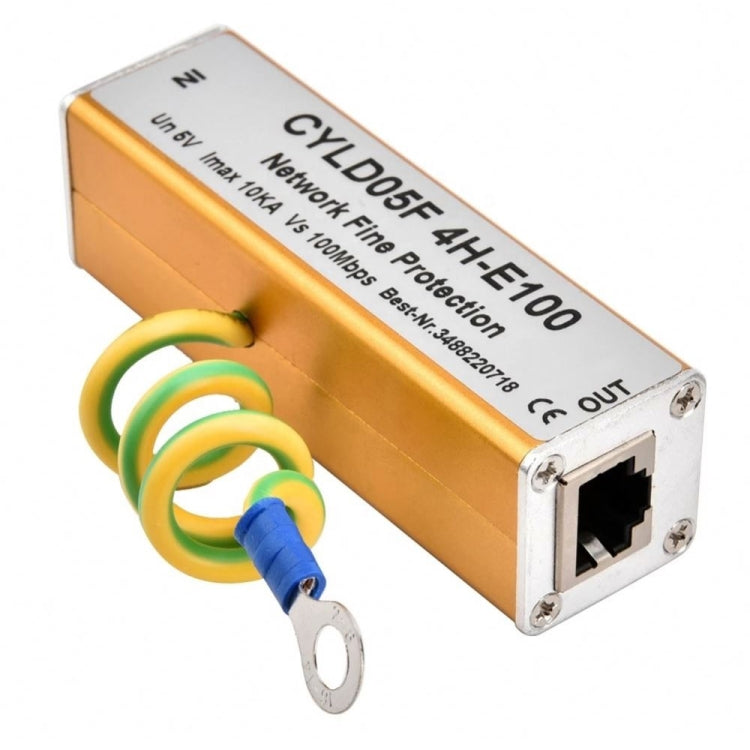

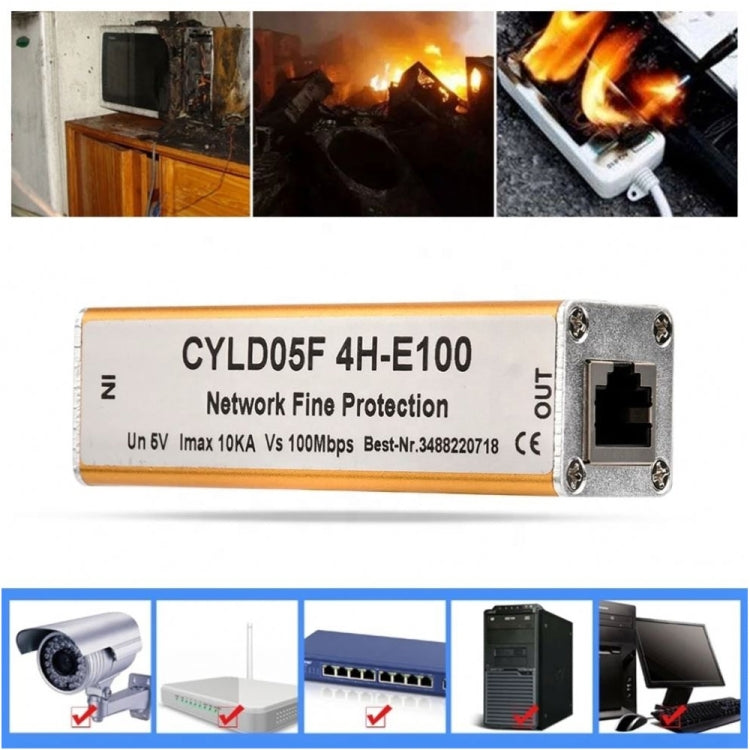

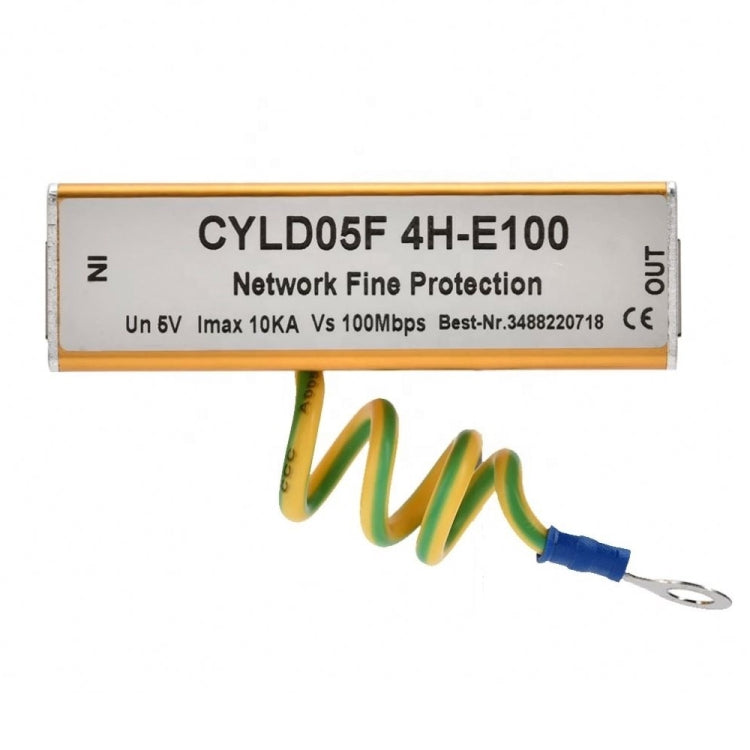

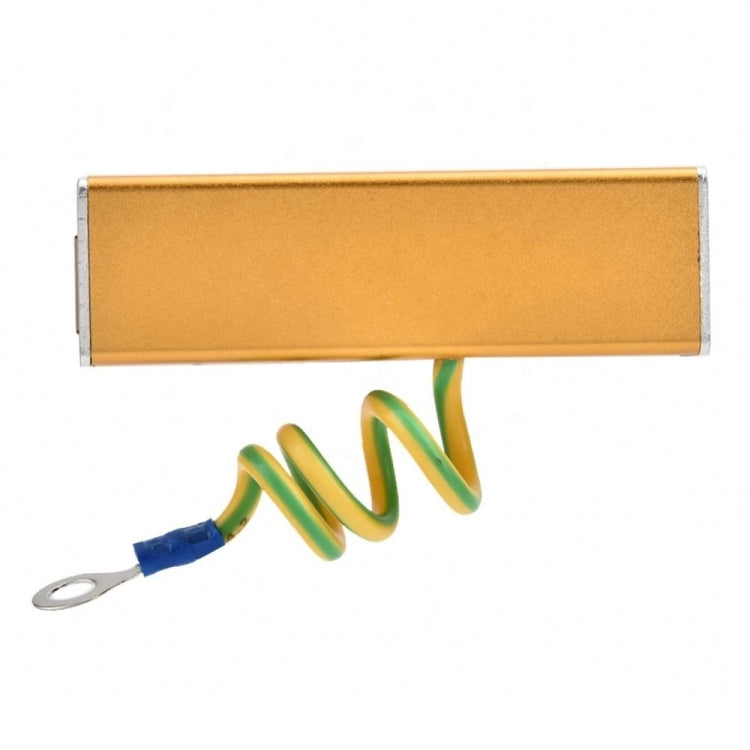

Network Surge Arrester Surge Protection Device (CYL D05F4H-E100)

• Product type: Video Balun
• Compatibility: Ethernet
• Material: Not specified
• Key feature: Protects data transit from surge
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Security

1. Function: Protect data transit in Ethernet from surge. Make sure system and equipment safety when surge comes from thunderbolt or static.
2. Features: Large electric current support, multiple level protection, quick response, minor wastage when joined. Technical parameters: 1. Model: CYL D05F4H-E100 2. Responsive time: Less than or equal to 1ns 3. Operating Temperature: -40°C to + 80°C; Humidity ≤ 95% (25-30°C) 4. Discharge current: 10KA 5. Rated voltage: 5V 6. Protection voltage: 12-18V 7. Joint wastage: Less than or equal to 0.5dB 8. Transmission speed: 100Mbps 9. Protect pins: 1/2/3/6 10. Size: 80x26x26mm 11. Net weight: 100g
