Description

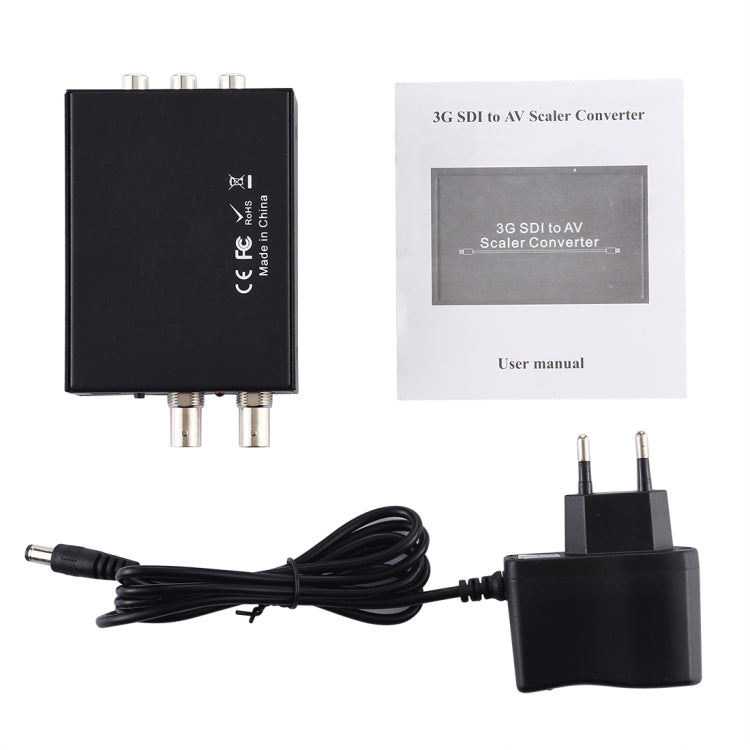

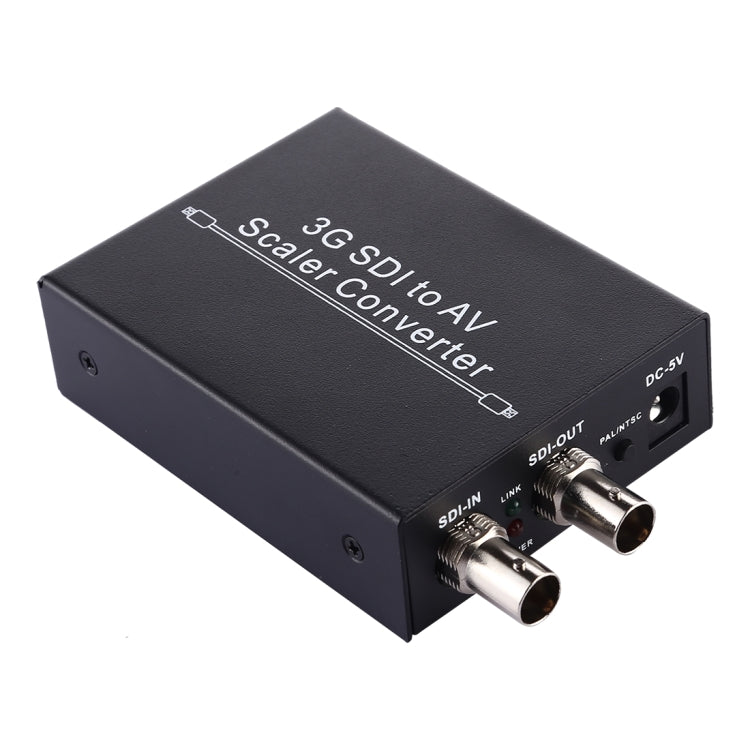

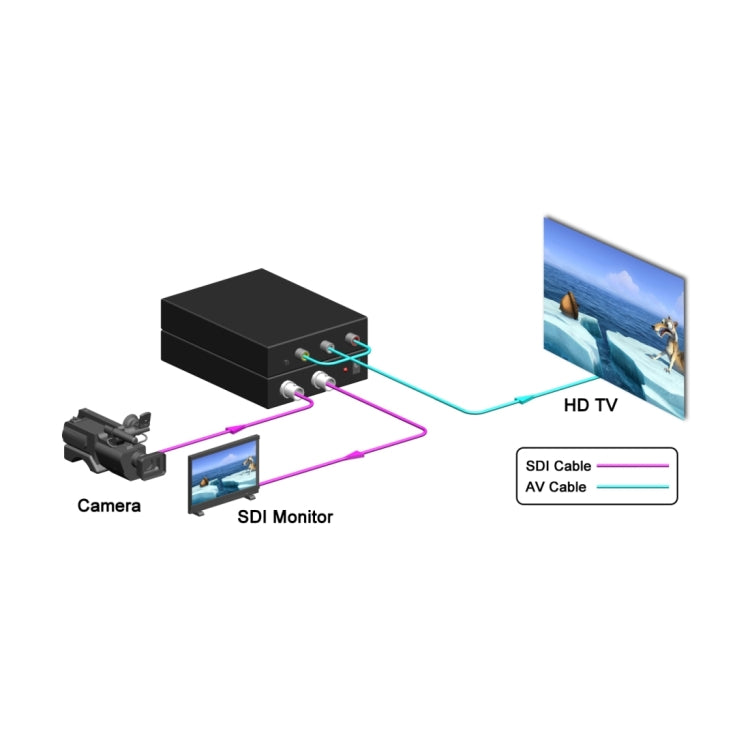

The NF-F001 3G SDI to AV + SDI Scaler Converter converts SD-SDI, HD-SDI, and 3G-SDI signals for display on CRT or HDTV. It allows simultaneous output of SDI and AV signals, facilitating the distribution and extension of 3GSDI signals.
- Standards: SMPTE 425M Class A and B, 424M, 292M, 259M-C
- SDI transmission rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s
- SDI input/output resolution:
- SD: 480i @ 60, 576i @ 50
- HD: 720p @ 50/60, 1080i @ 50/60
- 3G: 1080p @ 24/25/29.97/30/50/59.94/60
- CVBS output resolution: PAL/NTSC

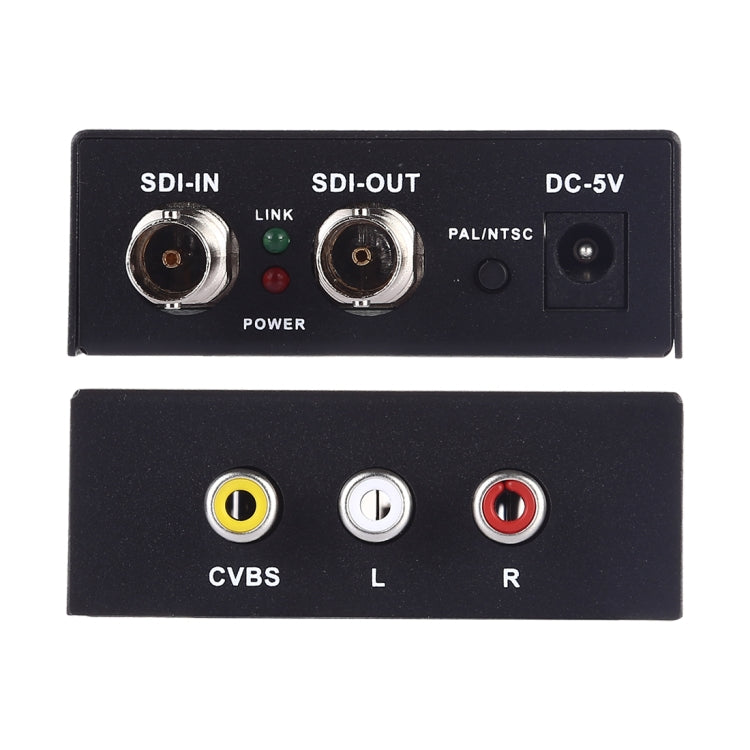

- Input port: 1 x BNC (SD/HD/3G-SDI)

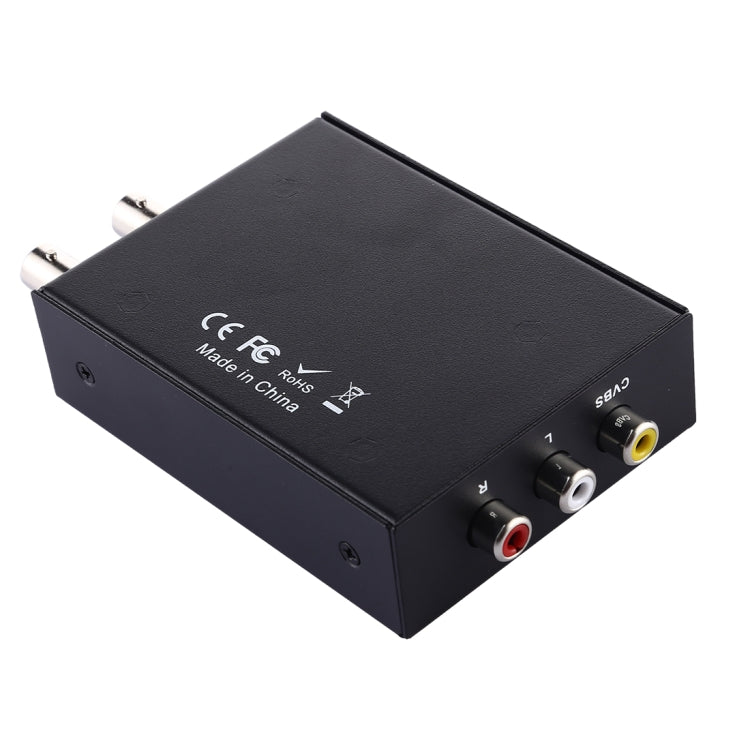

- Output ports: 1 x BNC (SD/HD/3G-SDI), 3 x RCA (CVBS, L/R)
- Power supply: DC 5V
- ESD protection: +/- 8kV (air gap discharge), +/- 4kV (contact discharge)
- Dimensions: 92mm x 67mm x 25mm
- Weight: 180g
- Operating temperature: 0 ~ 40 degrees Celsius
- Storage temperature: -20 ~ 60 degrees Celsius
- Power consumption: up to 5W
