Product details
Description

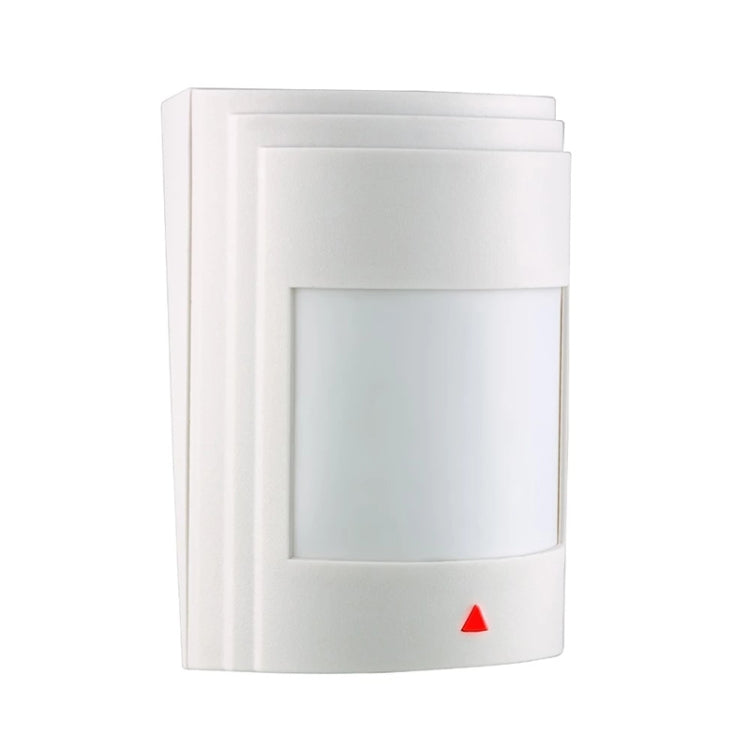

The PA-476 Wired Passive Infrared Wide Angle PIR Motion Sensor is an infrared detector designed for security applications. It effectively detects motion within a coverage area of 12 meters at a 110-degree angle, making it suitable for various security systems.
- Product Type: Infrared Detector
- Compatibility: Motion Sensor Systems
- Material: Fire resistant case
- Color: White
- Key Feature: Auto pulse signal processing with two adjustable levels
- Temperature Compensation: Automatic
- Lens: Second generation Fresnel lens
- Additional Lenses: Optional

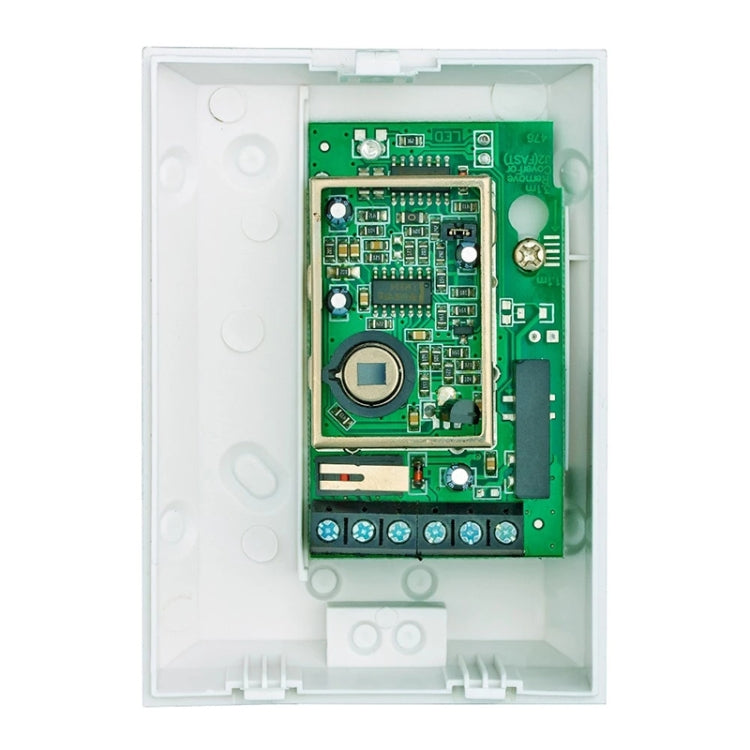

- Design: High density SMD
- Connector: Additional connector for EOL resistor
- Sensor Type: Low noise, high sensitivity, dual element PIR sensor
- Pulse Count Sensitivity: Selectable between 1~3 pulses or 2~6 pulses
- Startup Time: 60 seconds after power up
- Detection Speed: 0.2~7m/sec
- White Light Immunity: Yes
- Coverage Area: 12m x 110 degrees
- Zones: 9+5+5+3=22
- Installation Height: Adjustable between 1.1m to 3.1m
- Alarm Indication: Green LED constant light for 3 seconds (can be disabled)
- Alarm Output: Normally Closed (N.C.), rating DC 28V, 0.15A
- Anti-Tamper Switch: Normally Closed (N.C.), opens when cover is removed, rating 0.15A, 28Vdc
- Power Input: DC 9~16V, 18mA
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 95%
- Dimensions: 90 x 65 x 50mm (3.5 x 2.6 x 2.0 in) (L x W x H)
