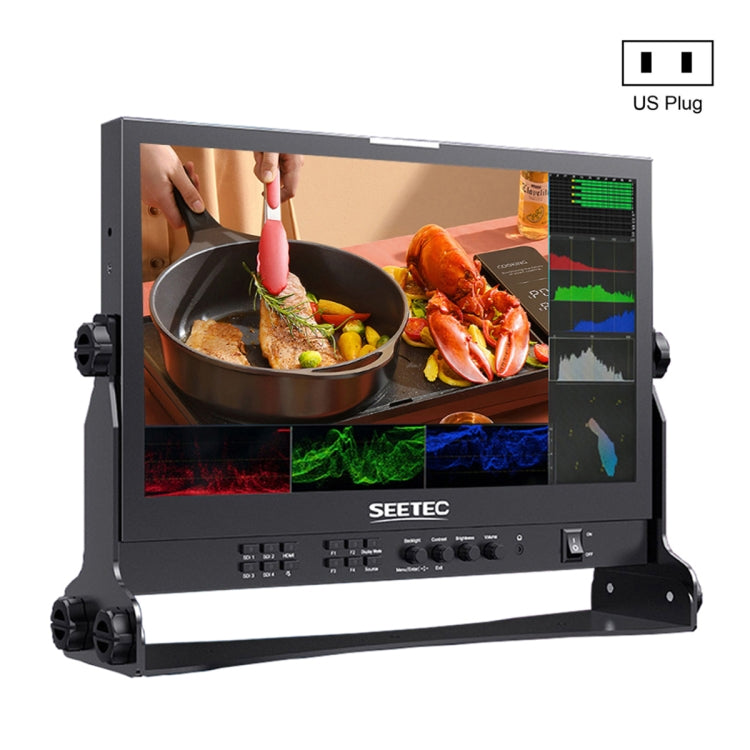

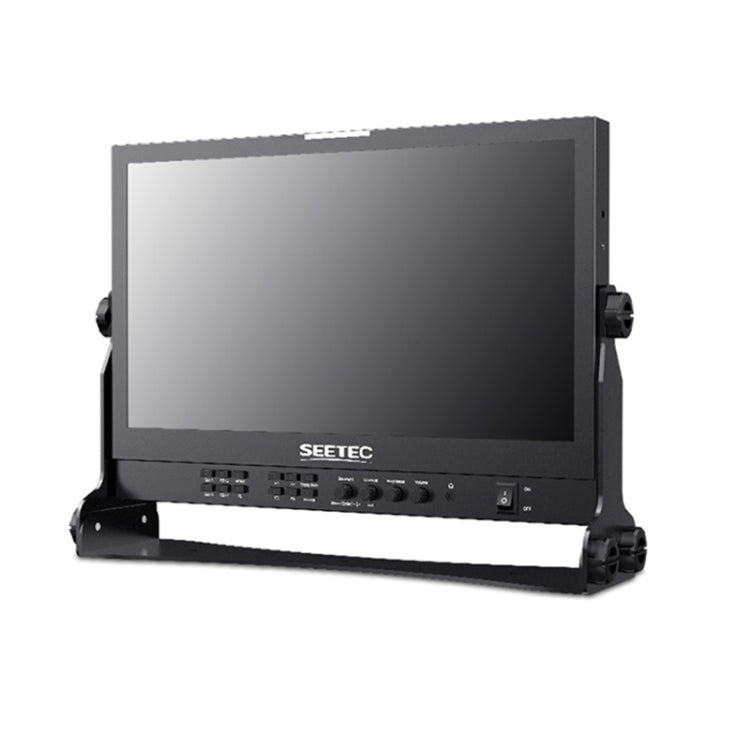

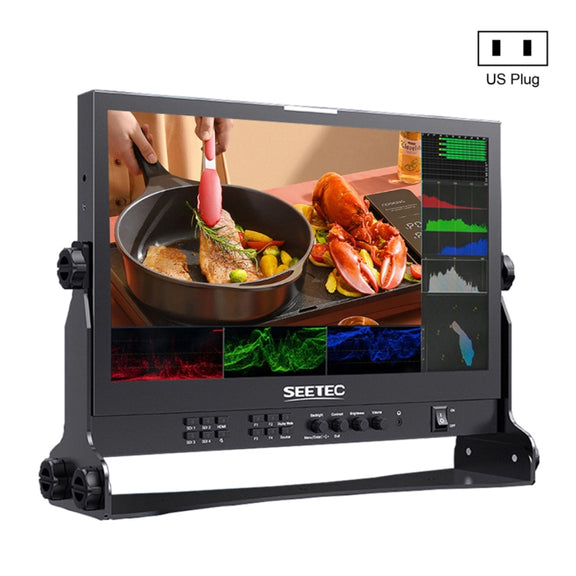

SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(US Plug)
SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(US Plug)
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description

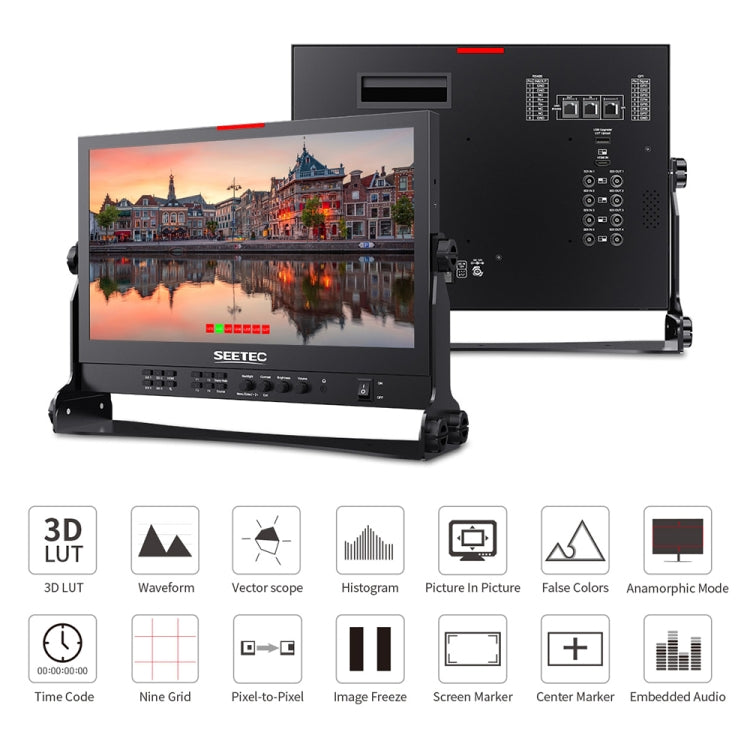

1. Built-in Multi camera Delog LUTs
2. User 3DLUTs upload via USB (up to 36)
3. Support GPI control
4. Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
5. Support TALLY
6. Support 16-ch embedded audio meters display
7. Histogram

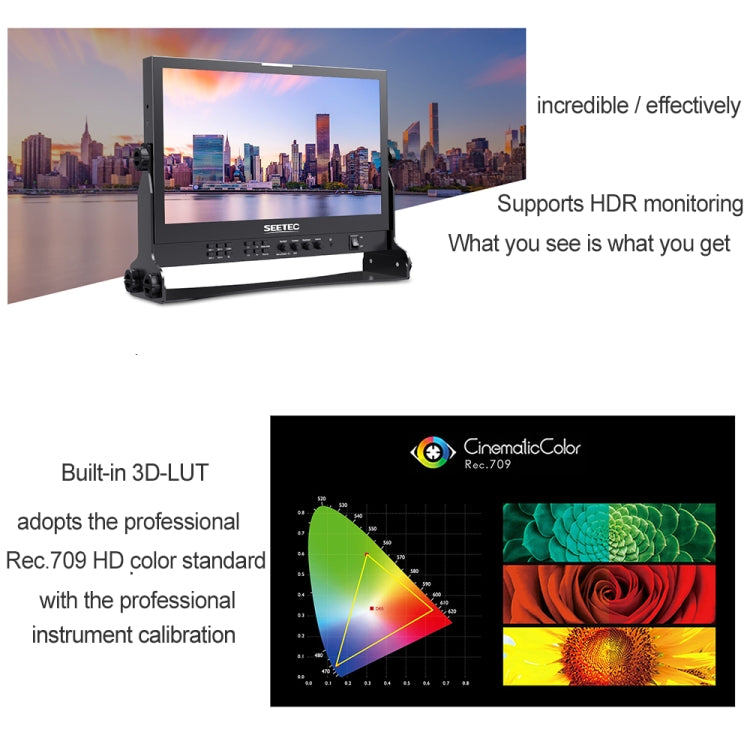

8. HDR
9. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
10. False Colors
11. Zebra (70IRE, 80IRE, 90IRE)
12. Timecode Display
13. Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
14. Under Scan, Over Scan
15. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
16. Pixel to Pixel
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
19. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. All Waves
21. Parade (RGB Parade, Y, YUV Parade)
22. Image Freeze
23. Selectable Color Temperature Presets
Specifications
Display Screen
1. Model: ATEM156S
2. Screen Size: 15.6 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.17925(W) x 0.17925(H) mm
6. Aspect Ratio: 16:9
7. Brightness: 200cd/m2
8. Contrast Ratio: 800:1
9. Backlight: LED
10. Viewing Angle: 85 degrees /85 degrees (L/R) 85 degrees /85 degrees (U/D)

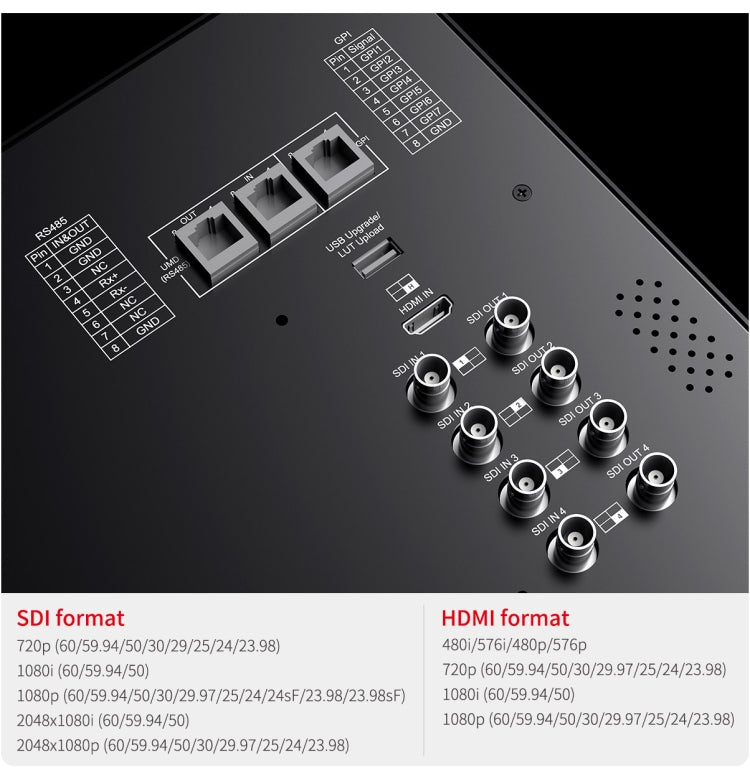

Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)
Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485
Audio
- Audio: Stereo Headphone
SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
General
1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 21W
3. Working Temperature:0 degree C~50 degree C
4. Storage Temperature:-20 degree C~60 degree C

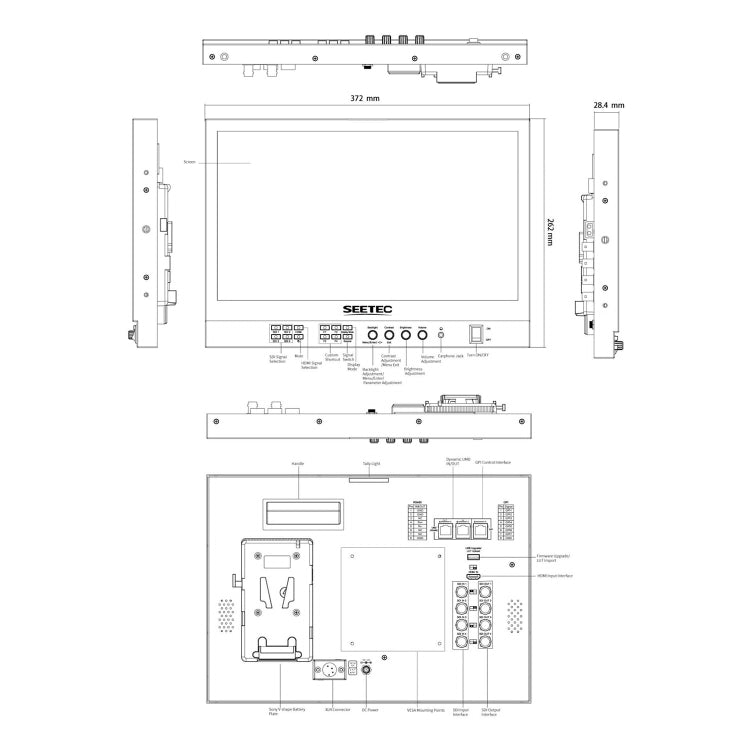

5. Unit Size: 372L x 262H x 28.4D (mm) (W/O bracket)
6. Unit Weight: 1.81kg
Package List
1. Monitor x 1
2. SDI Cable x 1
3. Mini HDMI Cable x 1

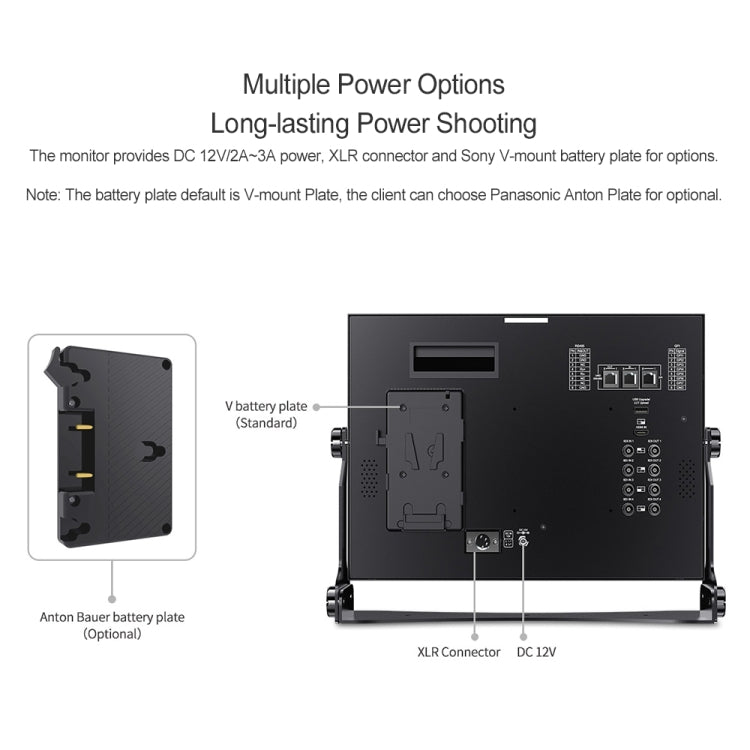

4. V-mount Battery Plate (default to mount on device) x 1
5. Sunshade x 1

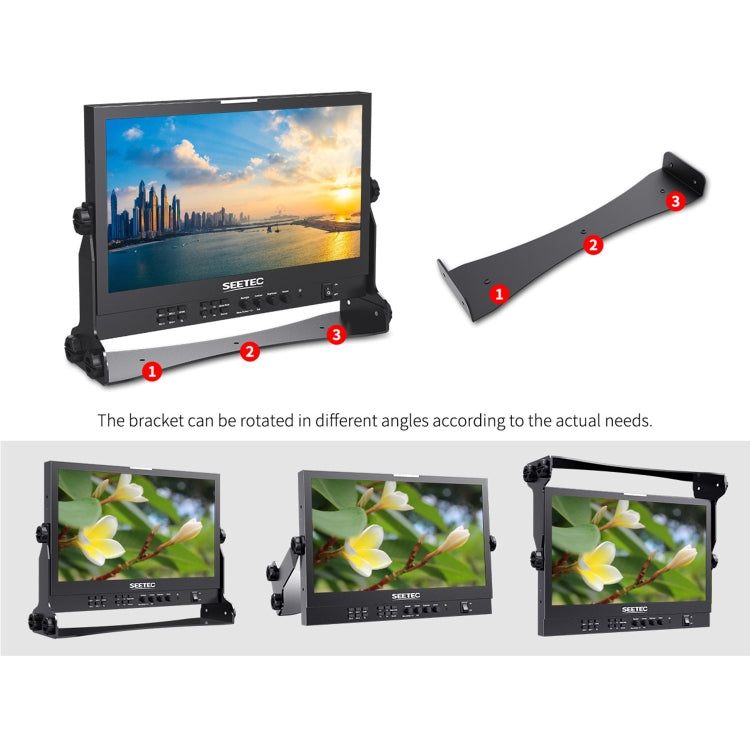

6. U-shape Bracket x 1
7. Power Adapter x 1
8. User Manual x 1
