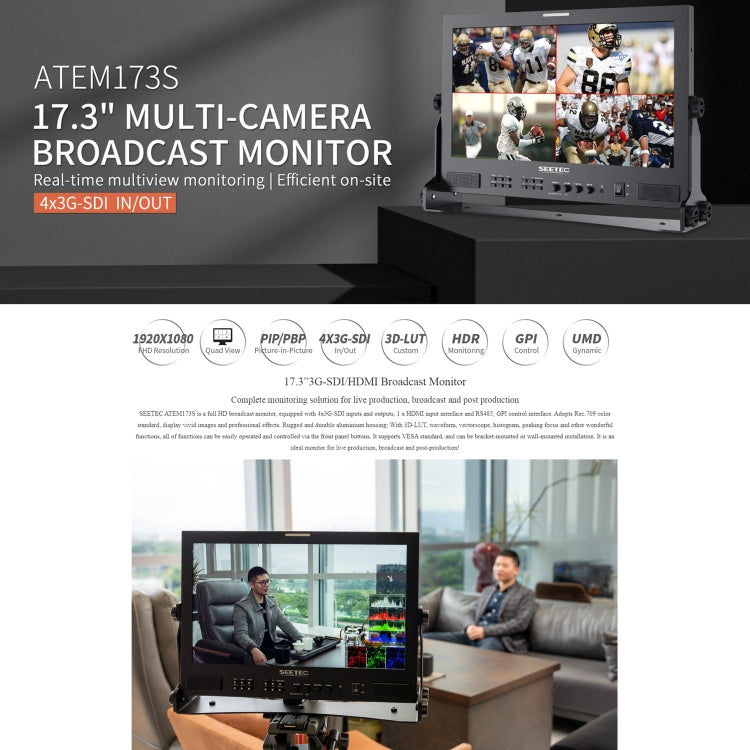

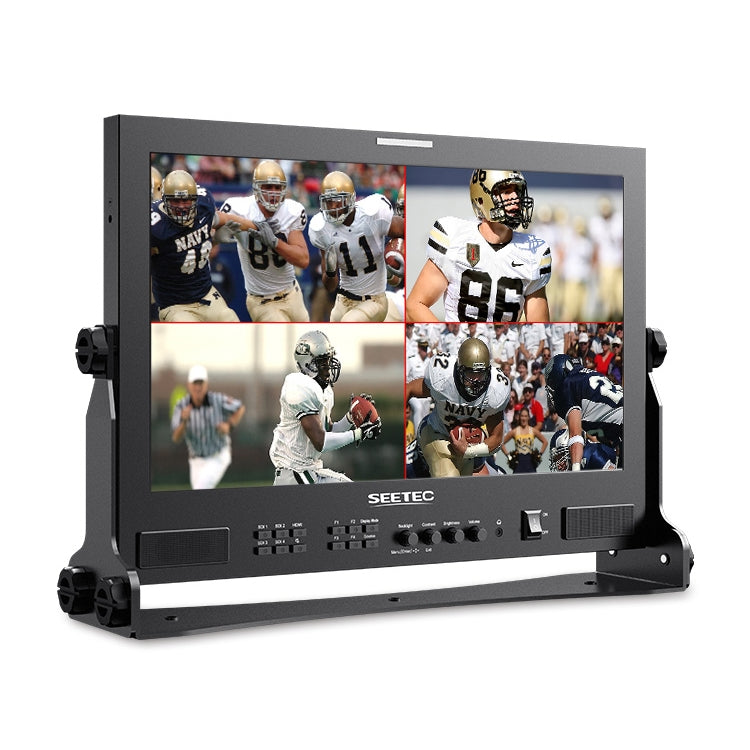

SEETEC ATEM173S 17.3 inch 3G-SDI HDMI Full HD 1920x1080 Multi-camera Broadcast Monitor(US Plug)

Features
1. 17.3-inch 1920x1080 full HD large screen
2. Rugged aluminium housing, durable

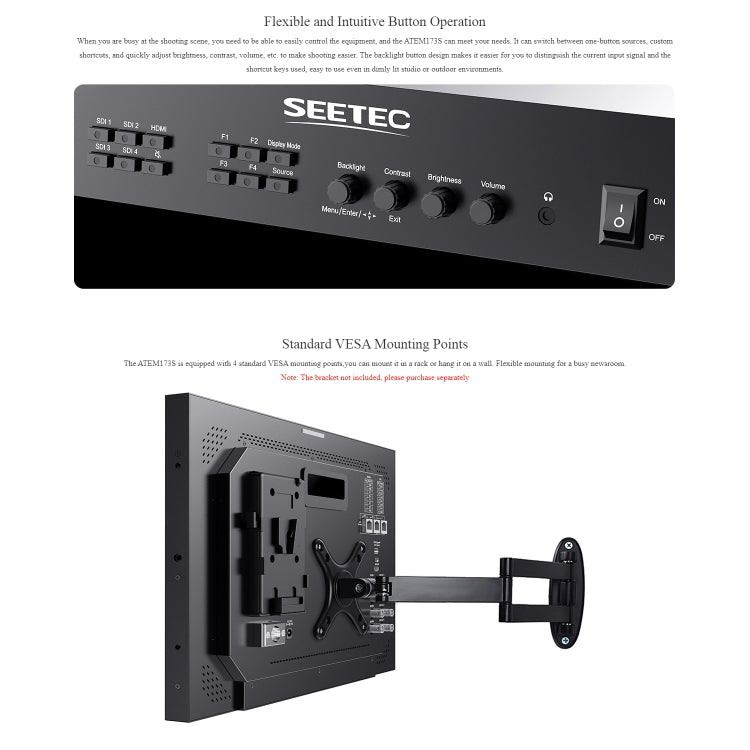

3. Flexible and intuitive button operation, easy to use)
4. Mulitple display modes (single, PIP, quad)
5. Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)

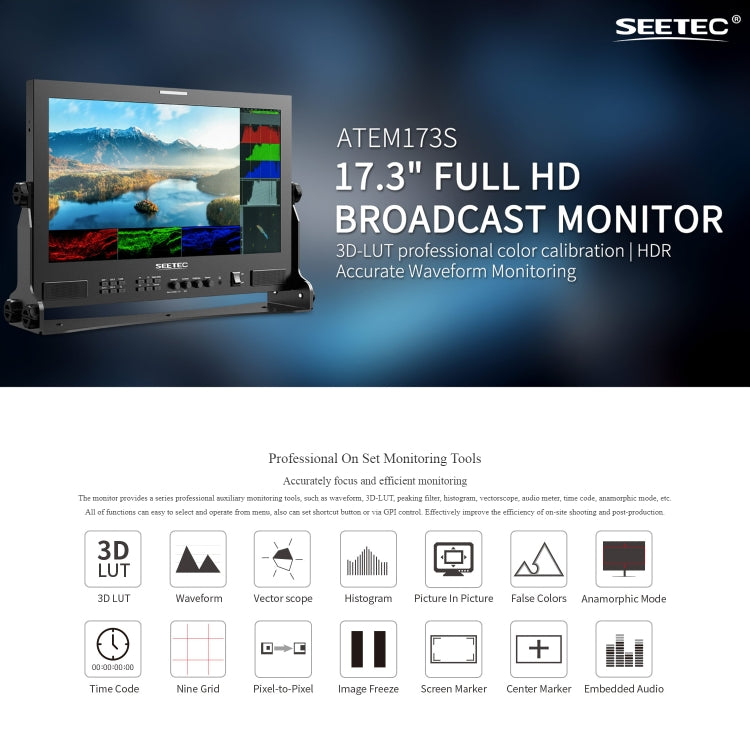

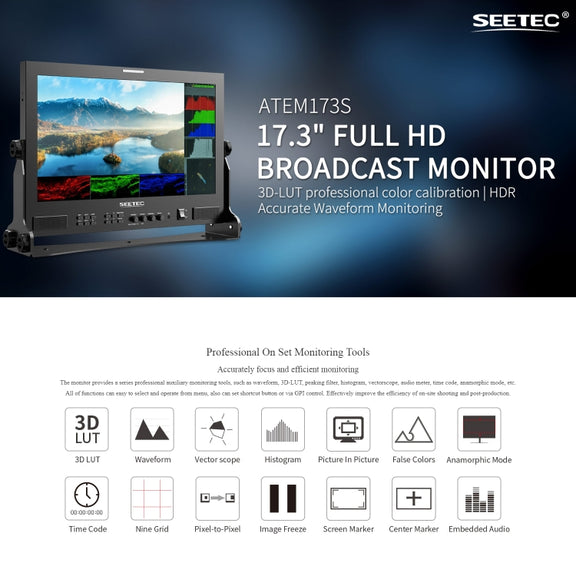

6. With waveform, vectorscope, RGB Histogram, focus Assist, monochrome etc. functions, can help you accurately exposure and focus every shot.

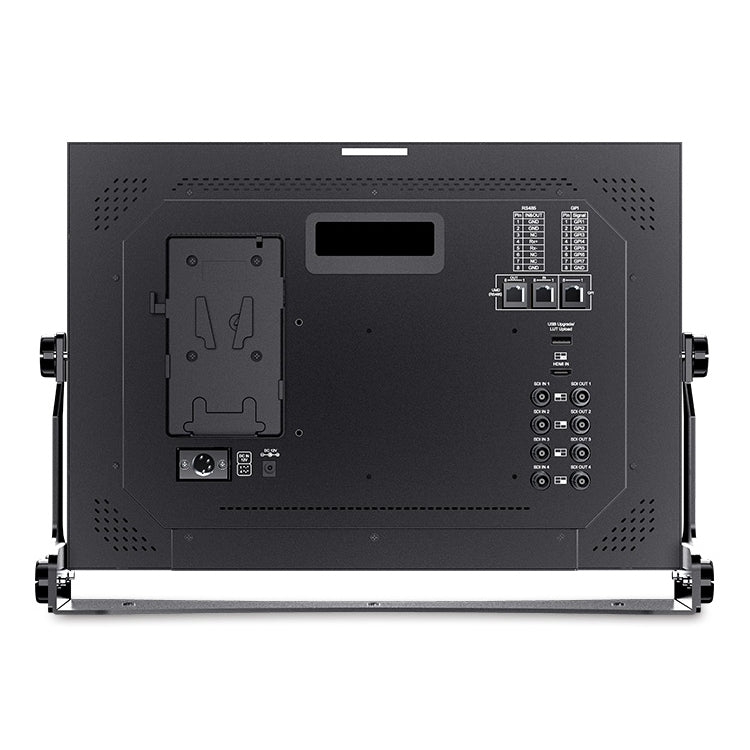

7. Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
8. Supports OSD tally and LED tally
9. Stereo Earphone output
10. VESA standard mounting points support for bracket or hang wall installation

Functions
1. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
2. Zebra (70IRE, 80IRE, 90IRE,user)
3. Monochrome (gray, red, green, blue)
4. False Color
5. Timecode
6. Nine Grid
7. Safety Marker ( 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
8. Center Marker
9. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
10. All Waves (can be adjusted left or right)
11. Parade (OFF, RGB Parade, Y, YUV Parade)
12. Vector
13. Histogram
14. RGB Histogram
15. Audio Meter
16. 3D-LUT
17.Scan Mode (Under Scan, Over Scan)
18. Video Aspect (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user)
19. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
20. Zoom (4X, 9X, 16X)
21. Freeze
22. Pixel to Pixel
23. Colortemp (6500K, 9300K, user)
24. Display Mode(full screen, PIP, quad)

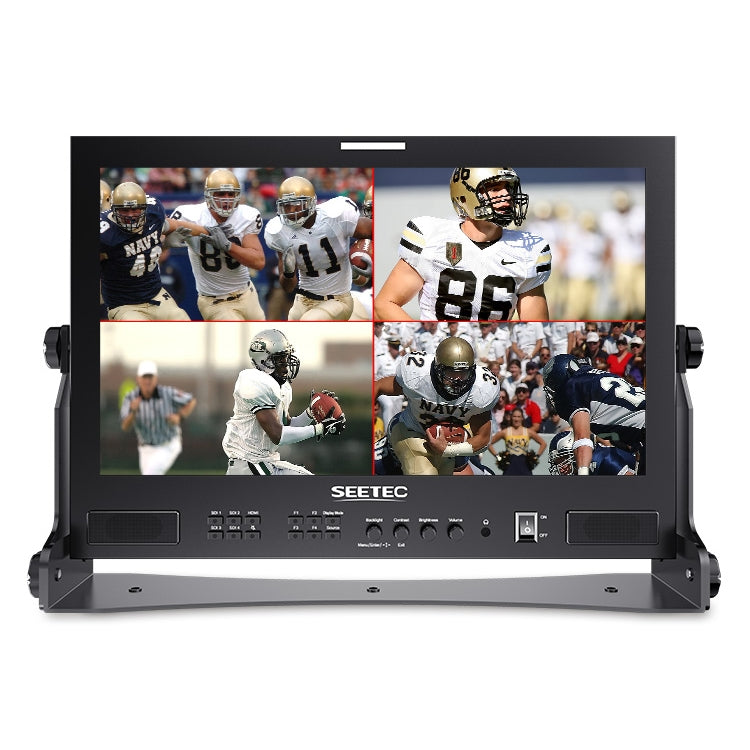

25. Quad View: Support 4x 3G-SDI inputs.

Specifications
Display screen
1. Model: ATEM173S

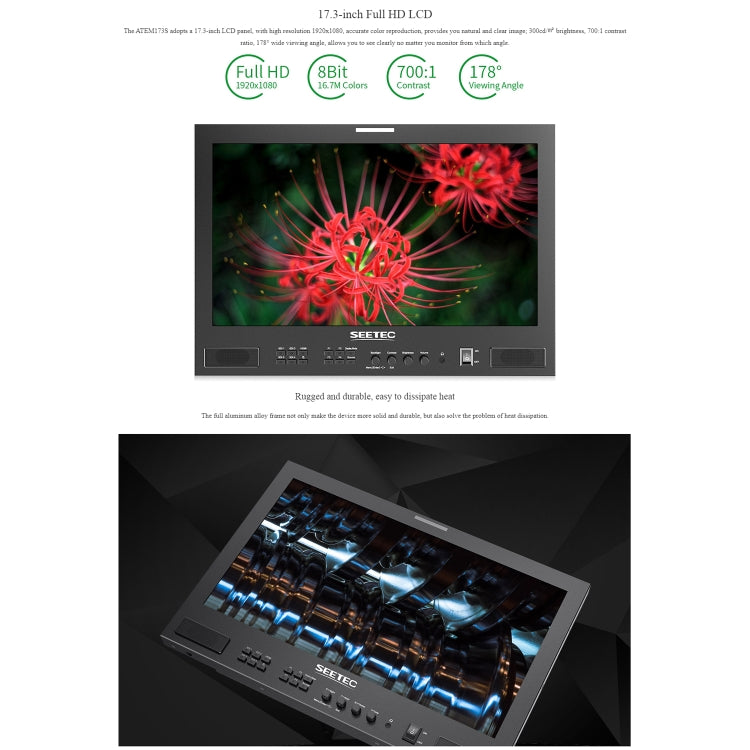

2. Screen Size: 17.3 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.1989(W) x 0.1989(H) mm
6. Aspect Ratio: 16:9
7. Brightness: 300cd/m2
8. Contrast Ratio: 700:1
9. Backlight: LED
10. Viewing Angle: 89 degree / 89 degree (L/R) 89 degree / 89 degree (U/D)

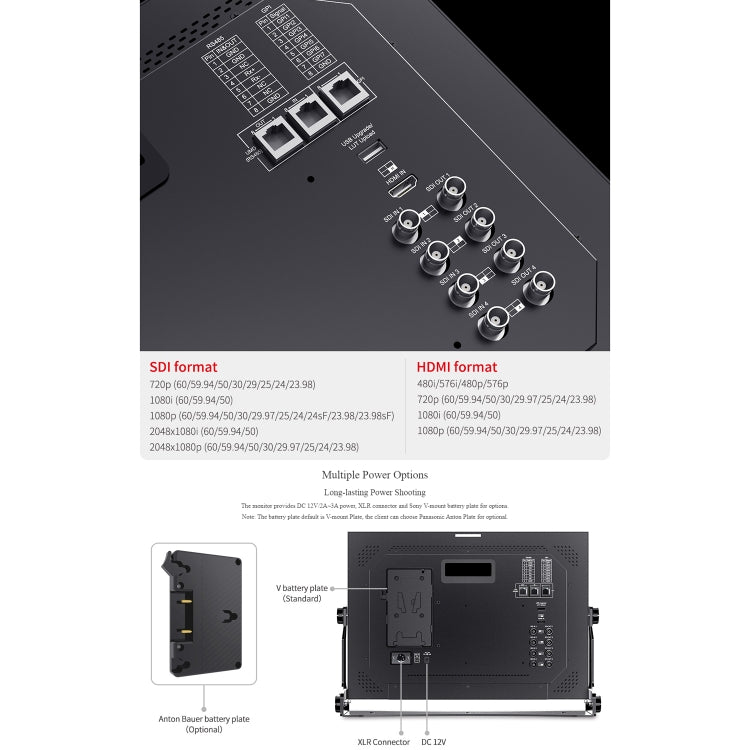

Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)

Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485

Audio
- Audio: Stereo Headphone, Speaker

SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)


General parameter
1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 22W
3. Working Temperature: 0 degree C~50 degree C
4. Storage Temperature: -20 degree C~60 degree C
5. Unit Size: 425Lx296Hx23D (mm) (W/O bracket)
6. Unit Weight: 2.84kg

Package List
1. Monitor x 1
2. SDI Cable x 1
3. Mini HDMI Cable x 1
4. V-mount Battery Plate (default to mount on device) x 1
5. Sunshade x 1
6. U-shape Bracket x 1
7. Power Adapter x 1
8. User Manual x 1
