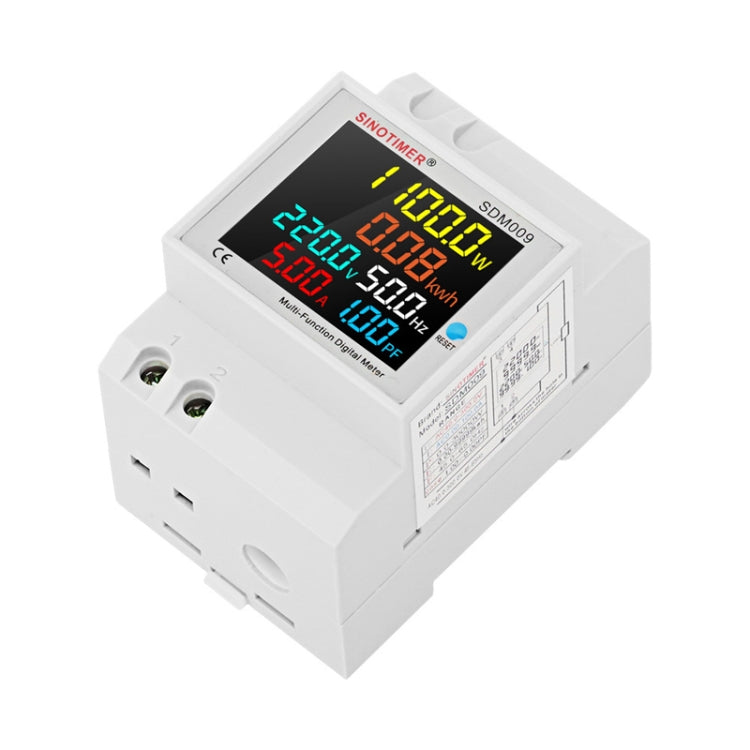

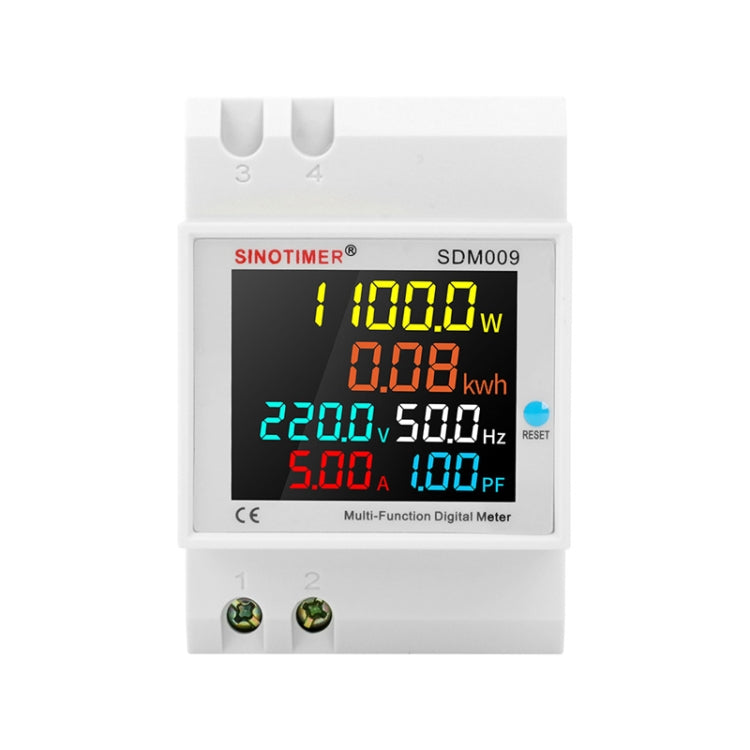

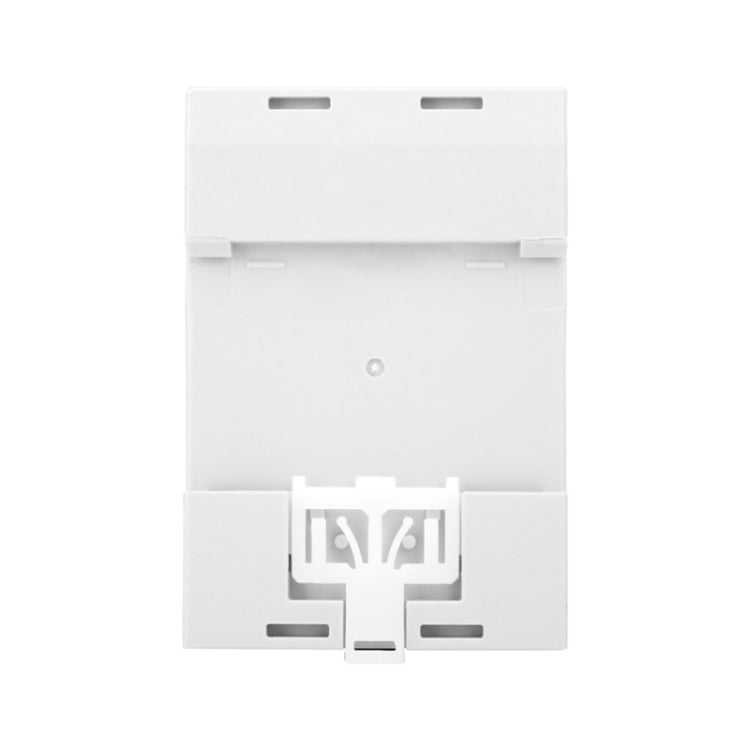

SINOTIMER SDM009 Din Rail Single-Phase Voltage Current Frequency Power Factor Electricity Multifunctional Meter, Model: AC40-300V External
SINOTIMER SDM009 Din Rail Single-Phase Voltage Current Frequency Power Factor Electricity Multifunctional Meter, Model: AC40-300V External
Sale
Sold out
Pre-order
Regular price
R 439.00
Regular price
Sale price
R 439.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description
The SINOTIMER SDM009 Din Rail Multifunctional Meter measures voltage, current, and power. It is suitable for monitoring electrical parameters in various industrial and commercial applications.
- Product Type: Current & Voltage Tester
- Compatibility: AC40-300V
- Material: Durable plastic
- Key Feature: Multifunctional meter
- Measurement Accuracy: 1 +/- 2 percent
- Measuring Range:
- Voltage: AC40-300V (for 110V 220V) / AC250-450V (for 380V 450V)
- Current: 0.00-100.0A
- Active Power: 0-60000W / 0-45000W
- Frequency: 45-65Hz
- Electricity (Power): 0-9999Kwh
- Power Factor: 0.00-4.00PF
- Measuring Speed: 2 times/s
- Installation Mode: Rail type
- Overall Dimensions: 54 x 80 x 64mm
- Protruding Size: 45 x 16mm

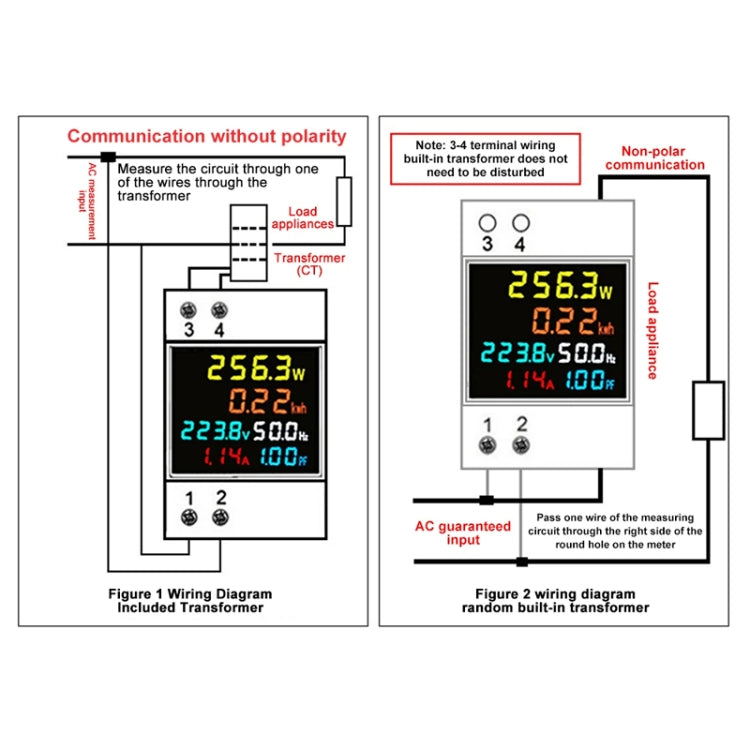

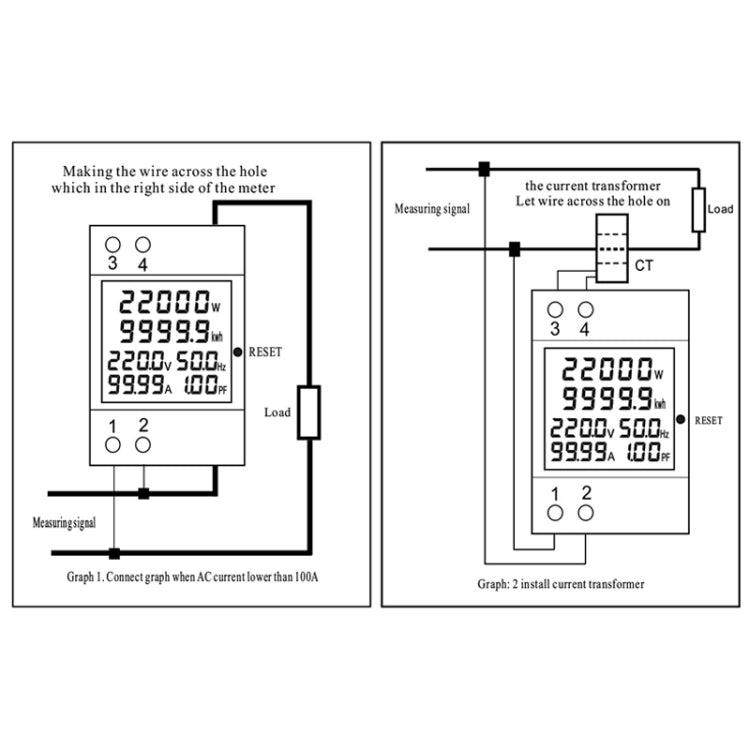

- Usage and Wiring Method:
- Connect measured voltage to terminals 1 and 2 on the lower left side of the meter
- Built-in transformer wiring according to provided diagrams

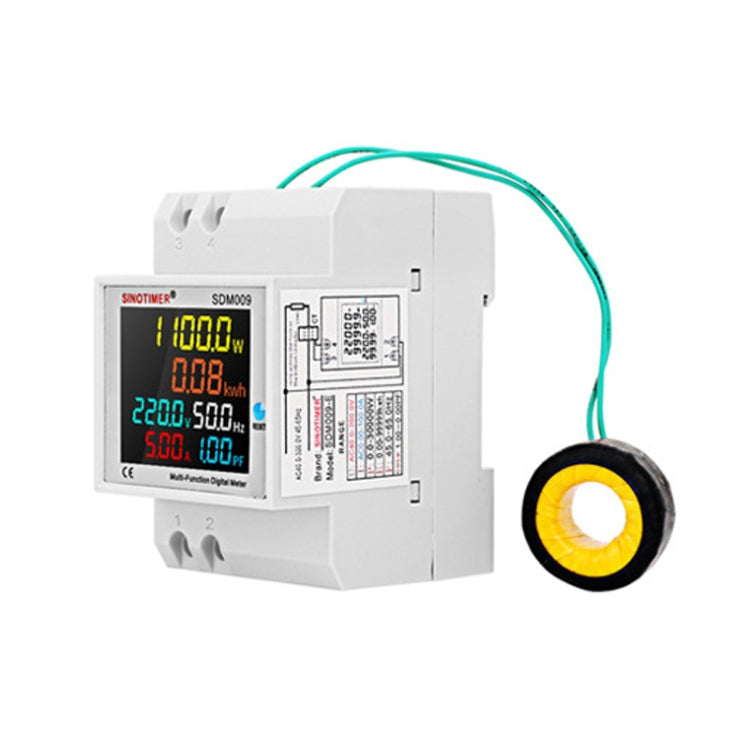

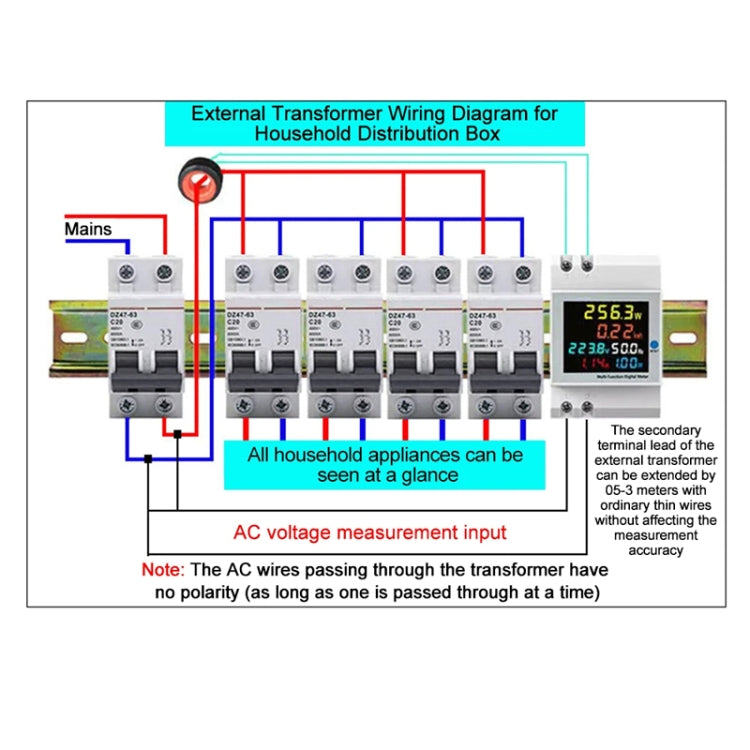

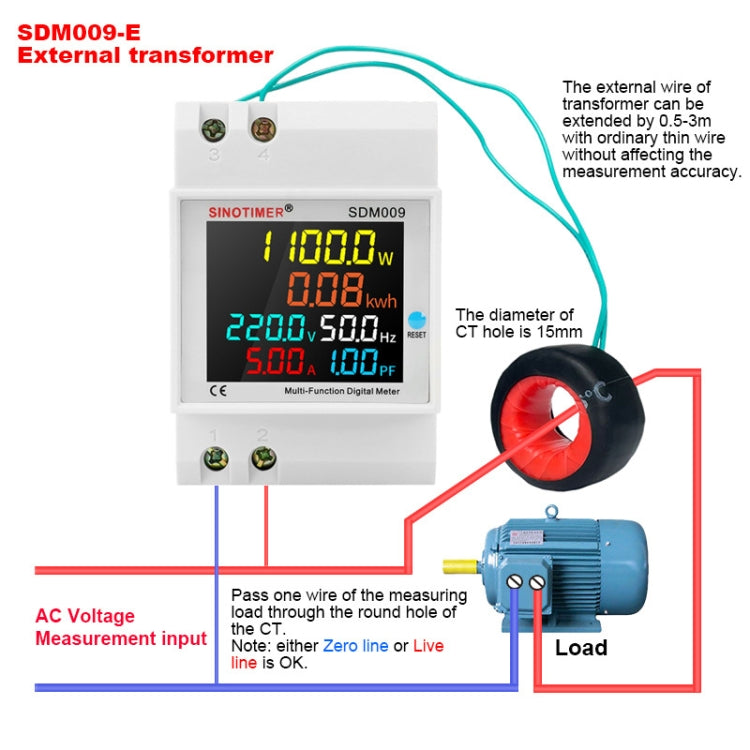

- Connect external transformer to terminals 3 and 4 on the upper left side
- Power measurement reset function
- Automatic data saving during power outage

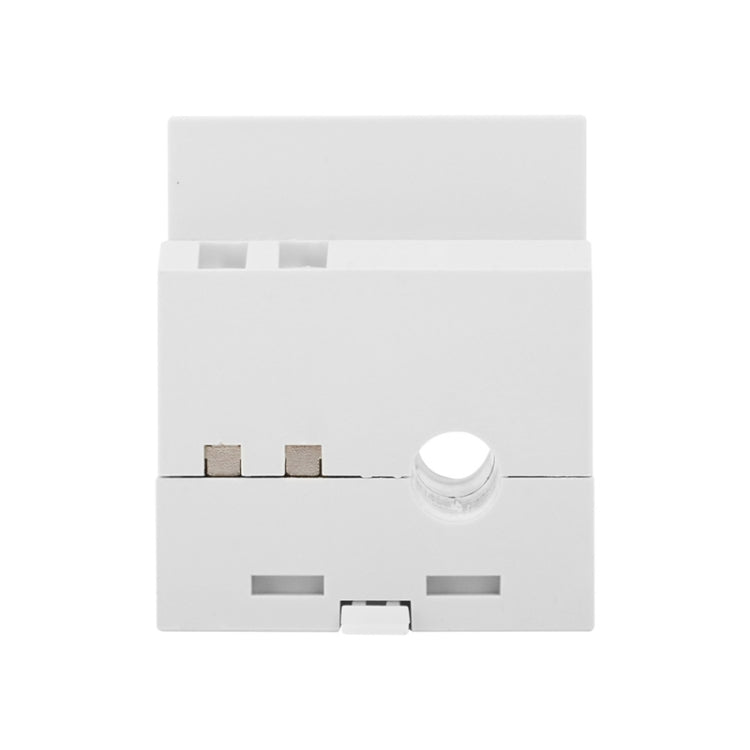

- Built-in transformer hole diameter: 11mm
- External transformer hole diameter: 15mm
