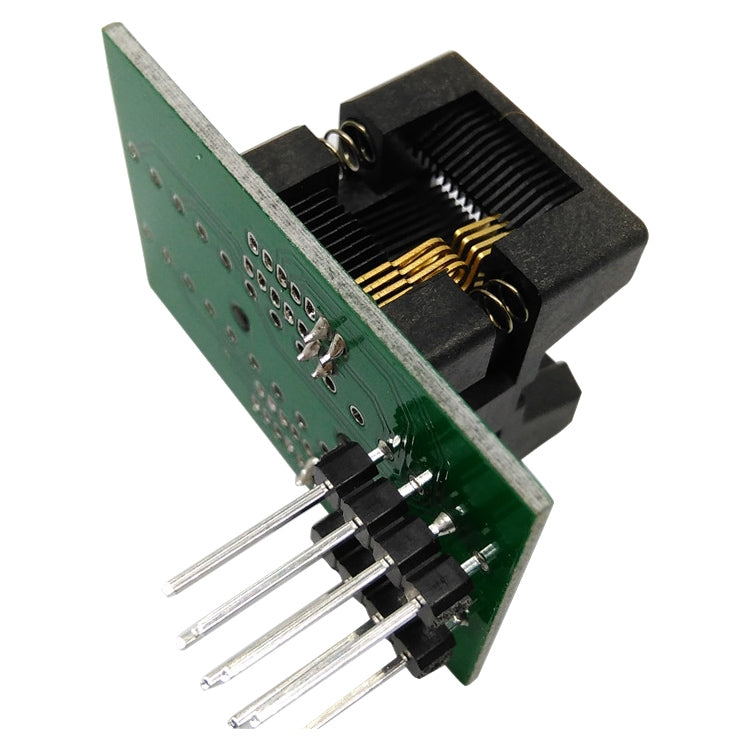

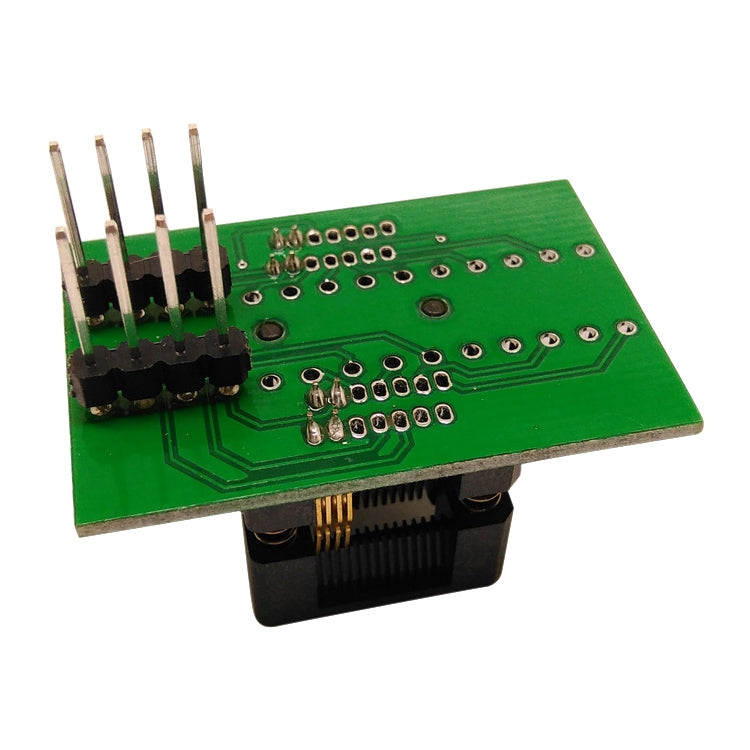

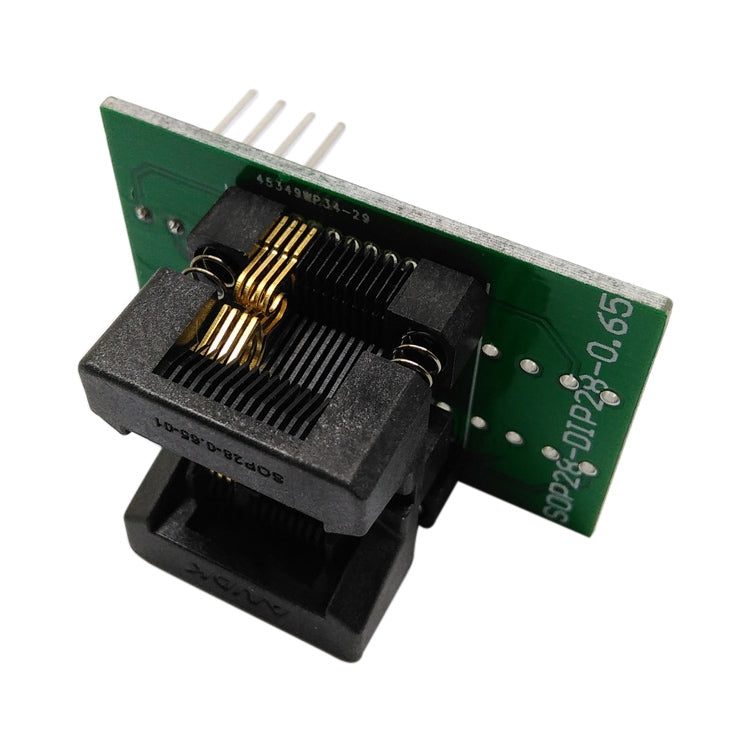

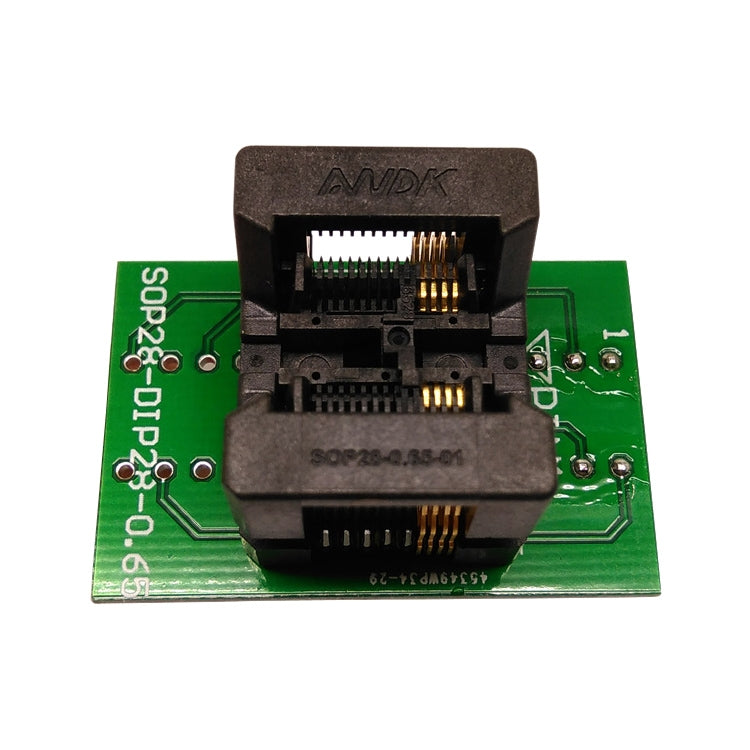

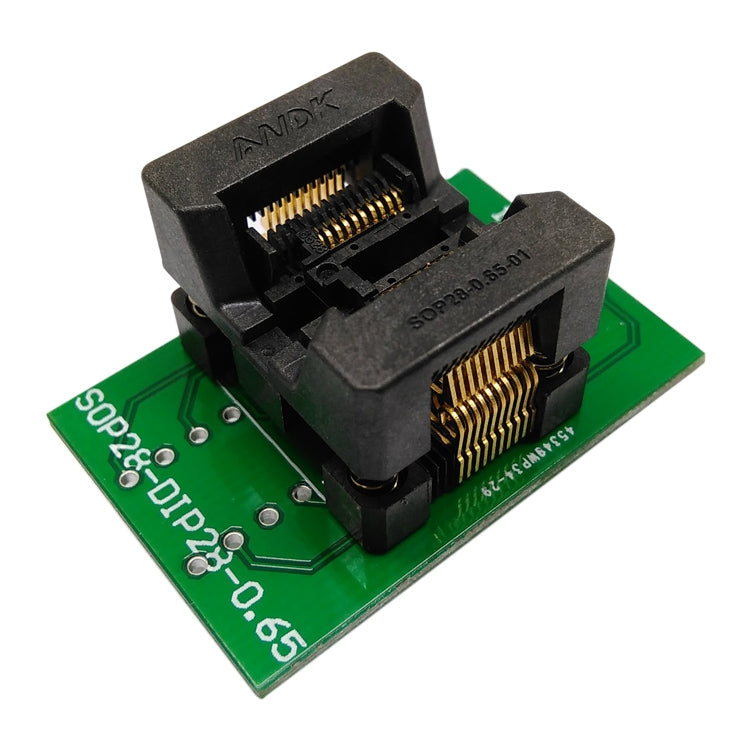

SSOP8 OTS-28-0.65-01 Chip Adapter Socket

Features:
1. Using double contact technology, the contact is more stable;
2. The seat shell is made of special engineering plastic, which has high strength and long life;
3. The shrapnel adopts imported beryllium copper material, which has low impedance and good elasticity;
4. Thick gold-plated layer, thick electroplating of contacts, ultra-low contact impedance and high reliability;

Product performance:
1. Material: insulator PEI, PPS; shrapnel, beryllium copper Be Cu Gold plating (30u), Over Nickel plating (50u)
2. Insulation resistance: 1000mohm, At DC 500V
3. Withstand voltage: 700AC/1Minute
4. Contact impedance: less than 25mohm
5. PIN foot elasticity: 55g/PIN(Normal)
6. Working temperature: minus 65-155 degrees Celsius
7. Specifications and dimensions: pin spacing: 0.65 mm, pin position: 8, adaptable chip body width: 4.4 mm
