Product details
Description

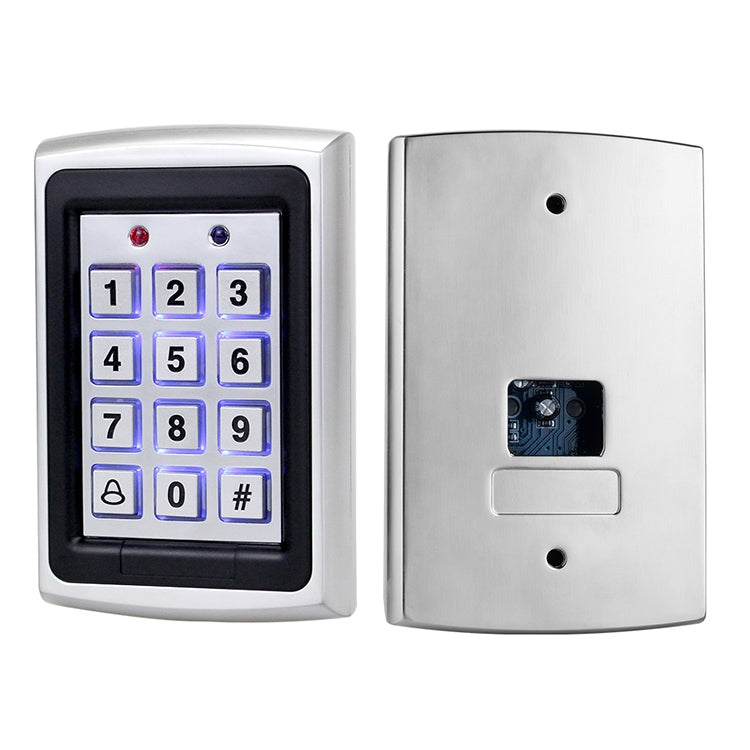

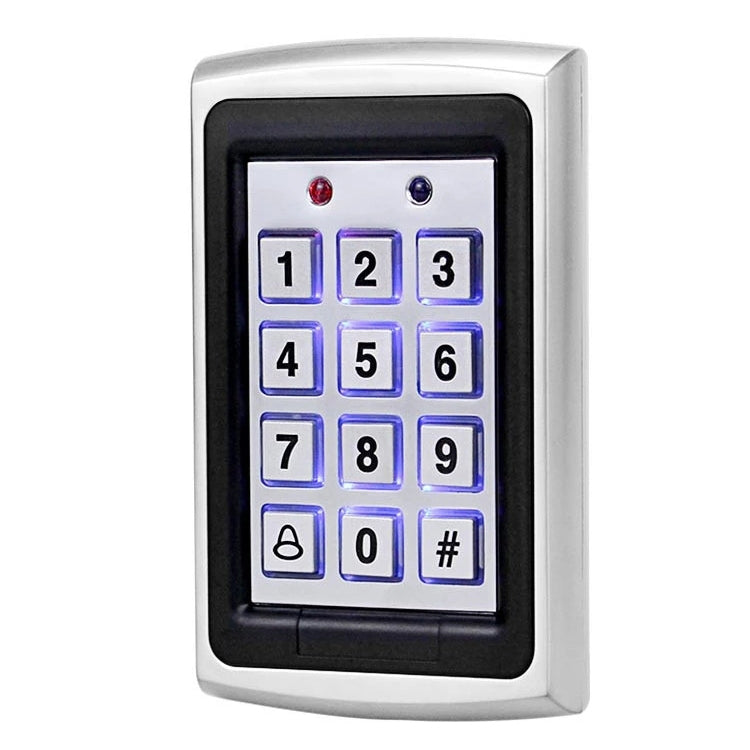

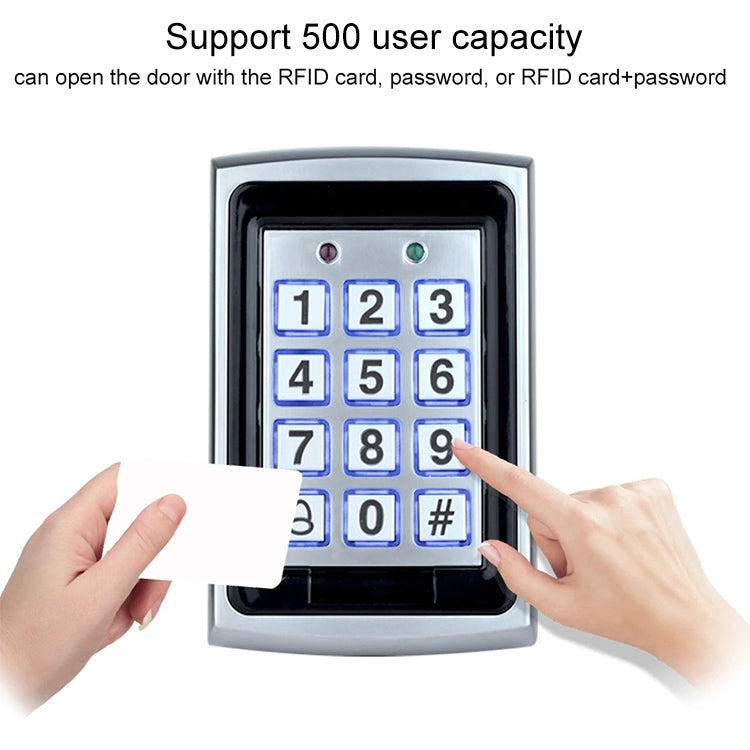

Standalone Keypad Access Control System (7612) is an access controller designed for external applications. It accommodates up to 500 users, allowing entry via proximity cards and PIN codes.
- Product Type: Access Controller
- Compatibility: Standalone Keypad Access Control System (7612)
- Material: Vandal resistant
- Color: Silver
- Operating Voltage: 12VDC from a regulated power supply
- Input Current: Standby: 40mA; Max: 130mA (not including attached devices)

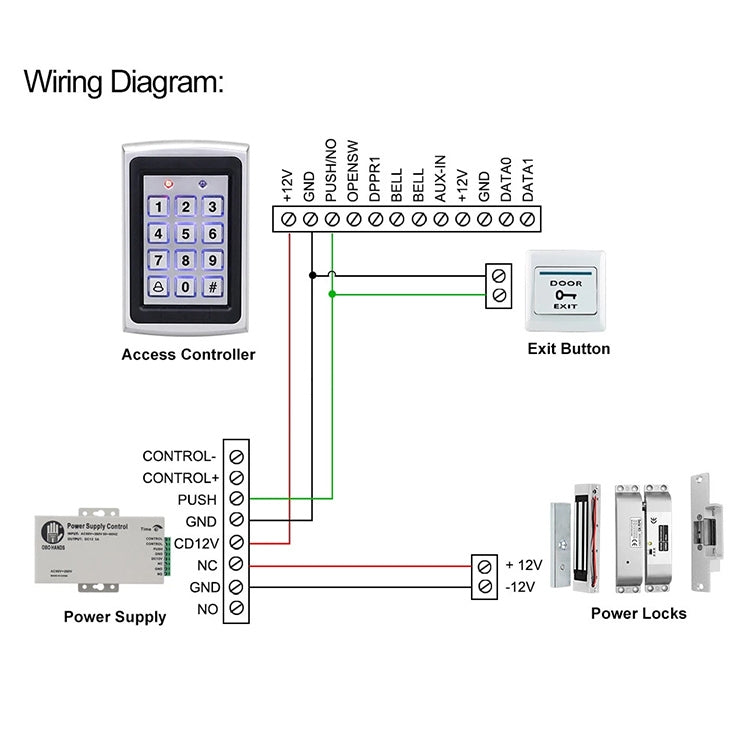

- Outputs: Lock Strike Relay (5A), Auxiliary Relay (5A), LockStrike Control Output Collector Open Output (25mA), Auxiliary Control Output Collector Open Output (25mA)
- Inputs: REX: N.O., Dry Contact; Auxiliary Input (In/Monitor): N.C., Dry Contact; Monitor Mode: N.O., Dry Contact Input Mode
- Built-in Proximity Reader: Read Range: 65mm; Modulation: ASK at 125 kHz; Compatible Cards: ALL 26-Bit EM Cards
- Dimensions: 120mm (L) x 76mm (W) x 27mm (H)
- Weight: 450g

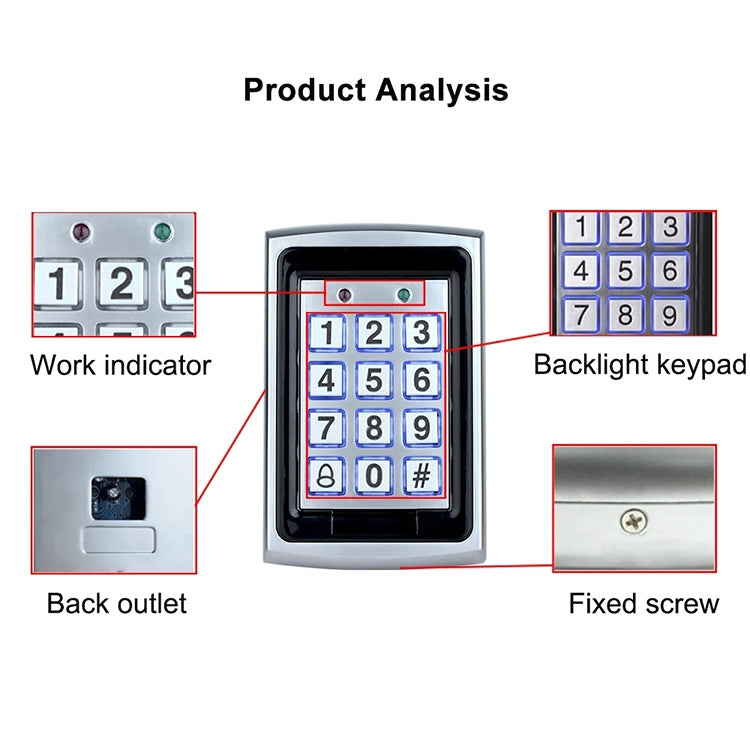

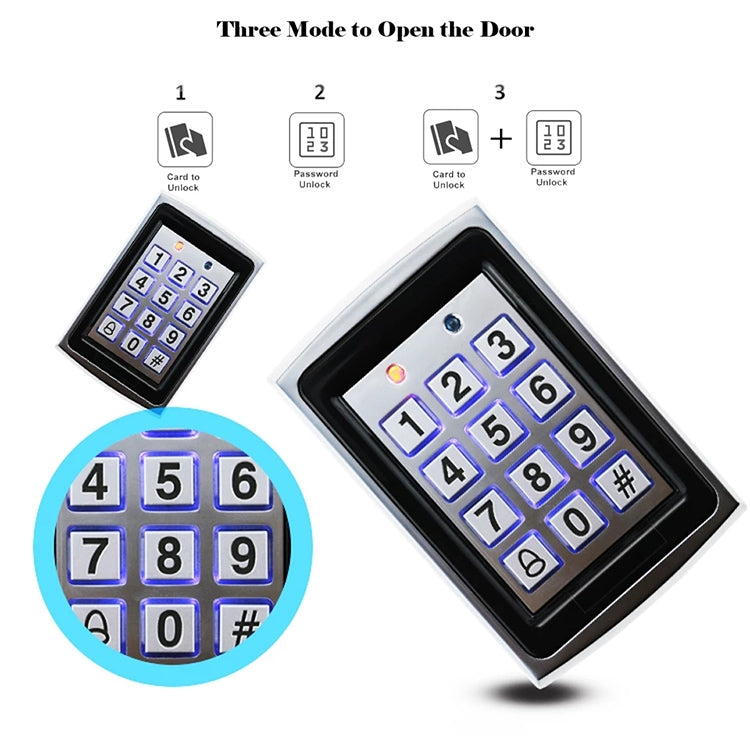

- Features: Built-in Proximity Card Reader, Built-in Keypad for PIN Code entry, Auxiliary Input & Output, Eight Auxiliary Modes (Door Ajar, Forced Door, Shunt, Door Monitor, Normal/Secure), Internal Buzzer, Two Status/Programming Interface LEDs, Two Modes of Operation (Normal, Secure), Three User Levels (Normal User, Secure User, Master User), Four Open Door Modes (4 digit PIN Code, 4 digit PIN Code & EM Card, 4 digit PIN Code & 1.4 digit PIN Code, EM Card & EM Card), Code Search Feature, Built-in Case and Back Tamper, Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies, Programmable Siren Time, Programmable Lock Strike Release Time
