Product details
Description

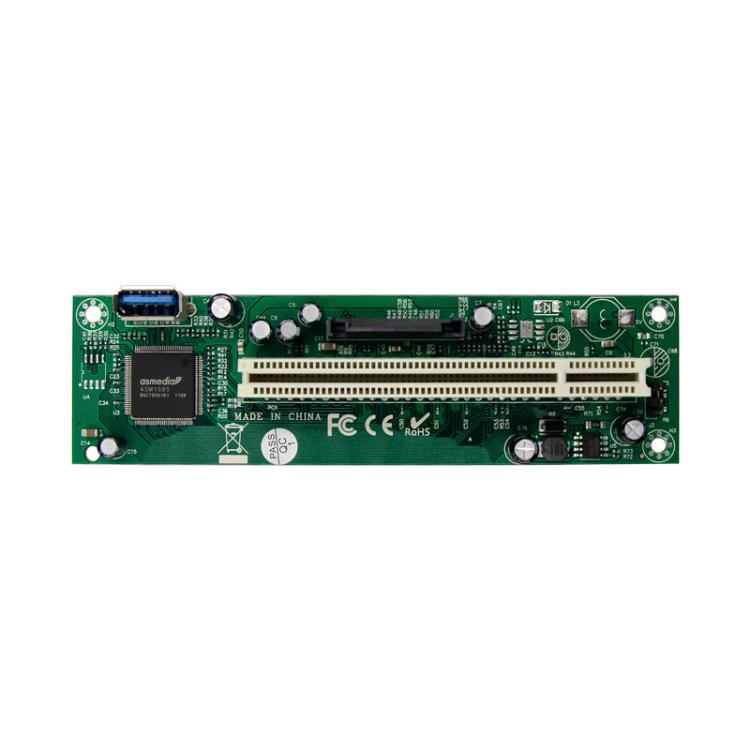

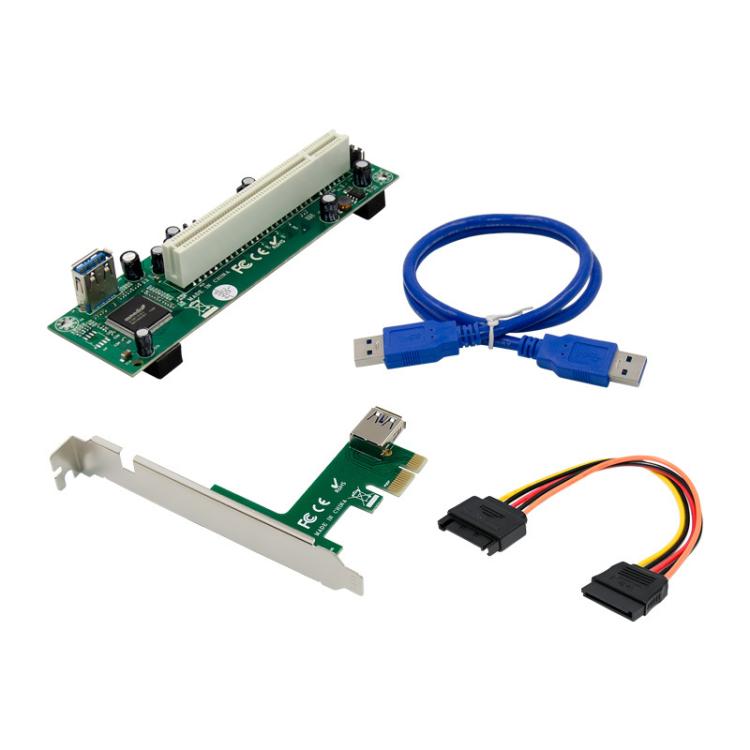

The SUNWEIT ST45 PCIe X1 To 1-PCI Slot ASM1083 Bridge Card is an add-on card designed to connect PCI Express devices to legacy PCI slots. It allows users to integrate older parallel bus devices into modern PCI Express interfaces, facilitating the use of legacy hardware.
- Product Type: Add-on Card
- Compatibility: PCI Express to PCI Slot
- Main Chipset: ASM1083
- Bus Type: PCI Express x1 (1xLane virtual channel)
- Slot Interface: 1 x PCI 32bit 33/66MHz (split), 1 x USB3.0 port, 1 x 15Pin SATA interface
- PCI Card Slot: 3.3V/1A, 3.3V/100mA, 12V/500mA (adjustable)
- Power Supply: Driver-free, plug and play; no need for additional power supply (onboard SATA power interface available in special cases)
- Applications: Commonly used for network cards, sound cards, serial and parallel port cards, video capture cards, array cards, industrial boards, and other PCI device cards

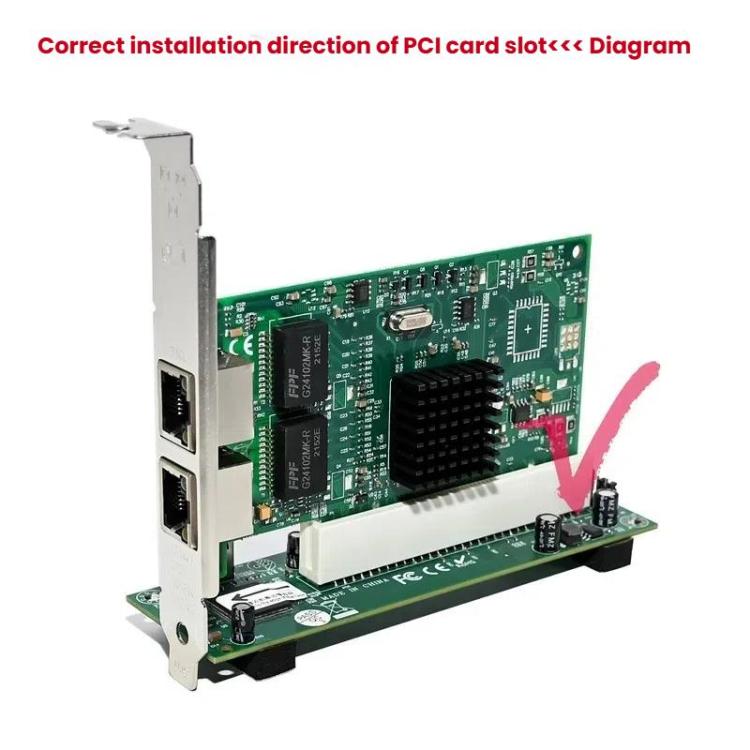

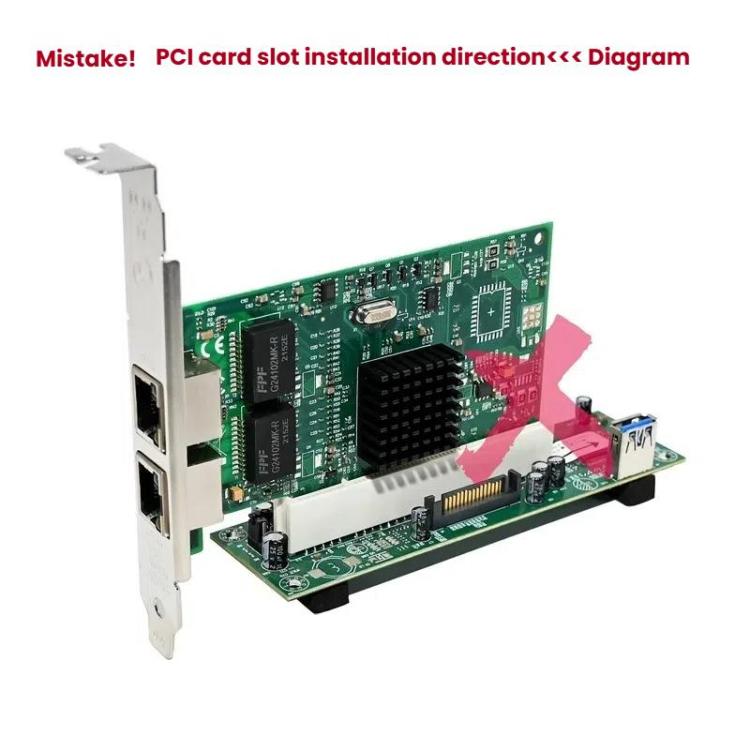

- Installation Notes: Tested before shipment; do not hot-swap with power on; turn off power before operation; follow the arrow on the board for correct installation direction
