Product details
Description

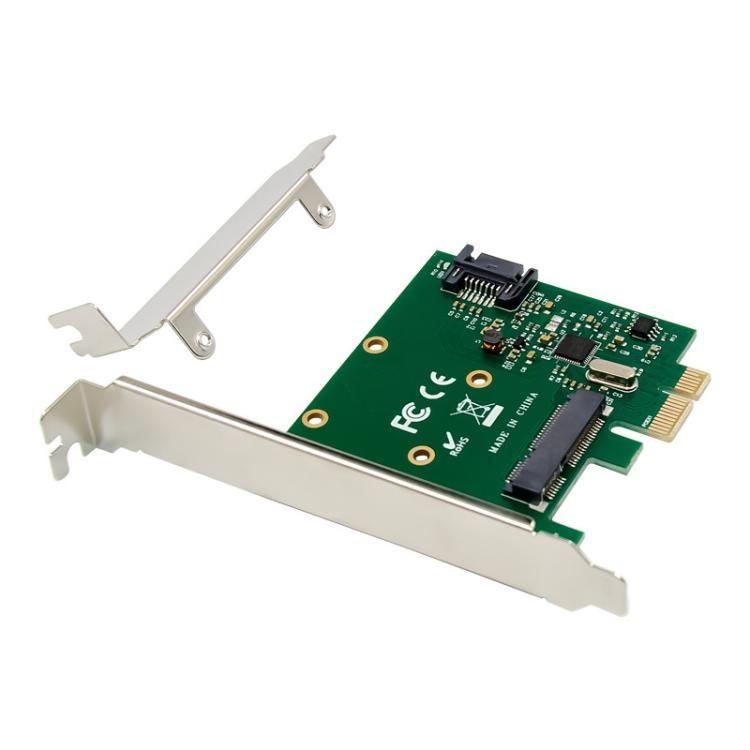

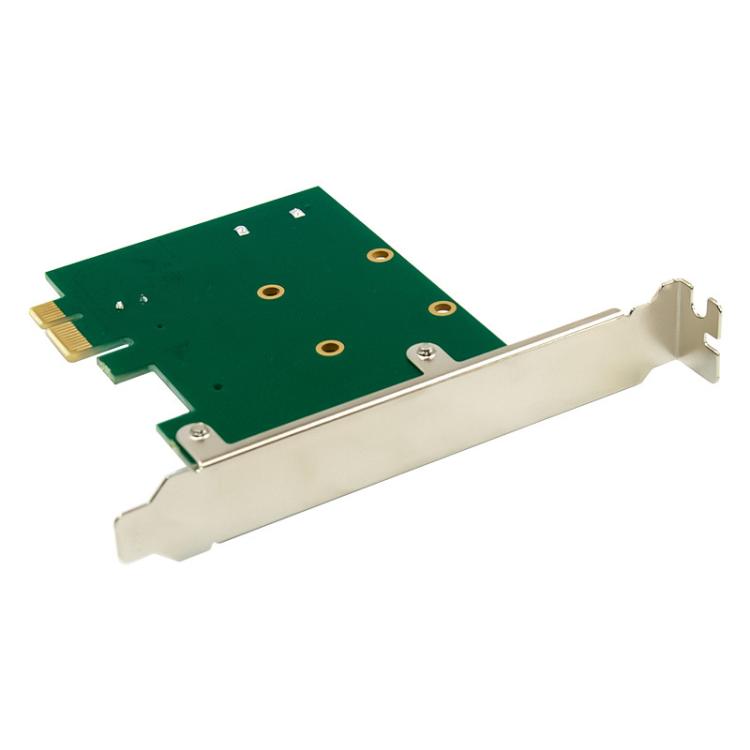

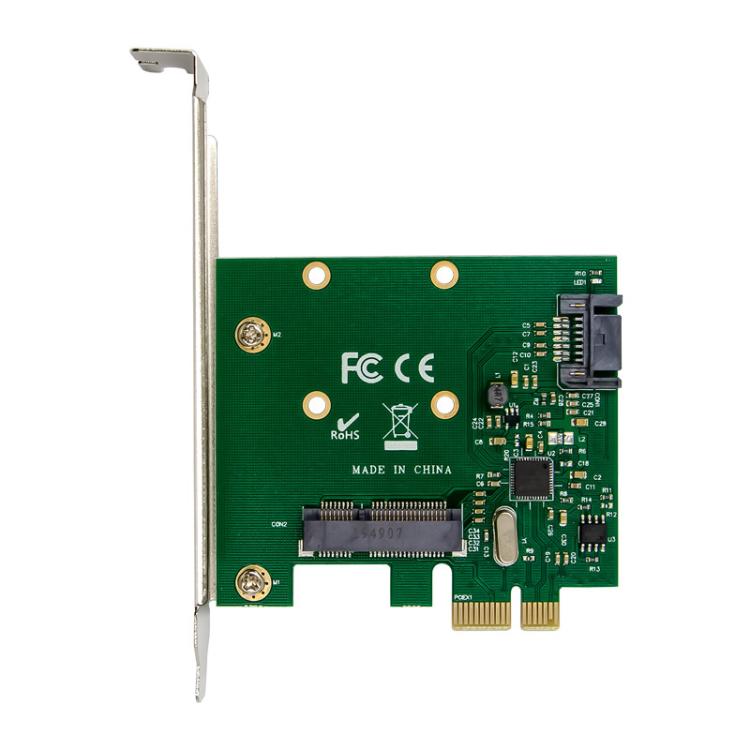

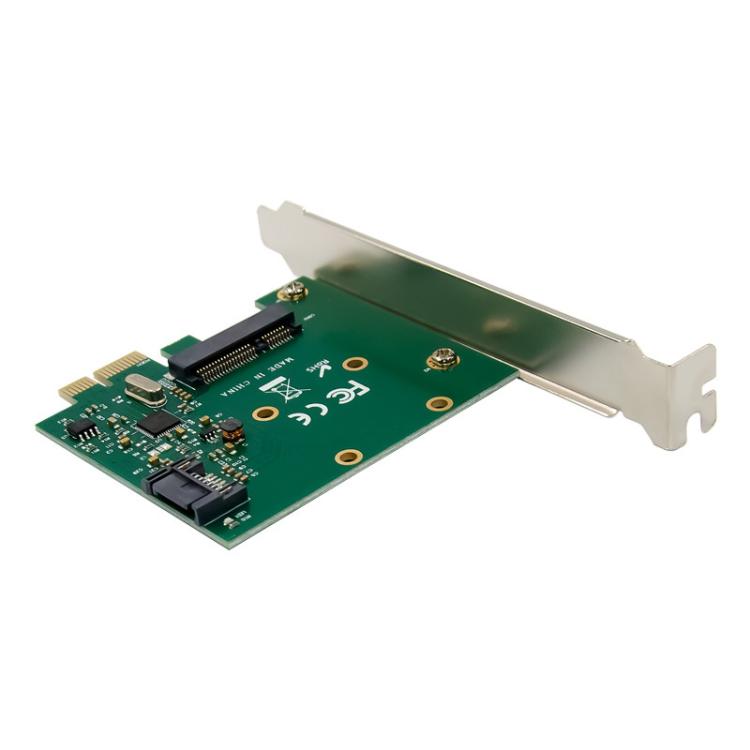

The SUNWEIT ST58 PCIe X1 ASM1061 is a single port mSATA SSD disk storage expansion card. It is designed to enhance storage capabilities by connecting HDDs, SSDs, and other extended storage devices.
- Product Type: eSATA, SATA, IDE
- Compatibility: PCIe
- Material: Not specified
- Key Feature: High-speed interface
- Intended Use: Storage expansion
- Controller: ASM1061 PCI Express Gen 2 to two-port SATA controller
- Communication Speeds: Up to 6Gbps
- Backward Compatibility: SATA 2.0/SATA 1.0
- PCIe Slot: 1
- PCIe Specification: Compliant with PCIe 2.0
- Support for 1x Lane PCIe 2.0 endpoint device
- Communication Speeds: 2.5 Gbps and 5.0 Gbps
- Payload: Up to 128 bytes
- Error Reporting: Supported
- Recovery and Correction: Supported
- Message Signaled Interrupt (MSI): Supported
- SATA Specification: Compliant with Serial ATA Specification 3.0
- SATA Ports: 1 x 7 Pin SATA port, 1 x mSATA half/full size port
- Communication Speeds: 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
- Programmable Transmitter Signal Level: Supported
- Support for Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
- Support for two SATA ports
- AHCI 1.0 and IDE programming interface: Supported
- Native Command Queue (NCQ): Supported
- Port FIS-based Switching or Command-based Switching: Supported
- Partial and Sleep Power Management States: Supported
- Staggered Rotation: Supported
- Included Components: Array card x 1, Short iron sheet x 1, Screw kit x 1, CD driver x 1
