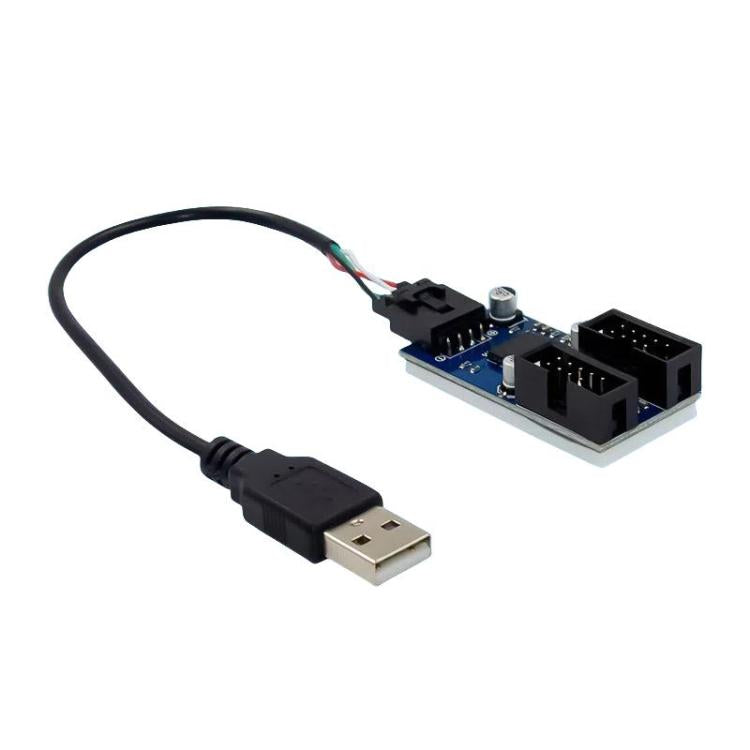

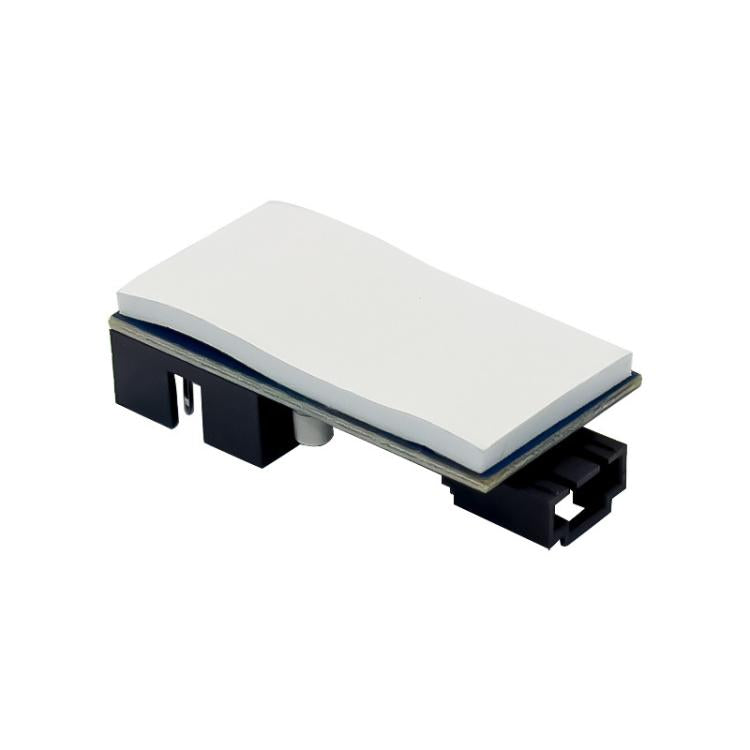

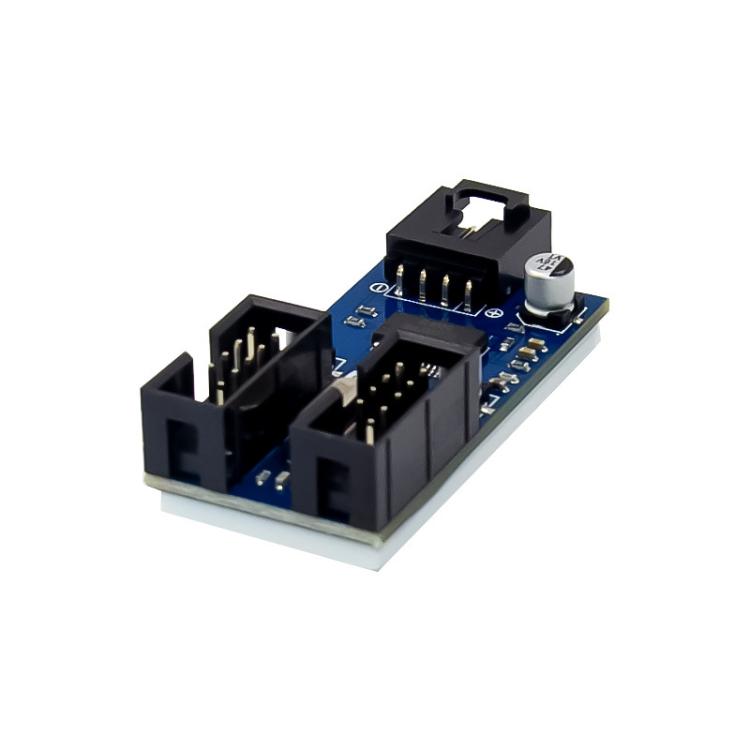

SUNWEIT ST650 GL850 USB2.0 9P To Dual Port Built-in 9P USB2.0 Motherboard Hub
SUNWEIT ST650 GL850 USB2.0 9P To Dual Port Built-in 9P USB2.0 Motherboard Hub
Sale
Sold out
Pre-order
Regular price
R 279.00
Regular price
Sale price
R 279.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Others
• Compatibility: PC motherboard
• Material: Not specified
• Key feature: Supports multiple downstream ports
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics
1. Compliant with USB specification revision 2.0, backward compatible with USB specification revision 1.12. Support 4/3/2 downstream ports through I/O pin configuration.
2. Upstream port supports high-speed (HS) and full-speed (FS) traffic, downstream port supports HS, FS and low-speed (LS) traffic.
3. 1 control pipe (endpoint 0, 64-byte data payload) and 1 interrupt pipe (endpoint 1, 1-byte data payload).
4. On-chip 8-bit microprocessor, RISC-like architecture, USB optimized instruction set.
5. Performance: 6 MIPS@12MHz.
6. With 64-byte RAM and 2K Mask ROM.
7. Support customized PID, VID, and support downstream port configuration by reading external EEPROM.
8. Low power consumption, built-in 5V to 3.3V regulator.
9. Each downstream port supports two-color status indicators, and its automatic and manual modes are compliant with USB specification revision 2.0.
10. Built-in upstream 1.5K pull-up and downstream 15K pull-down.
11. Embedded serial resistor for USB signal.
12. Supports separate and joint modes of power management and overcurrent detection of downstream ports.
13. Power enable pin supports low/high enable power switch.
14. Complies with bus power requirements.
15. Automatically switches between self-powered and bus-powered modes.
16. Supports composite devices through I/O pin configuration (downstream ports are not removable).
17. Built-in PLL supports external 12MHz crystal/oscillator clock input.
18. Improved output driver through slew rate control to reduce EMI, internal power failure detection to recover ESD.
19. The number of downstream ports can be configured through GPIO without external EEPROM.
20. Application range: independent USB hub, PC motherboard USB hub, laptop docking, game console, LCD monitor hub, composite device supporting USB hub function.

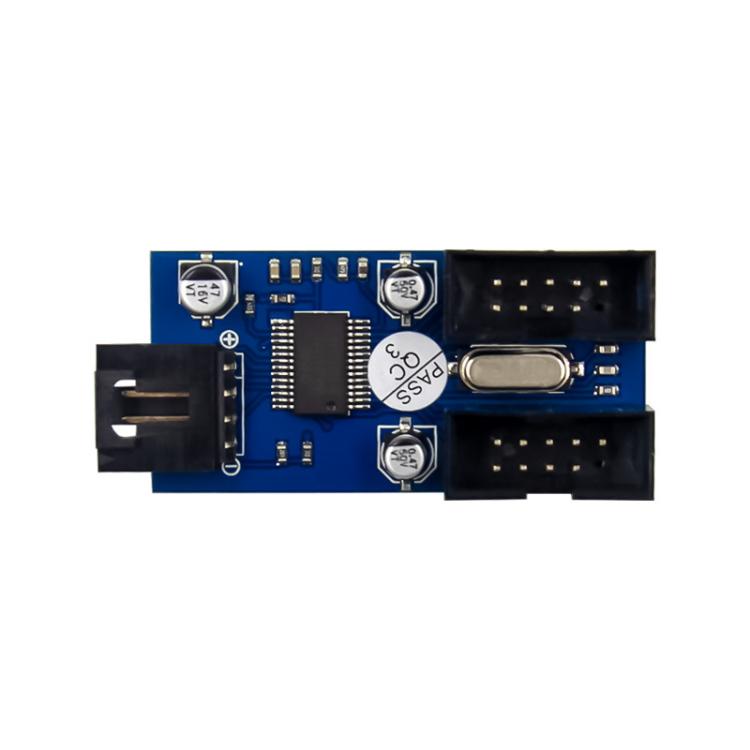

21. Chip: Genesys GL850.

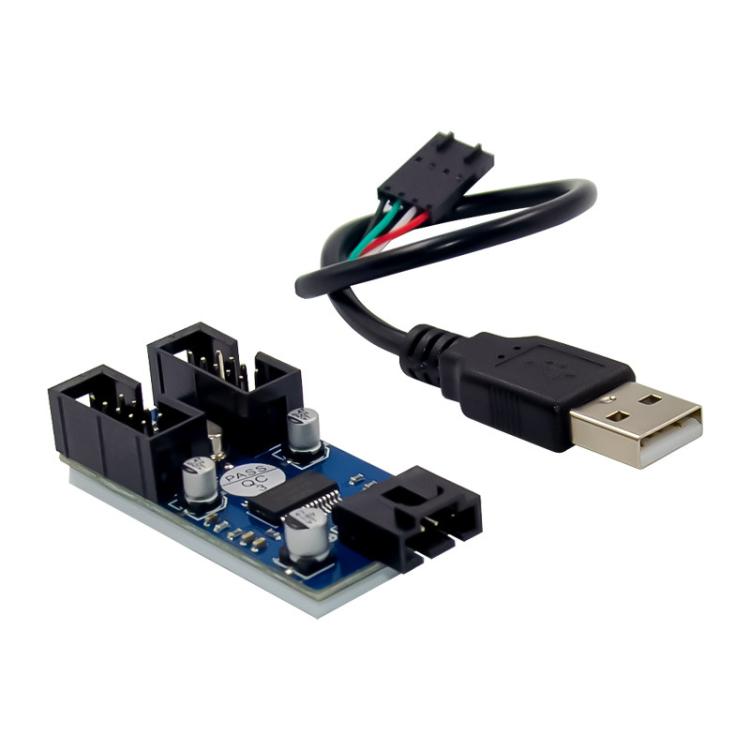

22. Packing list: - GL850 independent USB 2.0 hub x 1 - USB2.0 to 4 Pin cable x 1
