Product details
Description

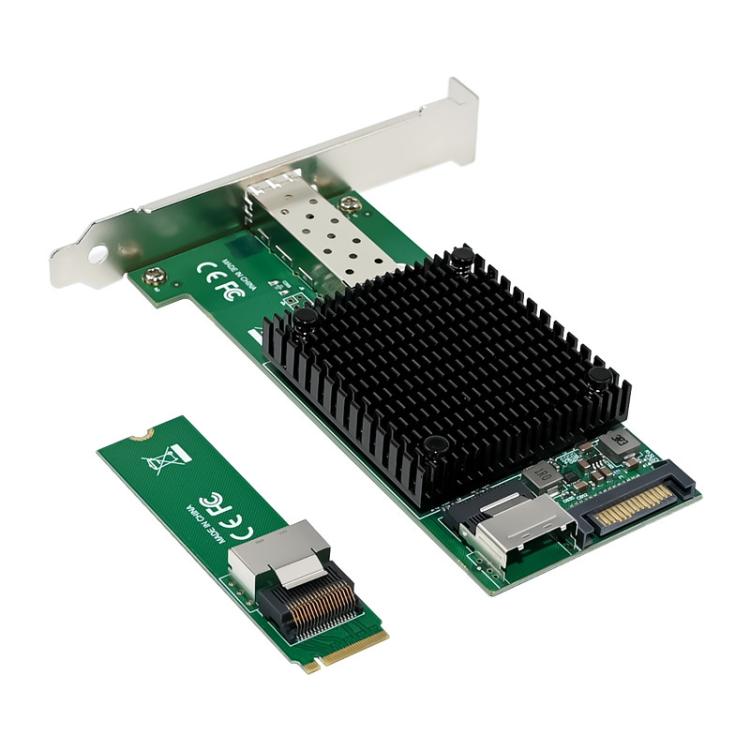

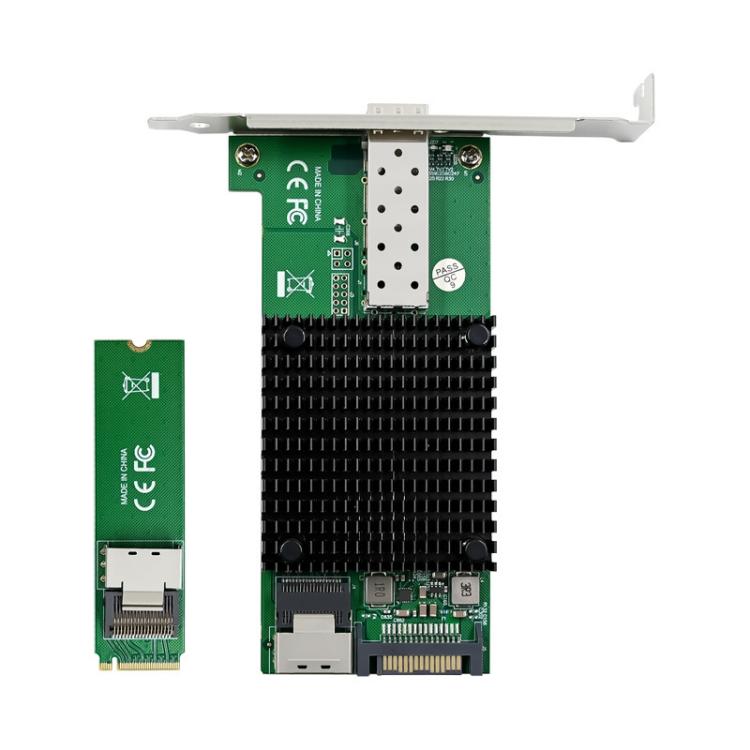

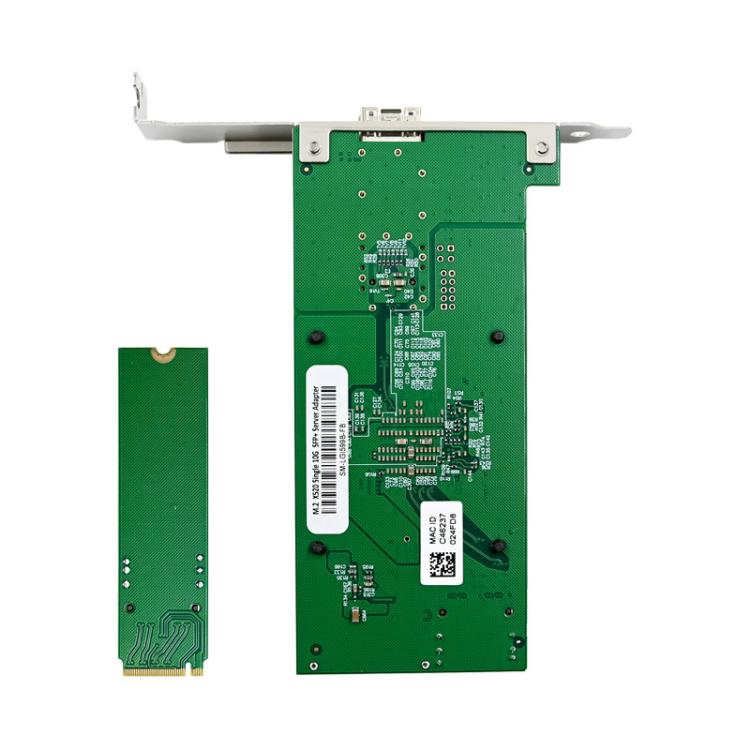

The SUNWEIT ST7331 M.2 X520DA1 is an M.2 add-on card designed for 10GbE networking. It is suitable for use in industrial control servers and can support various network protocols.
- Product Type: Add-on Card
- Compatibility: M.2 10G industrial control server
- Material: Not specified
- Key Feature: Single-port 10GbE SFP port standard
- Color/Variant: Not specified
- Main Functions:
- M.2 M KEY supporting PCIe protocol
- PCI-Express host interface specification v2.0, bus width is 5GT/s
- PCI-Express channel: x4
- Comply with single-port 10GbE SFP port standard
- Comply with IEEE802.3ae specification
- Layer 2 function: IEEE 802.3x flow control - IEEE 802.1q VLAN
- Support receive side scaling (RSS)
- Support IPv4, IPv6 protocols
- Support jumbo frames up to 15.5K
- Support checksum offload
- Management statistics and RMON
- Support virtual machine device queues
- Interrupt throttling control
- Chipset: Intel JL82599EN
- Parameters:
- Applicable Network: M.2 10G industrial control server network card
- Main Controller: Intel(R) JL82599EN
- Bus Type: M.2 M KEY
- Media Interface: 1 x SFP+ fiber LC
- Transmission Rate: 10GbE/1GbE
- Network Extension:
- IEEE 802.3: 10GBASE-SR (E10G41BFSR, E10G42BFSR), 10GBASE-LR (E10G41BFLR)
- SFF-8431: 10GSFP+Cu (Direct Attach)
- X520 adapter with SFP+ connection supports 10GBASE-SR, 10GBASE-LR and SFP+ copper direct connection physical media
- Management Functions: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- Operating Temperature: 0 - 55 degrees Celsius (32 - 131 degrees Fahrenheit)
- Storage Temperature: -40 - 70 degrees Celsius (-40 - 158 degrees Fahrenheit)
- Storage Humidity: 90% non-condensing relative humidity at 35 degrees Celsius
- Application Areas: Mobile devices, desktops, workstations, value servers, or industrial design network equipment with strict space constraints

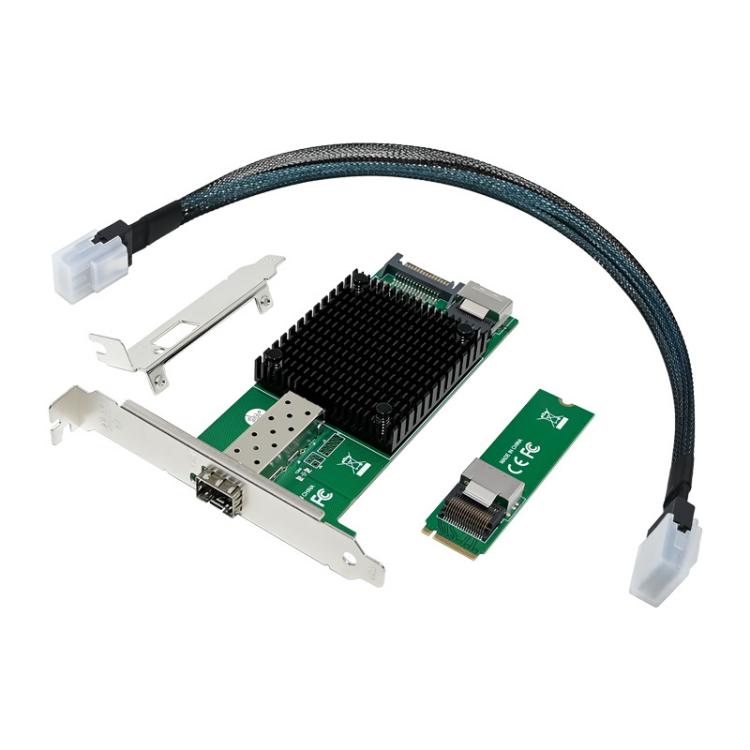

- Packing List:
- M.2 M X520 single-port SFP+ industrial control network card x 1
- Manual x 1
- CD drive disc x 1
- Short iron sheet/2U small chassis applicable x 1
