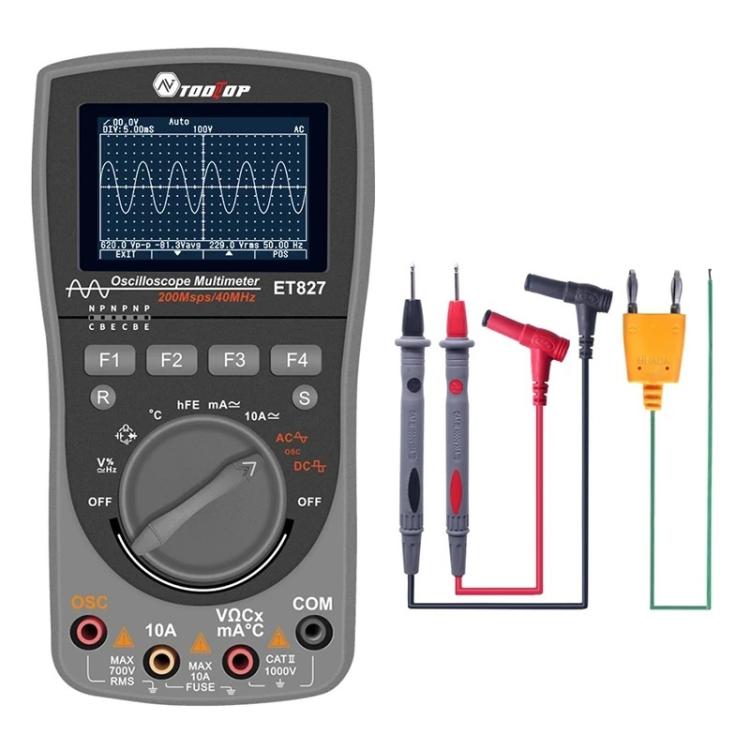

TOOLTOP ET827 Oscilloscope Multimeter 200Msps Sampling Rate 40MHz Oscilloscope + Multimeter 2 In 1
TOOLTOP ET827 Oscilloscope Multimeter 200Msps Sampling Rate 40MHz Oscilloscope + Multimeter 2 In 1
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Display: 240 x 160 pixel LCD
2. Backlight: black screen with white backlight
3. Impedance: 10 megohm
4. Battery: AA battery x 3 (not included)
5. Auto power off: no operation within 15 minutes

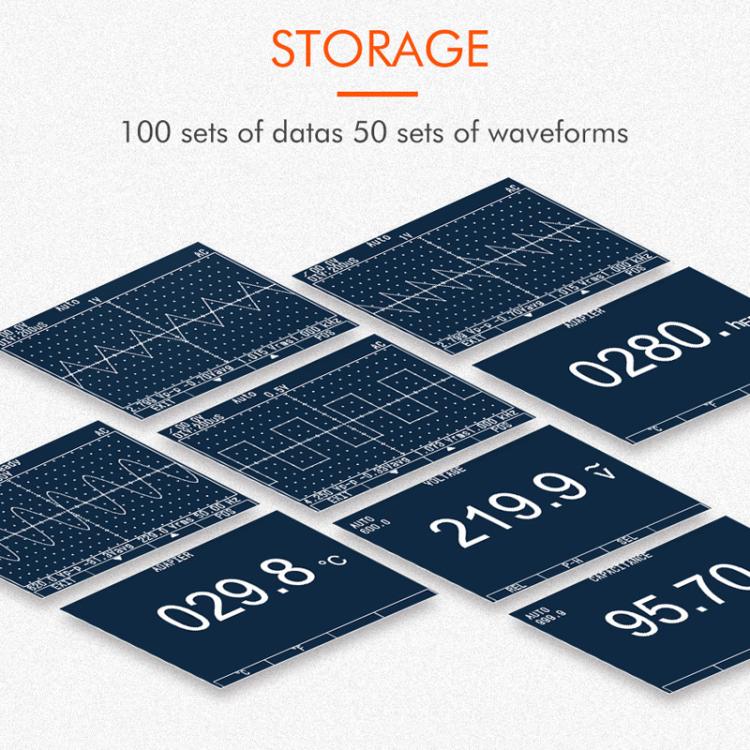

6. Storage: 100 sets of data, 50 waveforms
7. Operating environment: 0 - 40 degrees Celsius, less than 75%RH
8. Storage environment: -10 - 60 degrees Celsius, less than 90%RH
9. Display area: about 6 x 4cm

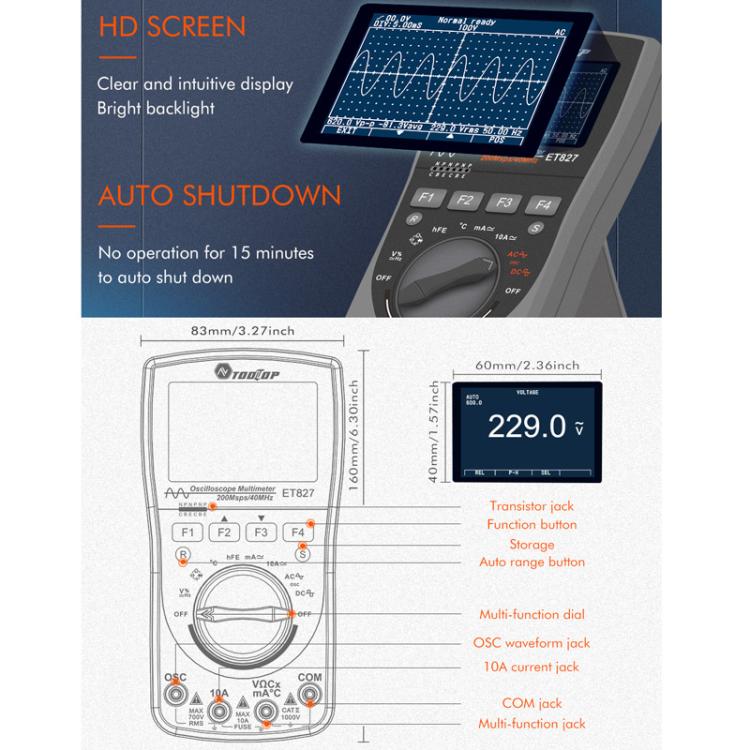

10. Dimensions: about 8.3 x 16 x 3.2cm
11. Weight: about 210g

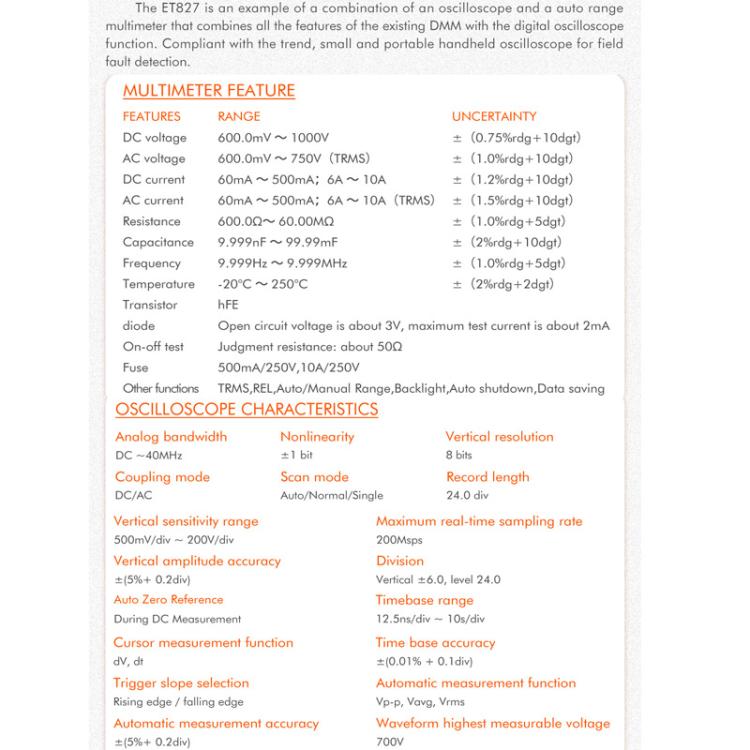

Oscilloscope:
1. Analog bandwidth: 40MHz
2. Nonlinearity: +/-1 bit
3. Vertical resolution: 8 bits
4. Coupling mode: AC/DC

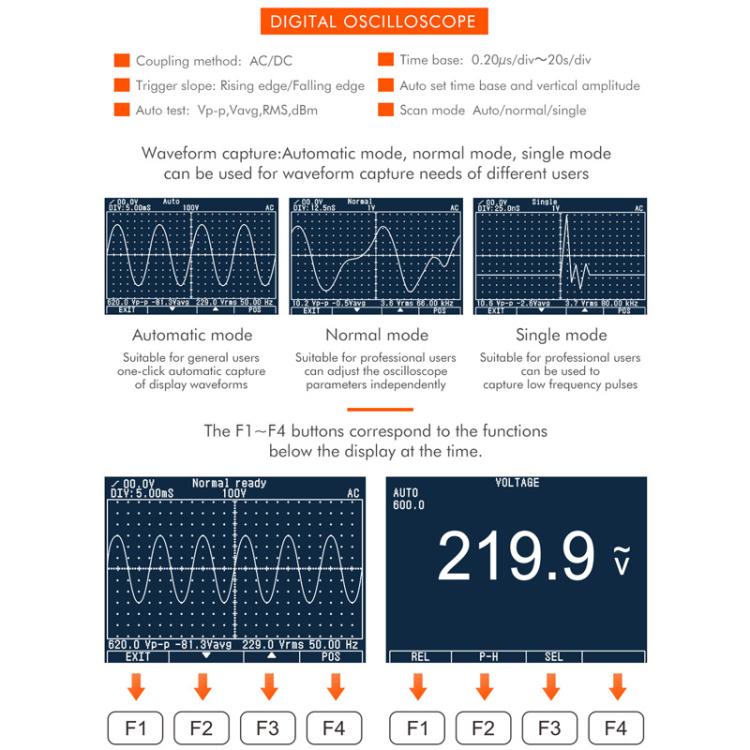

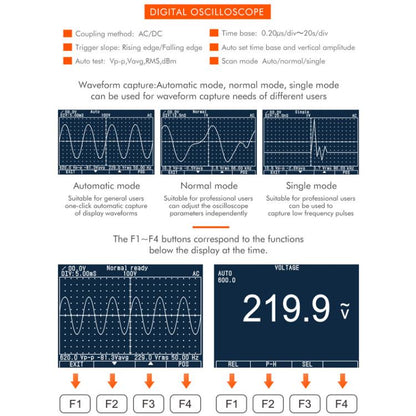

5. Sweep mode: auto / normal / single
6. Record length: 24.0 div
7. Vertical sensitivity range: 500mV/div - 200V/div
8. Maximum real-time sampling rate: 200Msps
9. Vertical amplitude accuracy: +/-(5%+ 0.2div)
10. Scale: vertical +/-6.0, horizontal 24.0
11. Automatic zero reference: DC measurement
12. Time base range: 12.5ns/div - 10s/div
13. Cursor measurement function: dV, dt
14. Time base accuracy: +/-(0.01%+0.1div)
15. Trigger slope selection: rising edge/falling edge
16. Automatic measurement function: peak-to-peak value, average value, effective value
17. Automatic measurement accuracy: +/-(5%+0.2div)
18. The highest measurable voltage of the waveform: 700V
Multimeter:
1. Range:
- DC voltage: 600mV - 1000V +/-(0.75%rdg+10dgt)
- AC voltage: 600mV - 750V(TRMS) +/-(1.0%rdg+10dgt)
- DC current: 60mA - 500mA, 6A - 10A +/-(1.2%rdg+10dgt)
- AC current: 60mA - 500mA, 6A - 10A(TRMS) +/-(1.5%rdg+10dgt)
- Resistance: 600.0 ohms - 60.00 megohms +/-(1.0% reading + 5 digits)
- Capacitance: 9.999nF - 99.99mF +/-(2% reading + 10 digits)
- Frequency: 9.999Hz - 9.999MHz +/-(1.0% reading + 5 digits)
- Temperature: -20 degrees Celsius - 250 degrees Celsius +/-(2% reading + 10 digits)
2. Transistor: hFE
3. Diode: open circuit voltage is 3V, maximum test current is 2mA
4. Switch test: judge resistance is about 50 ohms

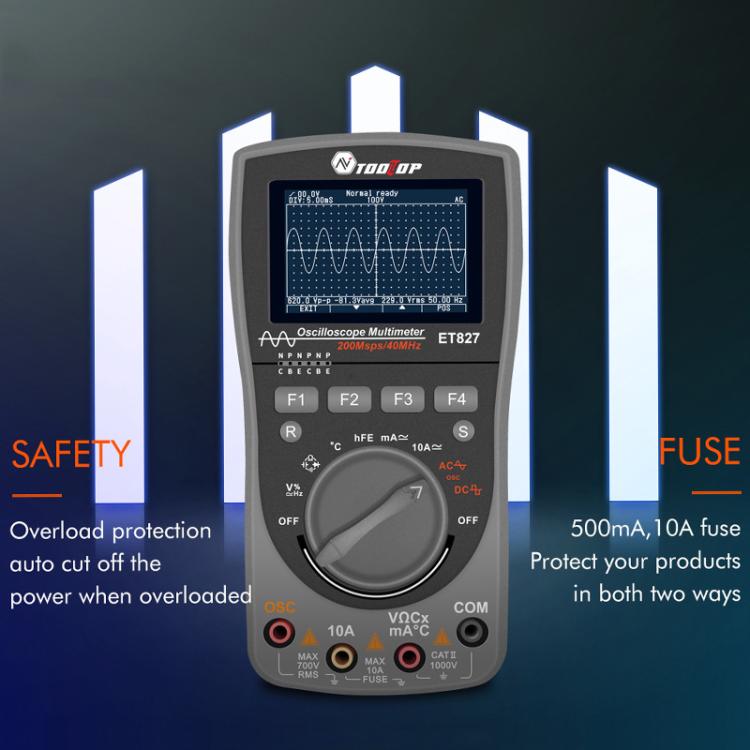

5. Fuse: 500mA/250V 10A/250V

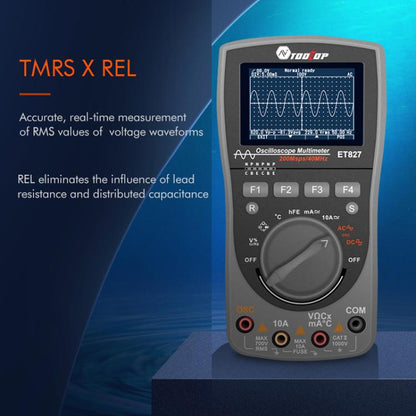

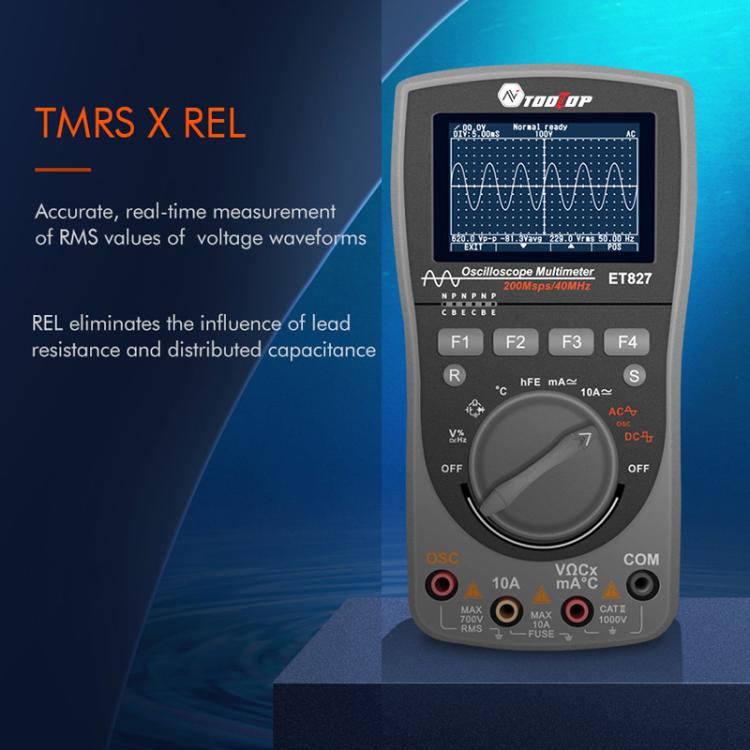

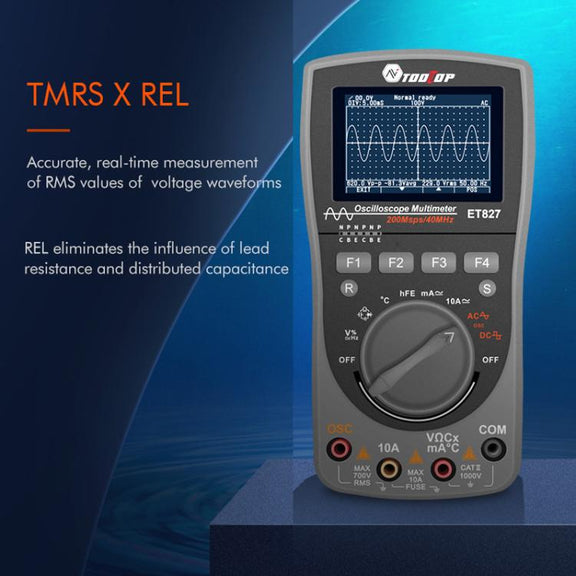

6. Other functions: true RMS measurement, relative measurement, automatic/manual range, backlight, automatic shutdown, data storage

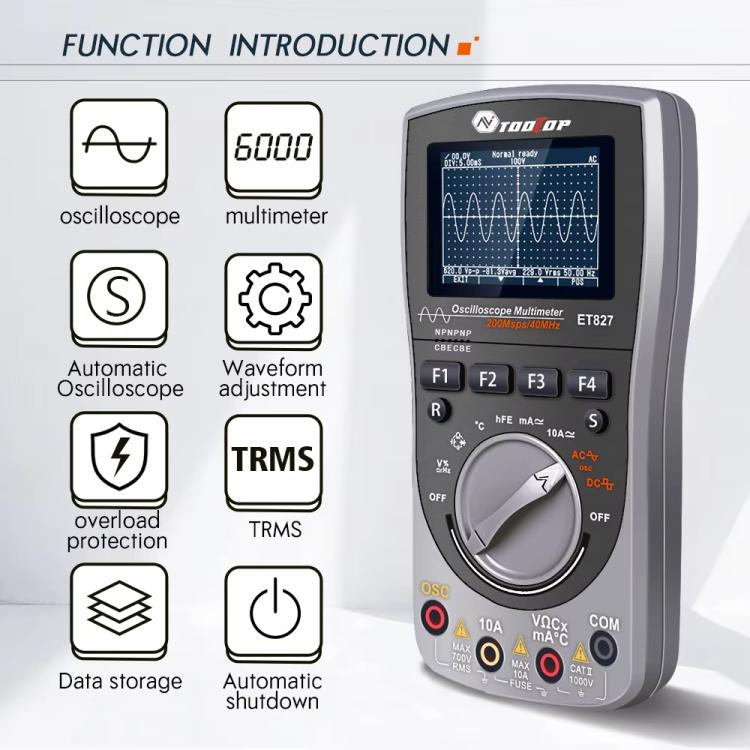

Features:

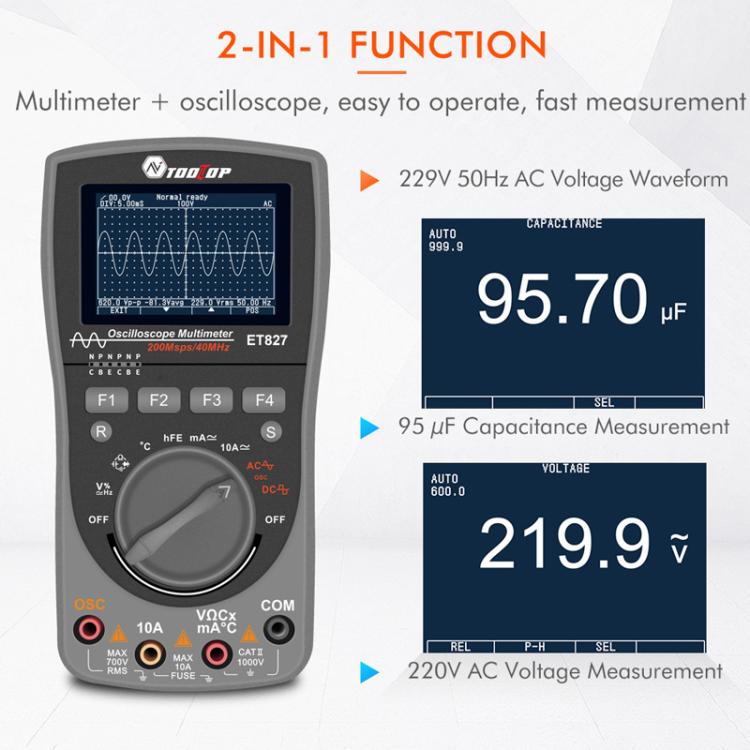

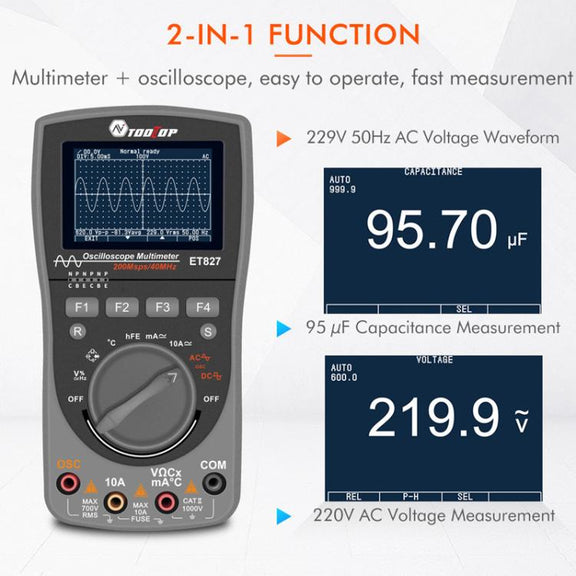

1. The handheld oscilloscope is used for waveform measurement, with two general test instrument functions: oscilloscope + multimeter, small size, beautiful appearance and clear interface
2. It can quickly and accurately detect faults in the circuit under test, suitable for outdoor research, production, debugging and maintenance, and can be used as an electronic device

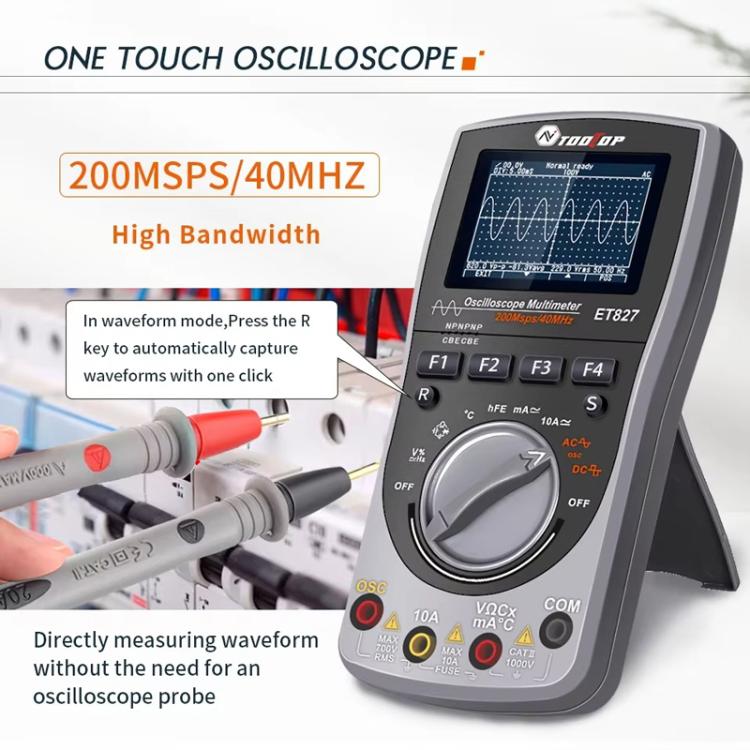

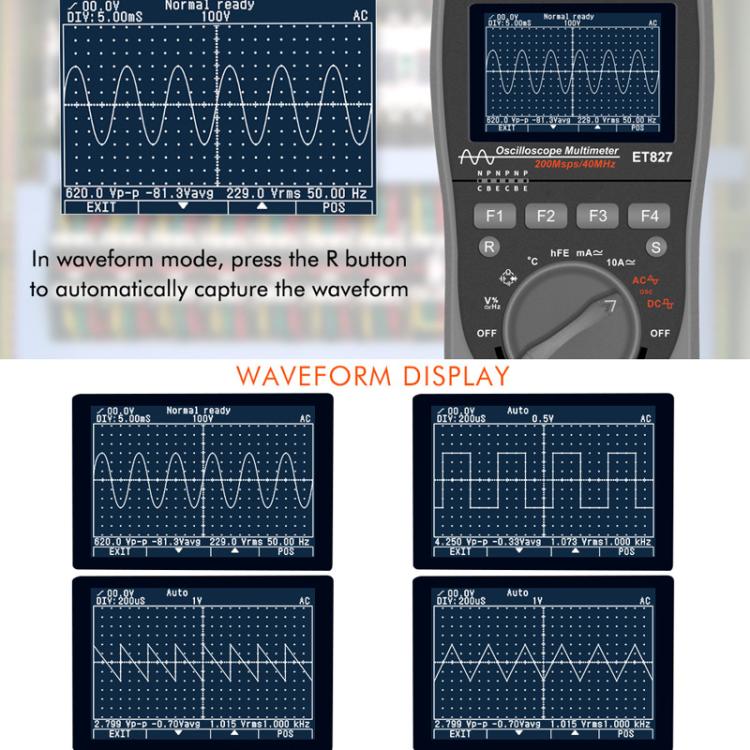

3. Oscilloscope: 40MHz bandwidth and 200MHz real-time sampling rate, three trigger modes: automatic, normal and single, waveform saving, automatic measurement
4. Multimeter: equipped with dedicated chip, 6000 count display high precision, DC/AC current, voltage, resistance, frequency, diode, transistor, temperature test
