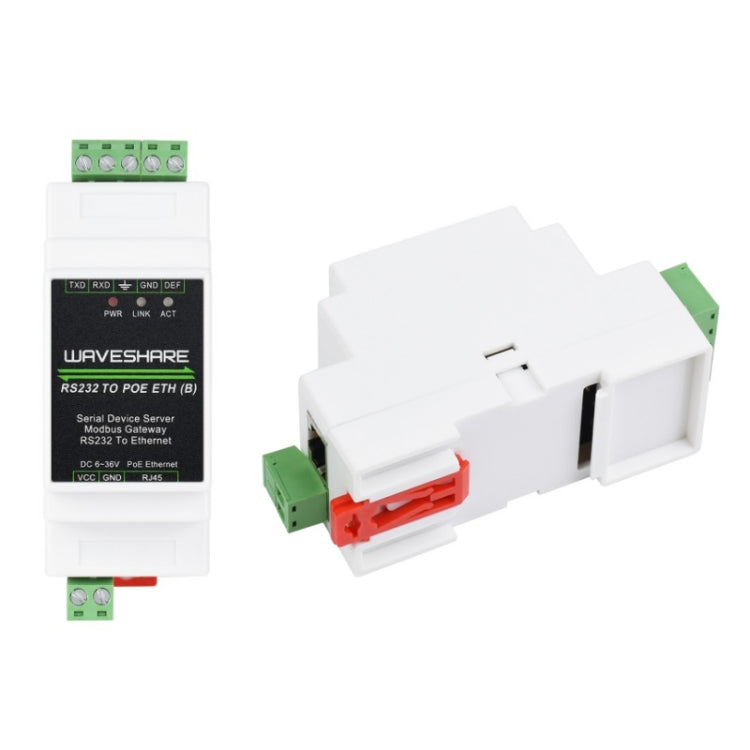

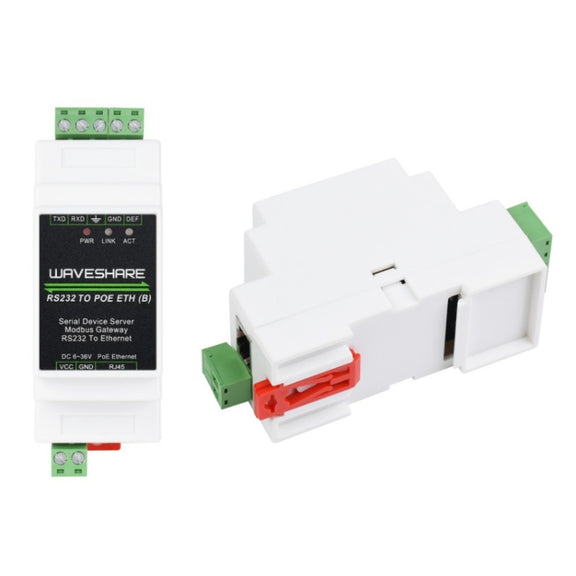

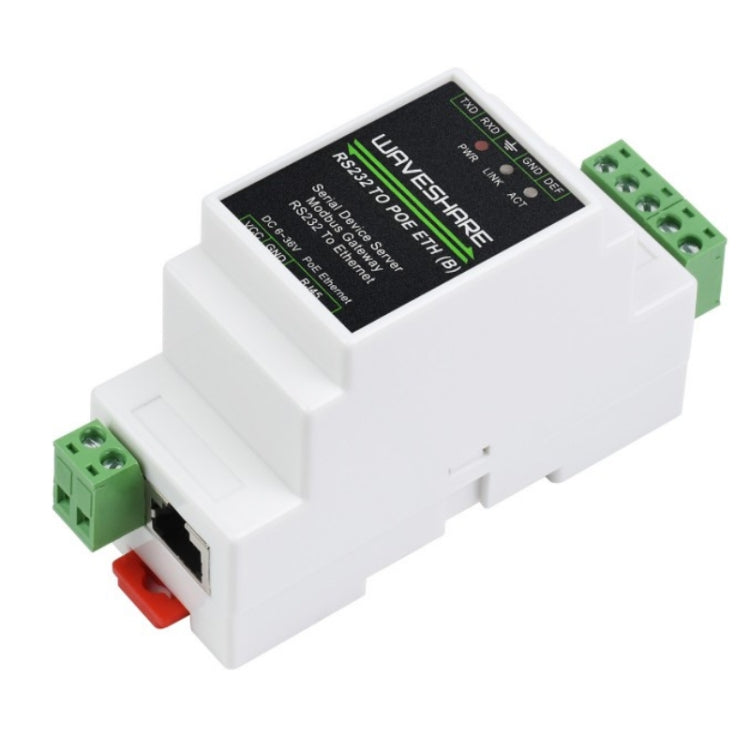

Waveshare 23951 Industrial Serial Server RS232 to RJ45 Ethernet TCP/IP to Serial with POE

• Product type: serial server
• Brand: WAVESHARE
• Compatibility: RS232
• Material: durable
• Key feature: bidirectional transparent data transmission
• Color/Variant: black
• Intended use: industrial use
• Category: Other Accessories

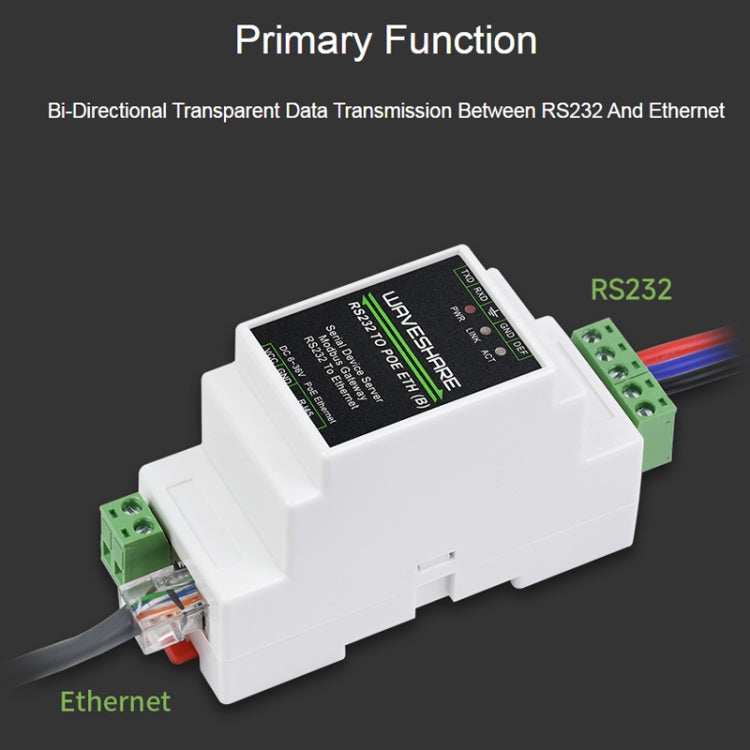

1. Basic functions: bidirectional transparent data transmission between RS232 and Ethernet
2. Communication interface: RS232 port x 1, Ethernet port x 1
3. Power supply: DC 6 ~ 36V
4. Ethernet: ordinary network port PoE network port; support IEEE 802.3af standard; 10 / 100M auto-negotiation RJ45 connector, 2KV surge protection
5. Baud rate: 300 ~ 115200 bps
6. Parity bit: None, Odd, Even, Mark, Space
7. Data bits: 5 ~ 9 bits
8. Flow Control: N/A
9. Protocol: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
10. Configuration: host, web browser, device management function library
11. Communication method: TCP/IP direct communication, VCOM

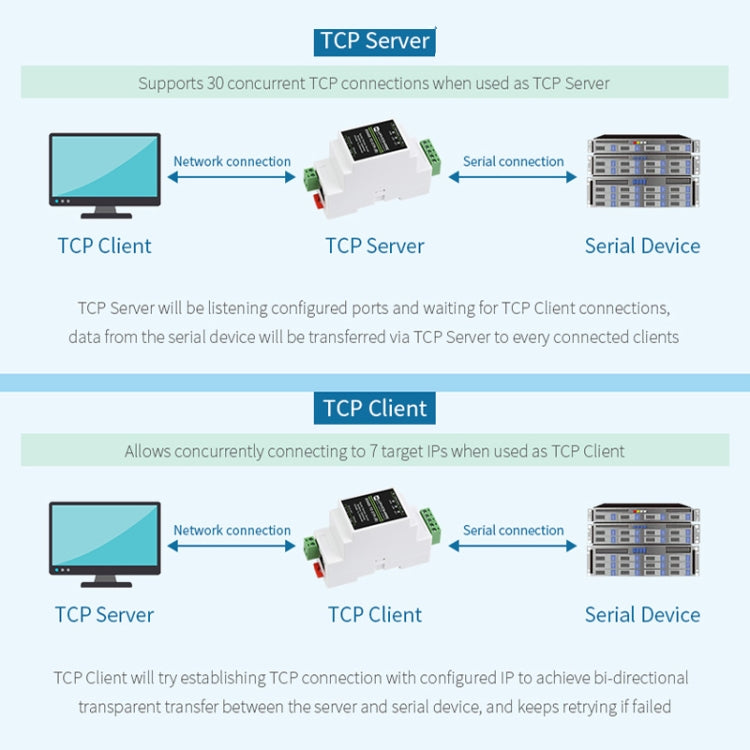

12. Operation mode: TCP server, TCP client (coexist with TCP server), UDP, UDP multicast
13. Dimensions: 87x36x59mm

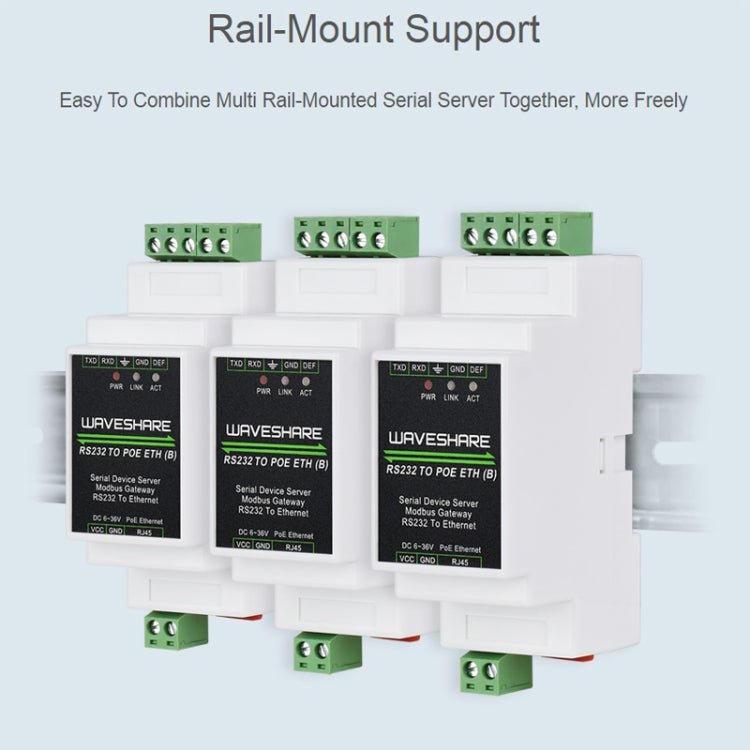

14. Easily combine multiple DIN rail serial servers, more freedom
15. Two-way transparent data transmission between RS232 and Ethernet
16. Suitable for Modbus Gridding upgrade, can be used with specific configuration software
17. MQTT/JSON to Modbus, more flexible conversion between different protocols
18. Multi-host polling support, different network devices will be recognized and responded separately, and there will be no crosstalk problems when communicating with multiple network devices
19. Multi-host polling support, easy cloud communication and device identification
20. NTP protocol support, obtain network time information for serial output or data upload
21. Multiple configuration methods, support web browser configuration, obtain dynamic IP through DHCP, and connect to domain server address through DNS protocol
