Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector

Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector

Sale Sold out Pre-order

R 229.00

R 229.00

Ships in 1-3 Days

Estimated delivery: Calculated at checkout

Ships from International Fulfillment Center • Import tax and duties included

SKU: TBD04211317

Shipping Included Intl: 6-13 Days 6-Month Warranty 7-Day Returns

Description

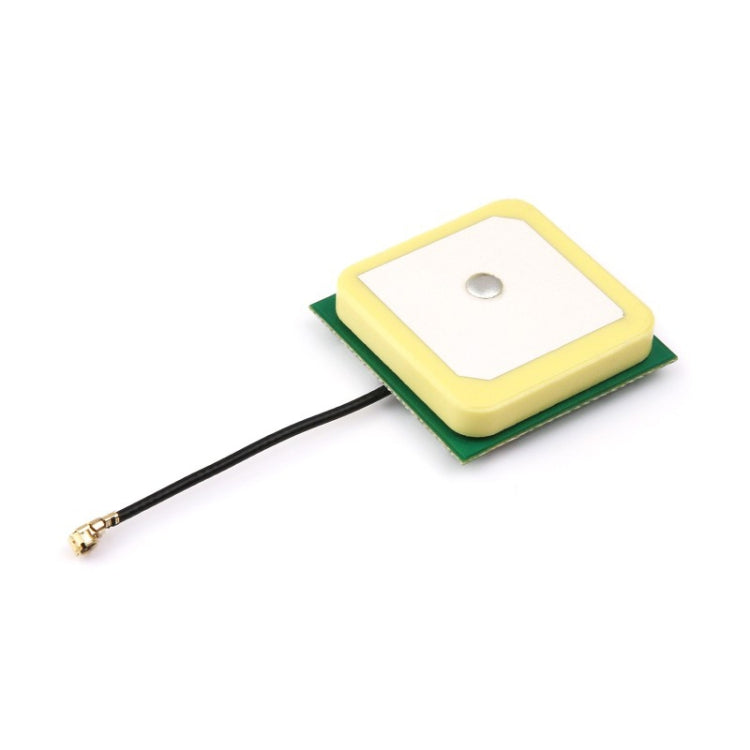

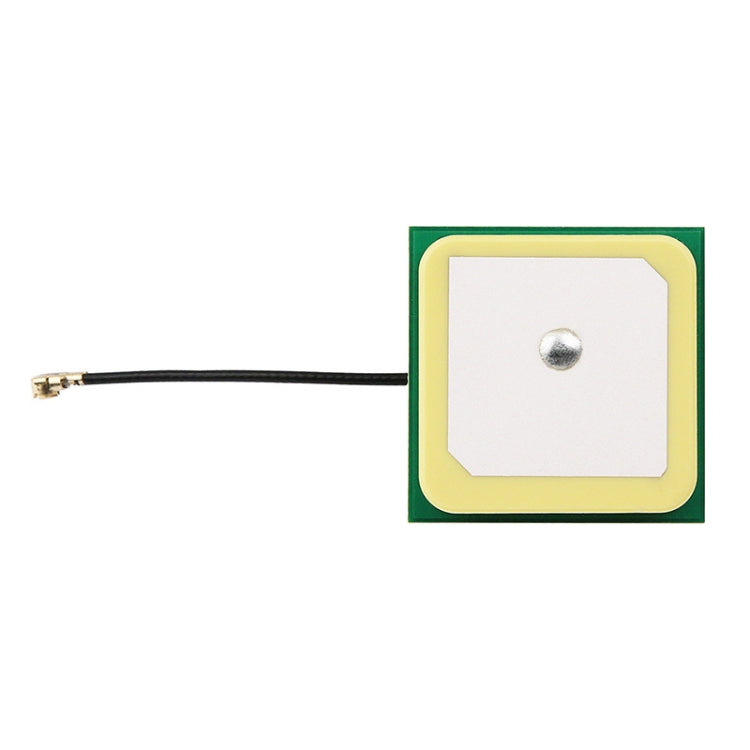

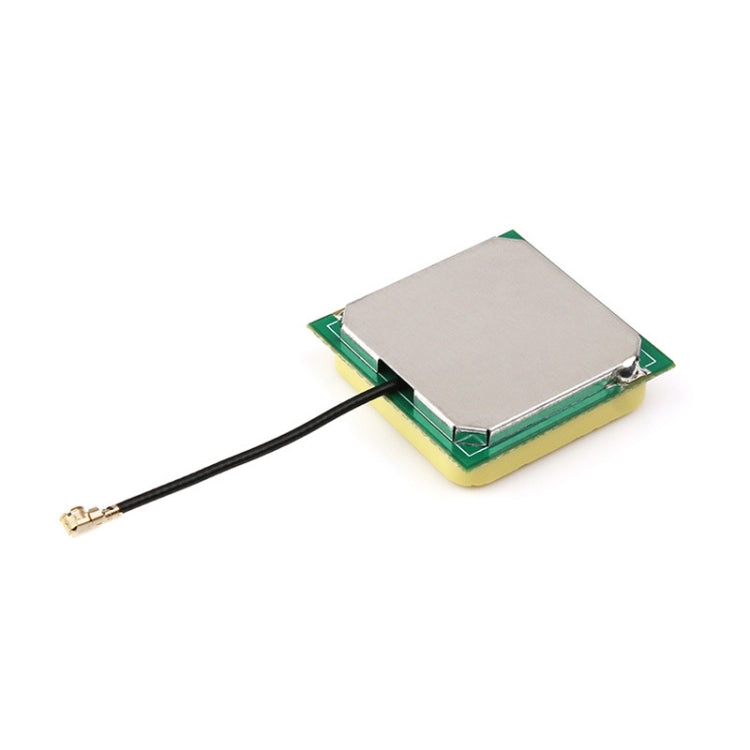

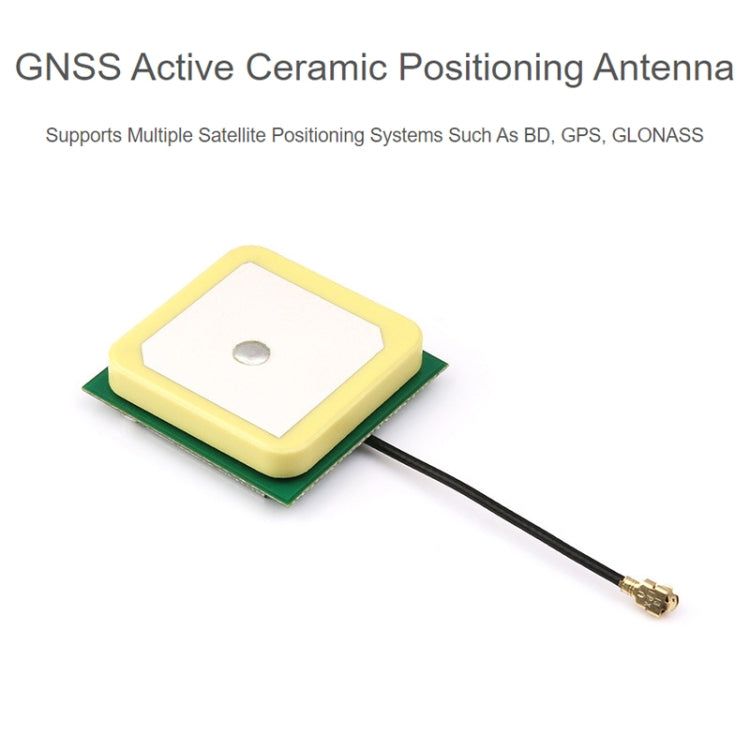

The Waveshare 24095 GNSS Active Ceramic Positioning Antenna is designed for GNSS positioning systems. It provides reliable satellite signal reception in various environmental conditions.

Product Type: Other Accessories
Brand: Waveshare
Compatibility: GNSS positioning systems
Material: Ceramic
Key Feature: Omnidirectional radiation
Center Frequency: 1575.42MHz, 1561MHz, 1602.56MHz
Output Impedance: 50 ohms
Noise: ≤ 1.5 decibels
Plug Type: IPEX 16
Cable Length: 35mm
Ceramic Size: 25 x 25mm
Current Consumption: ≤ 10mA
Power Supply: DC 3.3-5V
Operating Temperature: -20 to 65 degrees Celsius
Input Power: 50W
Axial Ratio: 3dB
Radiation Direction: Omnidirectional
