Description

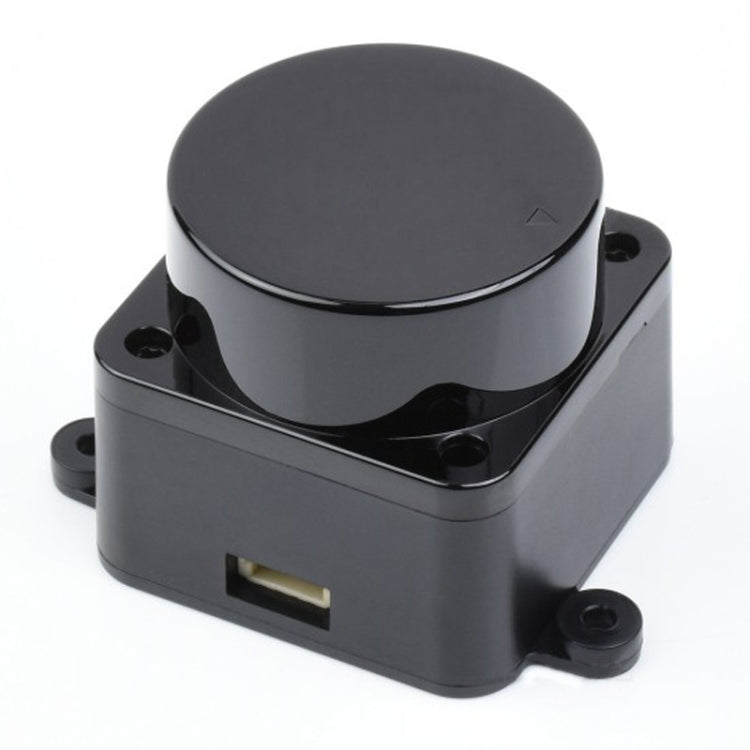

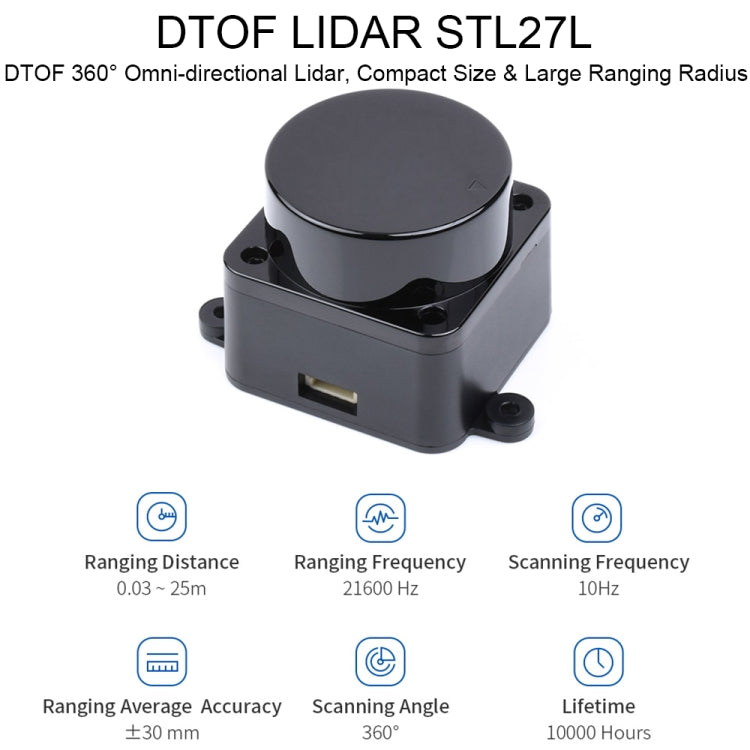

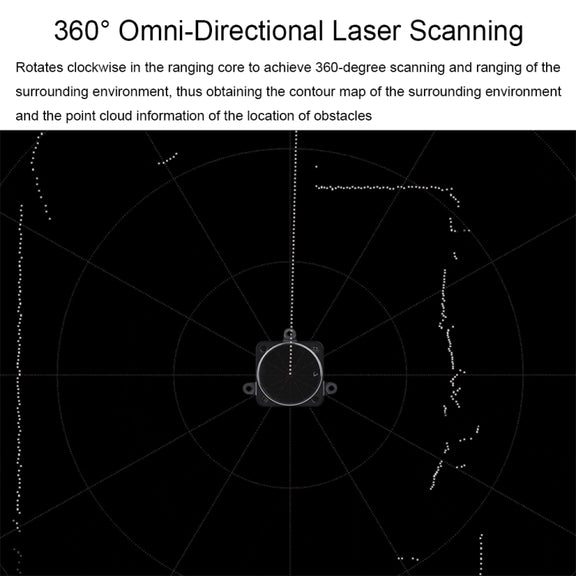

The Waveshare 24782 DTOF Laser Lidar Sensor STL27L is a 360-degree omni-directional lidar sensor designed for distance measurement. It is suitable for applications such as robotics, automation, and environmental monitoring.

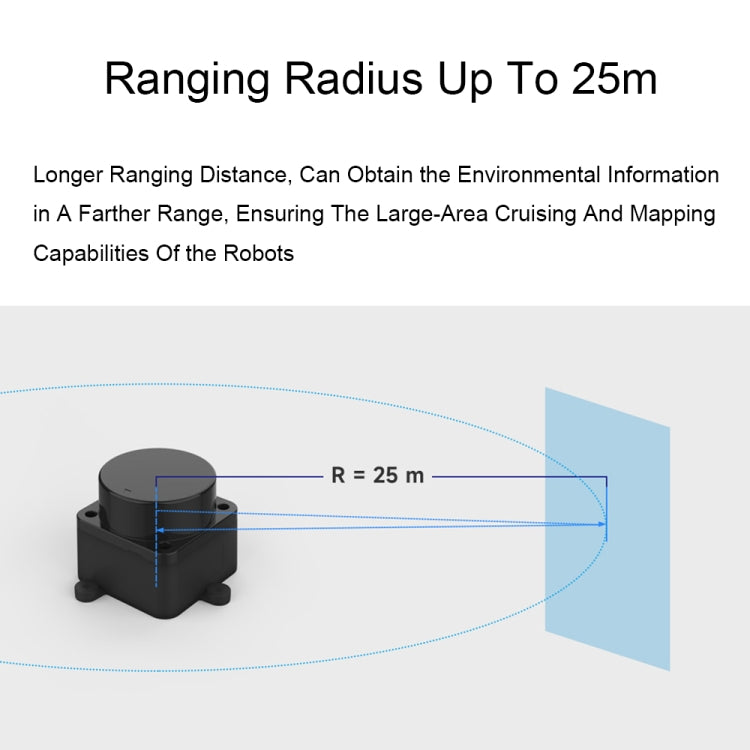

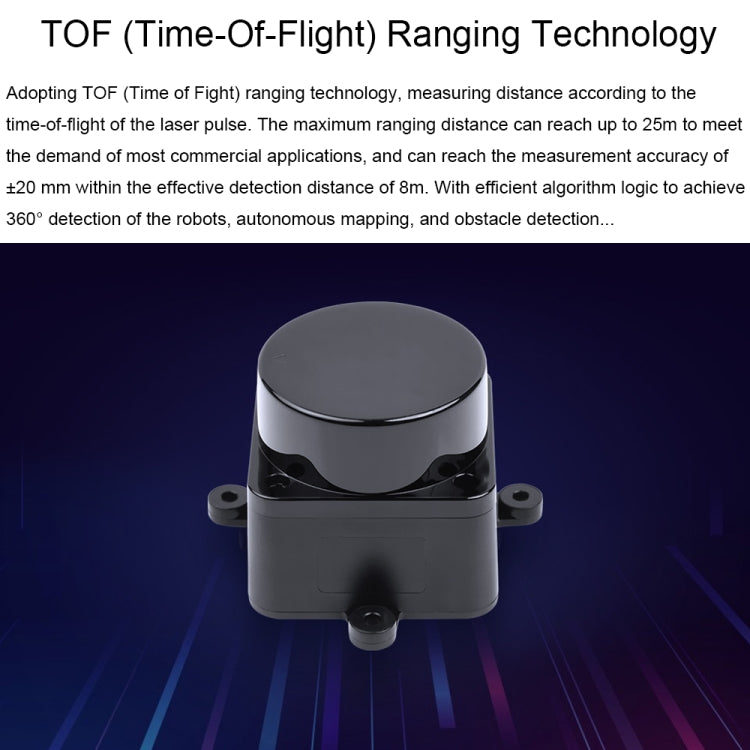

- Ranging distance: 0.03-25.00m (target surface reflectivity is 80.6%)
- Average error: 15mm (0.03-2m), 20mm (2-8m), 30mm (greater than 8m)
- Overall standard deviation: 5mm (0.03-2m), 15mm (2-8m), 25mm (greater than 8m)

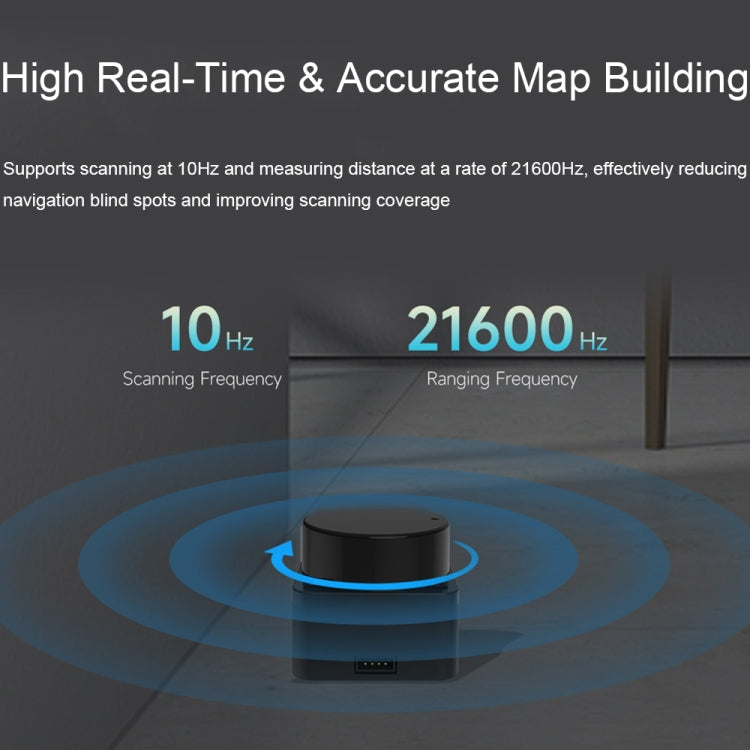

- Scanning frequency: 10Hz

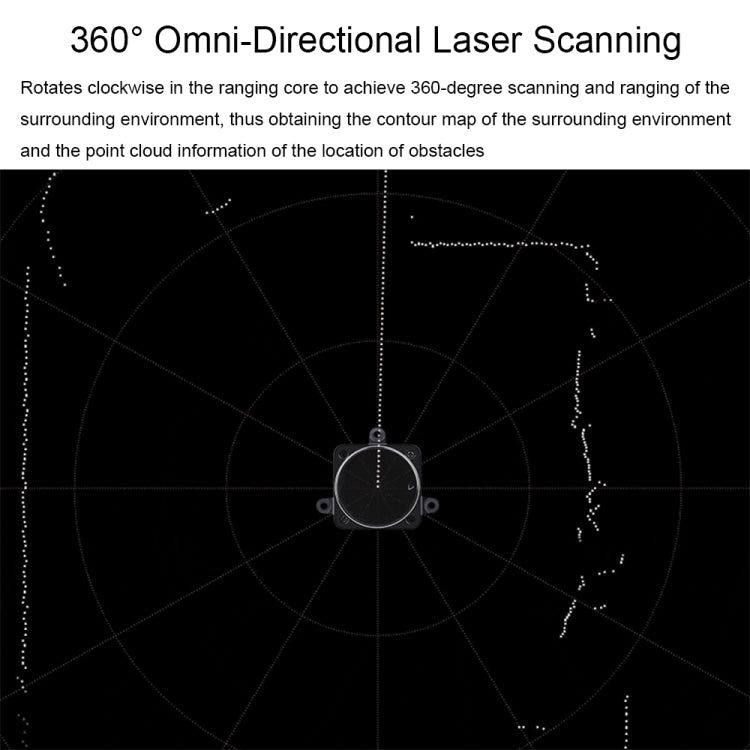

- Scanning angle: 360°
- Ranging frequency: 21600Hz
- Angular resolution: 0.167°
- Wavelength: 895-915 nm (typical 905 nm)
- Communication interface: UART@921600

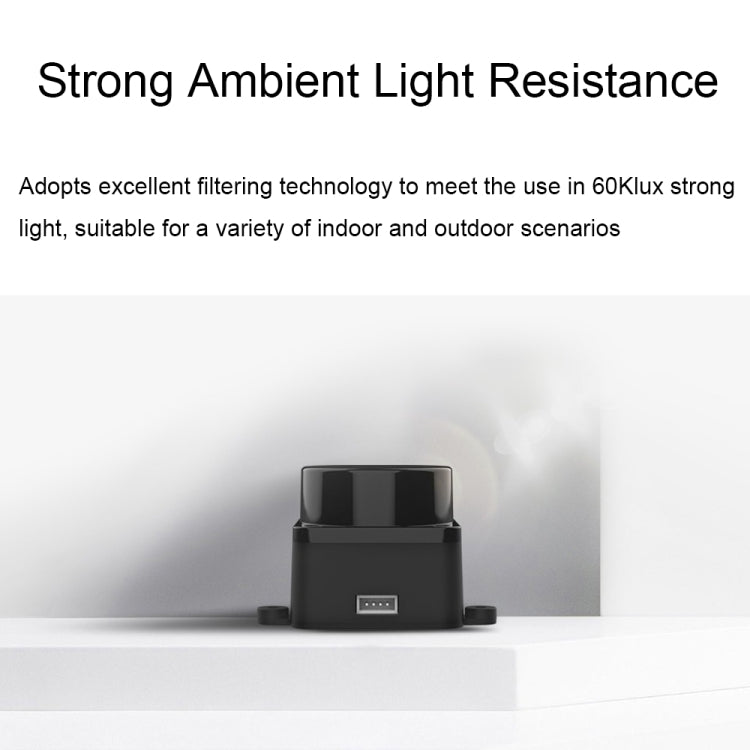

- Ambient light intensity: 60 KLux
- Power supply: 4.5-5V (typically 5V)
- Power consumption: 1.45W
- Working current: 290mA
- Working temperature: -10 to 50 degrees Celsius

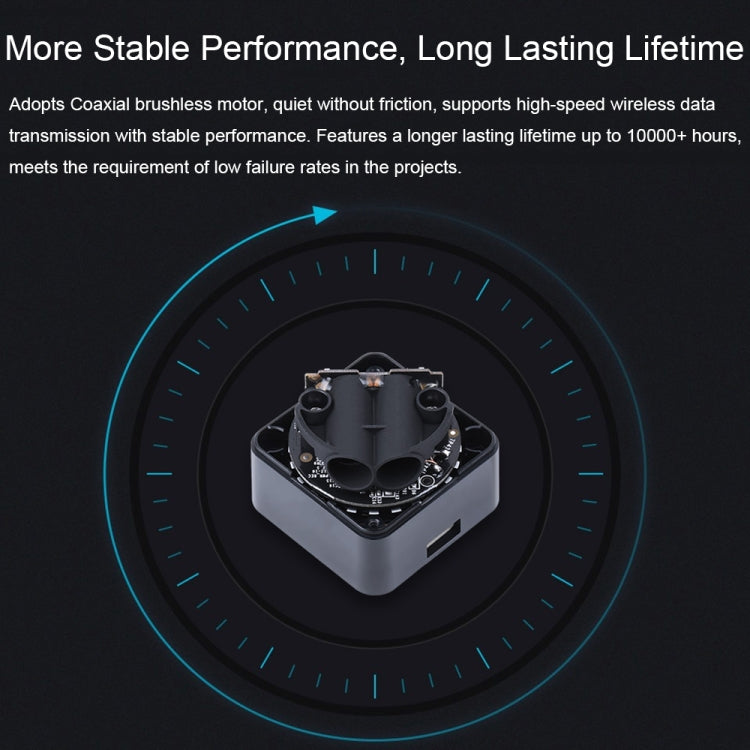

- Service life: 10,000 hours

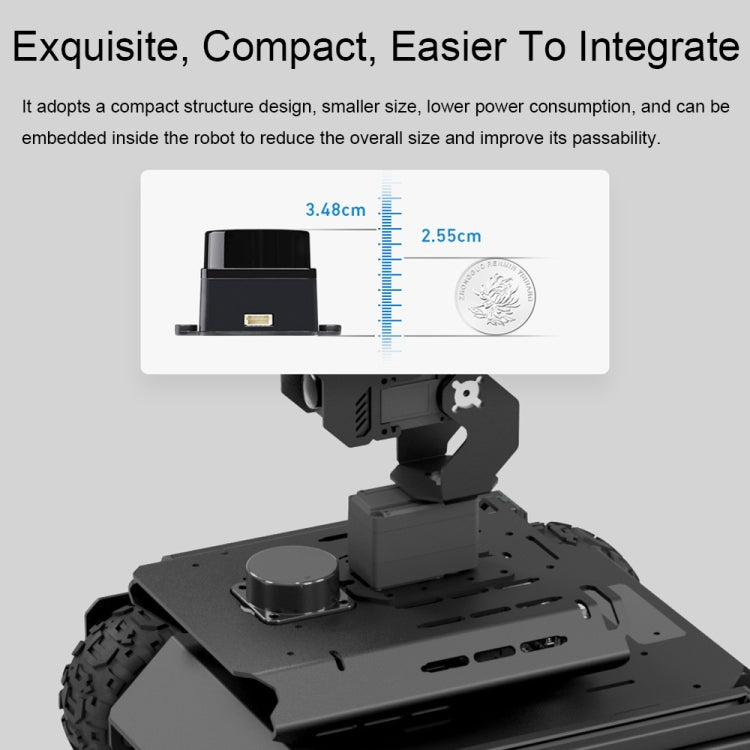

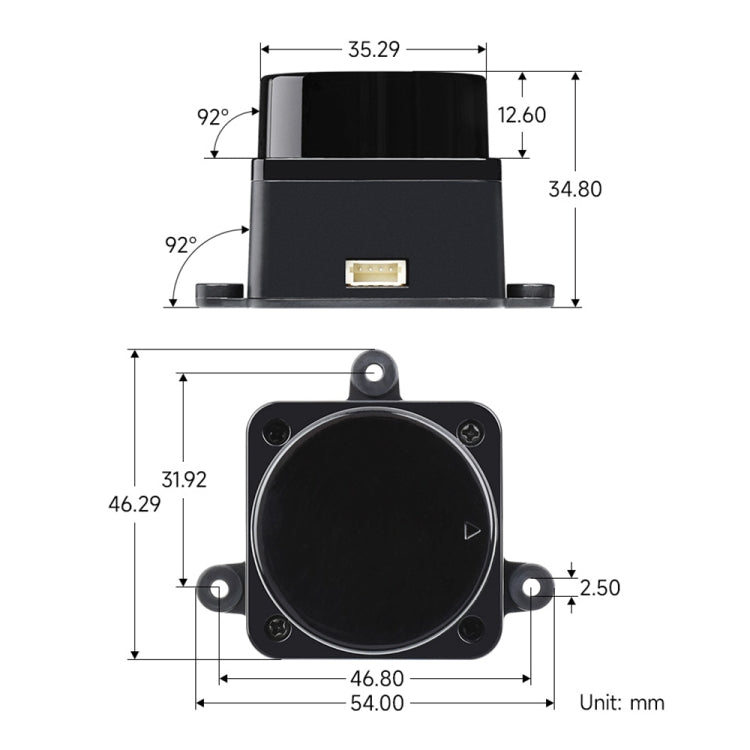

- Dimensions: 34.8 x 54 x 46.29 mm
- Product weight: 46.1 grams

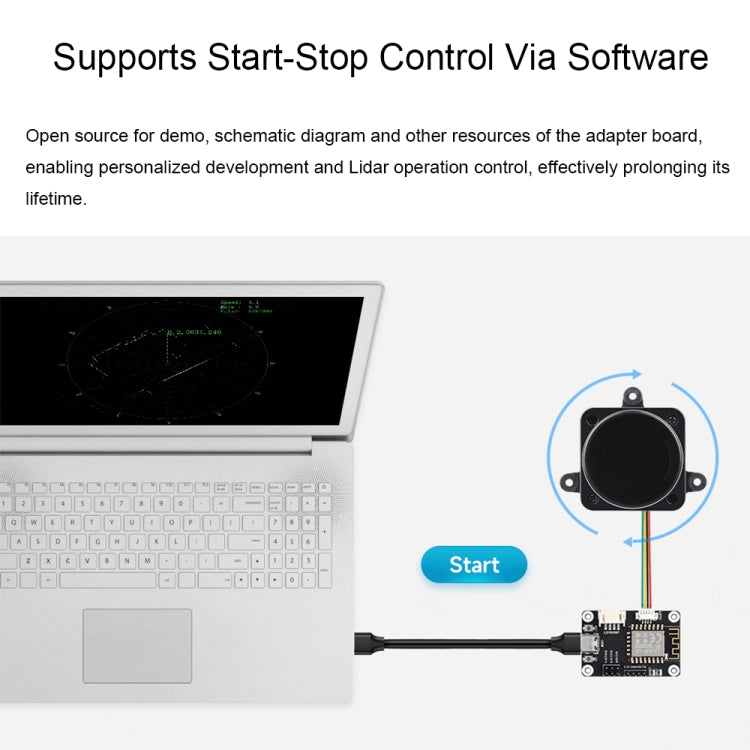

- Packing list: DTOF lidar STL27L x 1, LiDAR driver x 1 with ESP8266 adapter, 1m USB Type-A to Type-C cable x 1, 11cm PH2.0 to 1.27H cable x 1
