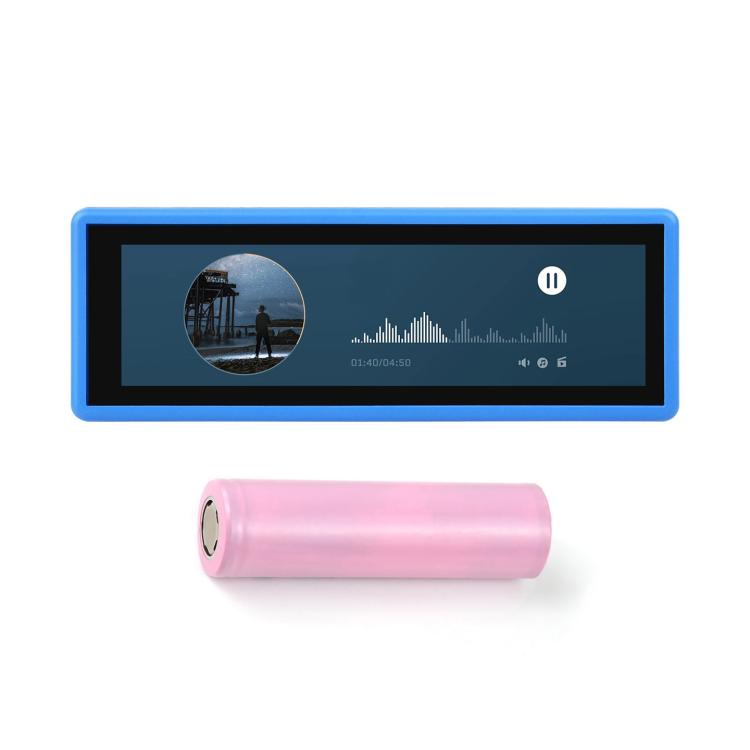

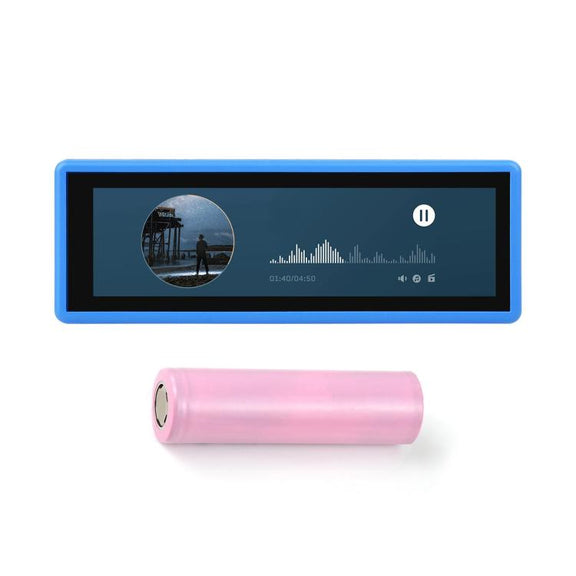

WAVESHARE 3.49 Nch Capacitive Touch Display RP2350 High Performance Development Board 172 X 640 Dual Core Dual Architecture, Spec: With Lithium Battery
WAVESHARE 3.49 Nch Capacitive Touch Display RP2350 High Performance Development Board 172 X 640 Dual Core Dual Architecture, Spec: With Lithium Battery
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

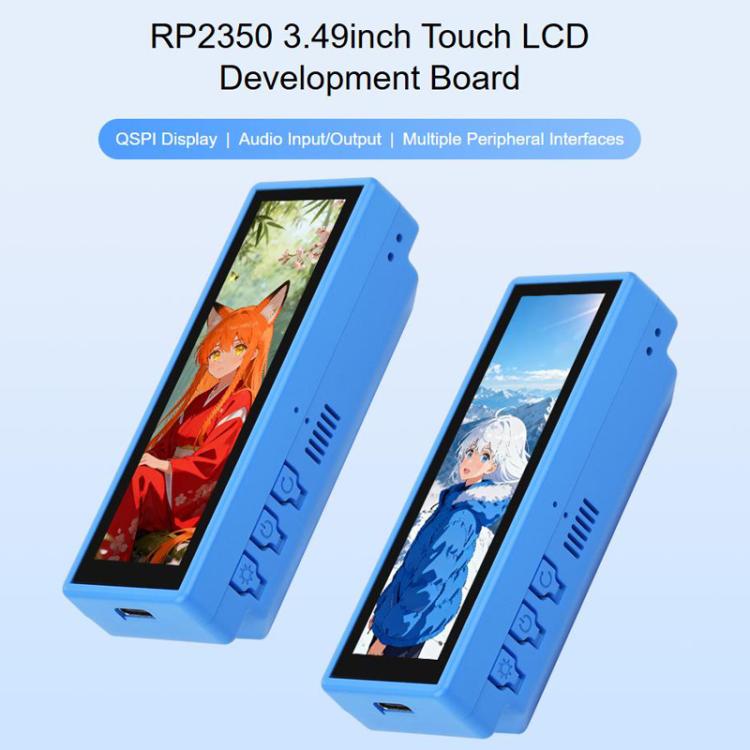

The WAVESHARE 3.49 Nch Capacitive Touch Display RP2350 is a development board designed for Arduino Nucleo accessories. It is suitable for development use, allowing users to create and test applications with a high-performance display.
- Product Type: Arduino Nucleo Accessories
- Compatibility: RP2350
- Material: LCD

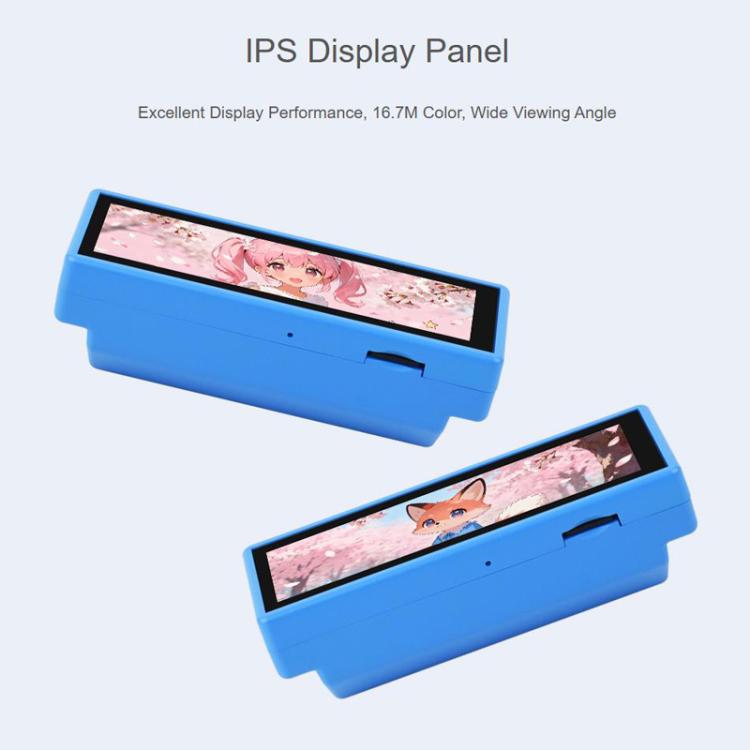

- Display Panel: LCD
- Display Resolution: 172 x 640
- Display Brightness: 350 cd/m²
- Communication Interface: QSPI
- Touch Interface: I2C
- Display Size: 3.49 inches
- Display Color: 16.7M
- Contrast Ratio: 1200:1
- Driver Chip: AXS15231B

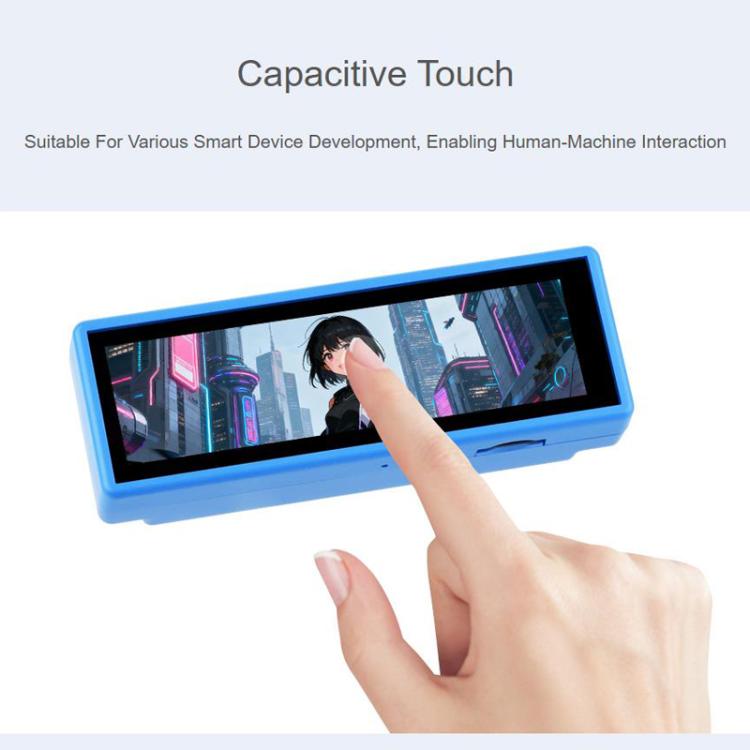

- Touch Type: Capacitive Sensing

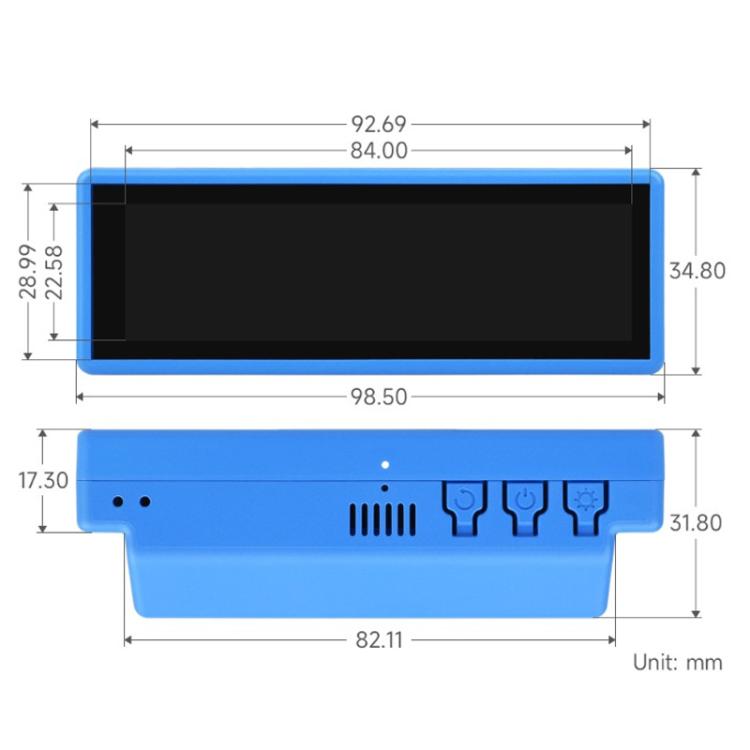

- Dimensions: Approximately 9.85 x 3.48 x 3.18 cm

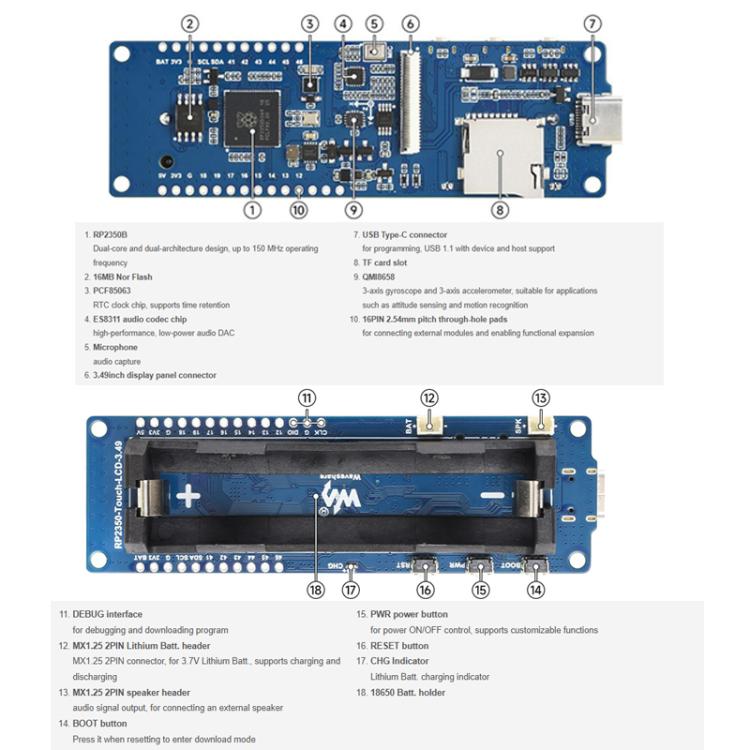

- Microcontroller: RP2350B with dual-core ARM Cortex-M33 and RISC-V processors
- Clock Frequency: Up to 150 MHz
- Built-in Memory: 520 KB SRAM, 16 MB on-chip Flash
- Interface: Type-C for charging and discharging
- USB Support: USB 1.1 host and slave device
- Power Management: Low-power sleep and hibernation mode
- Mass Storage: Recognized as mass storage via USB for program download

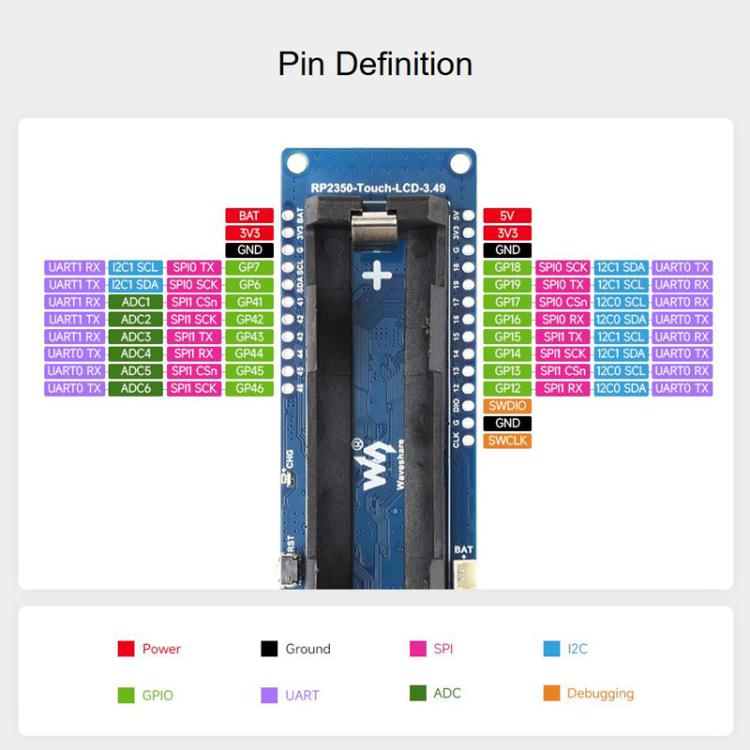

- GPIO Pins: 16 multi-functional GPIO pins
- Communication Protocols: 1 HSTX, 2 SPI, 2 I2C, 2 UART, 6 12-bit ADCs, 16 controllable PWM channels
- Additional Features: Precision on-chip clocks and timers, temperature sensors, on-chip accelerated floating point library, 12 programmable I/O state machines for custom peripheral support
