Description

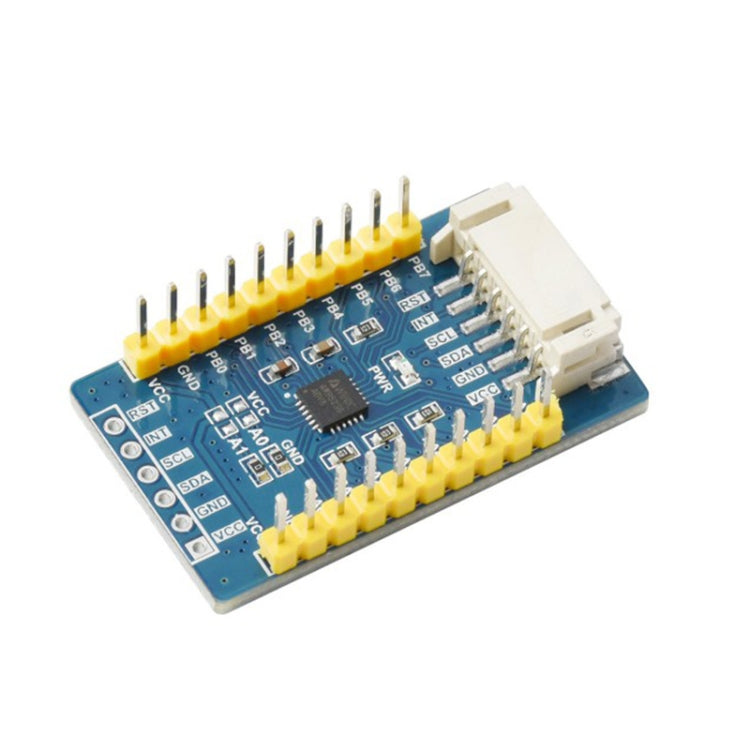

The Waveshare AW9523B IO Expansion Board is an I2C interface that expands 16 I/O pins. It is suitable for applications requiring additional I/O capabilities, such as connecting multiple sensors or controlling LED lighting.
- Interface: I2C
- Expansion I/O Pins: 16
- Working Voltage: 2.4-5.5V
- Working Temperature: -40 to 85 degrees Celsius
- Low Standby Current: Less than 0.1µA
- Control Interface: I2C

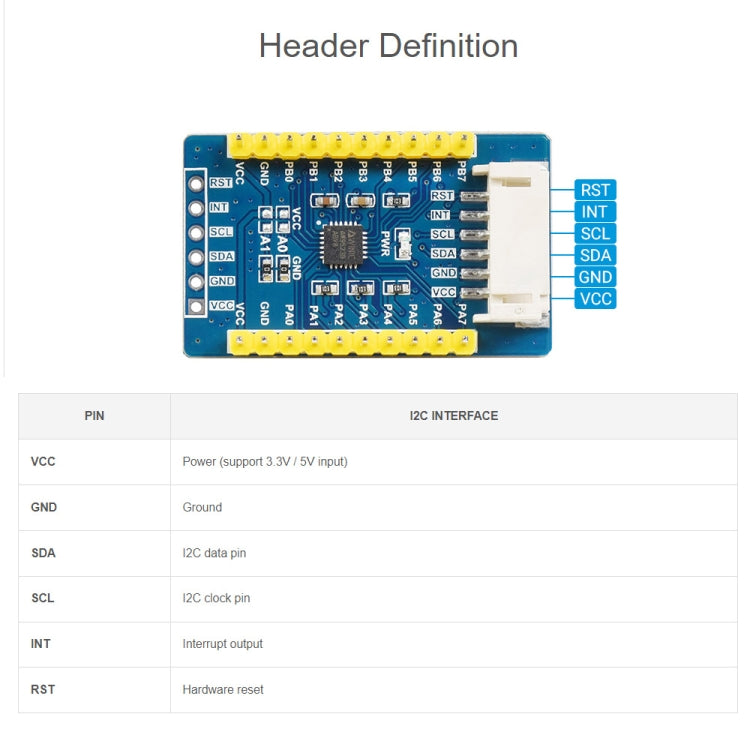

- Connector Options: PH2.0 header and solder pads
- Onboard Voltage Translator: Compatible with 3.3V/5V levels

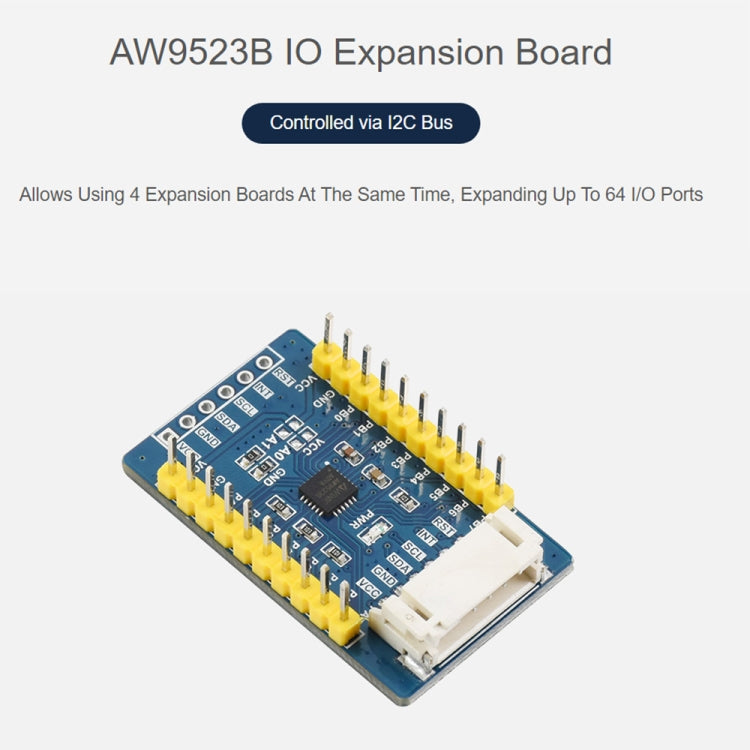

- Address Configuration: Configurable via A0/A1 jumpers
- LED Driver: Supports 16-channel common anode constant current LED with 256-step linear dimming
- Output Interrupt: Generates INT signal on input port state change

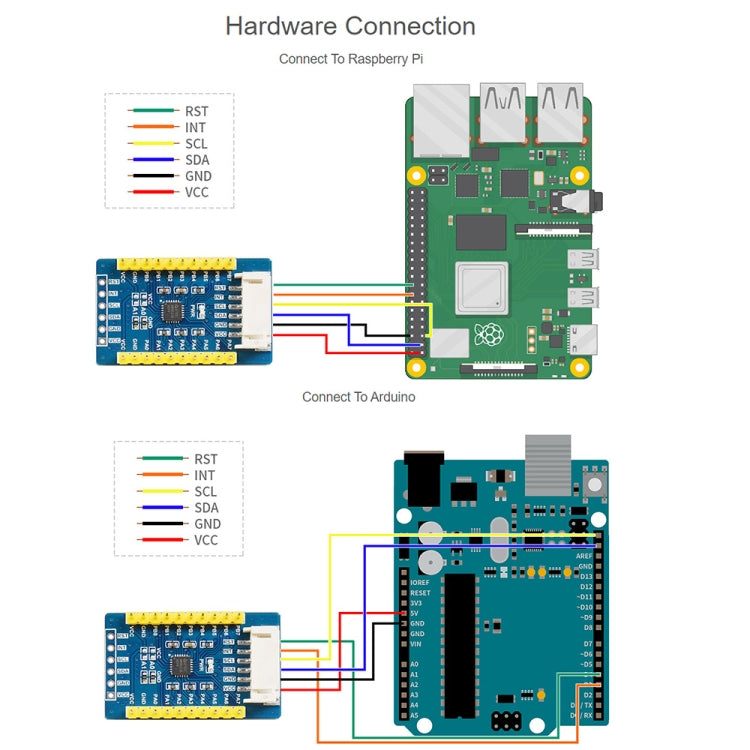

- Development Resources: Includes manual and examples for Raspberry Pi, micro:bit, Arduino, and STM32

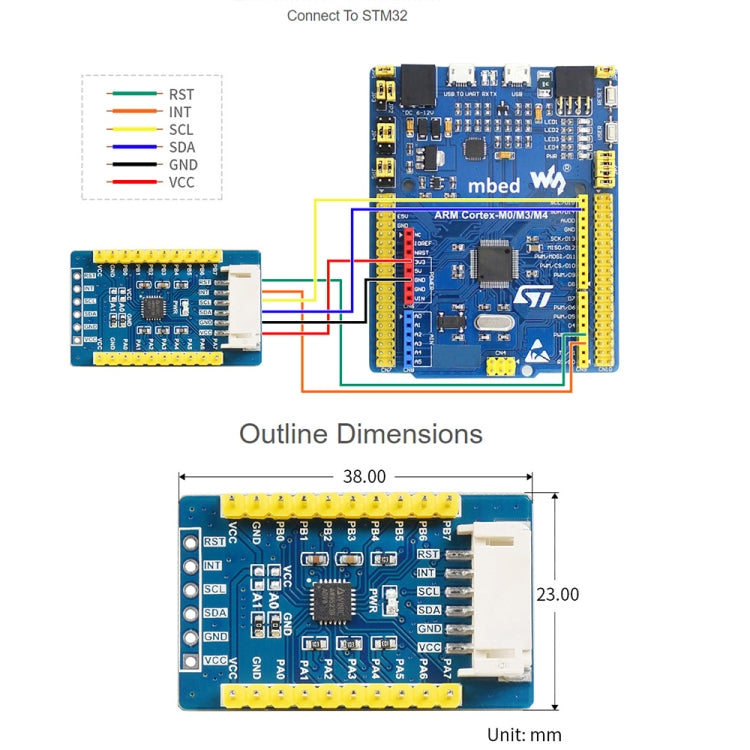

- Size: 38 x 23 mm
- Package Contents: AW9523B IO Expansion Board x 1, PH2.0 6PIN wire x 1
