Product details
Description

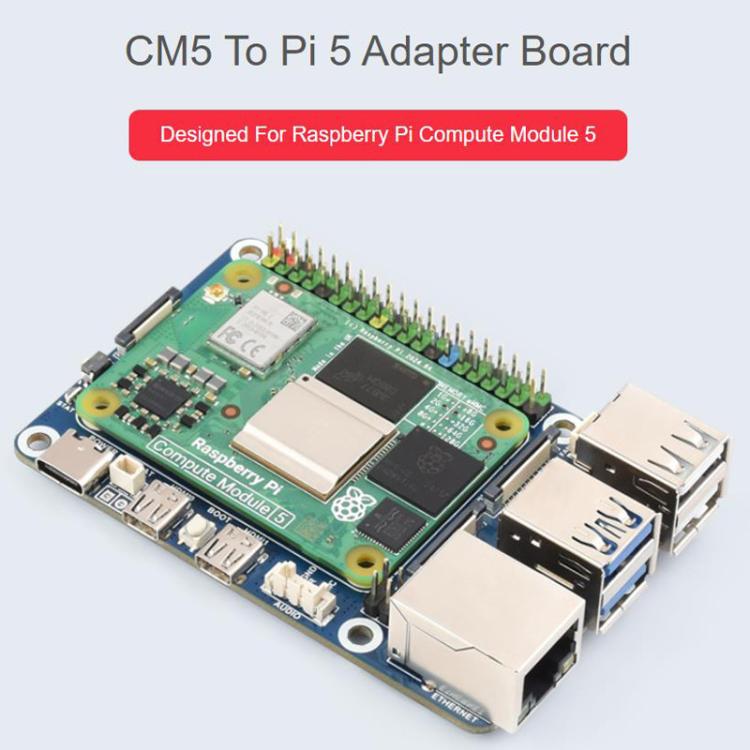

The WAVESHARE CM5-To-Pi5-Adapter is an accessory designed for the Raspberry Pi 5. It supports connecting a microphone, enabling audio input for various applications.

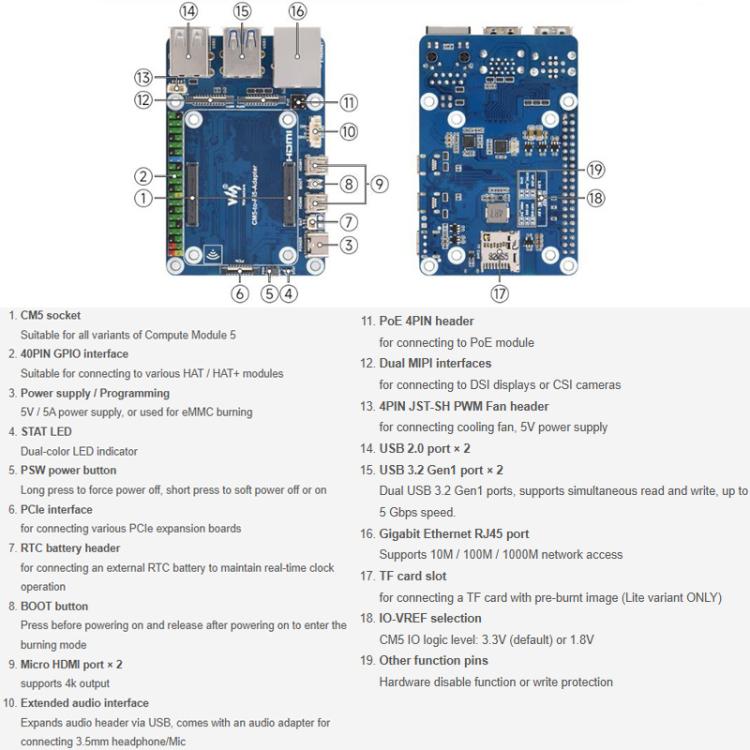

- Product Type: Raspberry Pi Accessory
- Compatibility: Raspberry Pi 5
- Material: Not specified
- Color/Variant: Not specified
- CM5 Card Slot: Compatible with all versions of Compute Module 5
- Networking: Gigabit Ethernet RJ45 port
- Connectors: 16-pin PCIe (PCIe Gen2/3 x 1), Raspberry Pi 40-pin GPIO interface
- USB Ports: USB 3.2 Gen1 x 2, USB 2.0 x 2
- MIPI: 4-lane MIPI interface x 2 (22-pin 0.5mm FFC connector)
- Video: HDMI interface x 2, supporting dual 4K output
- Audio: Compatible with standard 3.5mm headphone jacks for audio input/output via accessory module
- Storage: Onboard Micro SD card slot (for CM5 versions without eMMC)
- Fan Interface: 5V, 4-pin JST-SH PWM fan connector
- Power Input: DC 5V 5A

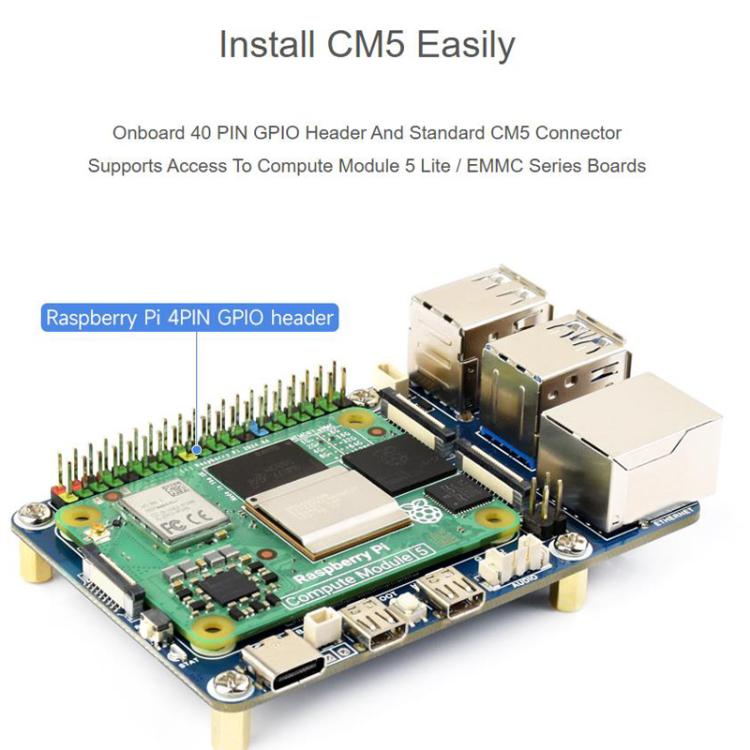

- Onboard Interfaces: 40-pin GPIO interface and standard CM5 connector, supporting Compute Module 5 Lite / eMMC series core boards

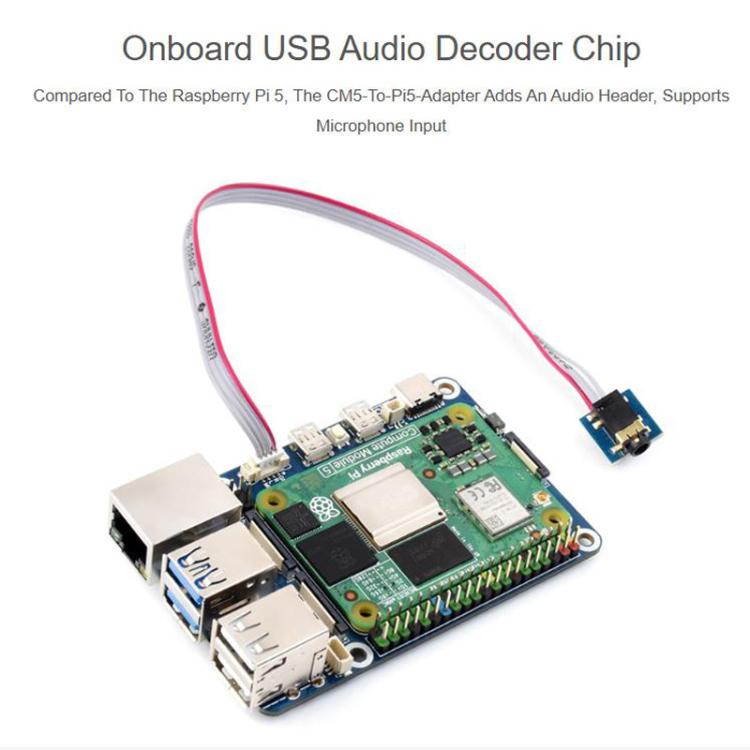

- Onboard USB audio decoder chip, supports microphone connection

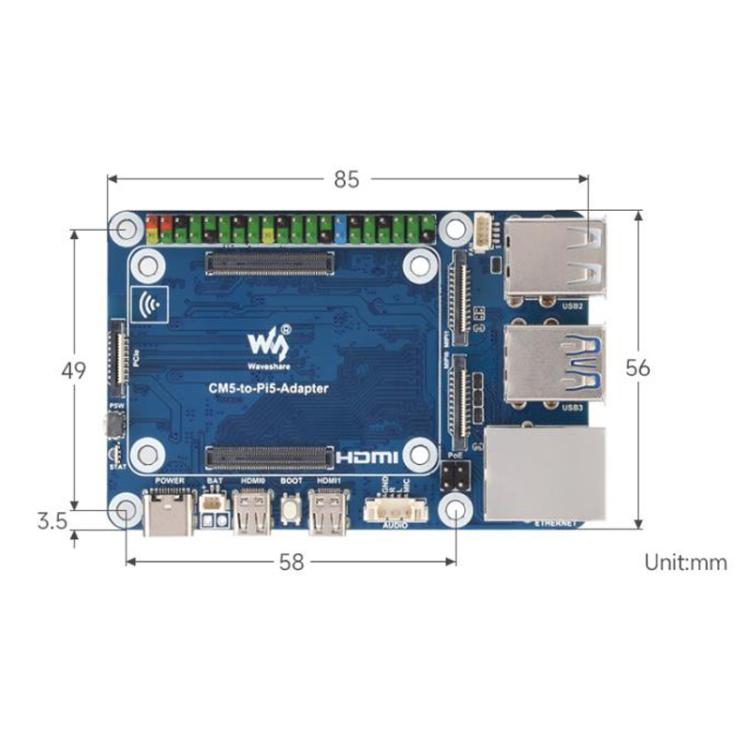

- Size: Approximately 8.5 x 5.6 cm
- Included Items: CM5-to-Pi5-Adapter x 1, Audio-Adapter x 1, MX1.25 4-pin dual-ended cable (approx. 200mm) x 1, Screw set x 1
