Description

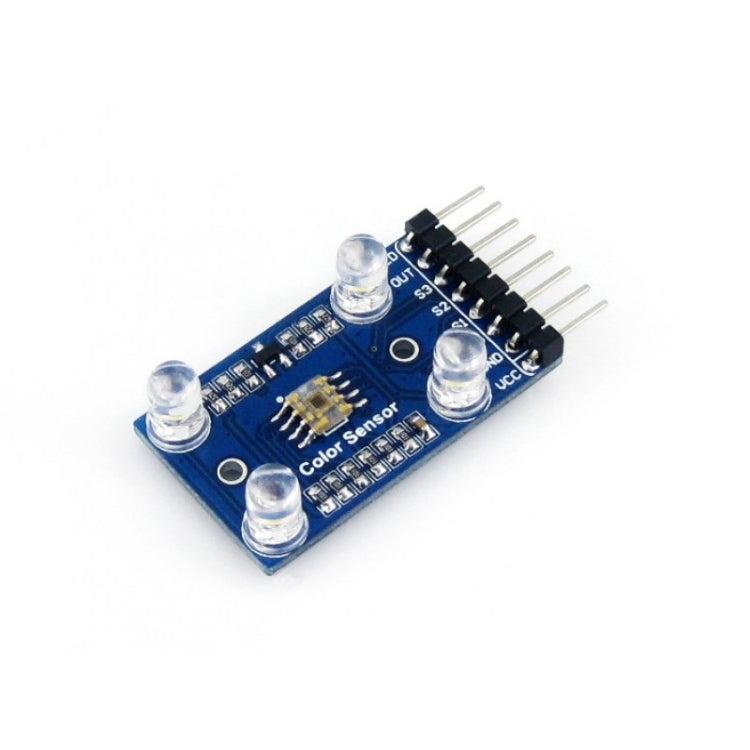

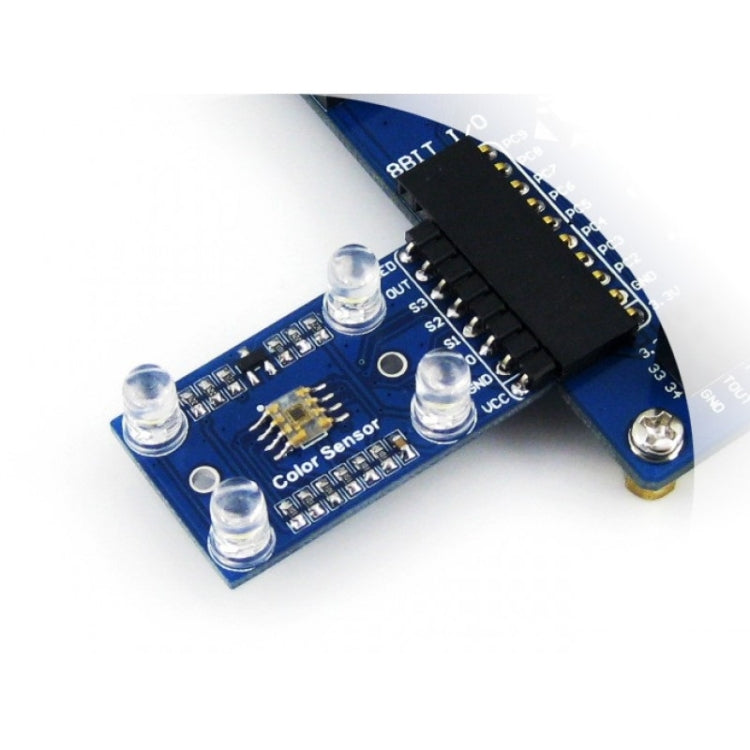

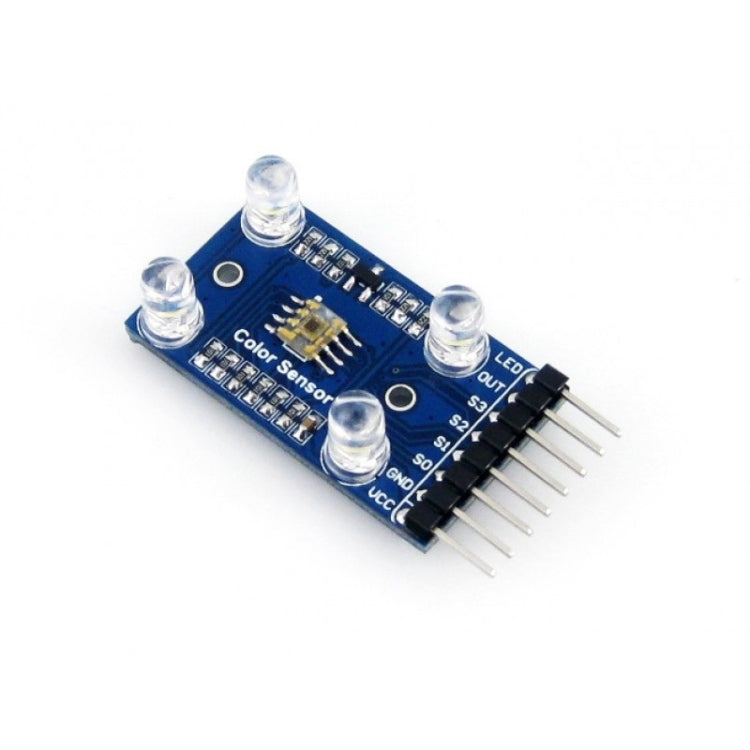

The Waveshare Color Sensor 9520 Board Module is an RGB color detection module. It is suitable for applications such as sorting by color and ambient light sensing.
- Product Type: Modules Expansions Accessories
- Sensor Chip: TCS3200 (RGB color detector)
- Power Supply: 2.7V ~ 5.5V
- Ideal Detection Distance: 10mm
- Dimensions: 36.0mm x 20.6mm
- Mounting Hole Size: 2.0mm
- Key Feature: RGB color detection
- Compatibility: TCS3200
- Applications: Sorting by color, ambient light sensing and calibration, test strip reading, color matching

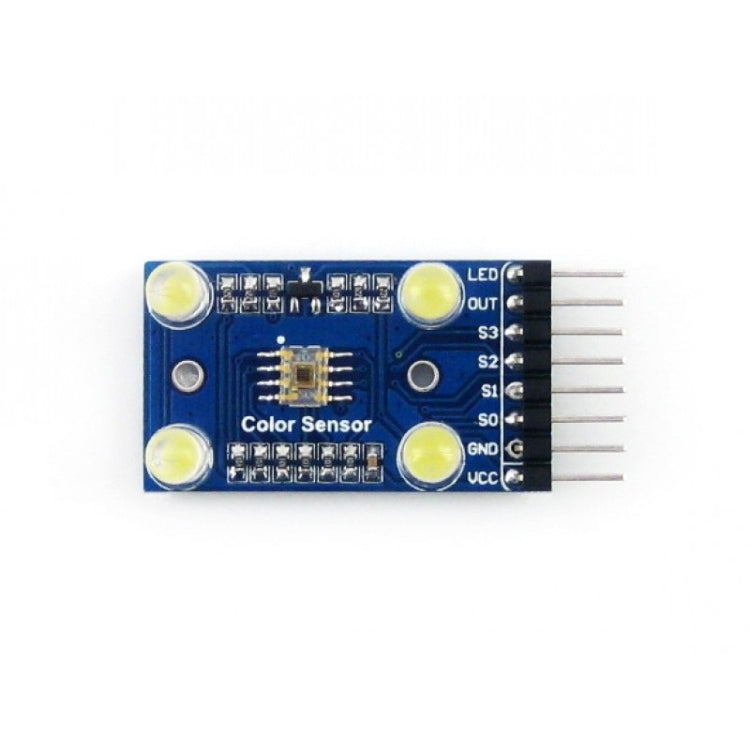

- Usage Instructions: VCC: 2.7V ~ 5.5V; GND: Power supply ground; LED: MCU.IO (controlling the 4 white LEDs); OUT: MCU.IO (RGB color output frequency); S0/S1: MCU.IO (Output frequency scaling selection inputs); S2/S3: MCU.IO (Photodiode type selection inputs)
- Note: Avoid environmental light noise; white balance is required when first using the module, resetting the module, or changing the light source
