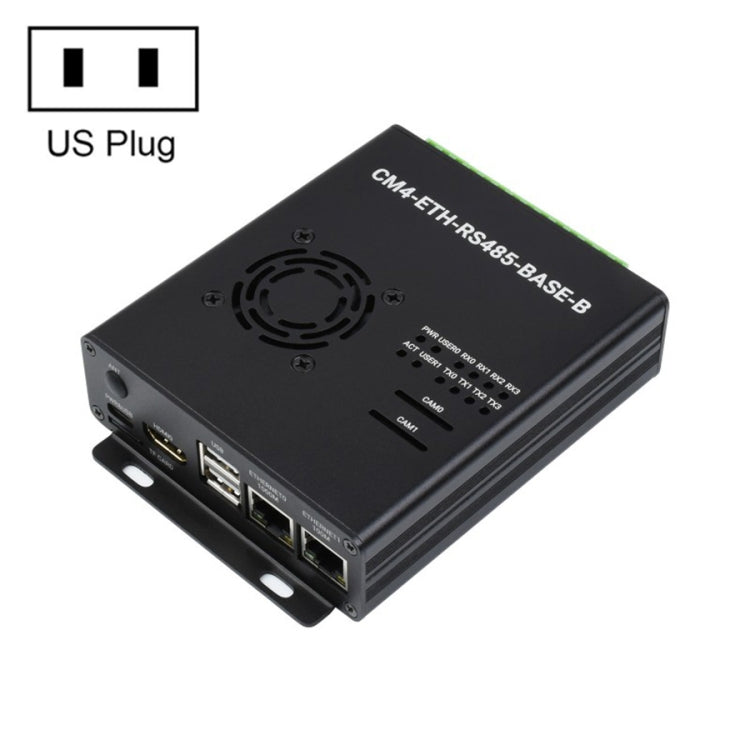

Waveshare Dual ETH Mini-Computer for Raspberry Pi CM4, Gigabit Ethernet, 4CH Isolated RS485(US Plug)
Waveshare Dual ETH Mini-Computer for Raspberry Pi CM4, Gigabit Ethernet, 4CH Isolated RS485(US Plug)
Sale
Sold out
Pre-order
Regular price
R 1,659.00
Regular price
Sale price
R 1,659.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description

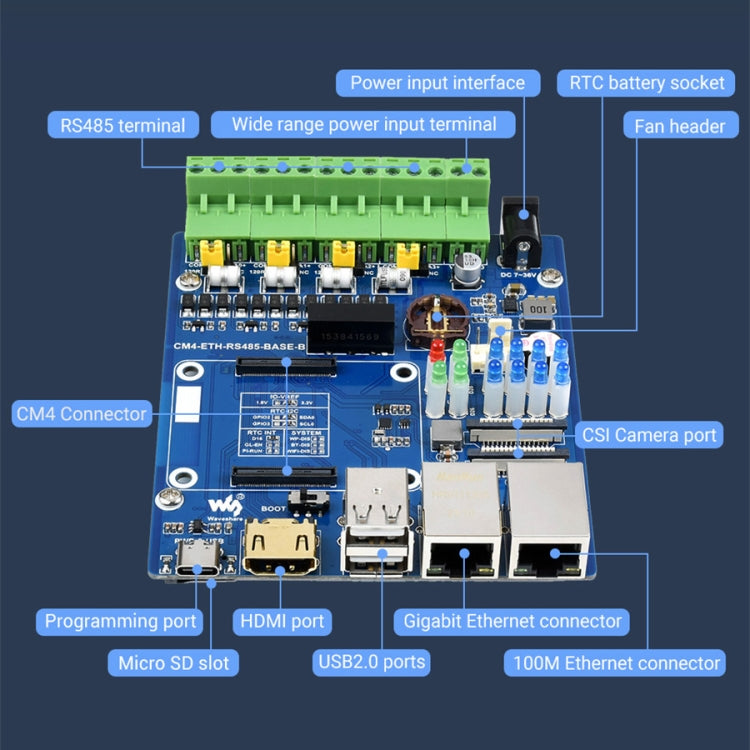

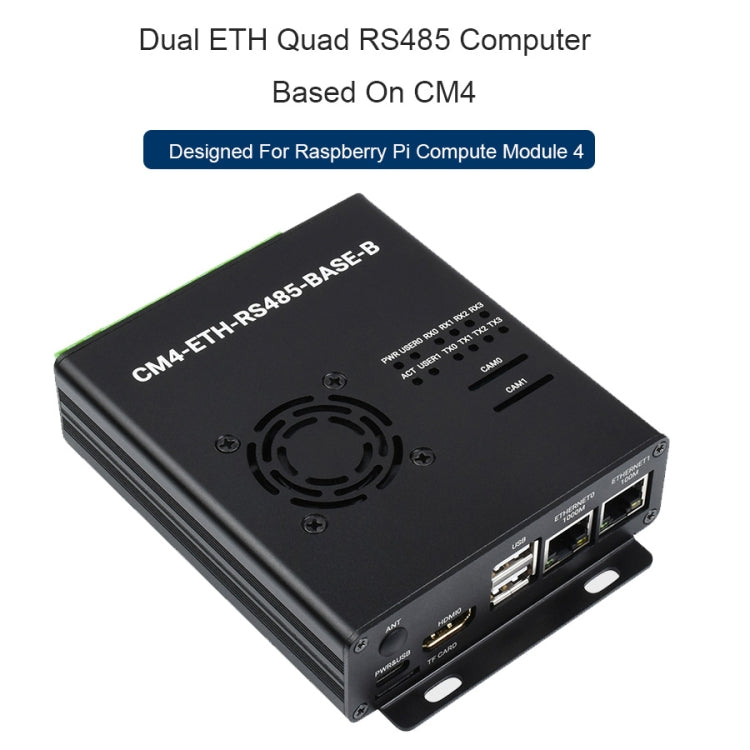

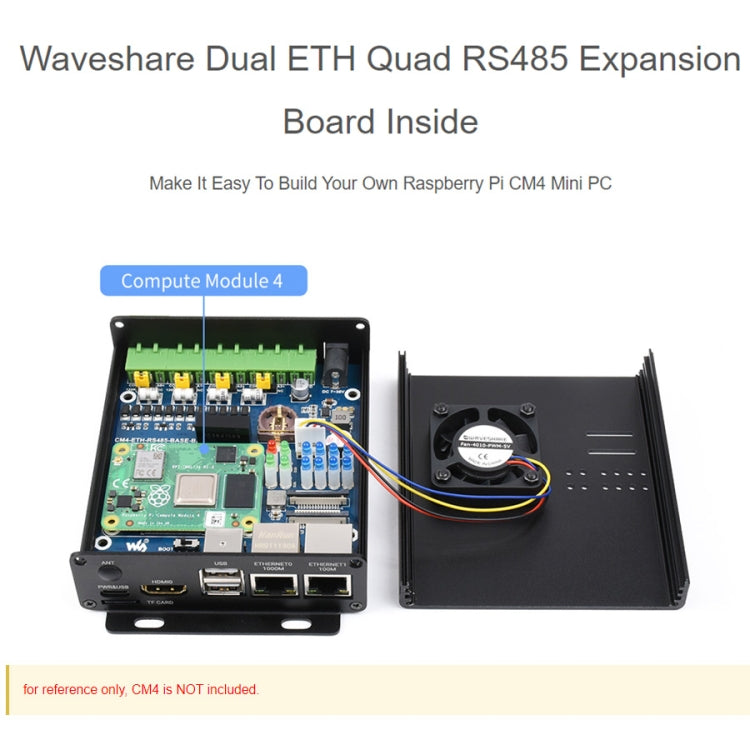

The Waveshare Dual ETH Mini-Computer is a mini PC accessory designed for the Raspberry Pi CM4. It provides Gigabit Ethernet and RS485 support, making it suitable for various everyday applications.
- Product Type: Mini PC Accessory
- Compatibility: Raspberry Pi CM4
- Material: Metal
- Network: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
- USB Ports: 2 x USB 2.0 Type A
- Connectors: 4 x Isolated RS485, 15 x Power screw terminal
- Camera Interface: 2 x MIPI CSI-2 port (15pin 1.0mm FPC connector)
- Video Output: 1 x HDMI interface, supports 4K at 30fps
- RTC: Real Time Clock with battery socket and wake capability for Compute Module 4
- Storage: MicroSD card slot for Compute Module 4 Lite (no eMMC)
- Fan: Adjustable speed, 5V
- Indicators: 1 x Power indicator, 1 x CM4 status indicator, 2 x User LEDs, 1 x RS485 communication indicator
- Power Input: 7-36V
- Dimensions: 123 x 98 x 32 mm

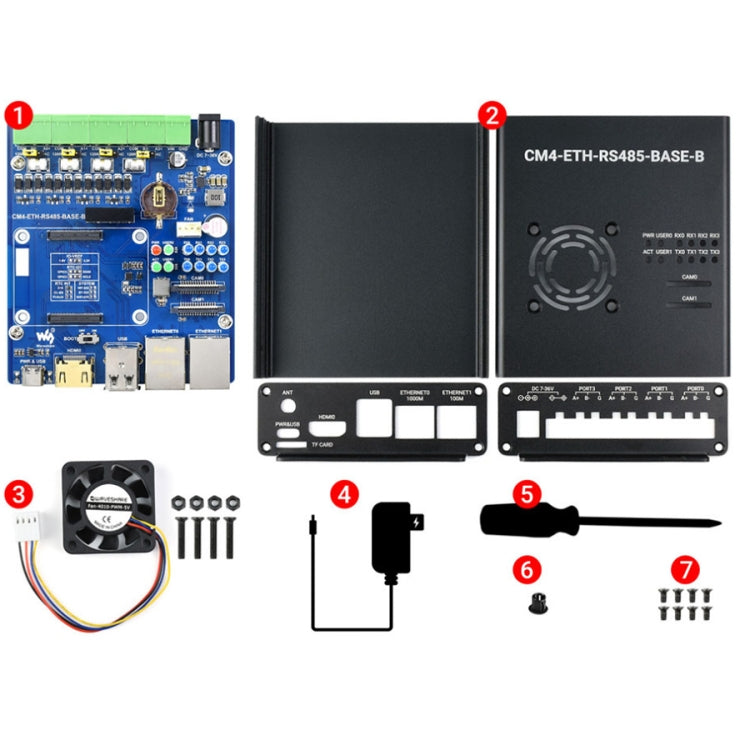

- Package List: 1 x CM4-ETH-RS485-BASE-B, 1 x Metal case (top and bottom), 1 x Fan, 1 x 12V 2A Power Supply, 1 x Screwdriver, 1 x Antenna connector rubber plug, 1 x Screws pack
PMC TechLife is an independent retailer. Any third-party trademarks or brand names mentioned are the property of their respective owners and are used strictly to indicate product compatibility.
Questions about features, compatibility, or warranty? Chat with our local support team!
