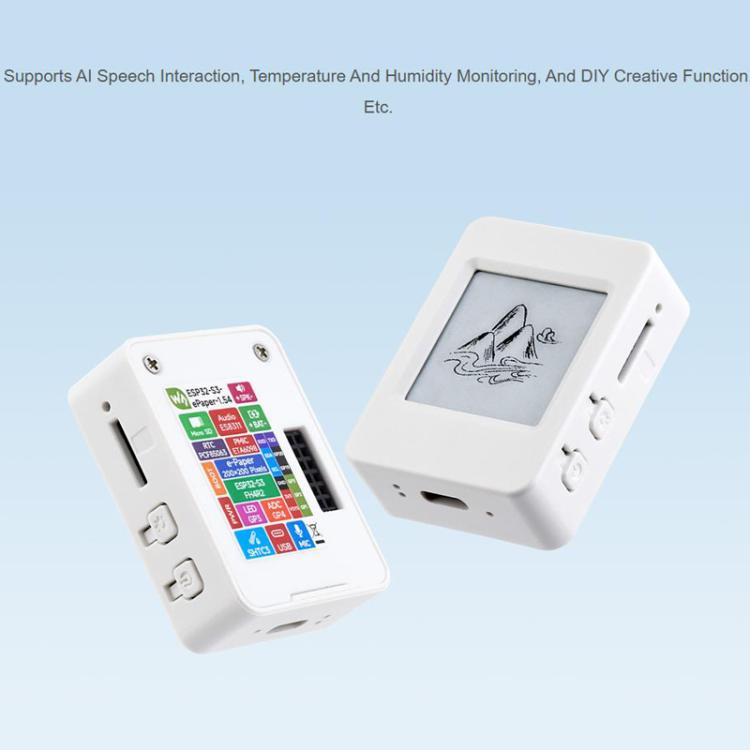

WAVESHARE ESP32-S3 1.54 Inch Ink Screen E-Paper AIoT Development Board, Spec: With Li-ion Battery

The WAVESHARE ESP32-S3 1.54 Inch Ink Screen E-Paper AIoT Development Board is designed for development projects. It is suitable for applications requiring a compact display with low power consumption, such as IoT devices.

• Product Type: Development Board
• Display Panel: 1.54-inch e-ink screen
• Display Resolution: 200 x 200 pixels
• Display Color: Black and White
• Viewing Angle: More than 170 degrees
• Gray Level: 2
• Global Refresh Rate: 2 seconds
• Local Refresh Rate: 0.3 seconds

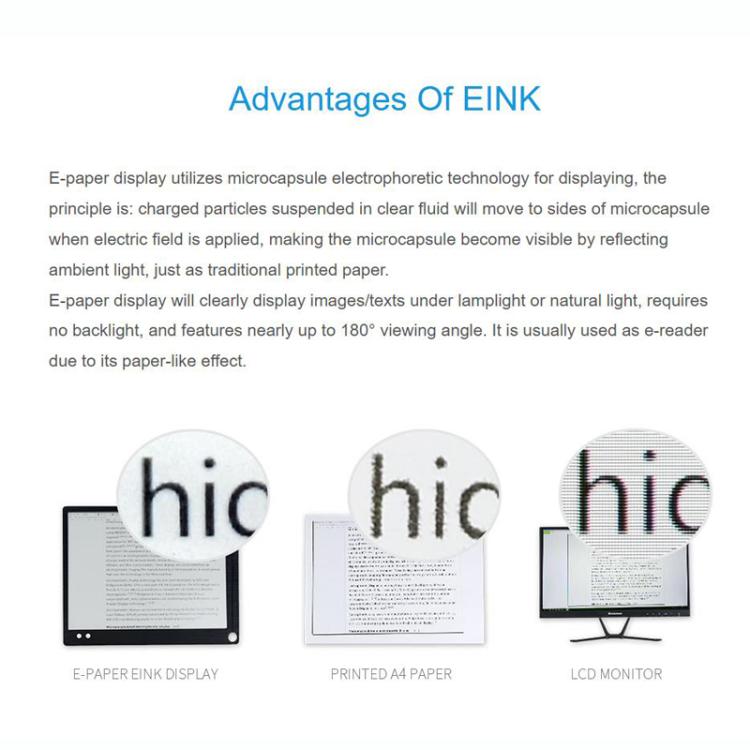

• Display Mode: Reflective

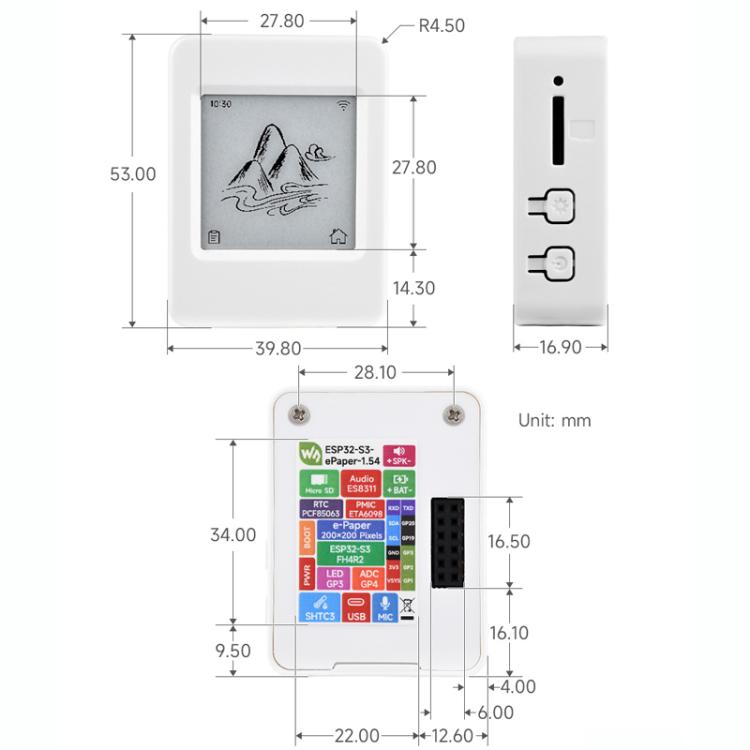

• Size: Approximately 5.3 x 3.98 x 1.69 cm

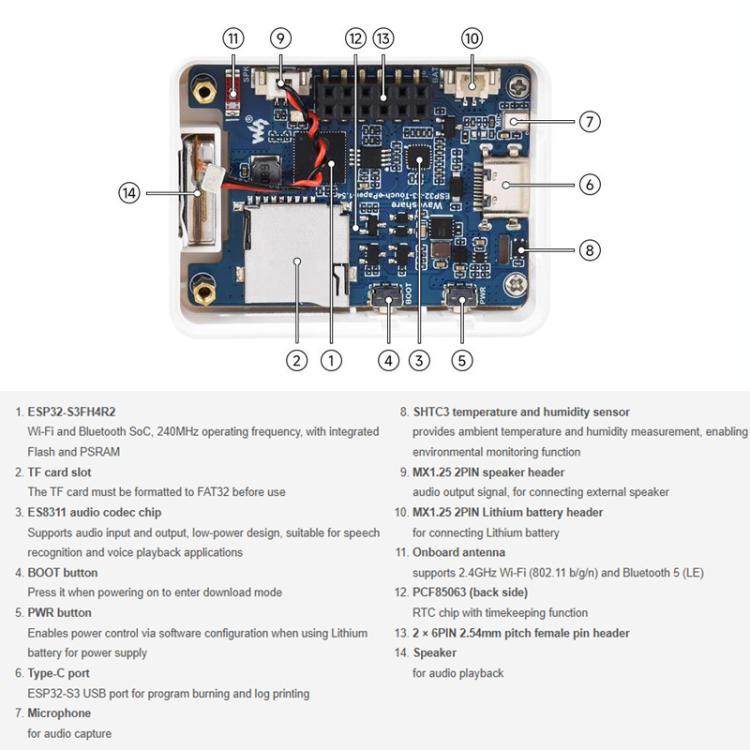

• Processor: Xtensa 32-bit LX7 dual-core processor up to 240MHz
• Wireless Communication: 2.4GHz Wi-Fi and Bluetooth 5 (LE) support
• Memory: 512KB SRAM, 384KB ROM, integrated Flash and PSRAM

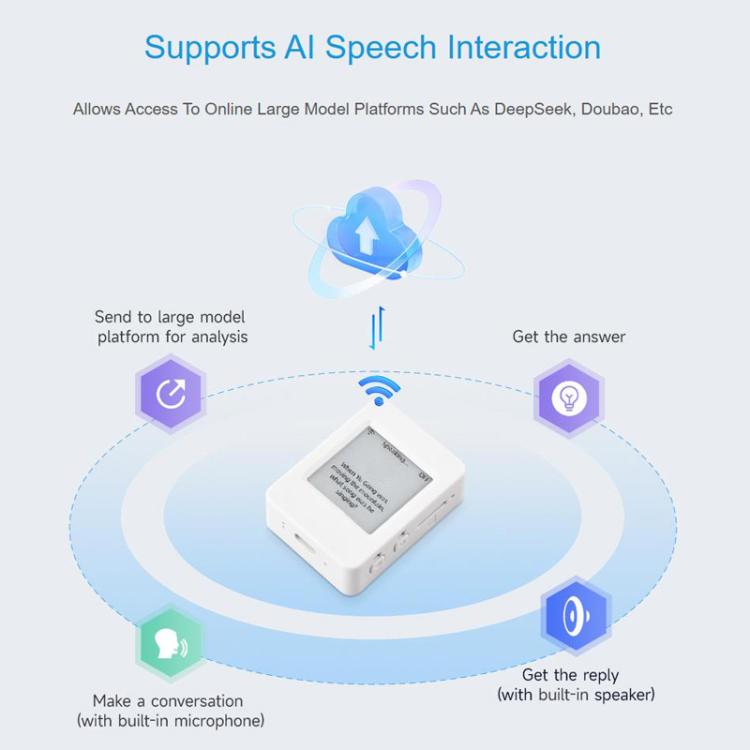

• Audio: Onboard audio codec chip for voice capture and playback
• RTC: Onboard PCF85063 real-time clock
• Temperature and Humidity Sensor: SHTC3 sensor for monitoring
• Storage: Micro SD card slot for external storage
• Buttons: Two customizable function side buttons
• Expansion: 2 x 6 2.54mm spacing female connectors for external expansion

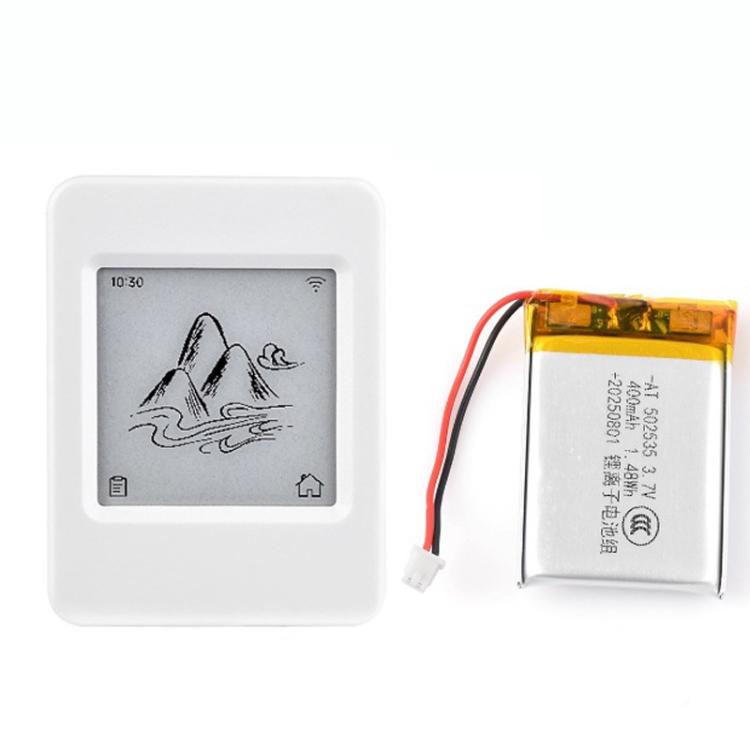

• Package Includes: Development board, Li-ion battery
