Product details
Description

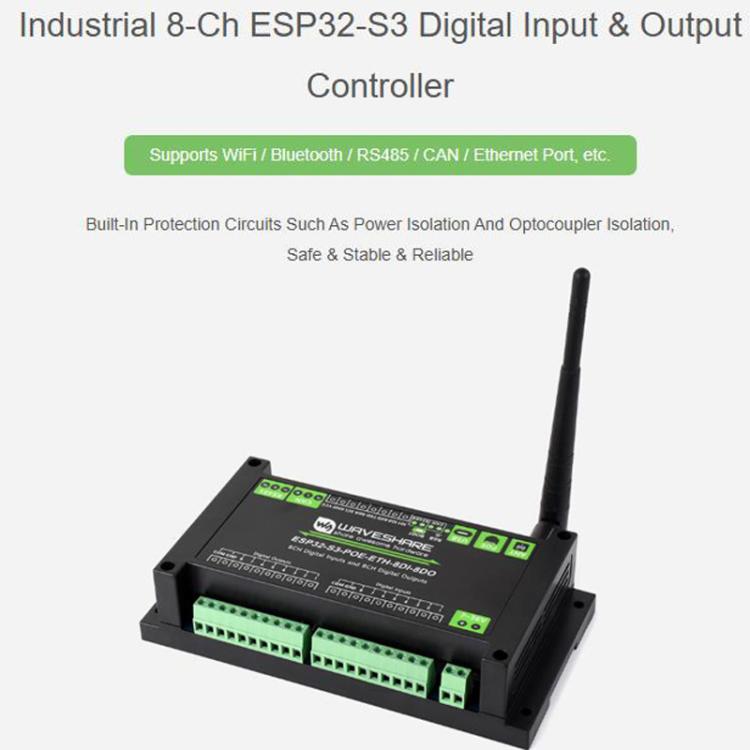

The Waveshare ESP32-S3-POE-ETH-8DI-8DO Control Board is a mini PC accessory designed for digital input and output control. It is suitable for various industrial applications requiring reliable communication and control.
- Product Type: Mini PC Accessories
- Compatibility: ESP32-S3
- Material: Durable construction
- Processor: Integrated Xtensa 32-bit LX7 dual-core processor
- Clock Speed: Maximum 240MHz
- Wireless Communication: Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE)

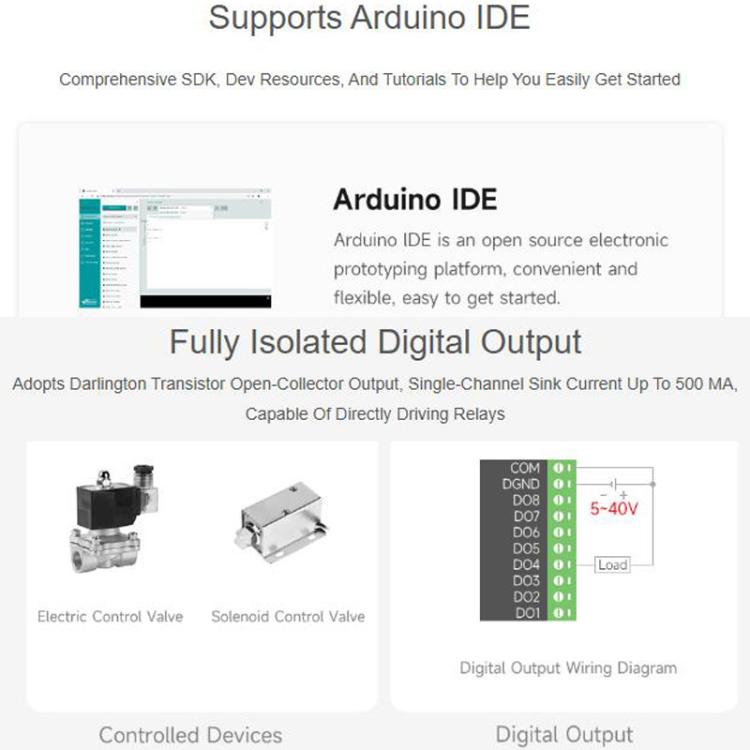

- Output: Darlington transistors with optocoupler isolation
- Sink Current: Up to 500mA
- Protection: Built-in freewheeling diode protection

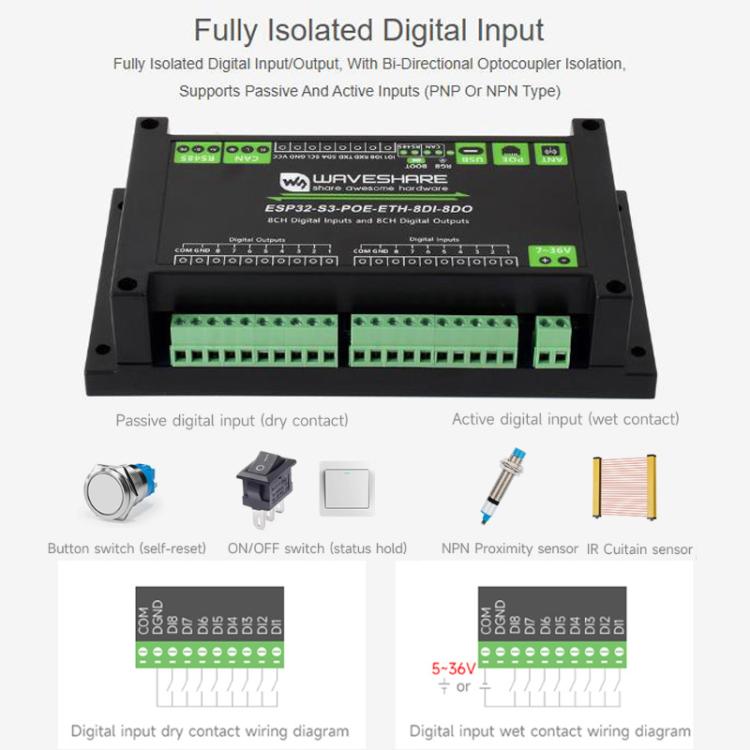

- Digital Inputs: Bidirectional optocoupler isolation
- Input Types: Supports both passive and active inputs
- Digital Outputs: Supports switch-input interlock control mode

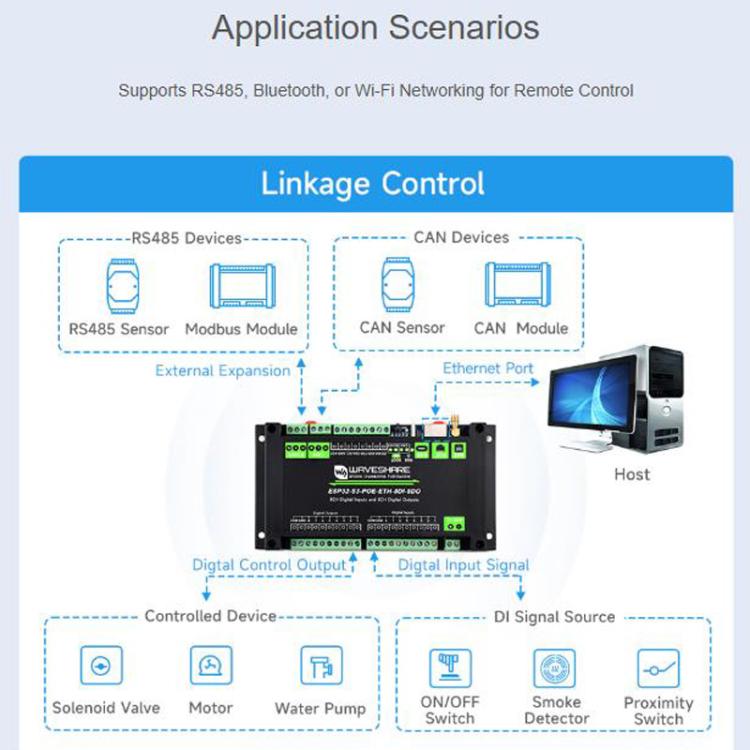

- RS485 Interface: On-board isolated RS485 interface for expansion
- CAN Interface: On-board isolated CAN interface for connection to CAN devices
- Header Pins: On-board header pins for additional peripherals
- USB Type-C Port: Supports power delivery and debugging
- Power Supply Interface: Terminal block supporting 7V to 36V voltage range
- RTC Clock Chip: On-board RTC clock chip for scheduled tasks
- Ethernet Chip: On-board W5500 Ethernet chip for 10/100Mbps connectivity

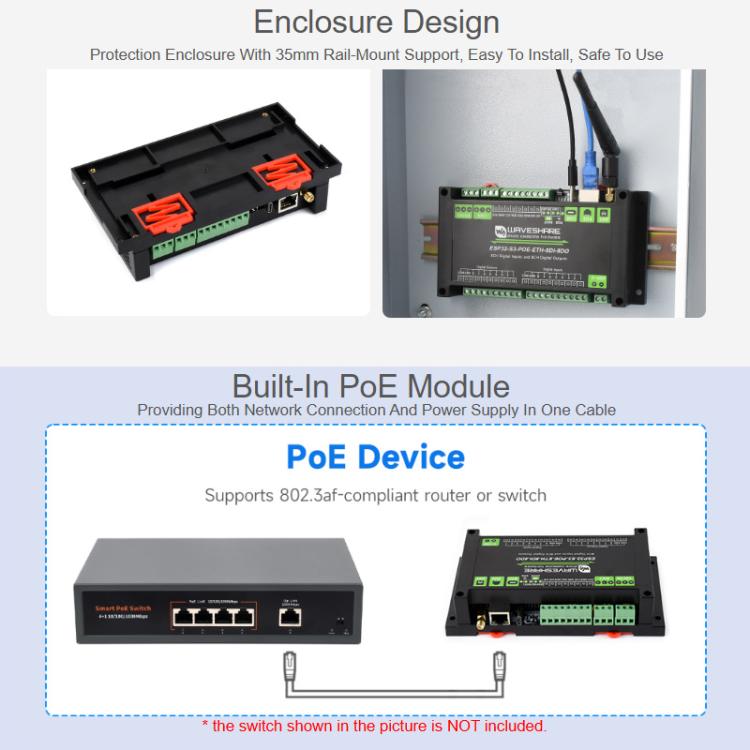

- PoE Module: Implements Ethernet power delivery (IEEE 802.3af compliant)

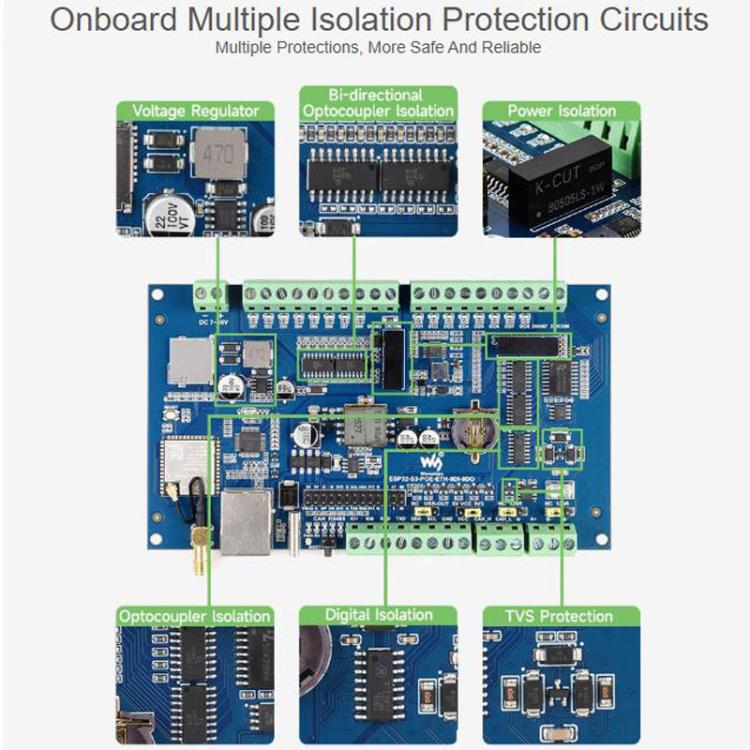

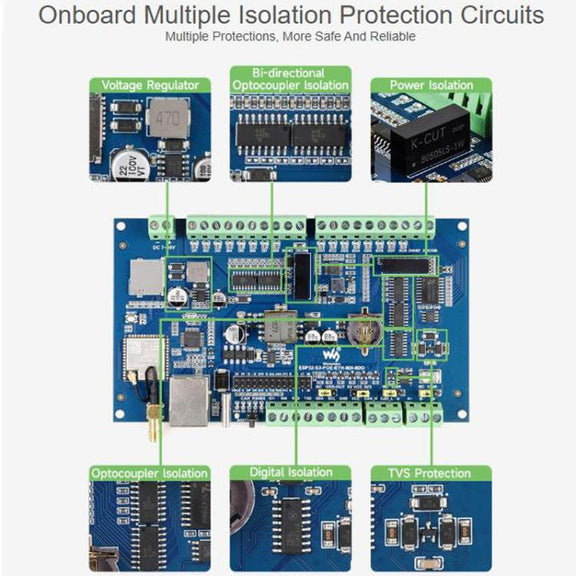

- Isolation: Optocoupler isolation to prevent external circuit interference
- Digital Isolation: Prevents external signal interference
- Integrated Power Isolation: Provides stable isolated voltage
- Micro SD Card Slot: Onboard slot for external SD card storage
- Indicators: Buzzer, RGB indicator light, power indicator, RS485 and CAN indicators

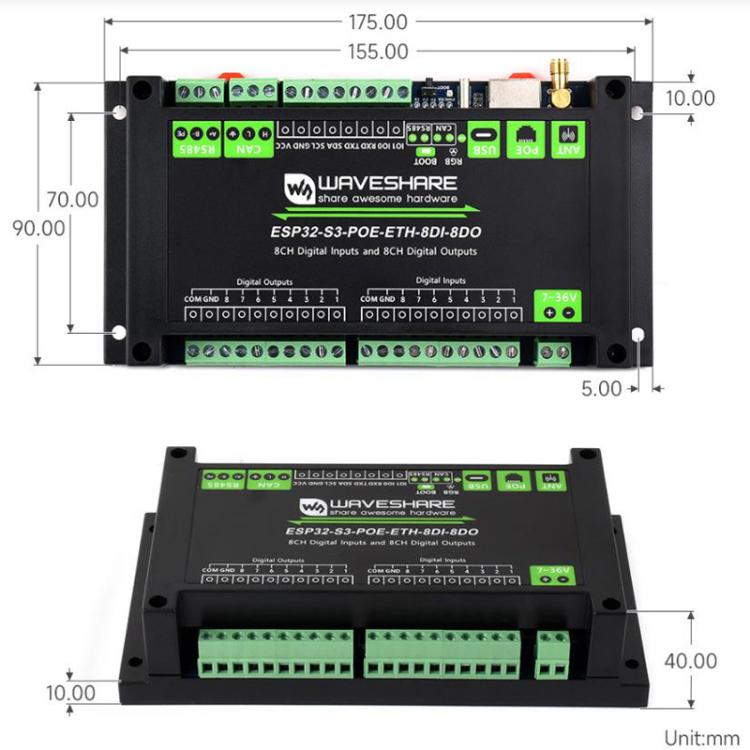

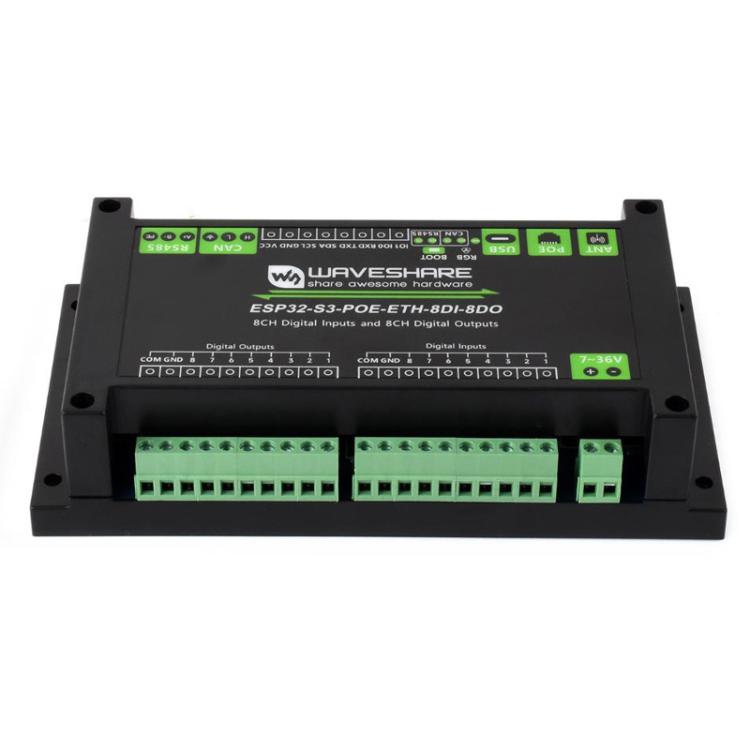

- Enclosure: Rail-mount protective enclosure for installation
