Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano
Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano
Sale
Sold out
Pre-order
Regular price
R 729.00
Regular price
Sale price
R 729.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
Features

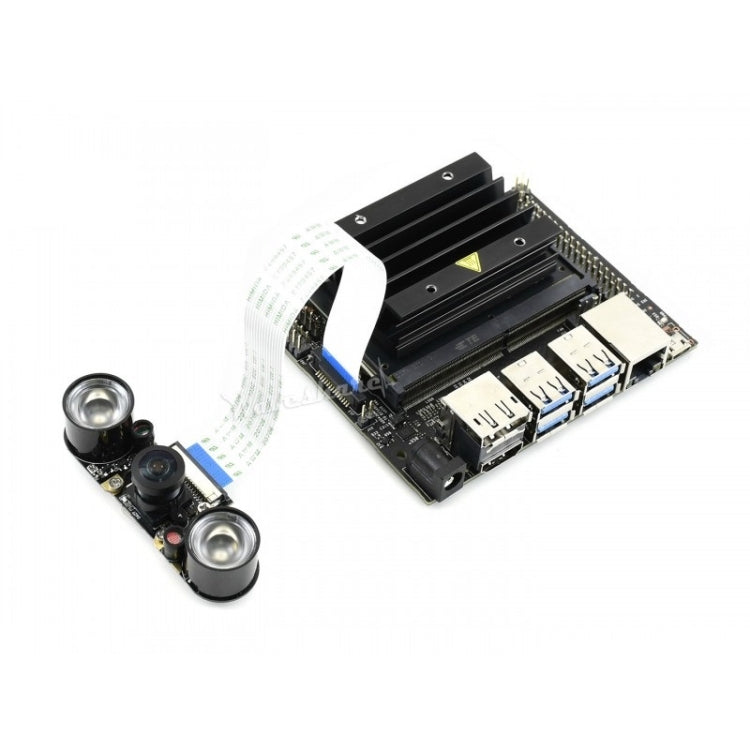

1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4 inch
- Aperture (F): 2.35
- Focal Length: 3.15mm
- Angle of View (diagonal): 160 degree
- Distortion: <14.3%
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output

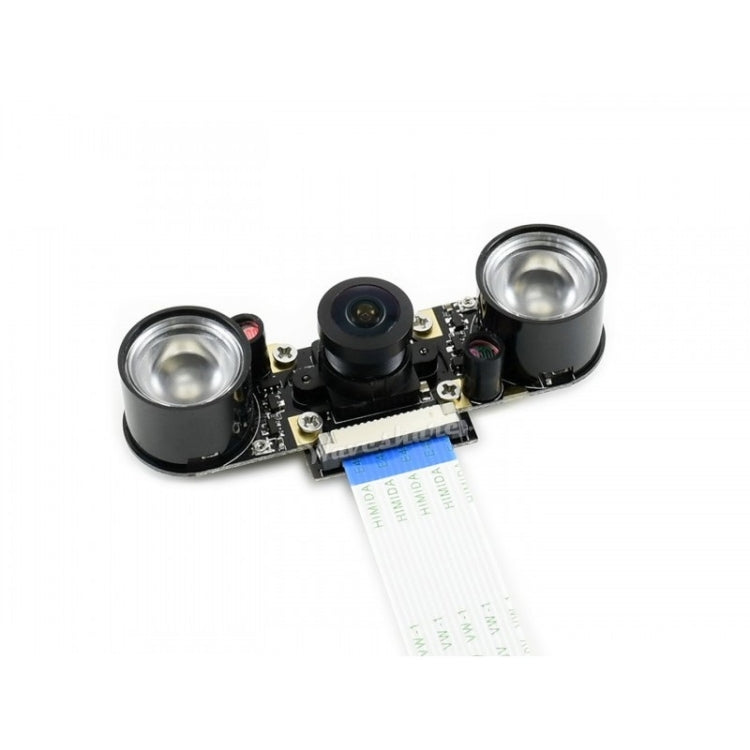

10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12 . Weight: 31g
Packing List:
1. IMX219-160IR Camera x1

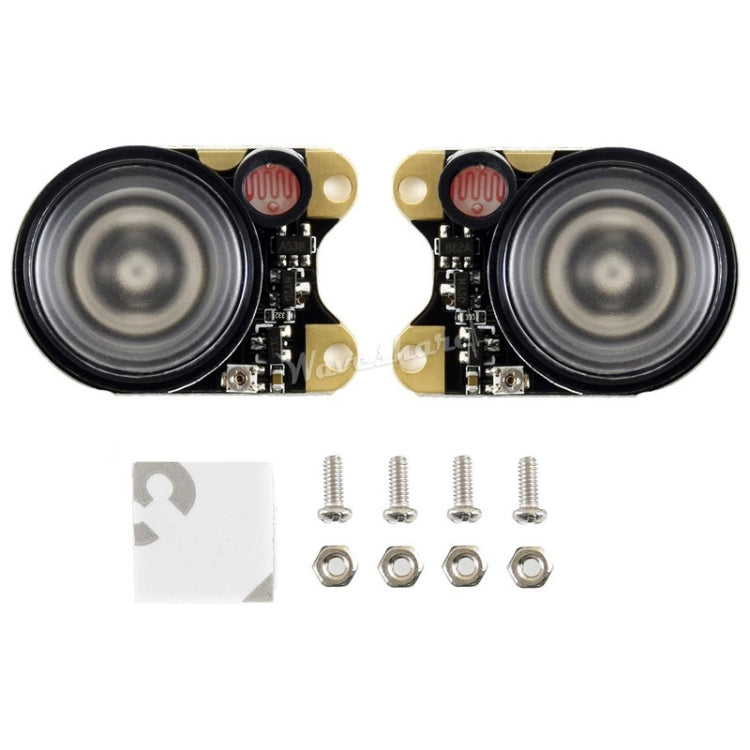

2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4 inch
- Aperture (F): 2.35
- Focal Length: 3.15mm
- Angle of View (diagonal): 160 degree
- Distortion: <14.3%
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12 . Weight: 31g
Packing List:
1. IMX219-160IR Camera x1
2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
