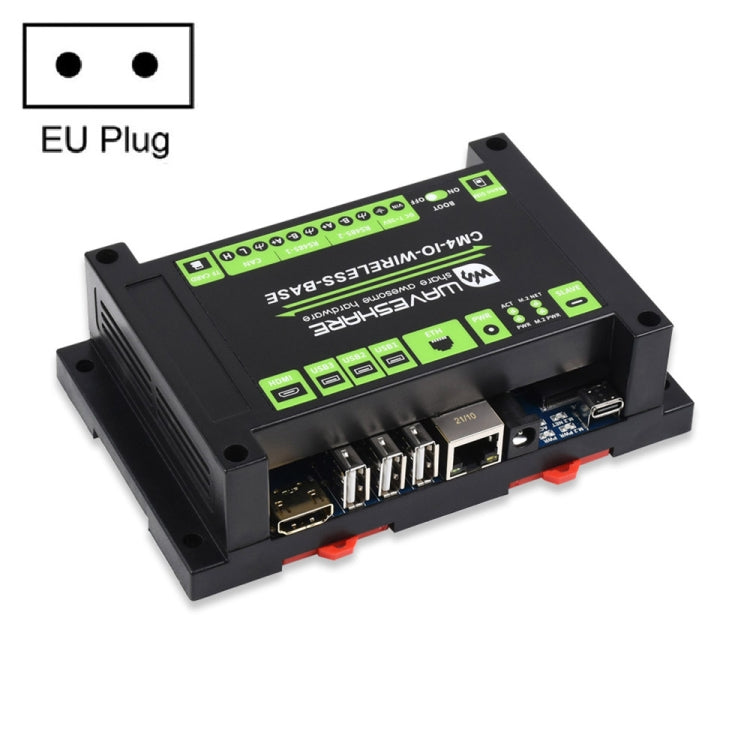

Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

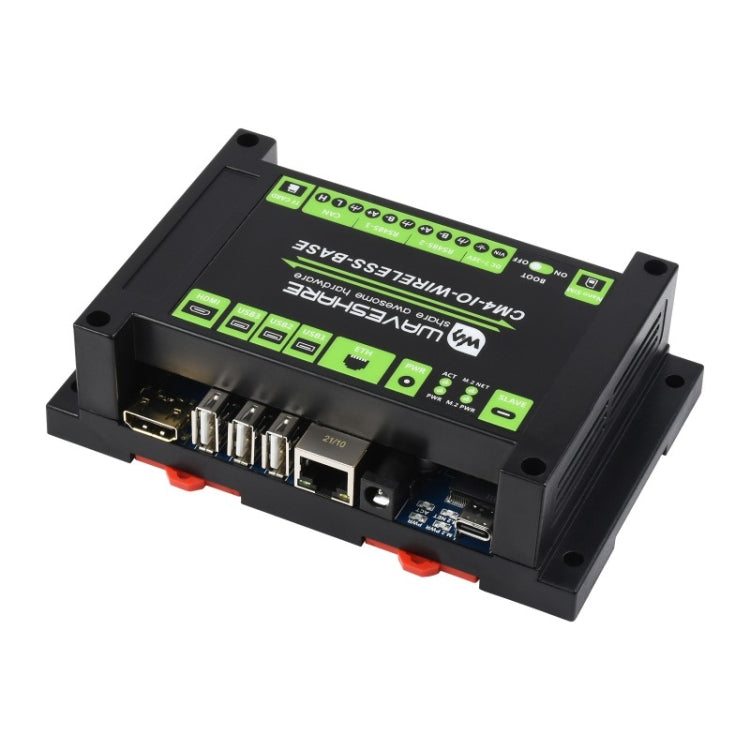

The Waveshare Industrial IoT Wireless Expansion Module is an industrial expansion module designed for the Raspberry Pi CM4. It is suitable for applications such as building IoT gateways, 4G/5G routers, and IoT data acquisition systems.
- Product Type: Mini PC Accessories

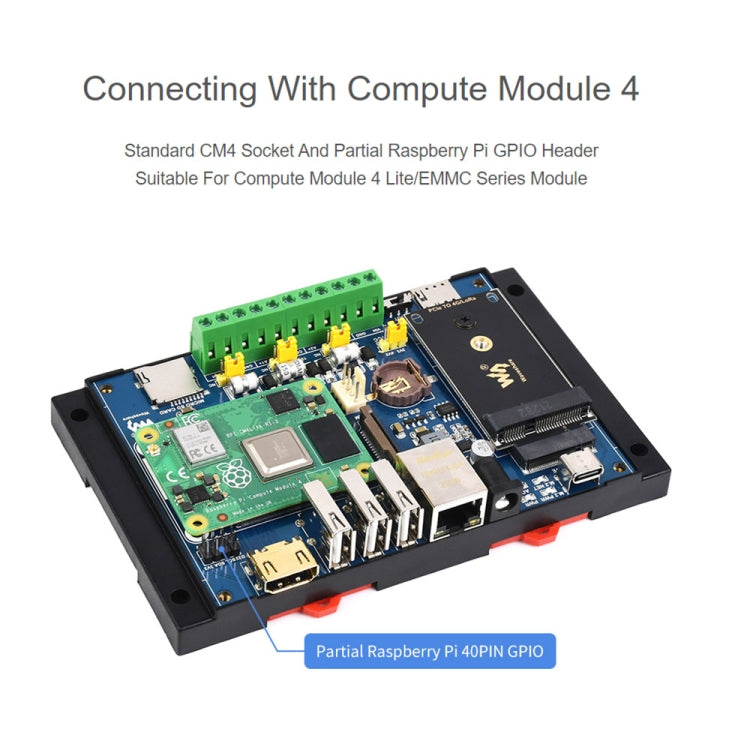

- Compatibility: Raspberry Pi CM4
- Key Feature: Industrial expansion module

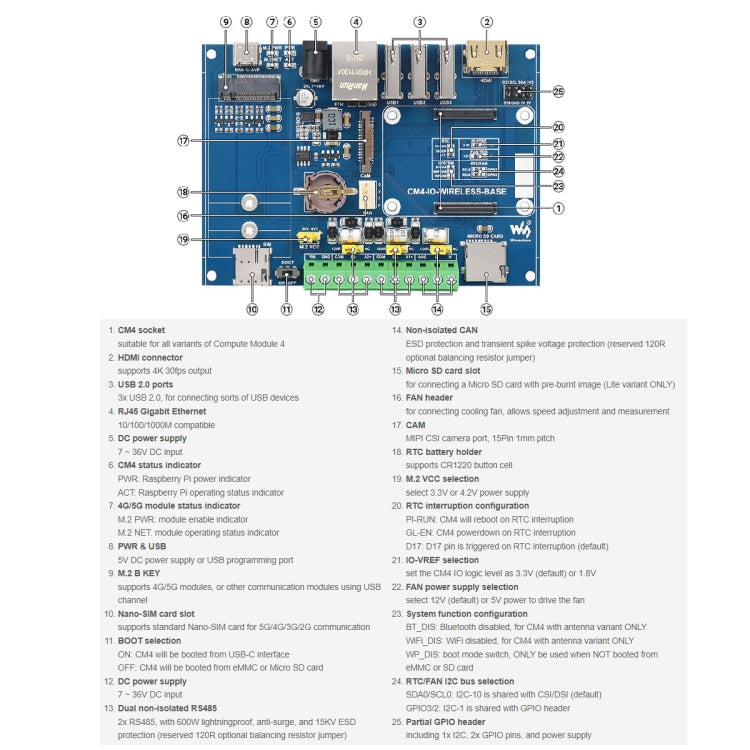

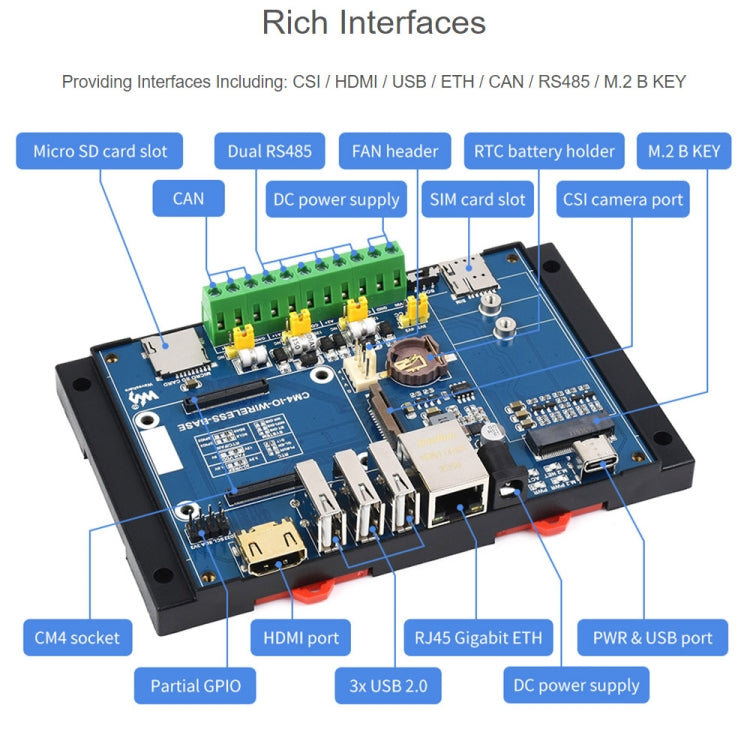

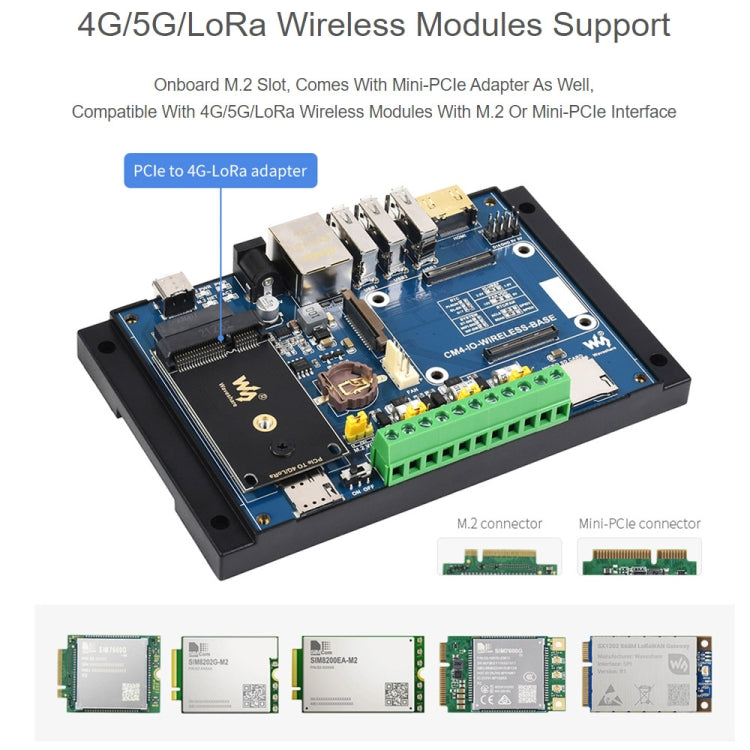

- Networking Interfaces: Gigabit Ethernet RJ45, M.2 B KEY / Mini-PCIe for 5G / 4G / LoRa wireless module, Nano-SIM card slot
- USB Ports: 3 x USB 2.0
- PIN Header: Non-isolated RS485 x 2, non-isolated CAN x 1, GPIO pins
- Camera Interface: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
- Video Output: HDMI x 1, supports 4K at 30fps
- RTC: Real-time clock with battery socket
- Storage: MicroSD card socket for Compute Module 4 Lite variants
- Fan Header: 5V/12V with speed adjustment
- Power Input: 5V or 7~36V

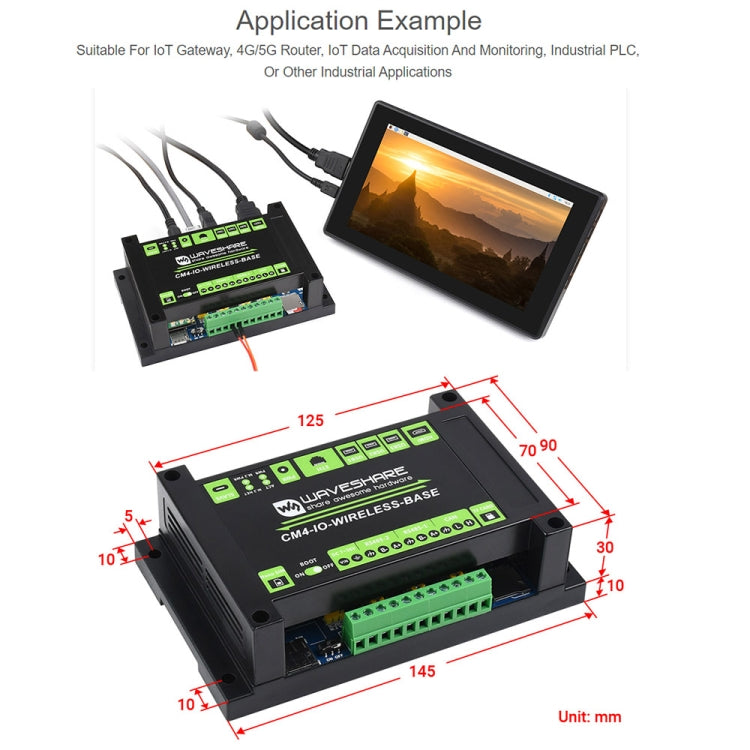

- Dimensions: 145 x 90 x 40 mm
- Package Contents: CM4-IO-WIRELESS-BASE x 1, PCIe to 4G/LoRa adapter x 1, screwdriver x 1, screws pack x 1, 12V 2A power adapter x 1
