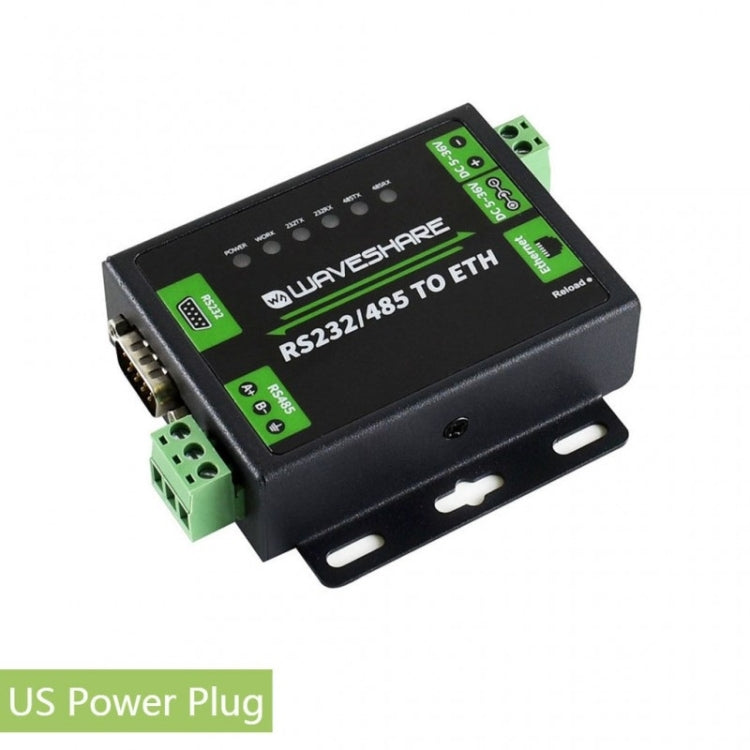

Waveshare Industrial RS232/RS485 to Ethernet Converter, US Plug

The Waveshare Industrial RS232/RS485 to Ethernet Converter enables bi-directional transparent data transmission between RS232/RS485 and Ethernet. It is suitable for industrial applications requiring reliable communication between serial devices and network infrastructure.

• Product Type: Modules Expansions Accessories
• Compatibility: RS232/RS485 to Ethernet
• Material: Not specified
• Color/Variant: Not specified
• Key Feature: Bi-directional transparent data transmission
• Processor: M4 series 32-bit ARM processor, up to 120MHz frequency
• Ethernet Interface: 10/100M Auto-MDI/MDIX, compatible with cross-over or straight-through cable
• Interfaces: Both RS232 and RS485, can operate independently without interference
• Configurable Baudrate: 600bps to 230.4Kbps, supports five parity check options (None, Odd, Even, Mark, Space)
• Indicators: Multi indicators for monitoring communication and working status
• Working Modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
• Protocol Support: Modbus, Websocket, RFC2217-like protocol
• Configuration: Via webpage, AT commands, serial protocol, and network protocol
• Heartbeat Packets: Customizable for connection verification and sensor data retrieval
• Registration Packets: Customizable for device identification post-connection
• Webpage Customization: Allows user to customize module configuration page
• Connection Management: KeepAlive mechanism, detects broken connections, auto re-connects
• Reboot Management: Time-out reboot (no-data reboot), configurable reboot time
• DNS Support: DNS domain name resolution, configurable DNS server
• IP Configuration: Supports DHCP for auto-obtained IP or static IP
• Firmware: Upgradable via network
• Factory Reset: Restore to factory settings via software and/or hardware
• MAC Address: Default MAC address is customizable
• Software Provided: Module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
• Example Code: Compatible with host computer (socket), VB, C++, Delphi, Android, iOS
