Product details
Description

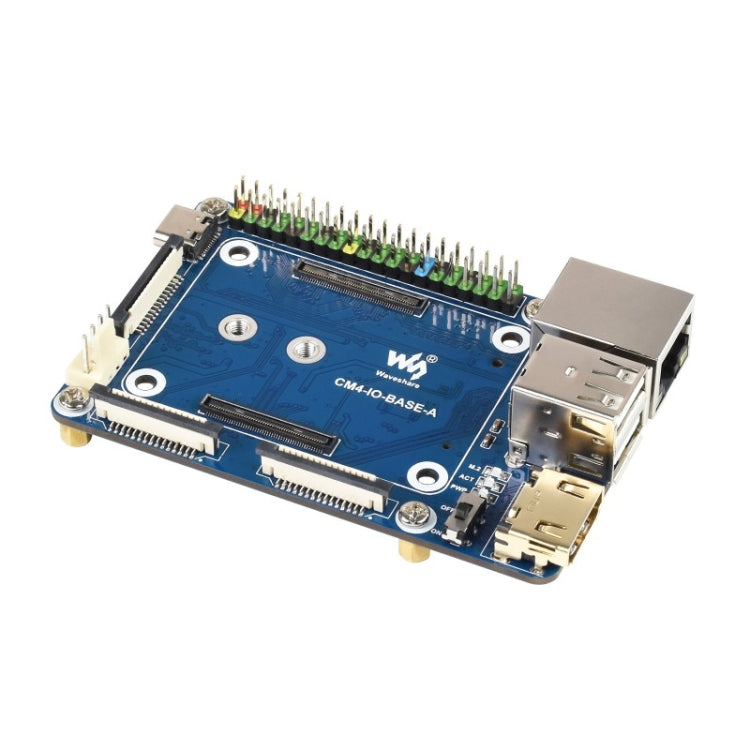

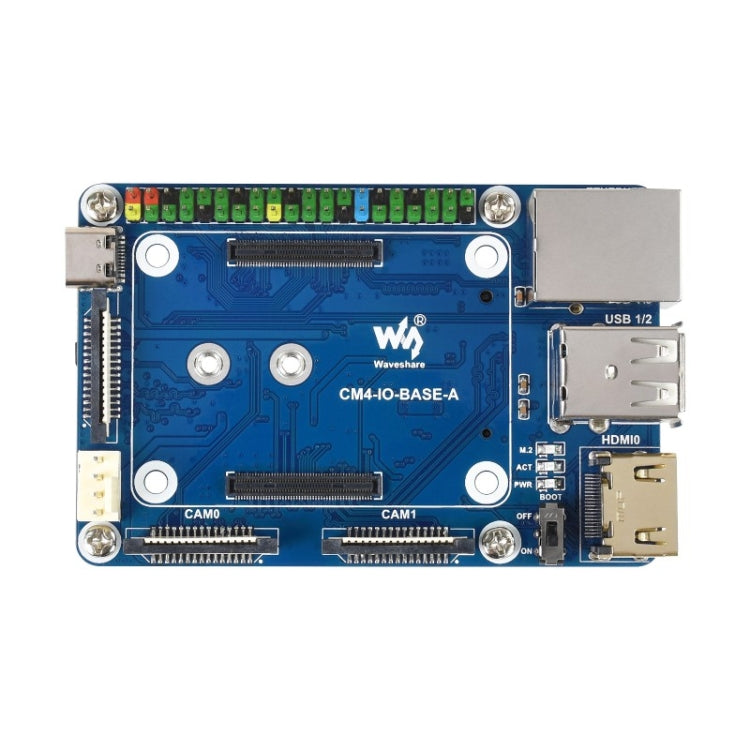

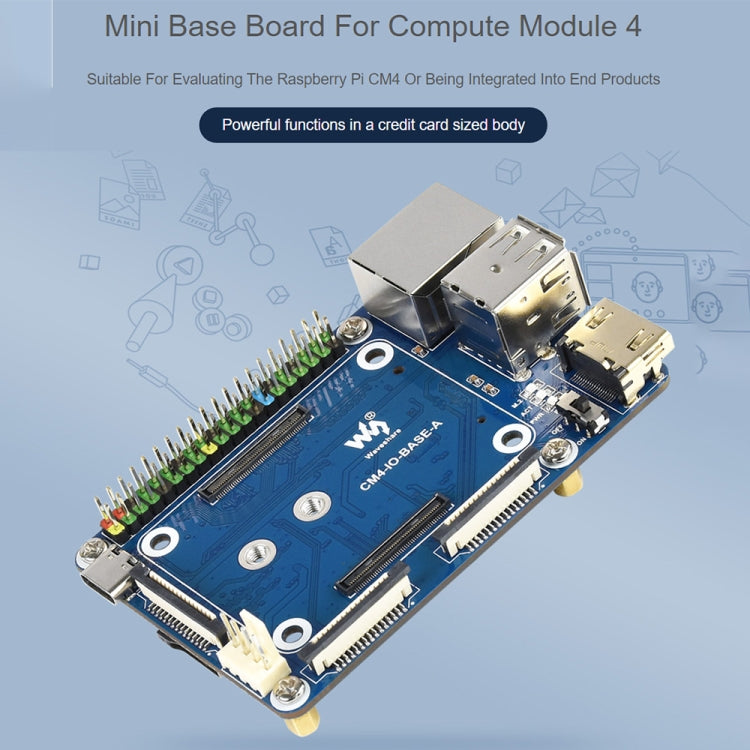

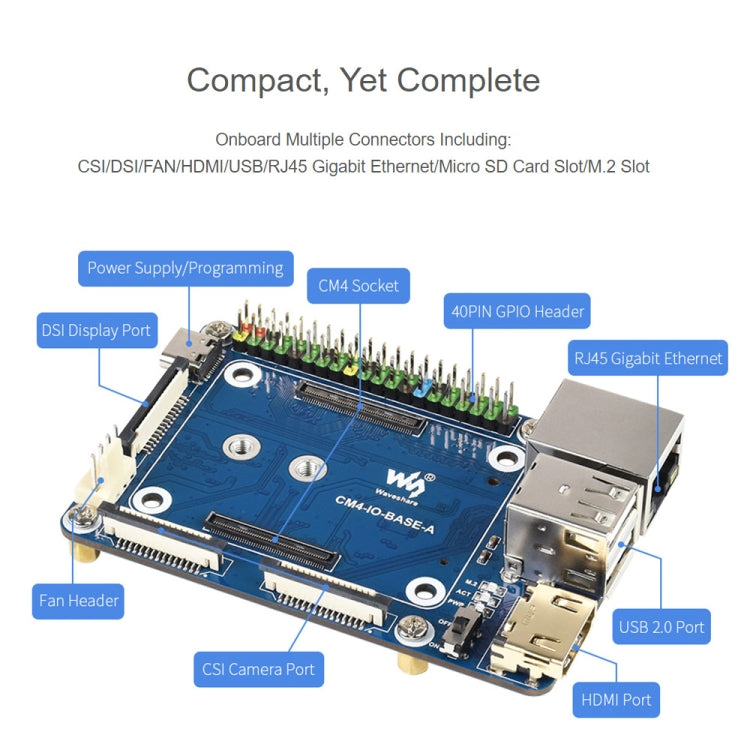

The Waveshare Mini Base Board A is a mini PC accessory designed for the Raspberry Pi Compute Module 4. It provides multiple connectivity options for various peripherals and devices.
- Product Type: Mini PC Accessory
- Compatibility: Raspberry Pi Compute Module 4
- Material: Not specified
- Color/Variant: Not specified

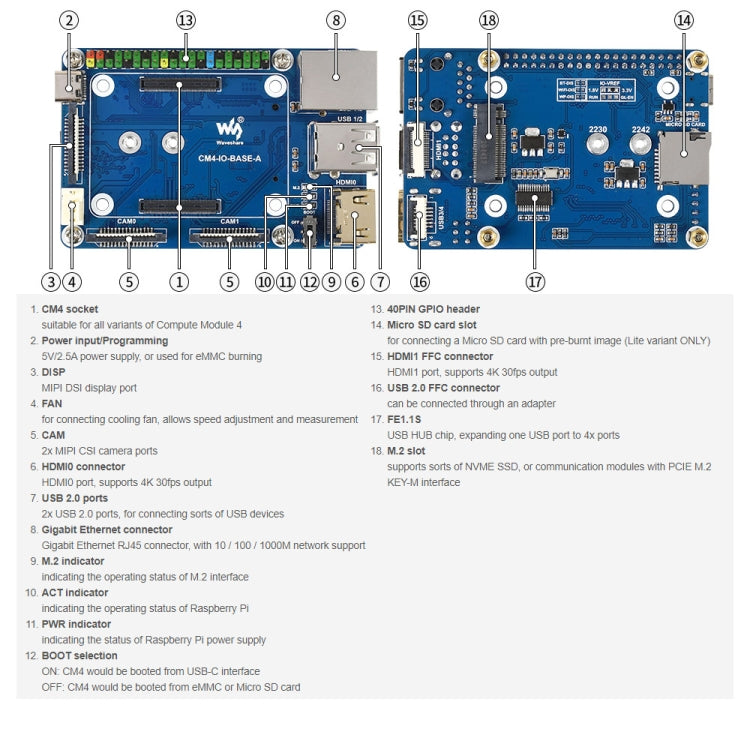

- USB Ports: 2 x USB 2.0, 2 x USB 2.0 (via FFC connector)
- GPIO: 40 PIN GPIO x 1

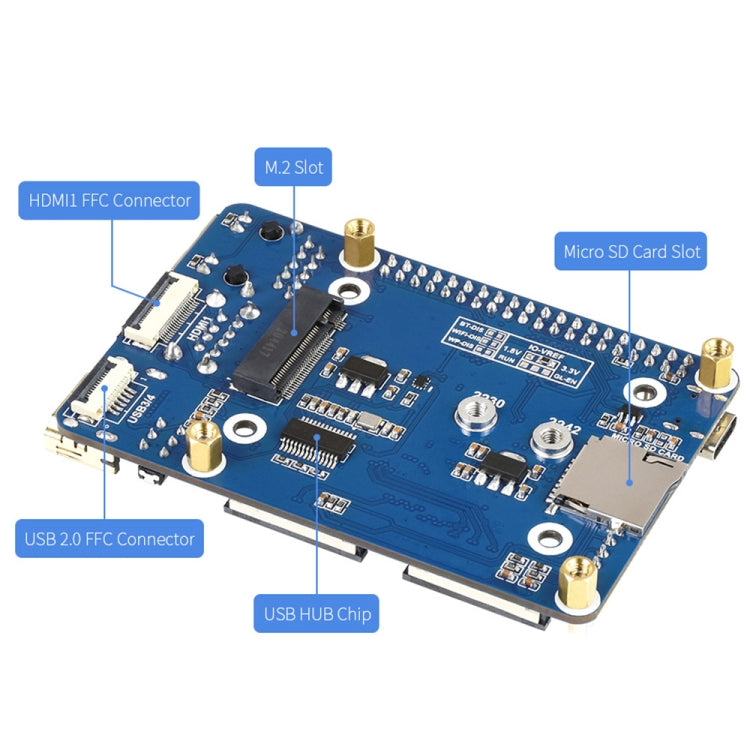

- Header: M.2 slot x 1
- HDMI: 2 x HDMI (1 x via FFC connector), supports 4K 30fps output
- DSI Display: MIPI DSI x 1 (15pin 1.0mm FPC)
- CSI Camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
- Power Input: 5V
- Fan: 5V / 12V (no fan control)
- Ethernet: Gigabit Ethernet

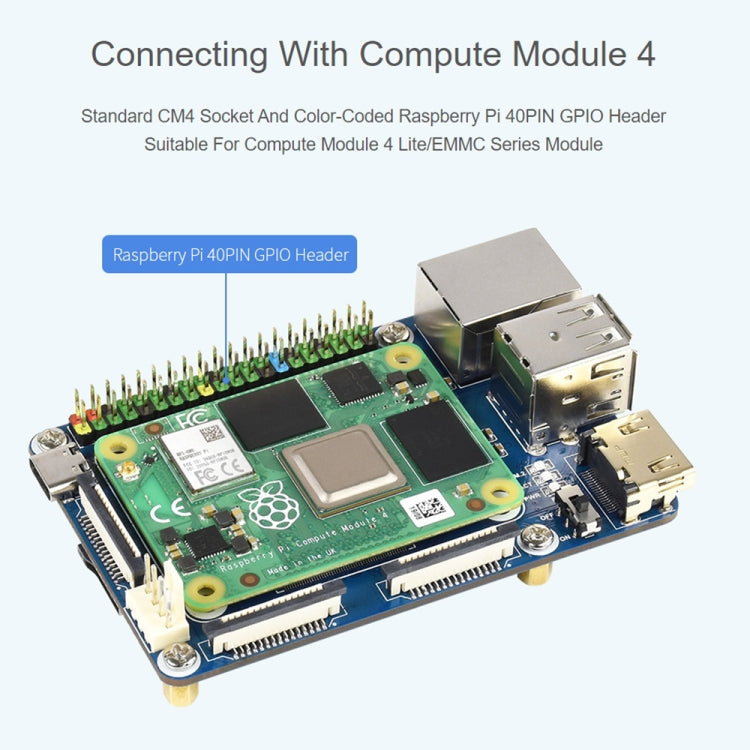

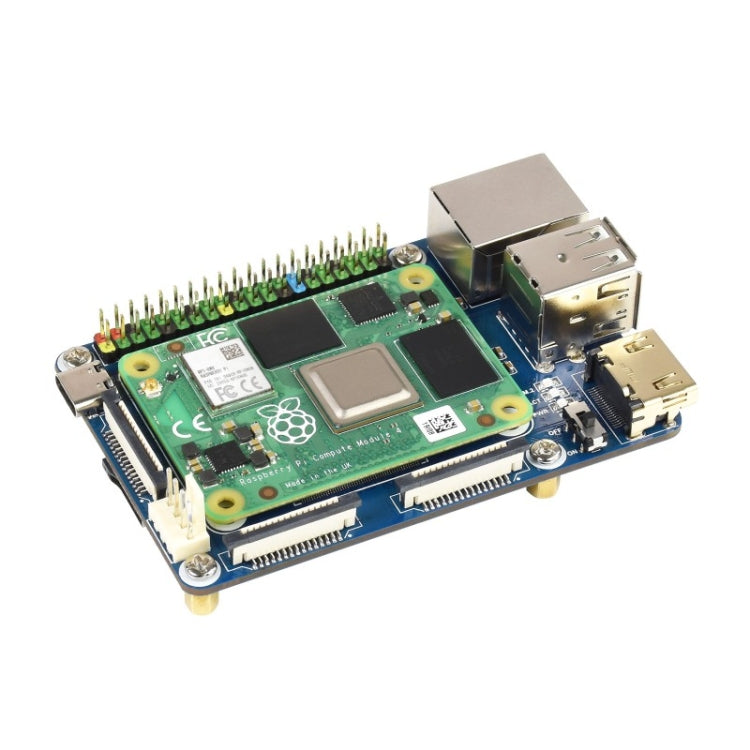

- CM4 Slot: Suitable for all variants of Compute Module 4
- SD Card Slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

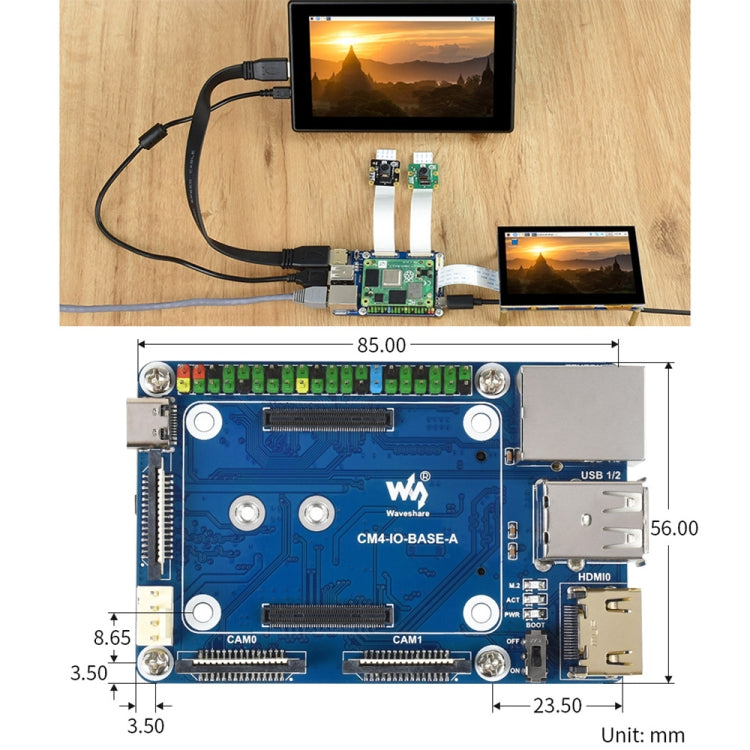

- Size: 85.0 x 56.0 mm
