Waveshare Multi Band 2G GSM / GPRS LBS A7670E LTE Cat-1 HAT for Raspberry Pi, for Europe, Southeast Asia, West Asia, Africa, China, South Kor

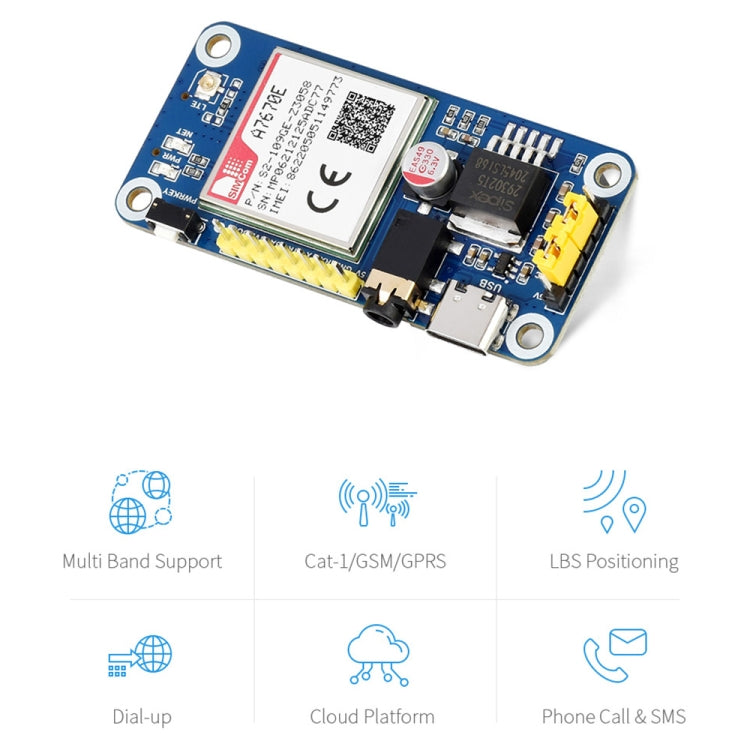

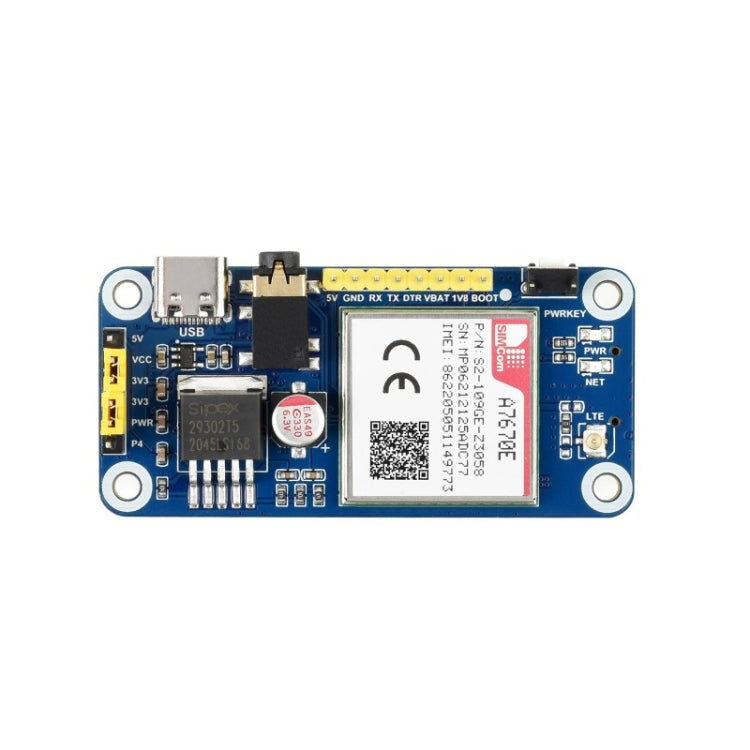

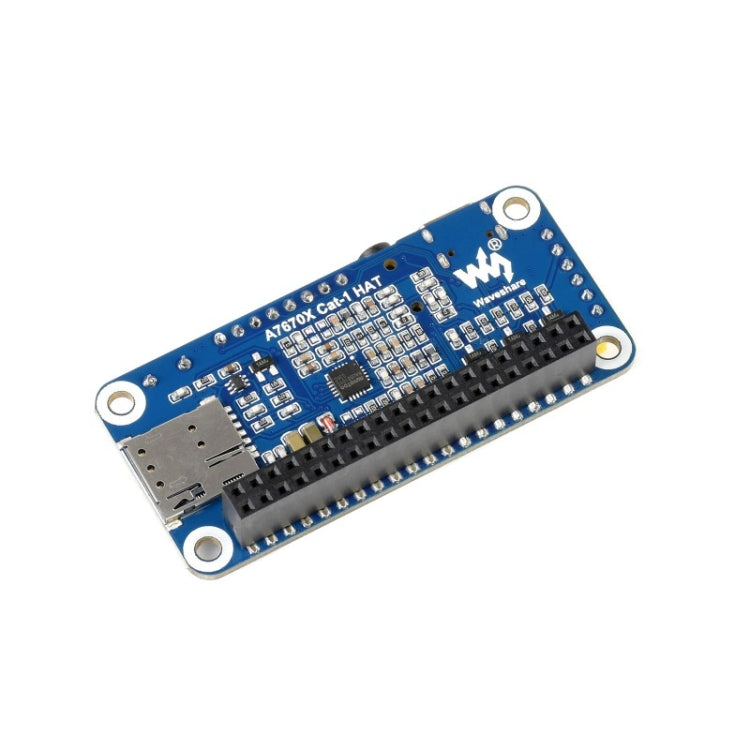

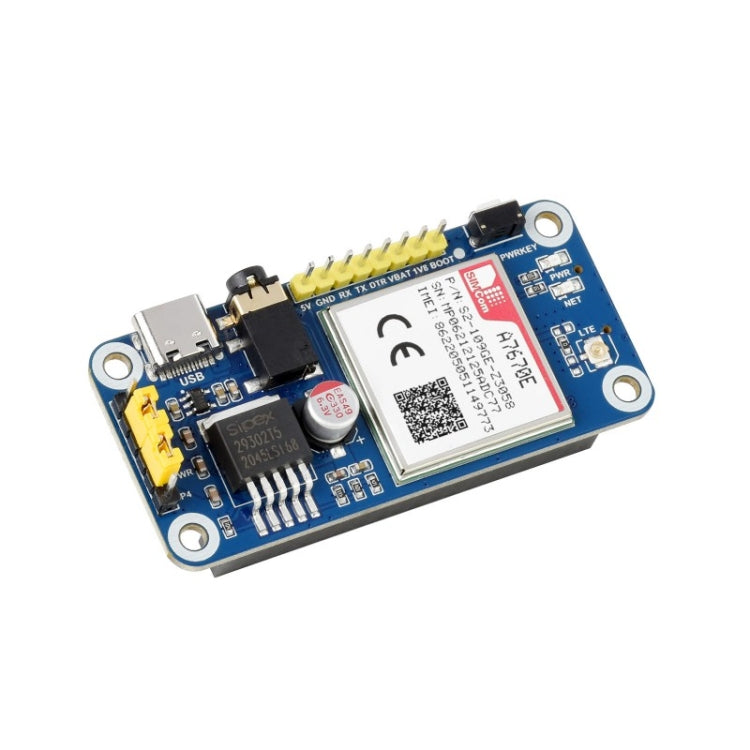

The Waveshare Multi Band 2G GSM / GPRS LBS A7670E LTE Cat-1 HAT is a communication module designed for Raspberry Pi. It is suitable for IoT applications such as remote information processing and monitoring devices.

• Product Type: Module Expansion Accessory

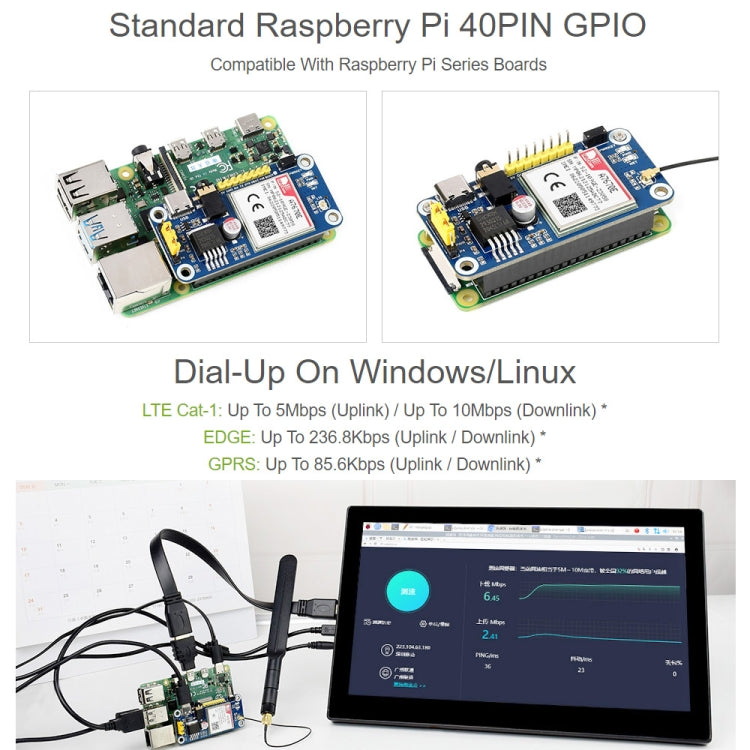

• Compatibility: Raspberry Pi
• Material: Not specified
• Color/Variant: Not specified
• Key Feature: Supports multiple communication modes
• Operating Systems: Windows, Linux
• Communication Modes: LTE-TDD, LTE-FDD, GSM, GPRS, EDGE
• Downlink Rate: Up to 10Mbps
• Uplink Rate: Up to 5Mbps

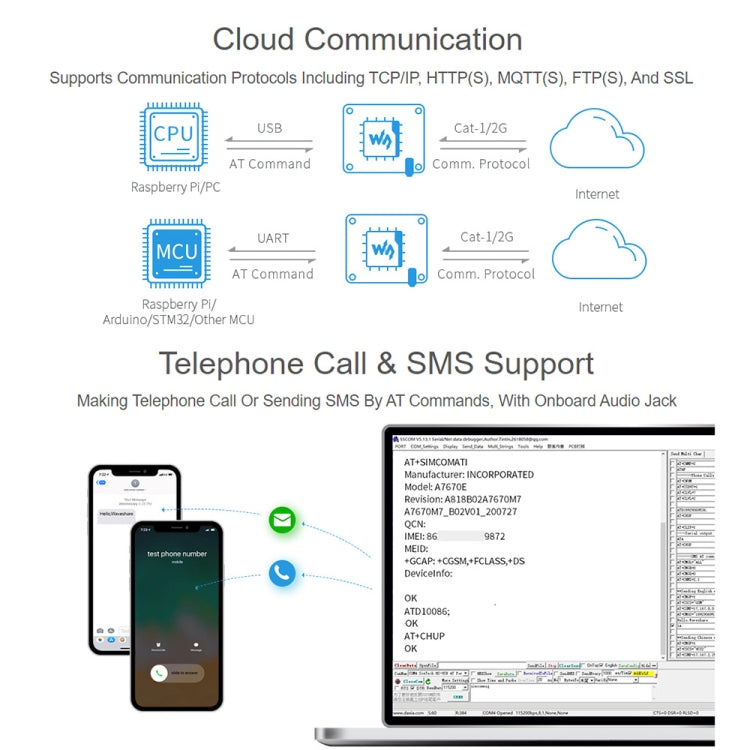

• Protocols Supported: TCP/IP, HTTP(s), MQTT(s), FTP(s), SSL
• Dial-up, Telephone Call, SMS Support: Yes
• LBS Base Station Positioning: Yes
• TTS Feature: Converts text in Chinese/English to speech
• Onboard USB Interface: For testing AT Commands and network communication
• Onboard Audio Jack: For sound recording and telephone calls
• Control Pins: Breakout for easy connection with Arduino/STM32
• SIM Card Slot: Supports 1.8V/3V SIM card
• LED Indicators: 2x for monitoring operating status
• Voltage Translator: Configurable operating voltage (3.3V or 5V)
• Development Resources: Includes manual and examples for Raspberry Pi/Arduino/STM32
• Frequency Bands: LTE-FDD: B1, B3, B5, B7, B8, B20; GSM/GPRS/EDGE: 900/1800 MHz
• Audio Features: Standard 3.5mm audio jack for audio input/output
• Power Supply: 5V
• Operating Voltage: Configurable (5V / 3.3V via jumper)
• Operating Temperature: -30°C to 80°C
• Storage Temperature: -45°C to 90°C

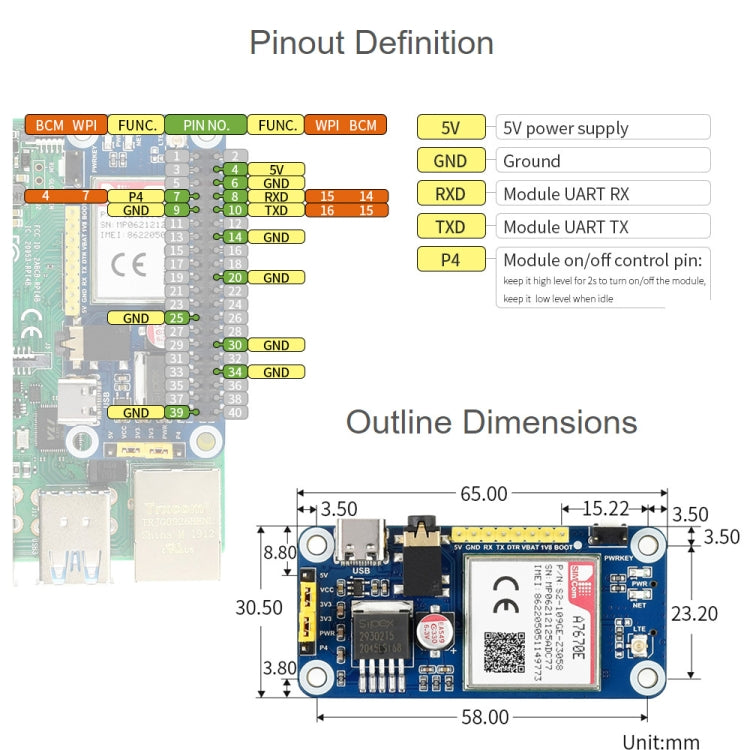

• Dimensions: 65 x 30.5 mm
• Package List: A7670E Cat-1 HAT, LTE Antenna, USB-A to USB-C cable, RPi screws pack
