Product details
Description

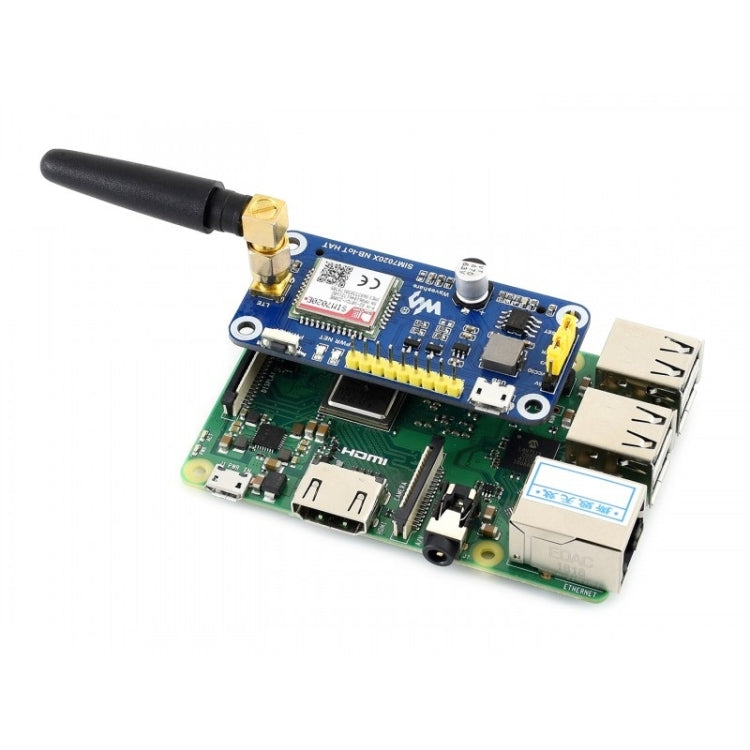

NB-IoT HAT for Raspberry Pi provides NB-IoT connectivity for IoT applications. It is suitable for intelligent instruments, asset tracking, and remote monitoring.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi (any revision)
- Material: Not specified
- Key Feature: NB-IoT connectivity
- Color/Variant: Not specified
- Intended Use: IoT applications
- Category: Electronics Module

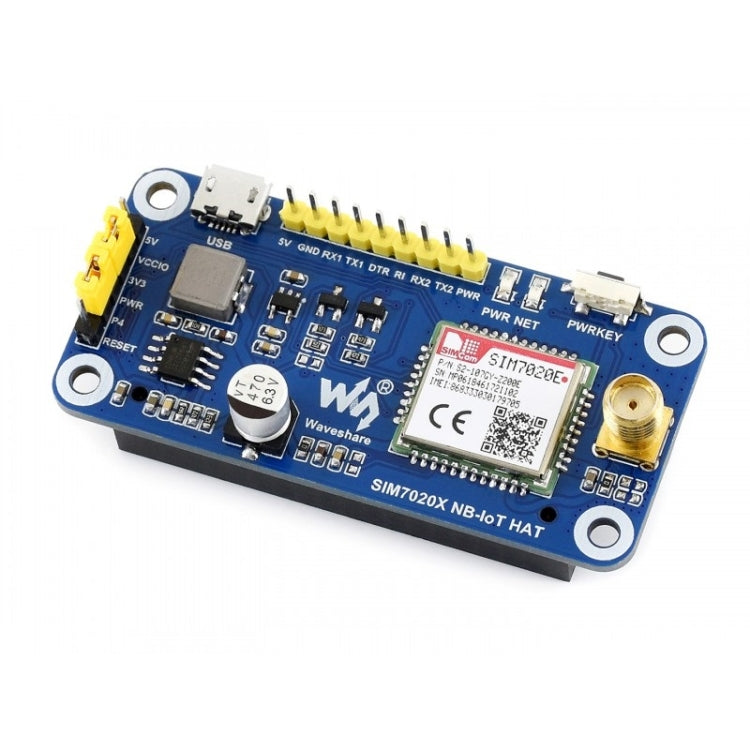

- Based on SIM7020E, supports bands B1/B3/B5/B8/B20/B28
- Applicable Regions: Europe, Asia, Africa, Australia
- Communication Protocols: LWM2M, COAP, MQTT, TCP, UDP, HTTP, HTTPS
- Onboard USB interface for power supply or debugging
- Breakout UART control pins for connection with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, switchable to 5V via jumper

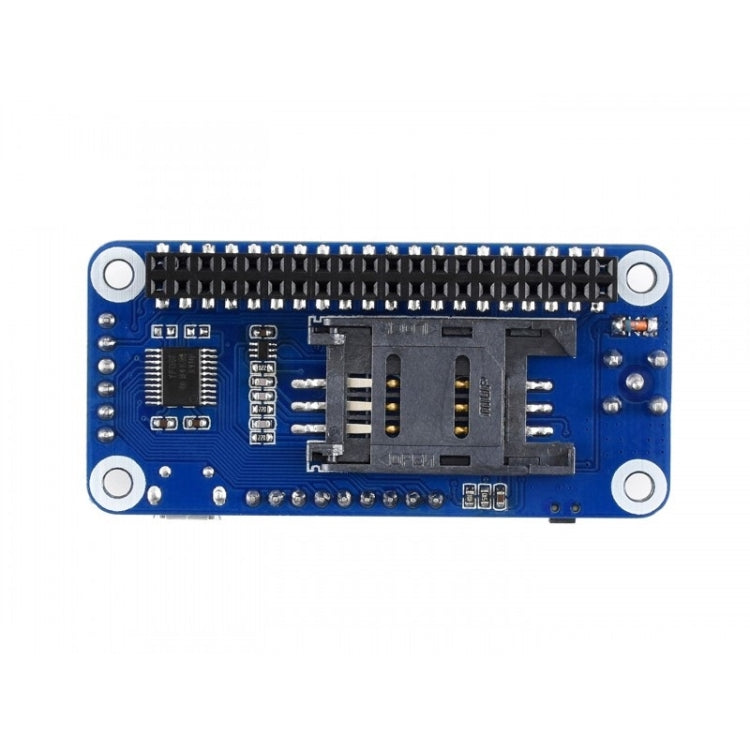

- SIM card slot for NB-IoT specific card

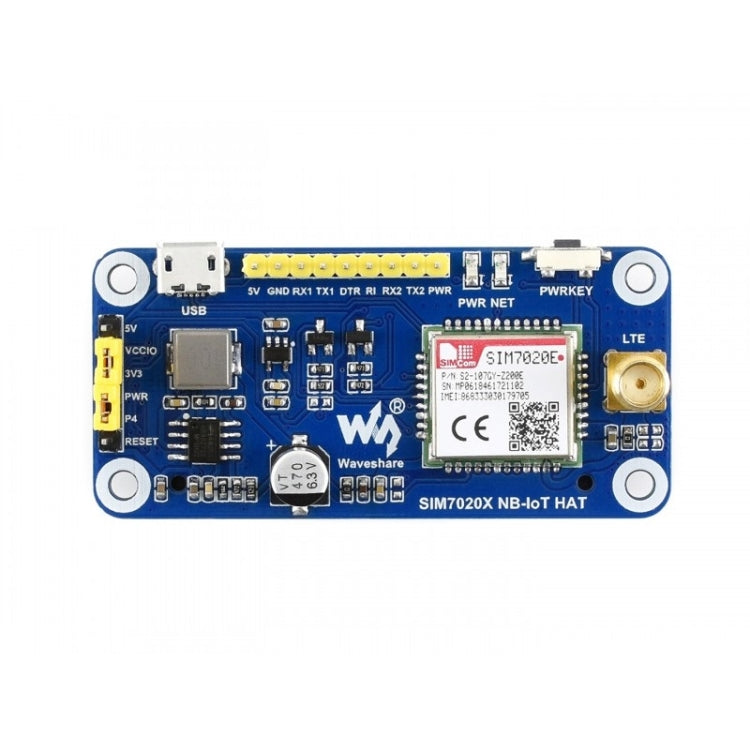

- 2x LED indicators for monitoring working status
- Baudrate: 300bps to 921600bps (115200bps by default)
- Control via AT commands (V.25TER, 3GPP TS 27.007, SIMCOM AT Commands)
- Development resources and manual included (examples for Raspberry Pi/Arduino/STM32/Python)
- Power Supply: 5V
- Logic Level: 5V/3.3V (3.3V by default)
- Overall Current (idle mode): ~18mA
- Single Module Current: Idle mode: 5.6mA, Sleep mode: 0.4mA, PSM mode: 5uA, eDRX mode: 70uA (eDRX=655.36s)

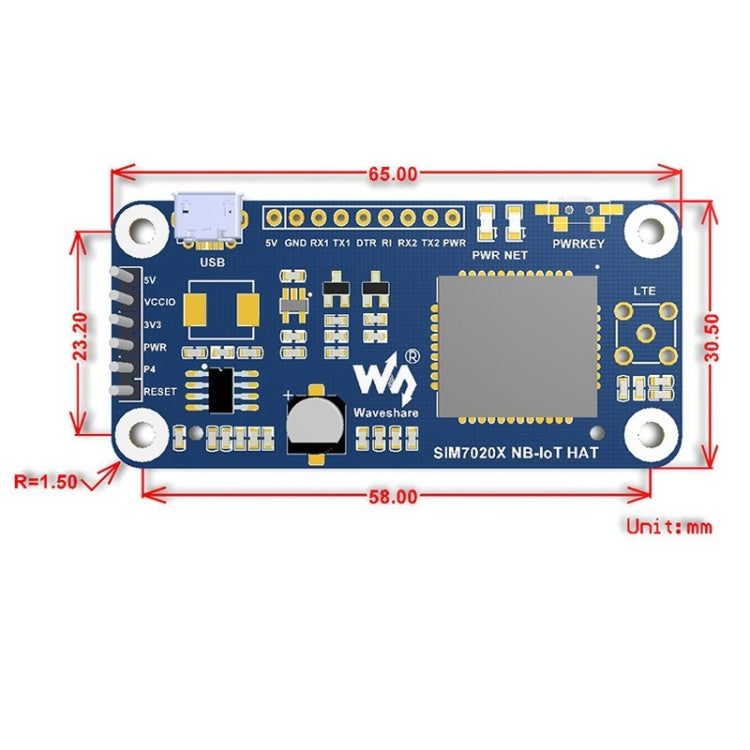

- Dimensions: 30.5mm x 65.0mm

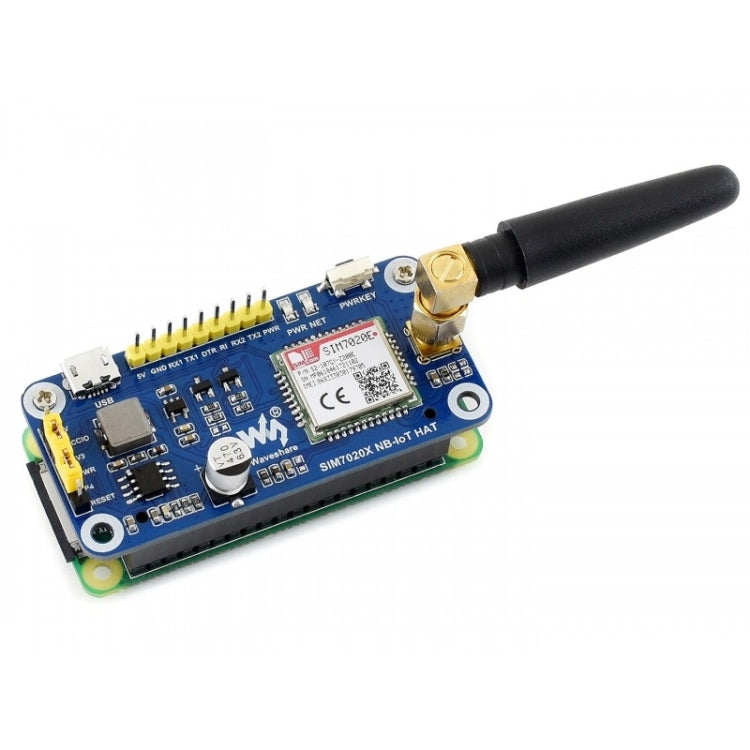

- Package Contents: 1x SIM7020E NB-IoT HAT, 1x Antenna, 1x USB type A plug to micro plug cable, 1x RPi screws pack (2pcs)
- Note: Raspberry Pi is NOT included
