Description

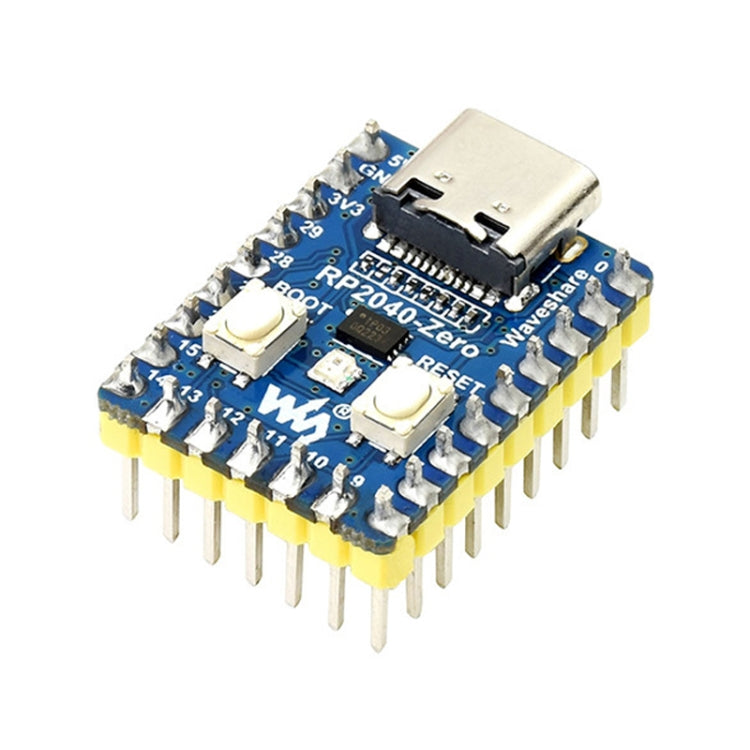

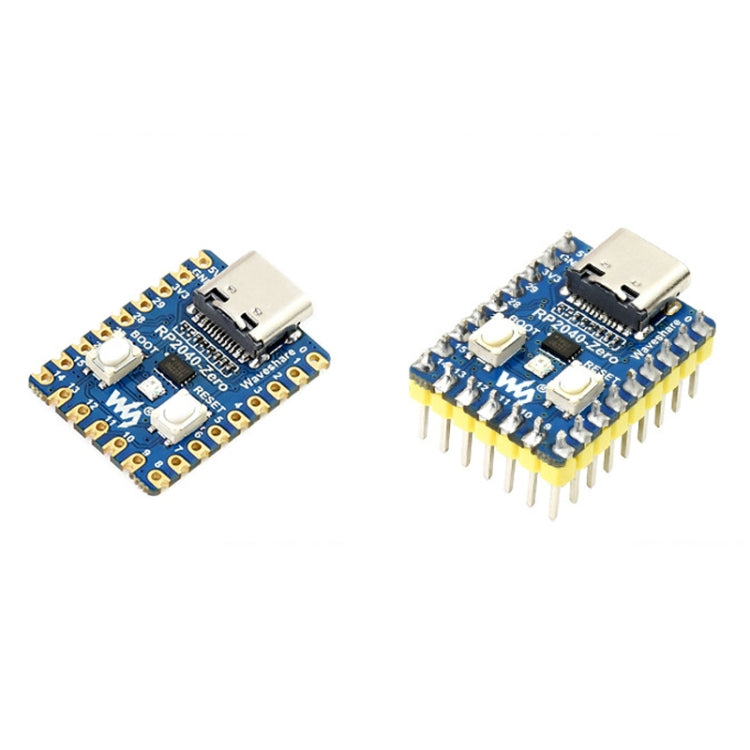

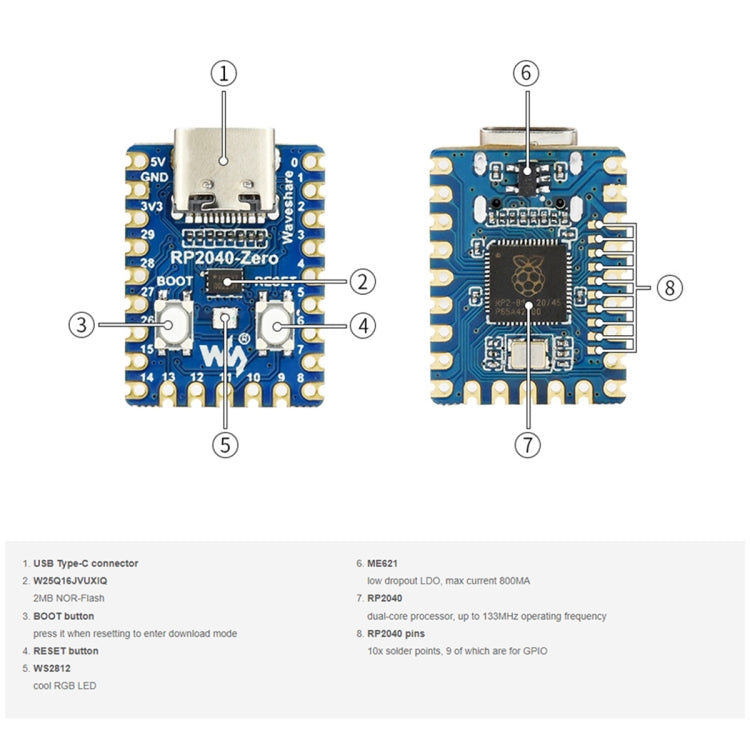

The Waveshare Pico-Like MCU Board is based on the Raspberry Pi RP2040 microcontroller chip. It is suitable for embedded systems and custom electronics projects requiring a compact and efficient processing solution.
- Microcontroller: RP2040
- Processor: Dual-core ARM Cortex M0+, up to 133MHz
- SRAM: 264KB
- Flash Memory: 2MB on-chip
- Design: True stamp hole design for direct soldering

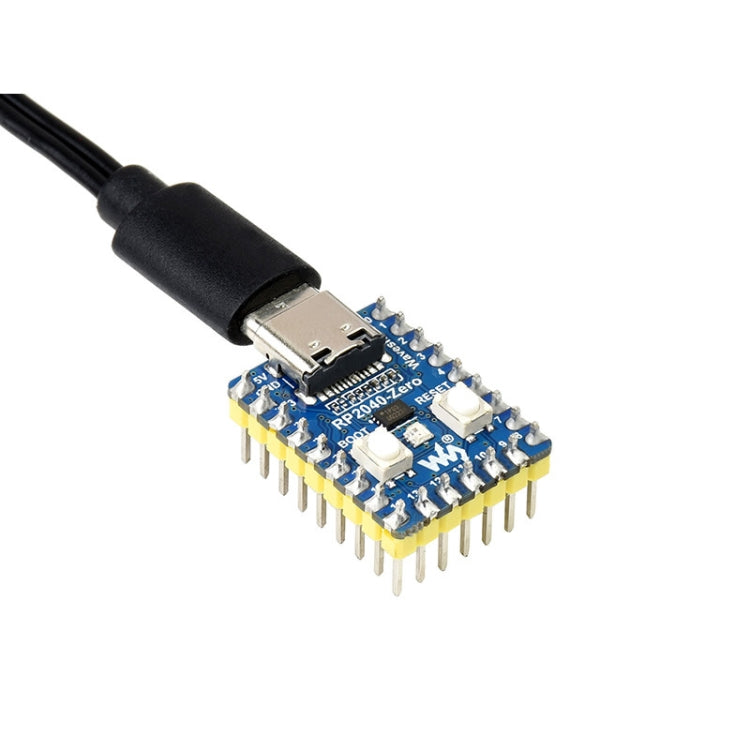

- USB Support: USB 1.1 host and device
- Power Modes: Low-power sleep and hibernation modes
- Storage: Identified as large-capacity storage via USB for program downloads

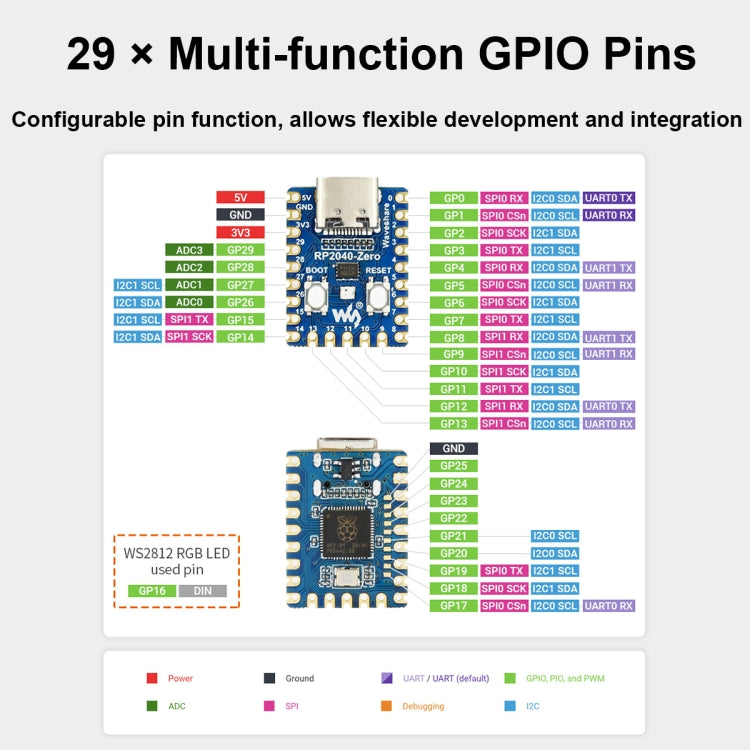

- GPIO Pins: 29 total (20 accessible via pin headers, remaining require soldering)
- Communication Interfaces: 2 SPI, 2 I2C, 2 UART
- ADC: 4 channels, 12-bit resolution
- PWM: 16 controllable channels
- Clock: Accurate on-chip clock and timer
- Temperature Sensor: Integrated
- Floating-Point Library: On-chip accelerated
- PIO: 8 programmable I/O state machines for custom peripherals

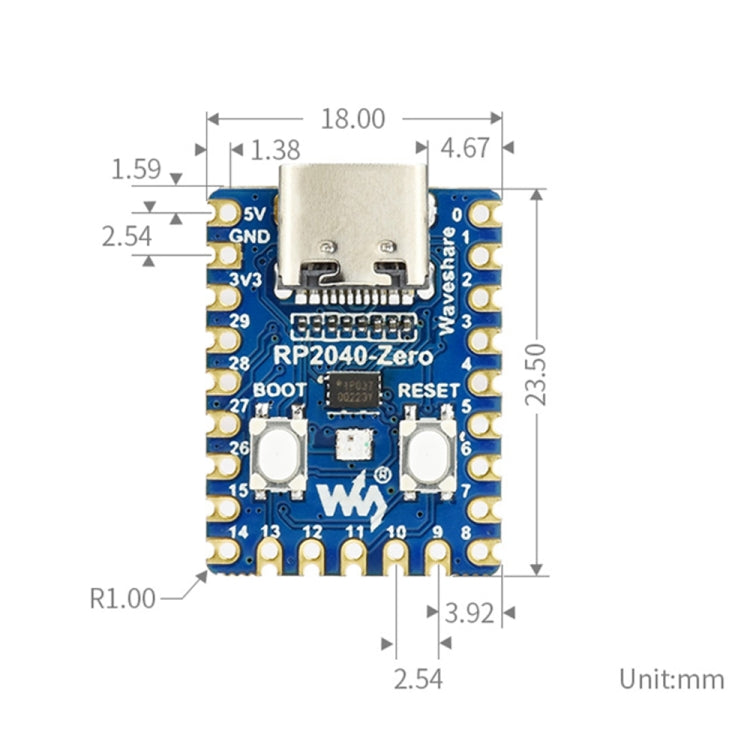

- Dimensions: 23.5 x 18 mm
