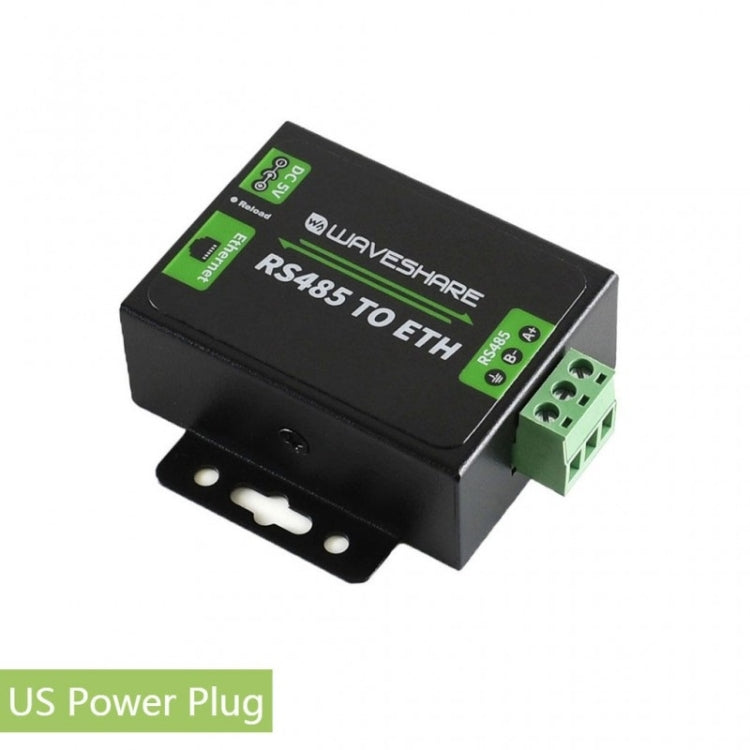

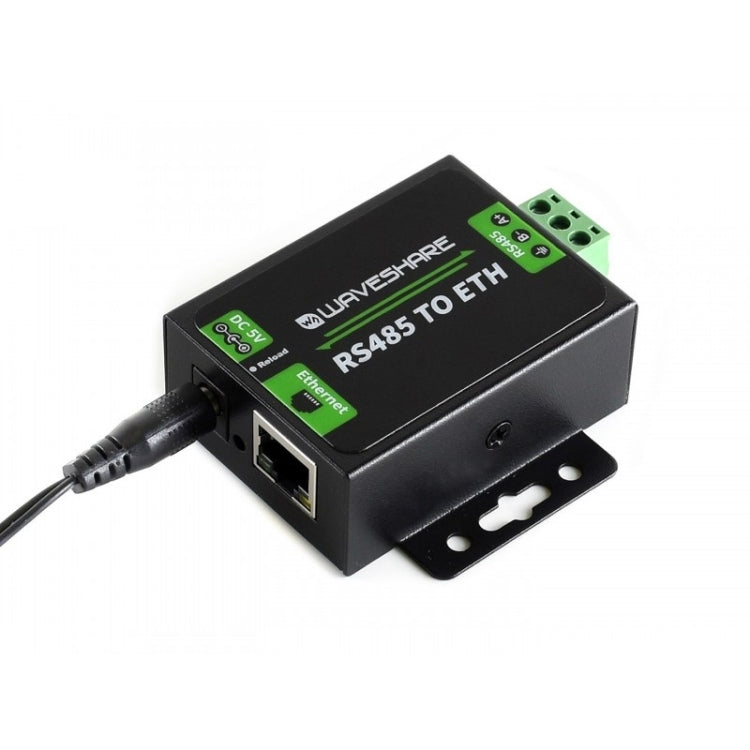

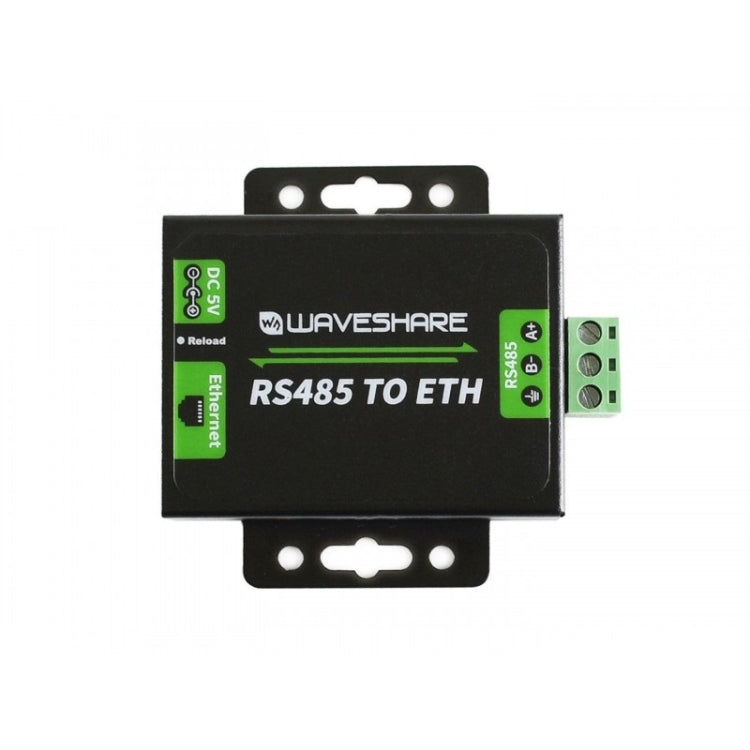

Waveshare RS485 to Ethernet Converter, US Plug
Waveshare RS485 to Ethernet Converter, US Plug
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R294.37/mo 3 months
- R148.85/mo 6 months
- R78.56/mo 12 months
- From R294.37/month over 3 months, or as low as R78.56/month over 12. Total repayable over 12 months: R942.72. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
RS485 to Ethernet Converter designed for communication between RS485 and RJ45 port Ethernet. It is suitable for applications requiring stable and configurable network connections.
- Processor: M0 series 32-bit ARM
- Ethernet Interface: 10/100M Auto-MDI/MDIX
- Configurable RS485 baudrate: 600bps~230.4Kbps
- Parity check options: None, Odd, Even, Mark, Space
- Working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client
- Configuration methods: Webpage, AT commands, serial protocol, network protocol
- Customizable heartbeat and registration packets
- Customizable webpage for module configuration
- RFC2217-like protocol support
- KeepAlive mechanism for connection stability
- Time-out reboot feature
- DNS domain name resolution support
- DHCP support for IP configuration
- Firmware upgradable via network
- Factory reset capability
- Default MAC address, customizable
- Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- Example code available for various programming languages

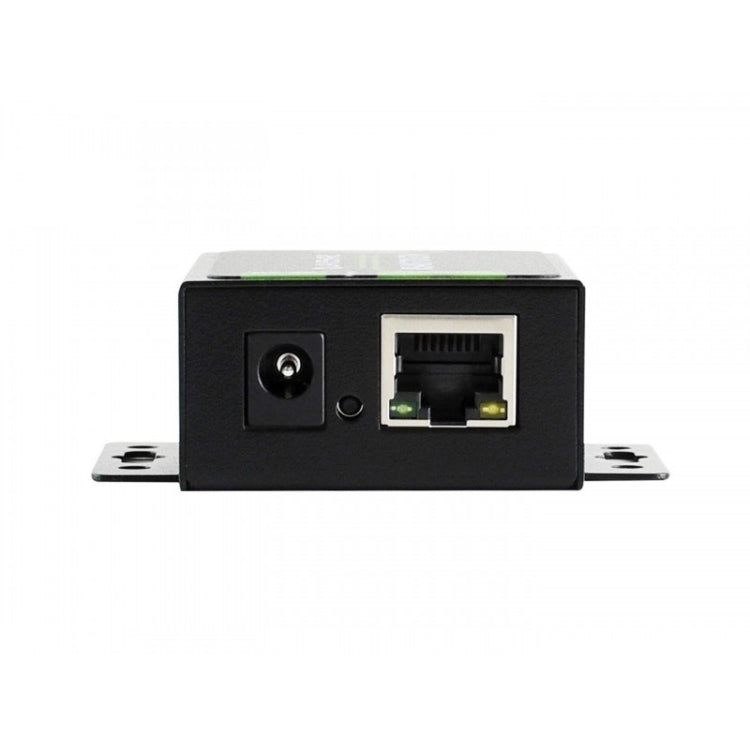

- Ethernet Connector: 4-pin RJ45
- Communication rate: 10/100Mbps
- Interface protection: 1.5KV electromagnetic isolation
- Protocols supported: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
- TX cache: 6Kbyte
- RX cache: 4Kbyte

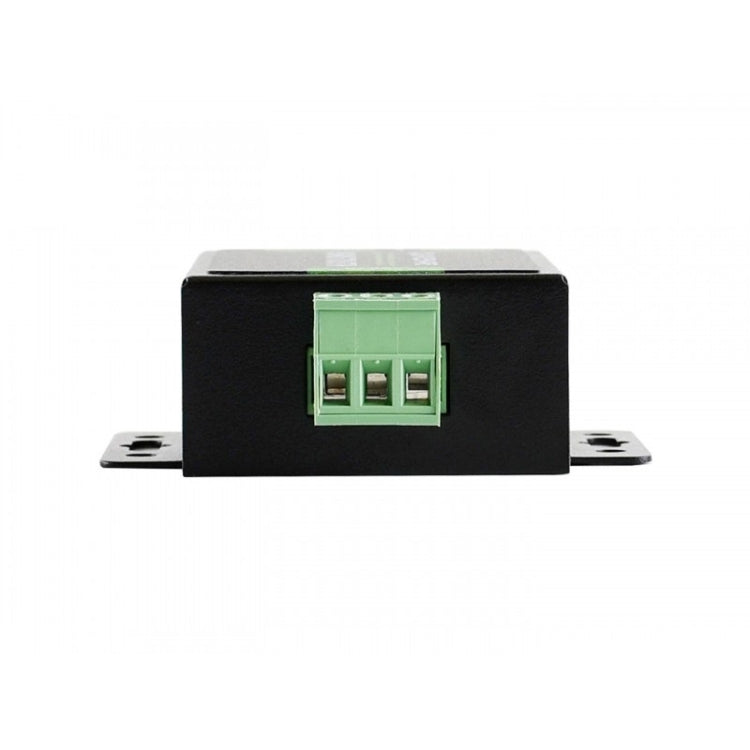

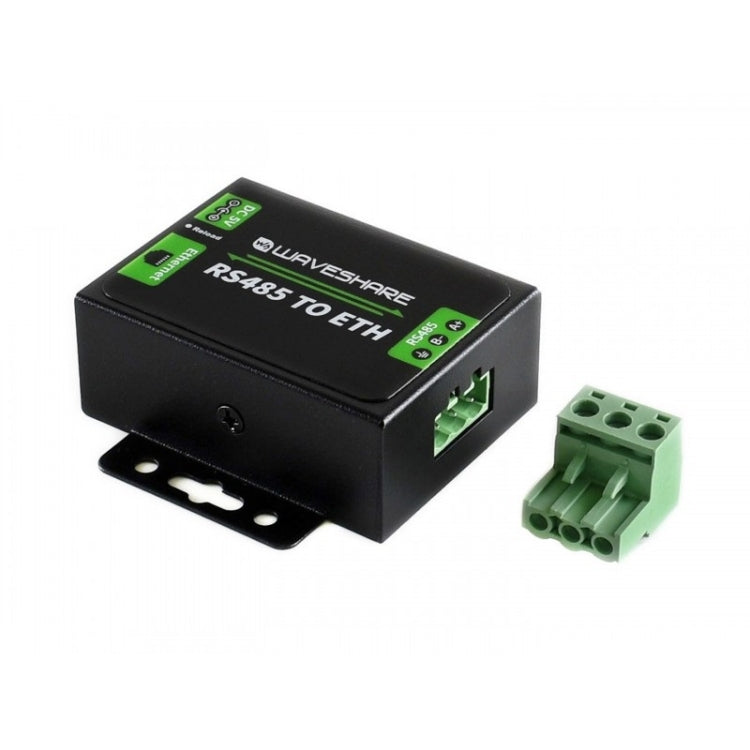

- RS485 Connector: screw terminal (A+, B-, GND)
- Data bit options: 5bit, 6bit, 7bit, 8bit
- Stop bit options: 1, 2
- RS485 RX cache: 800byte
- Power supply: 5.0~7.0V (5V recommended)
- Operating current: 150mA (@5V)
- Power consumption: <1W
- Operating temperature: -25~75°C
- Storage temperature: -40~105°C
- Dimensions: 69.65mm x 63.59mm x 25.47mm
