Description
The Waveshare SIM8262A-M2 is a 5G module designed for high-throughput data communication. It is suitable for applications such as intelligent gateways, drones, and telemedicine.
- Product Type: 5G Module
- 5G Standard: 3GPP R16
- Chip: Qualcomm Snapdragon X62
- Sub-6G Bands: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
- LTE-FDD Bands: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
- LTE-TDD Bands: B38, B41, B42, B43, B46, B48
- WCDMA Bands: B1, B2, B4, B5, B8
- GNSS Support: GPS, GLONASS, Beidou, Galileo, QZSS
- Operating Temperature: -30 to 70 degrees Celsius
- SIM Card Voltage: 1.8V/2.95V
- Antenna: 4 x IPEX-4 connectors for 3G/4G/5G/GNSS
- Power Supply: 3.135-4.4V
- Interface: M.2

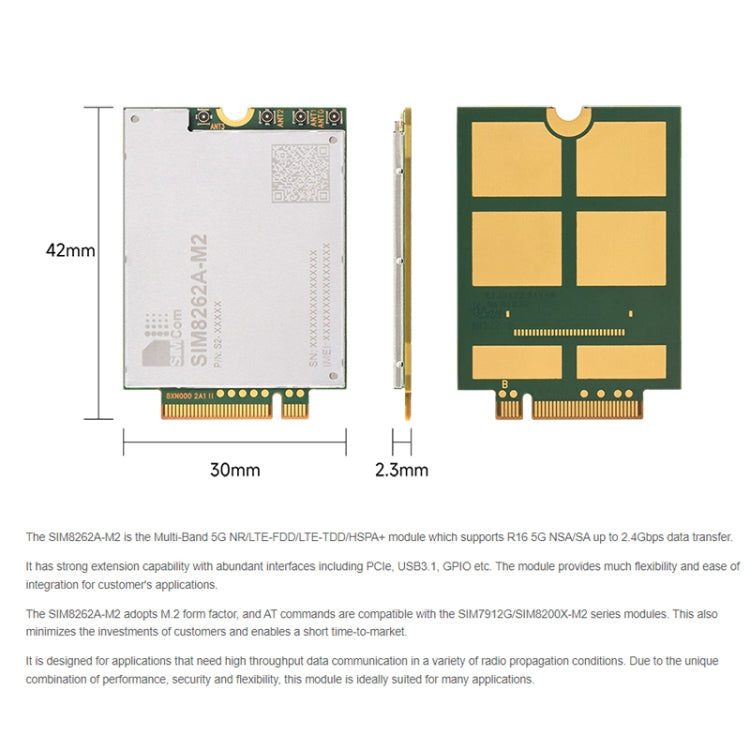

- Dimensions: 42 x 30 x 2.3 mm
- Data Rate: Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL); LTE: 1 Gbps (DL) / 200 Mbps (UL); HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
- Operating System Compatibility: Windows, Linux, Android
- Communication Protocols: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
- Dialing Methods: RNDIS, NDIS, PPP, MBIM
- SMS Support: MT, MO, CB, Text, PDU
- Firmware Upgrade: Supports firmware upgrade via USB port
- Applicable Areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security
