Product details
Description

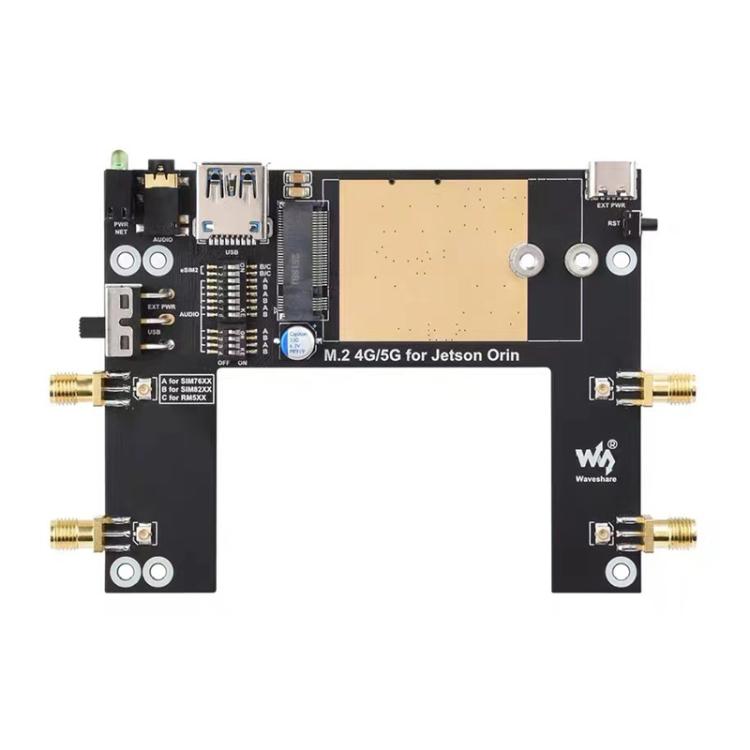

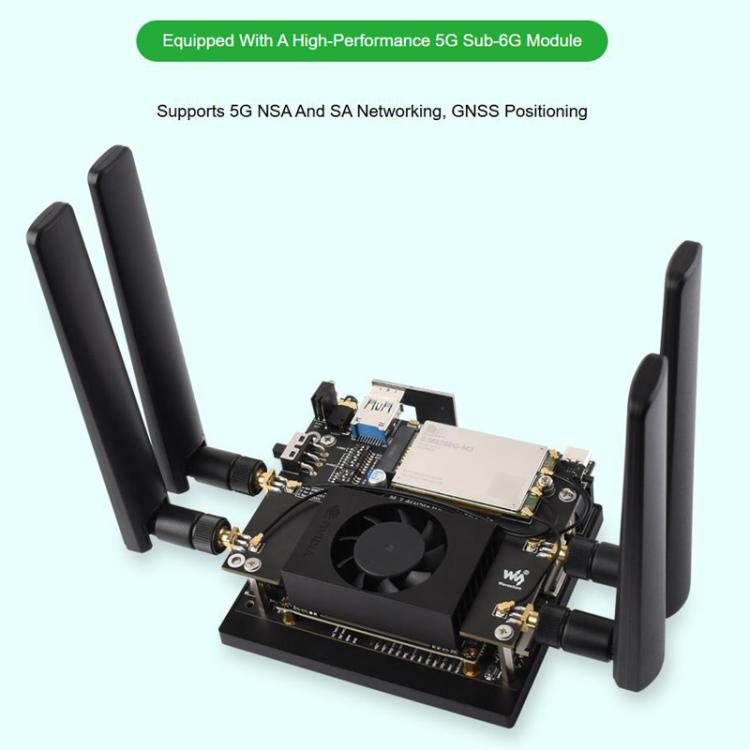

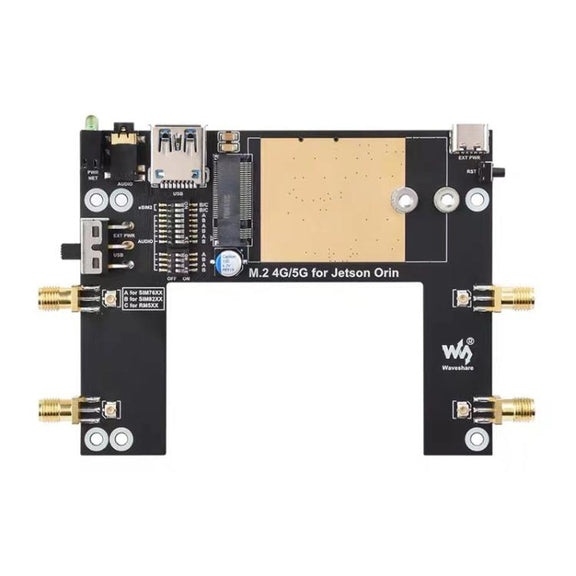

The WAVESHARE SIM8262E-M2 5G module is designed for high-speed 5G connectivity and GNSS positioning. It is suitable for applications requiring reliable internet access and precise location tracking.
- Product Type: Module Expansion Accessory
- Compatibility: Jetson Orin

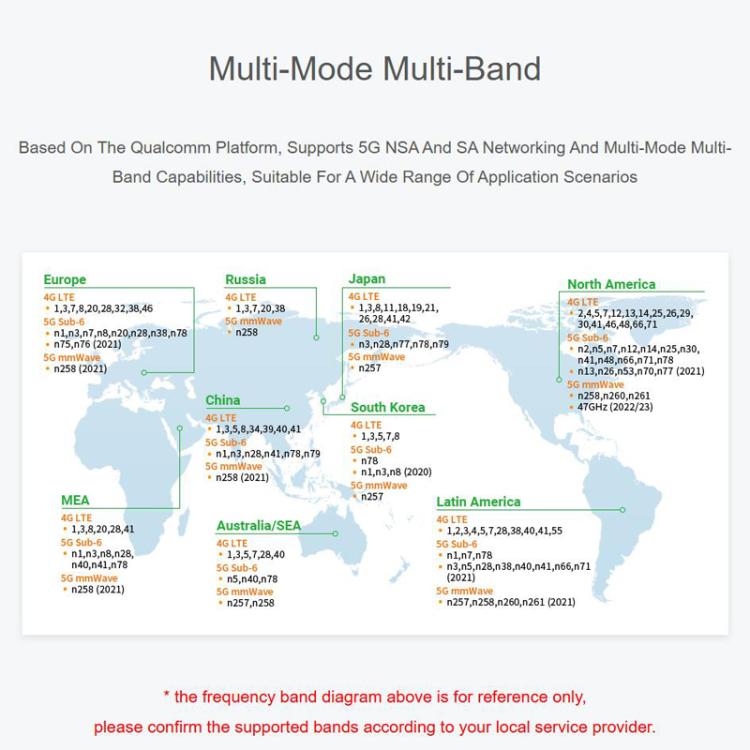

- 5G Support: 5G NSA and SA networking
- 5G Standard: 3GPP R16
- Chip Solution: Qualcomm Snapdragon X625
- LTE Speed: 1.6Gbps (Download) / 200Mbps (Upload)
- HSPA+ Speed: 42Mbps (Download) / 5.76Mbps (Upload)

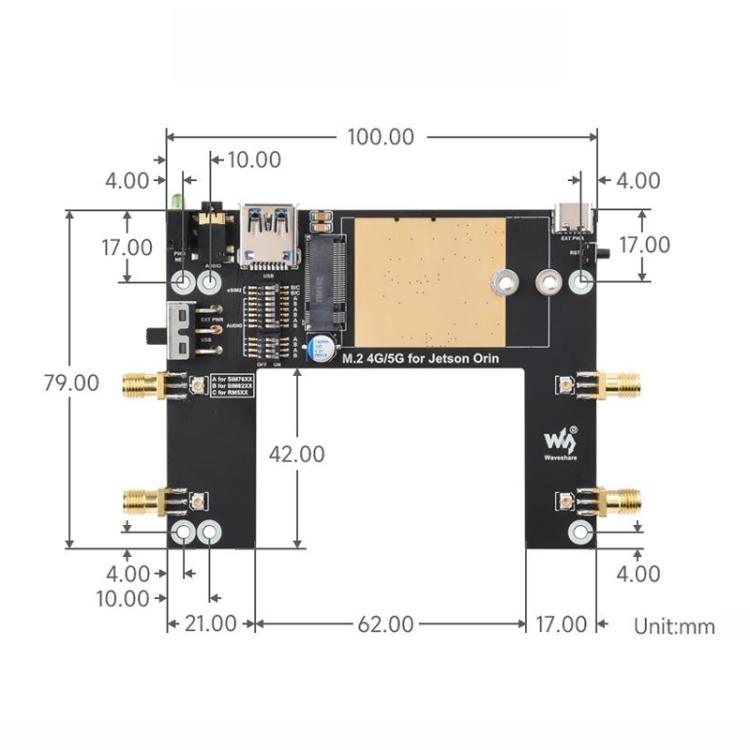

- Size: Approximately 10 x 7.9 cm
- Positioning: Dual-frequency with GPS, GLONASS, BeiDou, Galileo, and QZSS

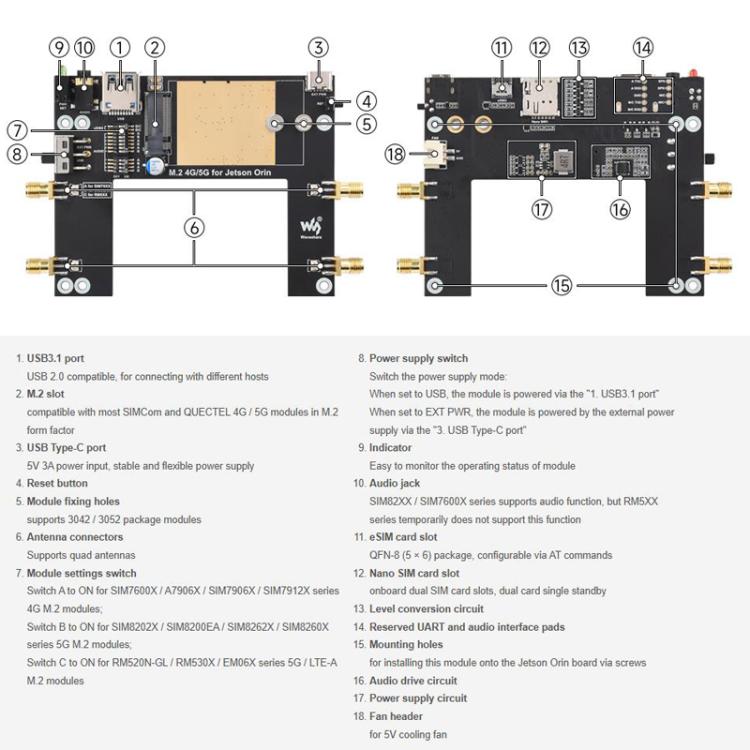

- USB Interface: Onboard USB 3.1, backward compatible with USB 2.0
- M.2B KEY Standard Interface: Yes
- Antenna Interfaces: 4 SMA to IPEX conversion interfaces
- UART Pad Interface: Reserved for data transmission
- SIM Card Slots: 1 Nano SIM and 1 QFN-8 (5×6) eSIM, dual card single standby
- Audio Interface: Onboard audio interface and audio decoder chip
- Power Supply: High-efficiency circuit, outputs up to 3A current
- Control Features: Onboard power switch, reset button, and LED indicator

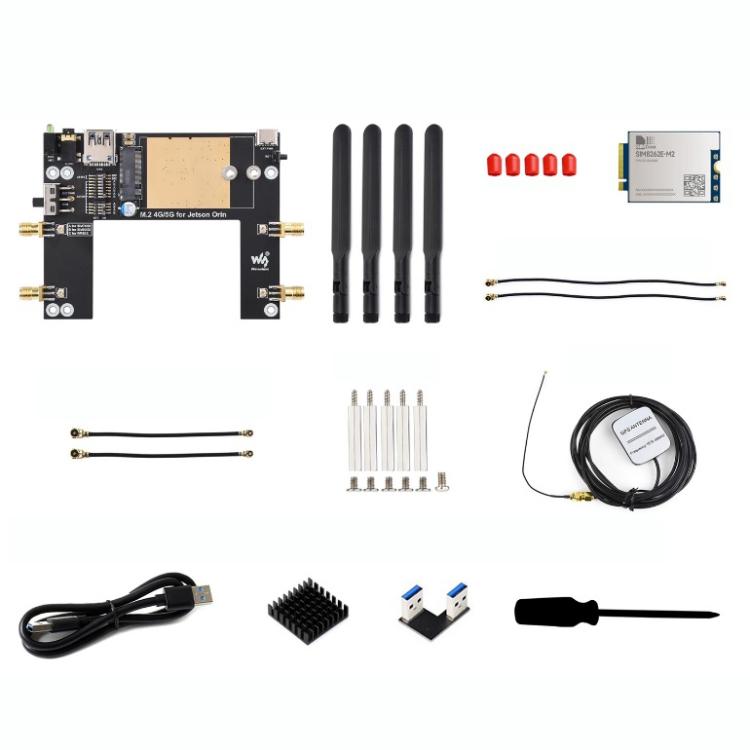

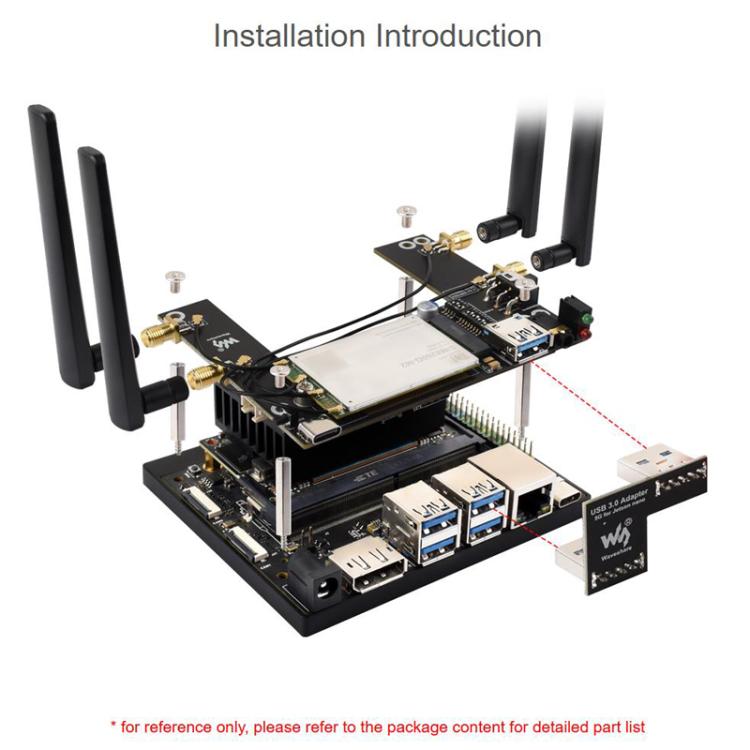

- Packing List: Expansion board, module, 5G antennas (4), SMA dust protection caps (5), IPEX cables (2 of 13cm, 2 of 5cm), screw kit, GPS antenna, dual USB cable, cooler, USB converter, screwdriver
